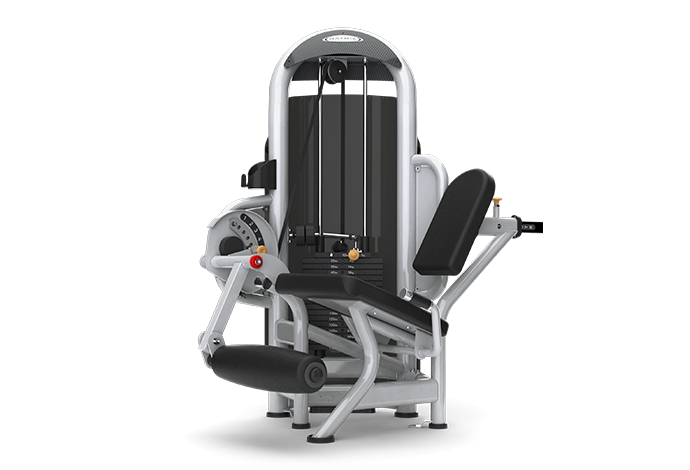

Matrix Commercial - G3-S71P - 2008

Repair Parts for Matrix Commercial G3-S71P G3GM08

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Name: G3-S71P

Version: 2008

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 700139 000508-D B24 Foot Pad;Rubber;60mm No Model Compatibility List $5.15 / Each

9,3,12,13,14
B 700140 000509-E B25 Foot Pad;Rubber;89mm No Model Compatibility List $9.10 / Each

9,3,12,13,14
B 700162 000542-C B23 Foot pad;Weight Plate;Rubber;GM01 No Model Compatibility List $25.51 / Each

9,3,12,13,14
E 700183 000593-B E08 Foam Grip;31.8x5.0x95L No Model Compatibility List $2.44 / Each

11
B 700256 000791-B B29 Water Bottle Holder No Model Compatibility List $13.47 / Each

1
D 700398 001240-F D19 Pad;Swivel Axle Label;GM03 No Model Compatibility List $1.79 / Each

8,12,13,14
Q 700448 001402-A Q04 End Cap;Round No Model Compatibility List $1.79 / Each

9
Q 700450 001405-A Q12 End Cover;60 No Model Compatibility List $1.66 / Each

9
Q 700452 001407-A Q11 End-Cover;Square Tube;GM03 No Model Compatibility List $1.66 / Each

9,3
Q 700493 001509-D Q05 Fix Rubber Block;Cover;Rubber;GM01 No Model Compatibility List $1.79 / Each

9
K 700494 001510-B K11 Grommet;Guide Rod No Model Compatibility List $1.79 / Each

2,3
Q 700496 001512-C Q03 Cover;Pulley;ABS;GM01 ABS No Model Compatibility List $1.79 / Each

8,9
K 700497 001513-A K07 Rubber Block;Shock Absorb No Model Compatibility List $8.55 / Each

1
L 700517 001521-E L08 Stopper Block;Incremental Rubber No Model Compatibility List $2.44 / Each

1
F 700518 001522-B F11 Stopper Block;Rubber No Model Compatibility List $3.64 / Each

1
F 700519 001523-E F10 Rubber Stop;CAM No Model Compatibility List $3.64 / Each

1
Q 700521 001526-D Q06 Bolt;Cover;M8x1.25Px40L No Model Compatibility List $2.52 / Each

2,9
B 700528 001531-AA B26 Stopper Bolt;Back Pad No Model Compatibility List $3.64 / Each

2,4,5,6,12,13,14
F 701159 004077-A2 F13 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

8
D 701183 004118-00 D22 Bearing;Dry;Flange;LEF-2015 LFF-2015 No Model Compatibility List $3.64 / Each

8
B 701288 004356-00 B43 Screw;Phillip;BH;M4x0.7Px12L;Gap; No Model Compatibility List $2.00 / Each

2
F 701436 004482-AB F15 Screw;Hex Socket;Round;M8x1.25Px20L;Cr No Model Compatibility List $2.00 / Each

2
K 701694 004720-AH K17 Screw;Hex Socket;Oval;M8X1.25PX20L No Model Compatibility List $2.00 / Each

2
F 701888 004918-00 F12 Nut;Cap;M8x1.25P;BP No Model Compatibility List $0.34 / Each

2,9
E 701898 004926-AC E27 Nut;Self Locking;M8x1.25P;Cr;Nylon Insert No Model Compatibility List $2.00 / Each

2
F 701914 004943-00 F19 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

2,3
F 701915 004944-00 F60 Nut;Nylon;M5x0.8P;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
B 701939 004975-00 B27 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

2
D 701968 005007-00 D24 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

2
C 701981 005017-00 C27 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

7,2,12,13,14
K 702000 005040-00 K18 Washer;Flat;Diam.8.5xDiam.19.0x1.5T;;Bla No Model Compatibility List $1.85 / Each

2
B 702056 005084-00 B35 Washer;Flat;5.3X10.0X1.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
L 702098 005130-00 L10 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
D 702102 005132-00 D23 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
B 702146 005180-A B51 Washer;Sawtooth;INT;4.3X8X0.5T;;BAN; No Model Compatibility List $0.34 / Each

2
K 702308 005847-A K25 Lanyard;Weight Selection Pin No Model Compatibility List $20.05 / Each

3,12,13,14
V 702316 005984-G V08 Decal;Upper Cover No Model Compatibility List $25.51 / Each

7,9,3
V 702383 006611-E V03 Decal;Weight Plate;15LBS (Contains decals up to 295lbs) No Model Compatibility List $27.59 / Each

7,3
V 702389 006617-A V04 Decal;cam adjustable;GM08 No Model Compatibility List $3.74 / Each

7,3
V 702401 006629-A V02 Decal;Back Pad Adjustable;MX-S71;GM08 No Model Compatibility List $4.97 / Each

7,3,4,5,6,12,13,14
V 702407 006651-B V09 Decal;Weight Plate;5P No Model Compatibility List $3.41 / Each

7,3
C 702505 008234-C C51 Bushing;Fixed Plate No Model Compatibility List $9.10 / Each

8,3
F 702520 008448-D F08 Fix Plate;Pulley;;SPC;;BED;;GM01 No Model Compatibility List $3.15 / Each

8,3
B 702523 008450-G B44 Upper Cover Snug Plate;L Shaped Bracket;SPC Thickness: 1.5mm No Model Compatibility List $1.53 / Each

2,9,3,4,5,6
F 702530 008522-C F24 Washer;Swivel Axle;;;SS41;;Cr;;; No Model Compatibility List $3.64 / Each

2,8
D 702531 008523-B D32 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $9.10 / Each

2
F 702534 008544-G F16 Cam Cover No Model Compatibility List $150.28 / Each

9
K 702646 009219-D K05 Connecting Axle;Belt;SS41;Zn Plate(BL);GM01 No Model Compatibility List $6.79 / Each

8,15,3
D 702671 009289-F D14 Adjustable Axle;Back Pad ;GM03 No Model Compatibility List $3.64 / Each

8,4,5,6,12,13,14
F 702692 009319-C F06 Weight;Increase Plate;H200;GM08 No Model Compatibility List $42.59 / Each

3
D 702702 009339-C D42 Fix Ring;Round Pad;GM03 No Model Compatibility List $14.12 / Each

12,13,14
E 702710 009355-B E30 Stopper Mast;Foam;AL6061;GM02 No Model Compatibility List $3.64 / Each

1
E 702722 009372-E E22 Cap;Grip;GM02 No Model Compatibility List $13.36 / Each

9,11
C 702965 013422-Z1G2 C19 Adjustment Knob Set;Seat;Yellow No Model Compatibility List $36.48 / Each

12,13,14
D 702966 013422-ZG2 D21 Adjust Pin Assembly;ROM;Yellow No Model Compatibility List $36.48 / Each

3,12,13,14
A 703459 014780-H AF4 Pulley Set;GM01 No Model Compatibility List $91.23 / Each

8
A 703640 015771-A AL1 Weight Storage Horn Set No Model Compatibility List $37.62 / Each

3
A 703641 015772-A AL2 Incremental Weight Adjustment Rod;GM01 No Model Compatibility List $34.40 / Each

3
L 703686 015806-AA L07 Increment Weight Plate;5LBS No Model Compatibility List $36.30 / Each

3
K 703738 015943-AA K06 Weight Plate Set;15 Lbs;Dry Bearing No Model Compatibility List $67.57 / Each

8,3
D 703897 019118-AA D44 Cover;Round Pad;Left;GM03 No Model Compatibility List $3.35 / Each

9,12,13,14
D 703898 019119-AA D45 Cover;Round Pad;Right;GM03 No Model Compatibility List $3.64 / Each

9,12,13,14
C 703902 019153-A C20 Pull pin knob; Yellow No Model Compatibility List $6.79 / Each

12,13,14
C 704039 020126-DB C50 Screw;Seat Stopper;M8x1.25Px20L No Model Compatibility List $1.79 / Each

2,12,13,14
C 704137 020304-AC C25 Screw;Hex Socket;M10X1.5PX35L;Cr Plate No Model Compatibility List $2.00 / Each

2,3
C 704206 020479-A C26 Washer;Flat;10.2x22.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Q 704232 020699-A Q10 Rivet;1/8X12.5L No Model Compatibility List $1.79 / Each

1
D 704296 022316-A D46 Sleeve;Round Pad;60X4.0TX560L;GM03 No Model Compatibility List $16.64 / Each

3,12,13,14
D 704315 022394-B D25 Sleeve;SS41;Chrome Plate No Model Compatibility List $16.87 / Each

7,3,12,13,14
F 705079 035711-A F09 Belt;Flat;Kevlar **Order BY THE FOOT, e.g. 8 ft = qty 8** No Model Compatibility List $13.68 / Each

9,15,3
J 706986 067941-C J14 Cap;25x50x3.0T;GM20 No Model Compatibility List $1.79 / Each

9
C 707066 1000090006 C49 End Cover;Seat Tube Sleeve No Model Compatibility List $3.64 / Each

9,3,12,13,14
C 707084 1000090177 C20 Pull Pin Handle;Orange;TPP;137C;MS10 No Model Compatibility List $9.10 / Each

12,13,14,11
C 707967 1000097258 C17 Sleeve;Seat Tube No Model Compatibility List $13.57 / Each

3,12,13,14
C 708071 1000098871 C19 Pull Pin Set;Seat;Orange Knob No Model Compatibility List $40.64 / Each

12,13,14
D 708084 1000099214 D21 Pull Pin Set;Orange Knob No Model Compatibility List $36.48 / Each

12,13,14
C 708091 1000099499 C52 Screw;SH;M8X1.25PX14L;;HS;;CHM;;SP No Model Compatibility List $1.66 / Each

2
B 708446 1000102862 B28 Screw;Hex Socket;Round;M8x1.25Px30L;Cr P No Model Compatibility List $2.00 / Each

2
F 708450 1000102866 F14 Screw;Hex Socket;Round;M10x1.5Px80L;Cr P No Model Compatibility List $0.86 / Each

2
F 708453 1000102869 F32 Screw;Hex Socket;Round;M12x1.75Px25L;Cr No Model Compatibility List $3.43 / Each

2
L 708454 1000102870 L14 Screw;Hex Socket;BH;M5x0.8Px16L;Cr Plate No Model Compatibility List $0.42 / Each

2,3
E 708456 1000102872 E26 Screw;Hex Socket;BH;M8x1.25Px25L;Cr Plat No Model Compatibility List $1.66 / Each

2
F 708471 1000102889 F22 Screw;FH;M10x25L;-;HS;-;CHM;BP;G10.9; No Model Compatibility List $2.18 / Each

2
B 708473 1000102893 B31 Screw;Hex Socket;Flat;M8x1.25Px20L;Cr Pl No Model Compatibility List $1.38 / Each

2
B 708478 1000102898 B33 Screw;Hex Head;M5x0.8Px15L;Zn;Adhere No Model Compatibility List $0.21 / Each

2
B 708483 1000102909 B50 Washer;Internal Teeth;5.3x10.0x0.6t;BE No Model Compatibility List $0.10 / Each

2
K 708489 1000102915 K13 Circlip;E Type;;E-15;Cr Plate No Model Compatibility List $0.86 / Each

2,3
B 708656 1000104683 B34 RVN;NLS7-580-5.7;Pattern;YZN No Model Compatibility List $0.96 / Each

1
F 708674 1000104704 F21 Screw;RND;M5x0.8Px35L;HS;CHM;BP;G8.8 No Model Compatibility List $1.04 / Each

2
F 708689 1000104726 F31 Washer;WW;20.7x29.1x0.3t;65Mn;BAN No Model Compatibility List $2.00 / Each

2
K 710560 1000210968 K09 GUIDE ROD;-;GR;WP;GM08KM-G3; No Model Compatibility List $193.36 / Each

3
K 710720 1000212618 K10 Adjust set;Semi-Assy;;Service;;GM30C;; No Model Compatibility List $63.86 / Each

1
714795 1000318303 AK1 Up Weight Plate Set-Exreawork;;;;;GM08; No Model Compatibility List $219.67 / Each

3
716625 1000337889 V08 LOGO Label;Cap;Planet Fitness;Black Word No Model Compatibility List $13.49 / Each

9,4,5,6
6 716649 1000338414 6 Superstructure group;Semi-Assy;;;;GM01;P No Model Compatibility List $64.19 / Each

1
718100 1000349275 1 Frame set;;;Iced Sliver;GM08KM-G3;;Servi No Model Compatibility List $0.00 / Each
Out Of Stock 		3

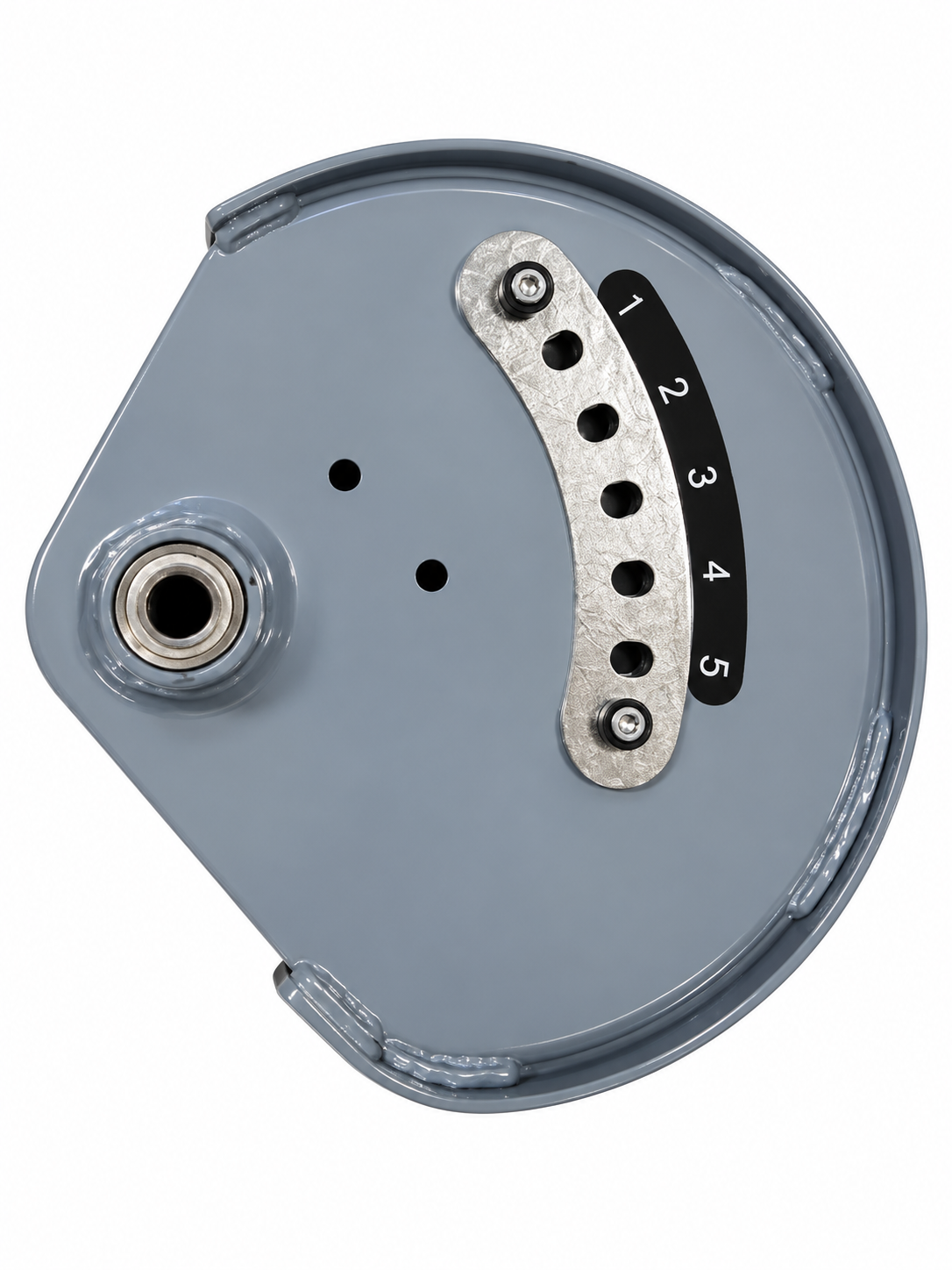

718101 1000349277 3 CAM SET;;;Iced Sliver;GM08KM-G3;;Service No Model Compatibility List $0.00 / Each
Out Of Stock 		1

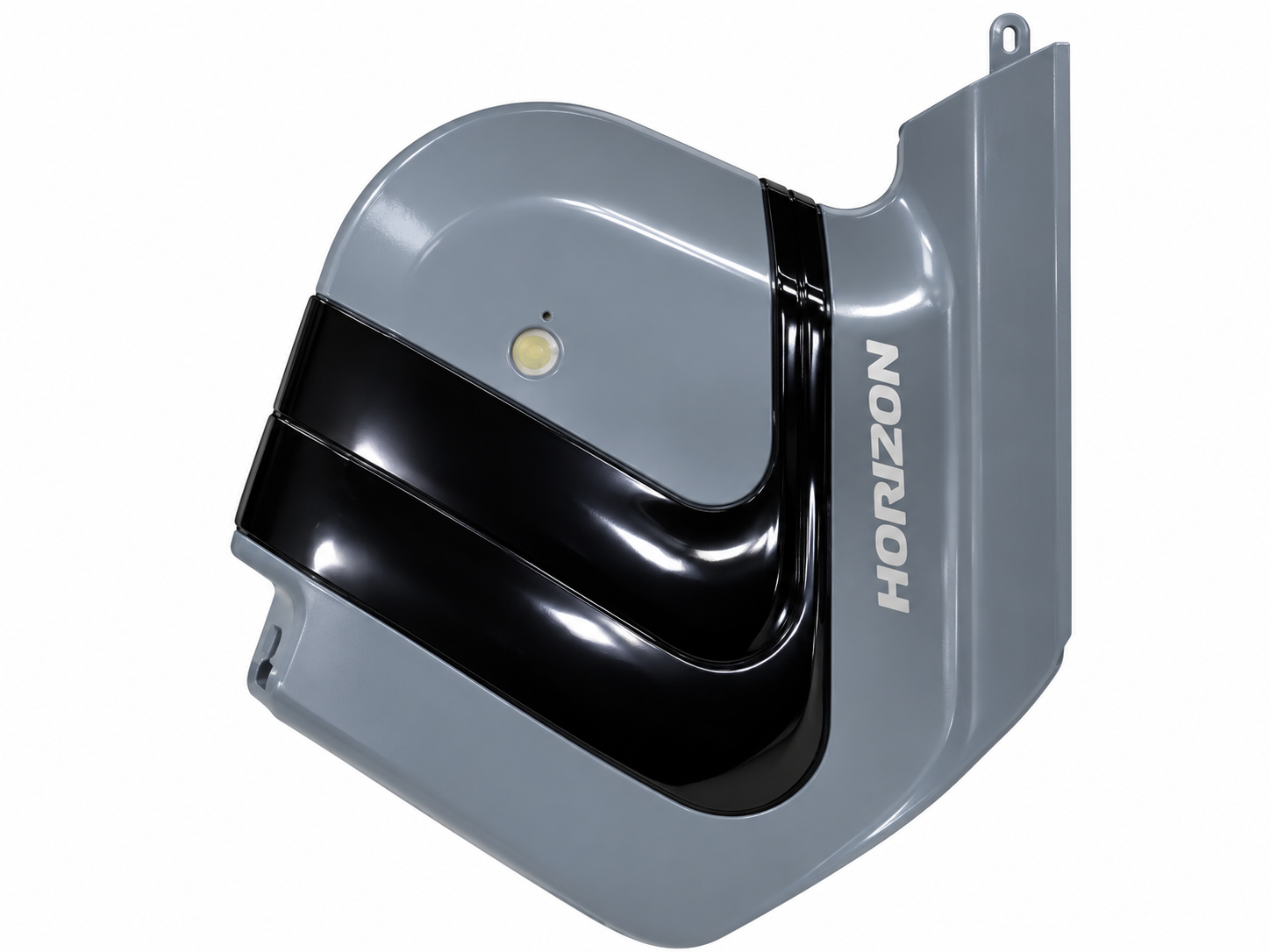

718102 1000349278 5 Handle Set;;;Iced Sliver;GM08KM-G3;;Serv No Model Compatibility List $0.00 / Each
Out Of Stock 		11
718103 1000349279 2 Swivel arm set;;;Iced Sliver;GM08KM-G3; No Model Compatibility List $175.73 / Each

3

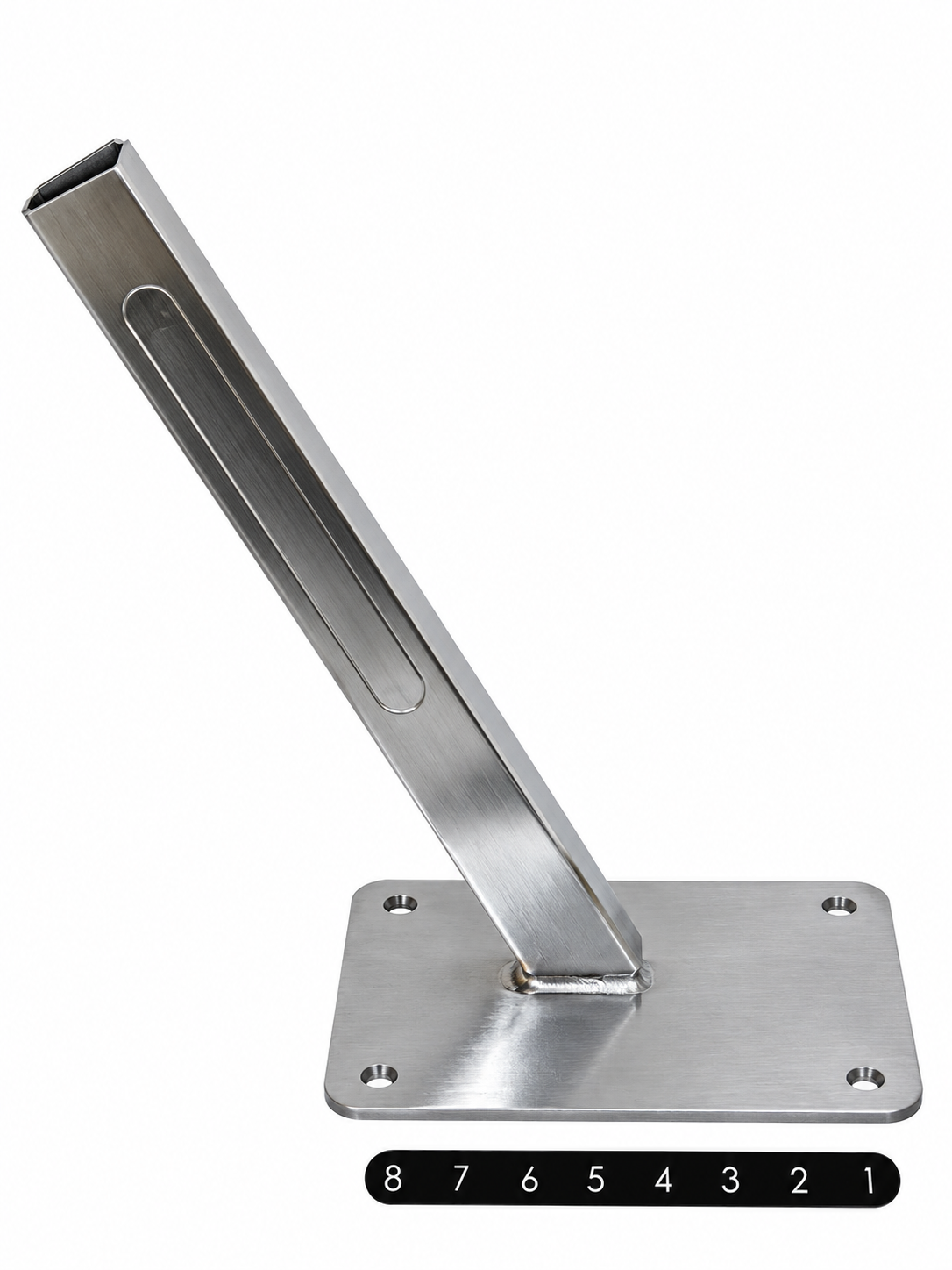

718104 1000349280 4 Back Pad Adjustable Set;;;Iced Sliver;GM No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14

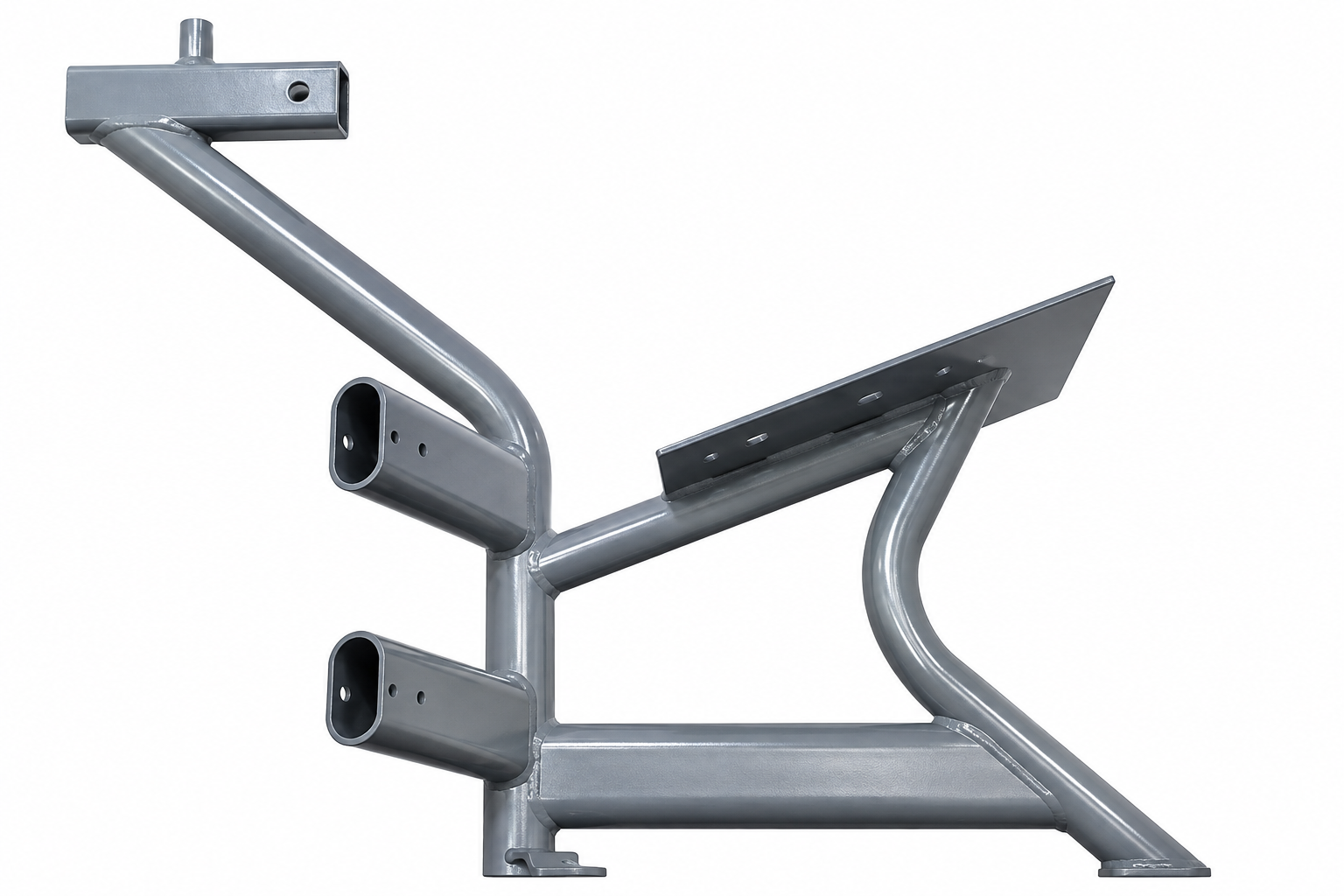

718246 1000349619 AC1 base set;;;painting;;Iced Sliver;GM08KM- No Model Compatibility List $0.00 / Each
Out Of Stock 		3

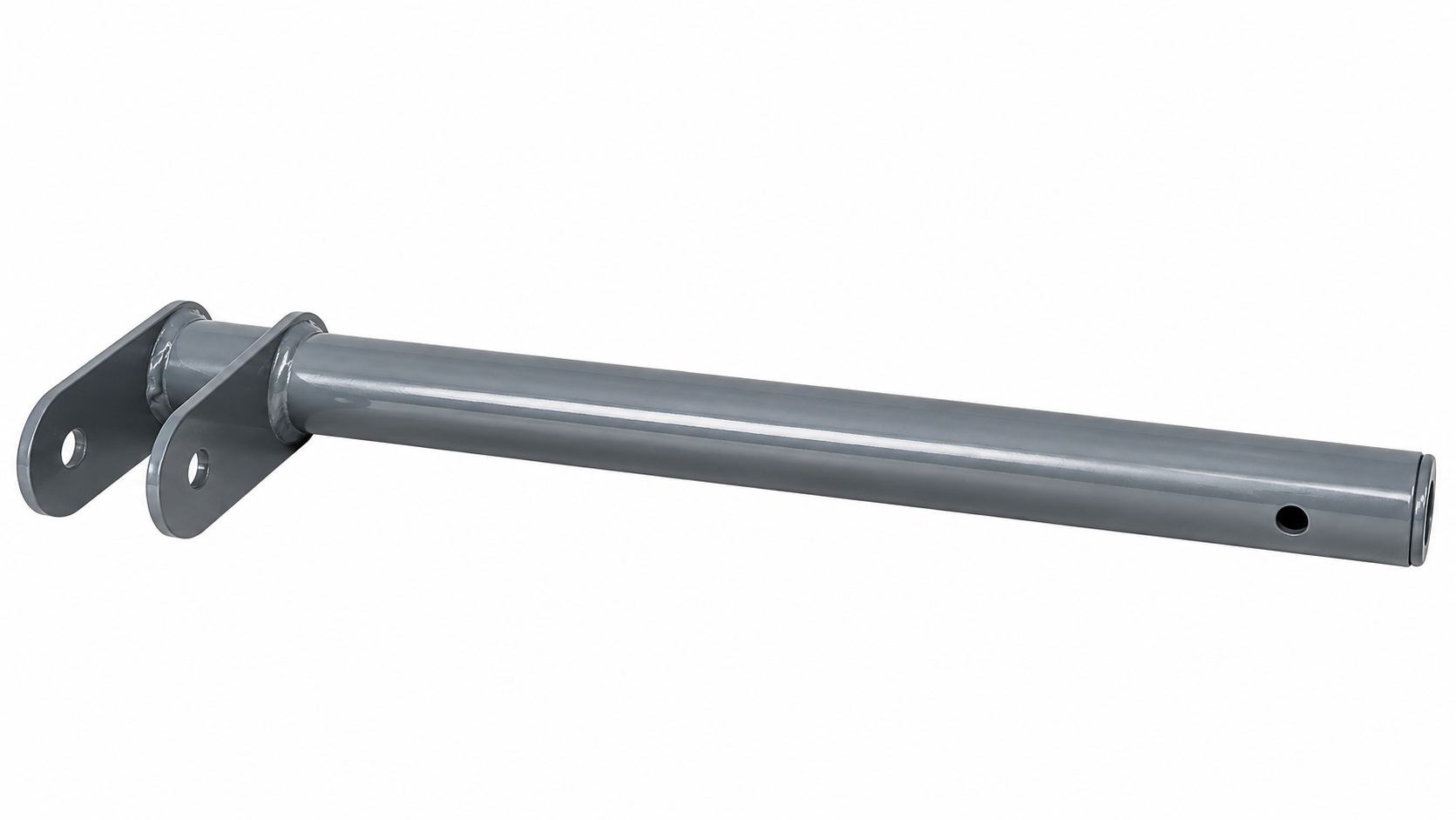

718247 1000349624 AD2 Foot Pad Adjustable Set;;;painting;;Ice No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3,12,13,14

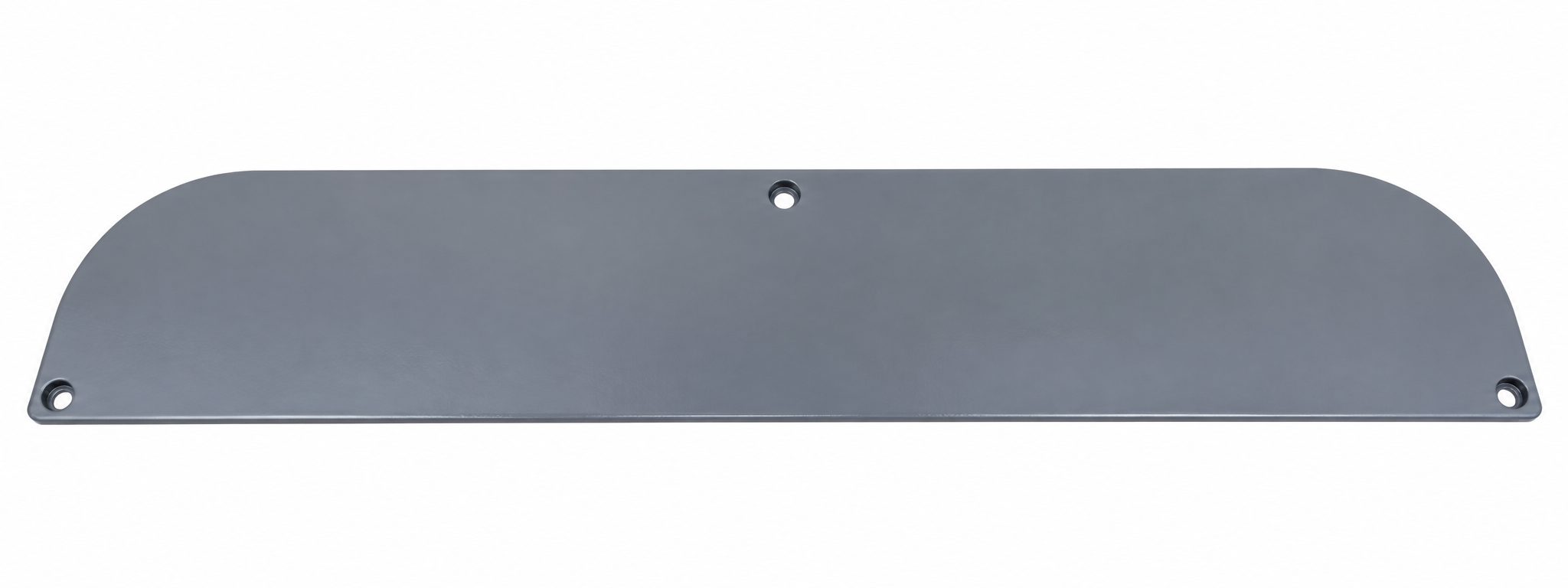

718249 1000349626 B55 Accent Plate;;;painting;;Iced Sliver;GM0 No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
Q 719573 1000362619 Q01 Cover set;Semi-Assy;;Arcylic;;GM03;;incl No Model Compatibility List $630.34 / Each

9
N 719669 1000363588 Not Shown Stopper set;Guide Rod;;painting;;;MS20; No Model Compatibility List $35.46 / Each

3
K 720426 1000372591 K10 Adjustable Pin;Weight Plate;;42CrMo;Chro No Model Compatibility List $54.73 / Each

7,3,12,13,14
725738 075339 D16 Swivel Axle;SCM4;GM08 No Model Compatibility List $30.94 / Each

8
Placard Holder 725996 079123 B46 Placard Holder No Model Compatibility List $34.94 / Each

4,5,6
Screw;Hex Socket;Umbrella;;;M8x1.25Px18L 726047 079527 B47 Screw;Hex Socket;Umbrella;;;M8x1.25Px18L No Model Compatibility List $2.18 / Each

2
726607 083458 Z62 Washer;Lock;8.2x13.5x2.0t No Model Compatibility List $2.00 / Each

2
Sticker;Cover;Up;AL;SNAP-GM01 726620 083532 V08 Sticker;Cover;Up;AL;SNAP-GM01 No Model Compatibility List $25.56 / Each

9
Screw Set;M6X1.0PX5L;BP;POT 726707 084241 Z06 Screw Set;M6X1.0PX5L;BP;POT No Model Compatibility List $0.39 / Each

2
Cover set;Semi-Assy;GM01 726868 085728 7 Cover set;Semi-Assy;GM01 No Model Compatibility List $81.28 / Each

9
Illustration Decal;ENG;GM08 726911 085975 V01 Illustration Decal;ENG;GM08 No Model Compatibility List $33.46 / Each

7,3
726987 086517 H65 Screw;Round Hex Socket;M10x1.5Px25L No Model Compatibility List $3.64 / Each

2
727280 088301 Not Shown Hardware;Semi-Assy;GM08-G3 No Model Compatibility List $104.86 / Each

1
729012 Order Kit 1 AB1 Console Base Set;Semi-Assy;;;;TM701-1US; No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
729024 Order Kit 2 AD1 Motor set;Semi-Assy;;;;TM701-1US;;Servic No Model Compatibility List $0.00 / Each
Out Of Stock 		10
729027 Order Kit 3 AF3 Sleeve Set;Semi-Assy;;;;TM658E-2KM;; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729261 See Pad Matrix Not Shown Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
729659 ZMS4003271 Not Shown Decal, QR, G3-S71 Leg Ext. No Model Compatibility List $6.37 / Each

7,3
906040 Order Kit 5 AE5 Cover;Sensor;right;ABS/PA746;426C;;TM502 No Model Compatibility List $0.00 / Each
Out Of Stock 		3,7
