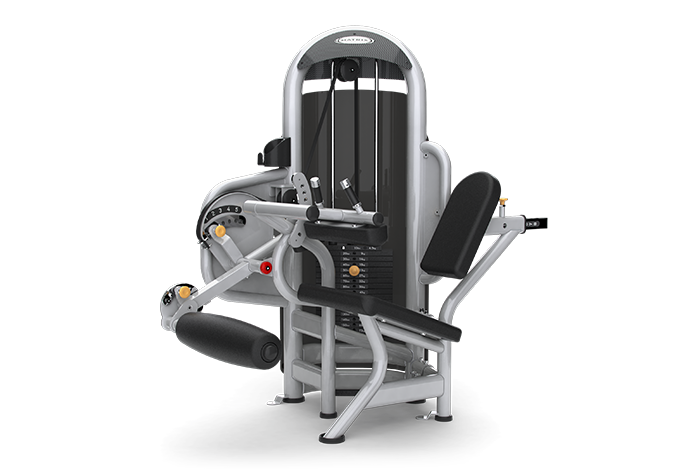

Matrix Commercial - G3-S72P - 2008

Repair Parts for Matrix Commercial G3-S72P G3GM09

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Name: G3-S72P

Version: 2008

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
C 700139 000508-D C24 Foot Pad;Rubber;60mm No Model Compatibility List $5.15 / Each

9,3,12,13,14
B 700162 000542-C B20 Foot pad;Weight Plate;Rubber;GM01 No Model Compatibility List $25.51 / Each

9,3,12,13,14
H 700172 000583-C H10 Foam Grip;Handlebar;25.4x5x87L No Model Compatibility List $2.44 / Each

11
B 700256 000791-B B32 Water Bottle Holder No Model Compatibility List $13.47 / Each

1
D 700398 001240-F D26 Pad;Swivel Axle Label;GM03 No Model Compatibility List $1.79 / Each

8,12,13,14
Q 700448 001402-A Q04 End Cap;Round No Model Compatibility List $1.79 / Each

9
Q 700450 001405-A Q13 End Cover;60 No Model Compatibility List $1.66 / Each

9
Q 700452 001407-A Q11 End-Cover;Square Tube;GM03 No Model Compatibility List $1.66 / Each

9,3
K 700492 001508-E K20 Long Guide Rubber Plate;POM No Model Compatibility List $27.48 / Each

3
Q 700493 001509-D Q05 Fix Rubber Block;Cover;Rubber;GM01 No Model Compatibility List $1.79 / Each

9
K 700494 001510-B K11 Grommet;Guide Rod No Model Compatibility List $1.79 / Each

2,3
K 700497 001513-A K07 Rubber Block;Shock Absorb No Model Compatibility List $8.55 / Each

1
L 700517 001521-E L08 Stopper Block;Incremental Rubber No Model Compatibility List $2.44 / Each

1
F 700518 001522-B F14 Stopper Block;Rubber No Model Compatibility List $3.64 / Each

1
D 700519 001523-E D31 Rubber Stop;CAM No Model Compatibility List $3.64 / Each

1
D 700520 001525-B D43 Rubber Pad;Stopper No Model Compatibility List $1.79 / Each

12,13,14
Q 700521 001526-D Q06 Bolt;Cover;M8x1.25Px40L No Model Compatibility List $2.52 / Each

2,9
D 701159 004077-A2 D19 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

8
D 701183 004118-00 D27 Bearing;Dry;Flange;LEF-2015 LFF-2015 No Model Compatibility List $3.64 / Each

8
B 701288 004356-00 B43 Screw;Phillip;BH;M4x0.7Px12L;Gap; No Model Compatibility List $2.00 / Each

2
F 701436 004482-AB F15 Screw;Hex Socket;Round;M8x1.25Px20L;Cr No Model Compatibility List $2.00 / Each

2
K 701694 004720-AH K17 Screw;Hex Socket;Oval;M8X1.25PX20L No Model Compatibility List $2.00 / Each

2
C 701758 004780-00 C44 Screw;Hex Socket;BH;M10x1.5Px25L;Adhere No Model Compatibility List $2.00 / Each

2
F 701914 004943-00 F21 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

2,3
F 701915 004944-00 F60 Nut;Nylon;M5x0.8P;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
B 701939 004975-00 B24 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

2
D 701968 005007-00 D29 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

2
F 701980 005016-00 F18 Washer;Spring;5.1x9.3x1.3t;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
C 701981 005017-00 C46 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

7,2,12,13,14
K 702000 005040-00 K18 Washer;Flat;Diam.8.5xDiam.19.0x1.5T;;Bla No Model Compatibility List $1.85 / Each

2
F 702056 005084-00 F17 Washer;Flat;5.3X10.0X1.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
L 702098 005130-00 L50 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
D 702102 005132-00 D28 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
B 702146 005180-A B51 Washer;Sawtooth;INT;4.3X8X0.5T;;BAN; No Model Compatibility List $0.34 / Each

2
H 702286 005478-C H19 Twist Spring;SWP;Chrome Plating No Model Compatibility List $8.22 / Each

7,2,12,13,14
K 702308 005847-A K25 Lanyard;Weight Selection Pin No Model Compatibility List $20.05 / Each

3,12,13,14
V 702316 005984-G V08 Decal;Upper Cover No Model Compatibility List $25.51 / Each

7,9,3
V 702383 006611-E V03 Decal;Weight Plate;15LBS (Contains decals up to 295lbs) No Model Compatibility List $27.59 / Each

7,3
V 702391 006619-A V04 Decal;cam adjustable;GM09 No Model Compatibility List $3.74 / Each

7,3
V 702400 006628-A V05 Decal;Foot Pad Adjustable;MX-S72;GM09 No Model Compatibility List $2.73 / Each

7,9,3,12,13,14
V 702401 006629-A V02 Decal;Back Pad Adjustable;MX-S71;GM08 No Model Compatibility List $4.97 / Each

7,3,4,5,6,12,13,14
V 702407 006651-B V09 Decal;Weight Plate;5P No Model Compatibility List $3.41 / Each

7,3
C 702505 008234-C C51 Bushing;Fixed Plate No Model Compatibility List $9.10 / Each

8,3
F 702520 008448-D F09 Fix Plate;Pulley;;SPC;;BED;;GM01 No Model Compatibility List $3.15 / Each

8,3
B 702523 008450-G B44 Upper Cover Snug Plate;L Shaped Bracket;SPC Thickness: 1.5mm No Model Compatibility List $1.53 / Each

2,9,3,4,5,6
F 702530 008522-C F24 Washer;Swivel Axle;;;SS41;;Cr;;; No Model Compatibility List $3.64 / Each

2,8
D 702531 008523-B D30 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $9.10 / Each

2
F 702534 008544-G F16 Cam Cover No Model Compatibility List $150.28 / Each

9
H 702535 008545-D H18 Cover;Adjustable Leg;;SUS304;;Chromed No Model Compatibility List $322.66 / Each

7,9,12,13,14
D 702539 008549-C D18 Cover;Adjustable Foot Pad;;SUS304;;Plate;;GM09 No Model Compatibility List $207.19 / Each

9,3,12,13,14
B 702546 008589-F B42 Fixing Horn Plate;Cover;D;SPC;;Zn Plate No Model Compatibility List $1.01 / Each

9,3
K 702646 009219-D K05 Connecting Axle;Belt;SS41;Zn Plate(BL);GM01 No Model Compatibility List $6.79 / Each

8,15,3
702652 009227-E F43 Fix Cap;Pulley; No Model Compatibility List $4.58 / Each

8,9
D 702671 009289-F D17 Adjustable Axle;Back Pad ;GM03 No Model Compatibility List $3.64 / Each

8,4,5,6,12,13,14
D 702690 009317-CB D14 Balance Plate;SS41;GM03 No Model Compatibility List $123.92 / Each

3
D 702702 009339-C D42 Fix Ring;Round Pad;GM03 No Model Compatibility List $14.12 / Each

12,13,14
H 702711 009356-B H22 Stopper Mast;Foam;AL6061;GM03 No Model Compatibility List $3.64 / Each

1
H 702712 009357-C H11 Washer;Swivel Axle;SS41; No Model Compatibility List $14.90 / Each

2,8
K 702773 009642-F K03 Bayonet;Weight Plate;17 Aperture No Model Compatibility List $52.23 / Each

3
B 702944 013411-Z1G2 B29 Adjust Pin Assembly;Yellow Knob No Model Compatibility List $31.64 / Each

3,12,13,14
C 702965 013422-Z1G2 C19 Adjustment Knob Set;Seat;Yellow No Model Compatibility List $36.48 / Each

12,13,14
D 702966 013422-ZG2 D25 Adjust Pin Assembly;ROM;Yellow No Model Compatibility List $36.48 / Each

3,12,13,14
A 703640 015771-A AL1 Weight Storage Horn Set No Model Compatibility List $37.62 / Each

3
A 703641 015772-A AL2 Incremental Weight Adjustment Rod;GM01 No Model Compatibility List $34.40 / Each

3
L 703686 015806-AA L07 Increment Weight Plate;5LBS No Model Compatibility List $36.30 / Each

3
K 703738 015943-AA K06 Weight Plate Set;15 Lbs;Dry Bearing No Model Compatibility List $67.57 / Each

8,3
D 703897 019118-AA D44 Cover;Round Pad;Left;GM03 No Model Compatibility List $3.35 / Each

9,12,13,14
D 703898 019119-AA D45 Cover;Round Pad;Right;GM03 No Model Compatibility List $3.64 / Each

9,12,13,14
D 703902 019153-A D23 Pull pin knob; Yellow No Model Compatibility List $6.79 / Each

12,13,14
D 703951 019961-A D61 Bearing;Dry;LLF-3550;Tai Gi No Model Compatibility List $9.10 / Each

8
C 704039 020126-DB C50 Screw;Seat Stopper;M8x1.25Px20L No Model Compatibility List $1.79 / Each

2,12,13,14
C 704043 020127-AC C52 Screw;SH;M8X1.25PX12L;;HS;;CHM;; No Model Compatibility List $1.79 / Each

2
Z 704137 020304-AC Z01 Screw;Hex Socket;M10X1.5PX35L;Cr Plate No Model Compatibility List $2.00 / Each

2,3
F 704168 020393-AB F20 Nut;AC;M8X1.25P;SS41;Chromed No Model Compatibility List $2.00 / Each

7,2,4,5,6,12,13,14
C 704193 020465-AB C45 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
D 704223 020643-A D47 Clamp;External C-Shaped;S-50;BED; No Model Compatibility List $1.79 / Each

4,5,6
Q 704232 020699-A Q10 Rivet;1/8X12.5L No Model Compatibility List $1.79 / Each

1
D 704296 022316-A D46 Sleeve;Round Pad;60X4.0TX560L;GM03 No Model Compatibility List $16.64 / Each

3,12,13,14
D 704315 022394-B D21 Sleeve;SS41;Chrome Plate No Model Compatibility List $16.87 / Each

7,3,12,13,14
H 704324 022409-A H20 Round Pin;5x15L;S45C No Model Compatibility List $1.74 / Each

12,13,14
705031 031751-J B38 Axle;Pin;Market;GM09 No Model Compatibility List $13.42 / Each

8,12,13,14
705032 031753-J C30 Axle;Pin;35CrMo;GM02 No Model Compatibility List $11.73 / Each

8,12,13,14
F 705079 035711-A F08 Belt;Flat;Kevlar **Order BY THE FOOT, e.g. 8 ft = qty 8** No Model Compatibility List $13.68 / Each

9,15,3
J 706986 067941-C J14 Cap;25x50x3.0T;GM20 No Model Compatibility List $1.79 / Each

9
C 707066 1000090006 C49 End Cover;Seat Tube Sleeve No Model Compatibility List $3.64 / Each

9,3,12,13,14
D 707084 1000090177 D23 Pull Pin Handle;Orange;TPP;137C;MS10 No Model Compatibility List $9.10 / Each

12,13,14,11
C 707967 1000097258 C18 Sleeve;Seat Tube No Model Compatibility List $13.57 / Each

3,12,13,14
C 708071 1000098871 C19 Pull Pin Set;Seat;Orange Knob No Model Compatibility List $40.64 / Each

12,13,14
D 708084 1000099214 D25 Pull Pin Set;Orange Knob No Model Compatibility List $36.48 / Each

12,13,14
B 708099 1000099693 B29 Pull Pin Set;Orange Knob No Model Compatibility List $73.92 / Each

12,13,14
B 708446 1000102862 B27 Screw;Hex Socket;Round;M8x1.25Px30L;Cr P No Model Compatibility List $2.00 / Each

2
F 708450 1000102866 F23 Screw;Hex Socket;Round;M10x1.5Px80L;Cr P No Model Compatibility List $0.86 / Each

2
D 708453 1000102869 D32 Screw;Hex Socket;Round;M12x1.75Px25L;Cr No Model Compatibility List $3.43 / Each

2
L 708454 1000102870 L14 Screw;Hex Socket;BH;M5x0.8Px16L;Cr Plate No Model Compatibility List $0.42 / Each

2,3
D 708466 1000102883 D60 Screw;Hex Socket;Stopper;Cone;M6x1.0Px6L No Model Compatibility List $1.66 / Each

2
D 708469 1000102887 D24 Screw;Hex Socket;Countersunk;M8x1.25Px16 No Model Compatibility List $2.18 / Each

2
B 708478 1000102898 B33 Screw;Hex Head;M5x0.8Px15L;Zn;Adhere No Model Compatibility List $0.21 / Each

2
B 708483 1000102909 B50 Washer;Internal Teeth;5.3x10.0x0.6t;BE No Model Compatibility List $0.10 / Each

2
K 708489 1000102915 K13 Circlip;E Type;;E-15;Cr Plate No Model Compatibility List $0.86 / Each

2,3
B 708656 1000104683 B45 RVN;NLS7-580-5.7;Pattern;YZN No Model Compatibility List $0.96 / Each

1
F 708674 1000104704 F12 Screw;RND;M5x0.8Px35L;HS;CHM;BP;G8.8 No Model Compatibility List $1.04 / Each

2
F 708689 1000104726 F31 Washer;WW;20.7x29.1x0.3t;65Mn;BAN No Model Compatibility List $2.00 / Each

2
F 708710 1000105038 F30 Pin;Spring;5x30L;OXIDIZE No Model Compatibility List $3.64 / Each

2,12,13,14
710073 1000206676 Not Shown Protected Pad;;PU,Vesicant;Black;PURE GY No Model Compatibility List $18.56 / Each

4,5,6,12,13,14
710074 1000206679 Not Shown Protected Pad;;PU,Vesicant;Black;PURE GY No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
K 710560 1000210968 K09 GUIDE ROD;-;GR;WP;GM08KM-G3; No Model Compatibility List $193.36 / Each

3
K 710720 1000212618 K10 Adjust set;Semi-Assy;;Service;;GM30C;; No Model Compatibility List $63.86 / Each

1
711550 1000221243 Not Shown Protected Pad;Black Obsidian;Kiss Gyms; No Model Compatibility List $28.70 / Each

4,5,6,12,13,14
714795 1000318303 AK1 Up Weight Plate Set-Exreawork;;;;;GM08; No Model Compatibility List $219.67 / Each

3
716625 1000337889 V08 LOGO Label;Cap;Planet Fitness;Black Word No Model Compatibility List $13.49 / Each

9,4,5,6
5 716649 1000338414 5 Superstructure group;Semi-Assy;;;;GM01;P No Model Compatibility List $64.19 / Each

1
718105 1000349281 1 Frame set;;;Iced Sliver;GM09KM-G3;;Servi No Model Compatibility List $0.00 / Each
Out Of Stock 		3

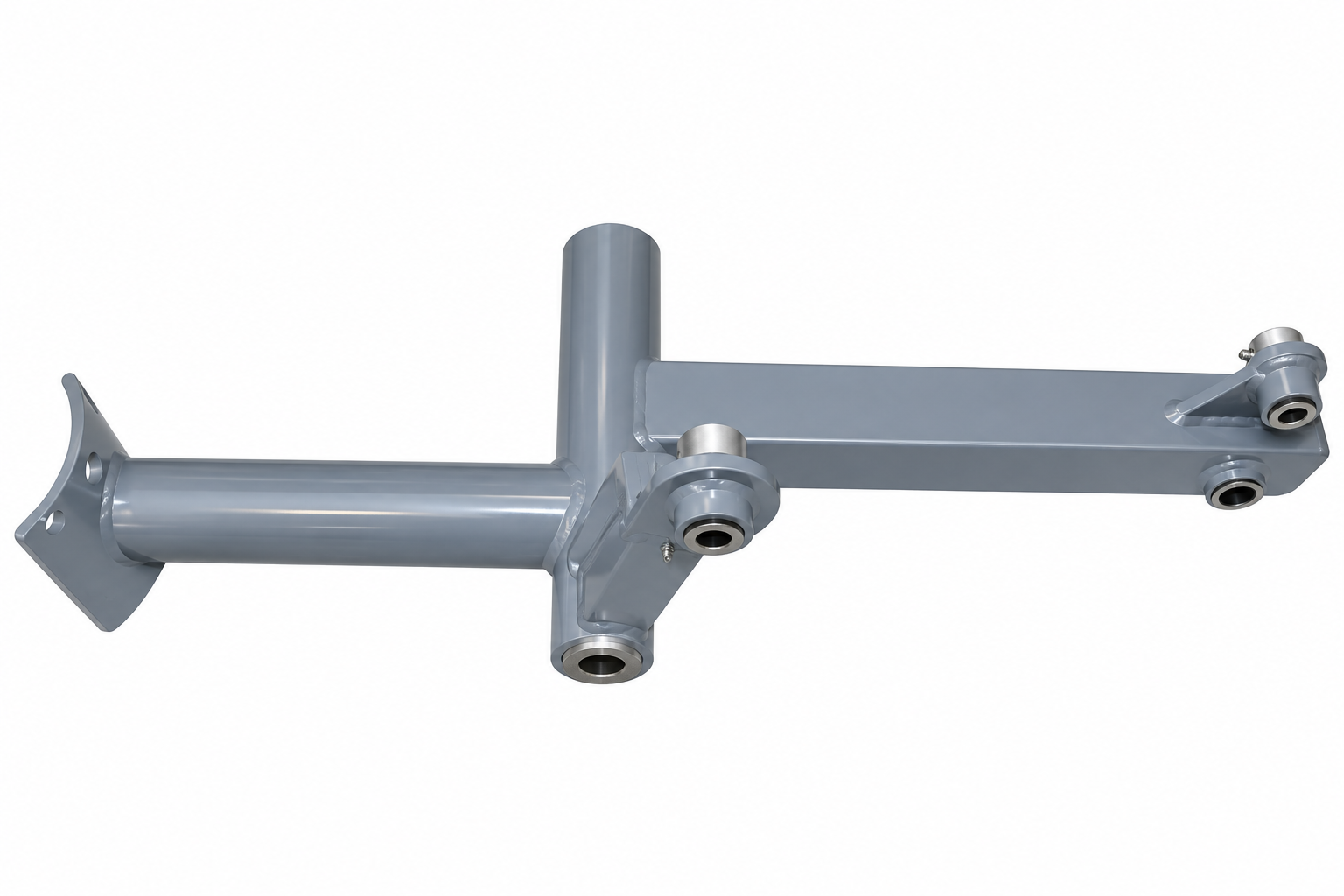

718106 1000349282 2 Swivel arm set;;;Iced Sliver;GM09KM-G3; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
718107 1000349283 3 CAM SET;;;Iced Sliver;GM09KM-G3;;Service No Model Compatibility List $0.00 / Each
Out Of Stock 		1
718108 1000349284 4 Foot Adjustable Set;;;Iced Sliver;GM09KM No Model Compatibility List $419.09 / Each

9,3
718246 1000349619 AC1 base set;;;painting;;Iced Sliver;GM08KM- No Model Compatibility List $0.00 / Each
Out Of Stock 		3
718248 1000349625 B56 Stopper;;;painting;;Iced Sliver;GM08KM-G No Model Compatibility List $0.00 / Each
Out Of Stock 		1
718250 1000349631 AD2 Foot Pad Adjustable Set;;;painting;;Ice No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3,12,13,14
Q 719573 1000362619 Q01 Cover set;Semi-Assy;;Arcylic;;GM03;;incl No Model Compatibility List $630.34 / Each

9
N 719669 1000363588 Not Shown Stopper set;Guide Rod;;painting;;;MS20; No Model Compatibility List $35.46 / Each

3
719682 1000363760 V20 Warning Label;Frame;;;PC;;English; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720185 1000369167 V20 Warning Label;Frame;;;PC;;English/French No Model Compatibility List $0.00 / Each
Out Of Stock 		3
K 720426 1000372591 K10 Adjustable Pin;Weight Plate;;42CrMo;Chro No Model Compatibility List $54.73 / Each

7,3,12,13,14
725290 069285 AZ1 Hardware;GM10 No Model Compatibility List $111.44 / Each

1
725743 075538 AF4 Pulley Set;Semi-Assy;GM09-G3 No Model Compatibility List $52.62 / Each

8
Placard Holder 725996 079123 B46 Placard Holder No Model Compatibility List $34.94 / Each

4,5,6
Screw;Hex Socket;Umbrella;;;M8x1.25Px18L 726047 079527 B47 Screw;Hex Socket;Umbrella;;;M8x1.25Px18L No Model Compatibility List $2.18 / Each

2
726607 083458 Z62 Washer;Lock;8.2x13.5x2.0t No Model Compatibility List $2.00 / Each

2
Sticker;Cover;Up;AL;SNAP-GM01 726620 083532 V08 Sticker;Cover;Up;AL;SNAP-GM01 No Model Compatibility List $25.56 / Each

9
Screw Set;M6X1.0PX5L;BP;POT 726707 084241 Z06 Screw Set;M6X1.0PX5L;BP;POT No Model Compatibility List $0.39 / Each

2
Cover set;Semi-Assy;GM01 726868 085728 7 Cover set;Semi-Assy;GM01 No Model Compatibility List $81.28 / Each

9
726912 085976 V01 Illustration Decal;ENG;GM09 No Model Compatibility List $36.14 / Each

7,3
726987 086517 H65 Screw;Round Hex Socket;M10x1.5Px25L No Model Compatibility List $3.64 / Each

2
728134 093223 D16 Swivel Axle;SCM4;20X374L;GM09KM-G3 No Model Compatibility List $48.26 / Each

8
729012 Order Kit 1 AB1 Console Base Set;Semi-Assy;;;;TM701-1US; No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
729024 Order Kit 2 AD1 Motor set;Semi-Assy;;;;TM701-1US;;Servic No Model Compatibility List $0.00 / Each
Out Of Stock 		10
729027 Order Kit 3 AF1 Sleeve Set;Semi-Assy;;;;TM658E-2KM;; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729261 See Pad Matrix J05 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
729660 ZMS4003272 Not Shown Decal, QR, G3-S72 Seated Leg Curl No Model Compatibility List $6.37 / Each

7,3,12,13,14
906040 Order Kit 5 Q02 Cover;Sensor;right;ABS/PA746;426C;;TM502 No Model Compatibility List $0.00 / Each
Out Of Stock 		3,7
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
