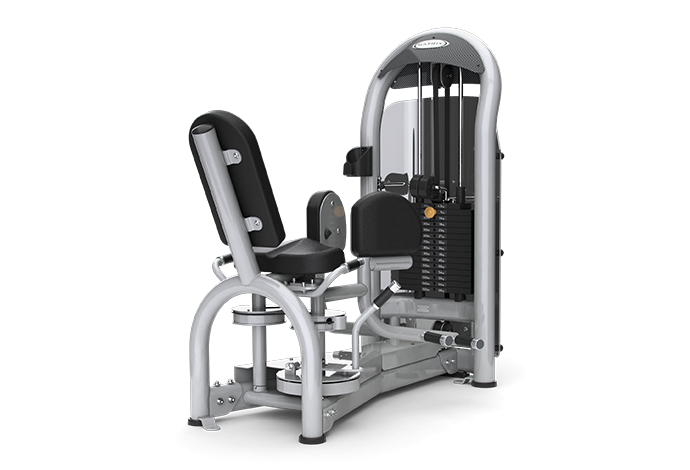

Matrix Commercial - G3-S74P - 2008

Repair Parts for Matrix Commercial G3-S74P G3GM17

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Name: G3-S74P

Version: 2008

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 700140 000509-E B15 Foot Pad;Rubber;89mm No Model Compatibility List $9.10 / Each

9,3,12,13,14
C 700141 000510-D C11 Foot Pad;Rubber;76.2mm No Model Compatibility List $5.69 / Each

9,3,12,13,14
H 700153 000523-C H15 Rubber Pad;GM17 No Model Compatibility List $3.15 / Each

12,13,14
B 700162 000542-C B14 Foot pad;Weight Plate;Rubber;GM01 No Model Compatibility List $25.51 / Each

9,3,12,13,14
H 700177 000586-F H10 Foam Grip;25.4x5.0x75L No Model Compatibility List $3.35 / Each

11
D 700181 000591-C D22 Foam Grip;31.8x5.0x105L No Model Compatibility List $9.10 / Each

11
B 700256 000791-B B21 Water Bottle Holder No Model Compatibility List $13.47 / Each

1
Q 700447 001401-A Q04 End Cap;76.2 No Model Compatibility List $3.64 / Each

9
Q 700448 001402-A Q07 End Cap;Round No Model Compatibility List $1.79 / Each

9
Q 700452 001407-A Q11 End-Cover;Square Tube;GM03 No Model Compatibility List $1.66 / Each

9,3
Q 700454 001410-A Q08 End Cover;Elliptical;40x80 No Model Compatibility List $3.64 / Each

9
K 700492 001508-E K20 Long Guide Rubber Plate;POM No Model Compatibility List $27.48 / Each

3
Q 700493 001509-D Q05 Fix Rubber Block;Cover;Rubber;GM01 No Model Compatibility List $1.79 / Each

9
K 700494 001510-B K11 Grommet;Guide Rod No Model Compatibility List $1.79 / Each

2,3
D 700495 001511-A D21 Fix Rubber Block;Swivel Axle;POM;GM17 No Model Compatibility List $6.29 / Each

8
Q 700496 001512-C Q03 Cover;Pulley;ABS;GM01 ABS No Model Compatibility List $1.79 / Each

8,9
K 700497 001513-A K07 Rubber Block;Shock Absorb No Model Compatibility List $8.55 / Each

1
L 700517 001521-E L08 Stopper Block;Incremental Rubber No Model Compatibility List $2.44 / Each

1
D 700519 001523-E D31 Rubber Stop;CAM No Model Compatibility List $3.64 / Each

1
Q 700521 001526-D Q06 Bolt;Cover;M8x1.25Px40L No Model Compatibility List $2.52 / Each

2,9
F 700526 001529-B F09 Stopper Bolt;Rubber No Model Compatibility List $1.79 / Each

2
D 700527 001530-C D24 SCREW;;M10X1.5P;;;;;;BACK PAD;SR20 HEAD No Model Compatibility List $1.66 / Each

2,4,5,6,12,13,14
D 701131 003978-A D35 Strong Magnet;14x14x15;3200r};GM17 No Model Compatibility List $13.78 / Each

8
D 701159 004077-A2 D20 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

8
H 701183 004118-00 H08 Bearing;Dry;Flange;LEF-2015 LFF-2015 No Model Compatibility List $3.64 / Each

8
B 701288 004356-00 B43 Screw;Phillip;BH;M4x0.7Px12L;Gap; No Model Compatibility List $2.00 / Each

2
D 701431 004479-ABX D32 Screw;Hex Socket;Round;M8x1.25Px15L;Cr;A No Model Compatibility List $2.00 / Each

2
D 701488 004531-00 D28 Screw;Hex Socket;Round;M5X0.8PX25L;Chromed No Model Compatibility List $0.21 / Each

7,2,12,13,14
G 701522 004555-AB G35 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A No Model Compatibility List $4.00 / Each

2
L 701694 004720-AH L09 Screw;Hex Socket;Oval;M8X1.25PX20L No Model Compatibility List $2.00 / Each

2
E 701901 004929-00 E10 Nut;Nylon;M8x1.25P;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
F 701914 004943-00 F12 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

2,3
H 701968 005007-00 H14 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

2
F 701980 005016-00 F15 Washer;Spring;5.1x9.3x1.3t;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
G 701981 005017-00 G13 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

7,2,12,13,14
F 702056 005084-00 F14 Washer;Flat;5.3X10.0X1.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
L 702098 005130-00 L10 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
H 702102 005132-00 H13 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
K 702119 005145-AC K18 Washer;Flat;8.2x19.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
B 702146 005180-A B51 Washer;Sawtooth;INT;4.3X8X0.5T;;BAN; No Model Compatibility List $0.34 / Each

2
K 702308 005847-A K25 Lanyard;Weight Selection Pin No Model Compatibility List $20.05 / Each

3,12,13,14
V 702316 005984-G V08 Decal;Upper Cover No Model Compatibility List $25.51 / Each

7,9,3
V 702383 006611-E V03 Decal;Weight Plate;15LBS (Contains decals up to 295lbs) No Model Compatibility List $27.59 / Each

7,3
V 702396 006624-B V02 Decal;Angle Adjustic;MX-S74;GM17 No Model Compatibility List $3.64 / Each

7,3
V 702407 006651-B V15 Decal;Weight Plate;5P No Model Compatibility List $3.41 / Each

7,3
702415 006664-A V24 Decal;Beginning;GM17 No Model Compatibility List $0.70 / Each

7,3
F 702520 008448-D F05 Fix Plate;Pulley;;SPC;;BED;;GM01 No Model Compatibility List $3.15 / Each

8,3
B 702523 008450-G B44 Upper Cover Snug Plate;L Shaped Bracket;SPC Thickness: 1.5mm No Model Compatibility List $1.53 / Each

2,9,3,4,5,6
D 702530 008522-C D18 Washer;Swivel Axle;;;SS41;;Cr;;; No Model Compatibility List $3.64 / Each

2,8
G 702531 008523-B G36 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $9.10 / Each

2
B 702546 008589-F B42 Fixing Horn Plate;Cover;D;SPC;;Zn Plate No Model Compatibility List $1.01 / Each

9,3
K 702646 009219-D K05 Connecting Axle;Belt;SS41;Zn Plate(BL);GM01 No Model Compatibility List $6.79 / Each

8,15,3
D 702679 009303-I D19 Axle;Swivel Arm;SCM4;20x415L;GM17 No Model Compatibility List $58.92 / Each

8,3
H 702680 009304-E H06 Adjustable Axle;Center;20x119L SCM4 No Model Compatibility List $17.76 / Each

8
D 702710 009355-B D49 Stopper Mast;Foam;AL6061;GM02 No Model Compatibility List $3.64 / Each

1
E 702711 009356-B E08 Stopper Mast;Foam;AL6061;GM03 No Model Compatibility List $3.64 / Each

1
E 702721 009371-E E05 Cap;Grip;GM03 No Model Compatibility List $15.34 / Each

9,11
D 702722 009372-E D23 Cap;Grip;GM02 No Model Compatibility List $13.36 / Each

9,11
A 703459 014780-H AF4 Pulley Set;GM01 No Model Compatibility List $91.23 / Each

8
A 703641 015772-A AL2 Incremental Weight Adjustment Rod;GM01 No Model Compatibility List $34.40 / Each

3
L 703686 015806-AA L07 Increment Weight Plate;5LBS No Model Compatibility List $36.30 / Each

3
K 703738 015943-AA K06 Weight Plate Set;15 Lbs;Dry Bearing No Model Compatibility List $67.57 / Each

8,3
G 704137 020304-AC G32 Screw;Hex Socket;M10X1.5PX35L;Cr Plate No Model Compatibility List $2.00 / Each

2,3
G 704193 020465-AB G12 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
Q 704232 020699-A Q10 Rivet;1/8X12.5L No Model Compatibility List $1.79 / Each

1
704275 022204-A B45 Rear Upper Cover Snug Piece No Model Compatibility List $1.01 / Each

9
F 705079 035711-A F48 Belt;Flat;Kevlar **Order BY THE FOOT, e.g. 8 ft = qty 8** No Model Compatibility List $13.68 / Each

9,15,3
N 706633 064015-A Not Shown Hardware; No Model Compatibility List $31.72 / Each

1
D 707889 1000096640 D17 Steel Rope;6x911.2L;GM17 No Model Compatibility List $74.02 / Each

1
F 708066 1000098835 F46 Steel Rope;GM17 No Model Compatibility List $30.39 / Each

1
B 708446 1000102862 B28 Screw;Hex Socket;Round;M8x1.25Px30L;Cr P No Model Compatibility List $2.00 / Each

2
F 708450 1000102866 F10 Screw;Hex Socket;Round;M10x1.5Px80L;Cr P No Model Compatibility List $0.86 / Each

2
H 708453 1000102869 H12 Screw;Hex Socket;Round;M12x1.75Px25L;Cr No Model Compatibility List $3.43 / Each

2
L 708454 1000102870 L14 Screw;Hex Socket;BH;M5x0.8Px16L;Cr Plate No Model Compatibility List $0.42 / Each

2,3
G 708469 1000102887 G09 Screw;Hex Socket;Countersunk;M8x1.25Px16 No Model Compatibility List $2.18 / Each

2
C 708473 1000102893 C12 Screw;Hex Socket;Flat;M8x1.25Px20L;Cr Pl No Model Compatibility List $1.38 / Each

2
B 708478 1000102898 B33 Screw;Hex Head;M5x0.8Px15L;Zn;Adhere No Model Compatibility List $0.21 / Each

2
B 708483 1000102909 B50 Washer;Internal Teeth;5.3x10.0x0.6t;BE No Model Compatibility List $0.10 / Each

2
K 708489 1000102915 K12 Circlip;E Type;;E-15;Cr Plate No Model Compatibility List $0.86 / Each

2,3
D 708649 1000104672 D25 Screw;BH;M5x0.8Px10L;HS;CST;CST;CST;CHM; No Model Compatibility List $0.60 / Each

2
B 708656 1000104683 B23 RVN;NLS7-580-5.7;Pattern;YZN No Model Compatibility List $0.96 / Each

1
B 708657 1000104684 B16 RVN;Pattern;YZN;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $3.35 / Each

1
F 708674 1000104704 F11 Screw;RND;M5x0.8Px35L;HS;CHM;BP;G8.8 No Model Compatibility List $1.04 / Each

2
708678 1000104711 G37 Screw;BH;M10x1.5Px40L;HS;CHM;BP;G8.8 No Model Compatibility List $4.26 / Each

2
709044 1000108531 F48 BELT;FLAT;;2200MM;;;GM17KM-G3 No Model Compatibility List $0.00 / Each
Out Of Stock 		15
709062 1000108794 G38 Screw;Hex;M10x1.5Px30L;CHM;BP;G8.8 No Model Compatibility List $1.72 / Each

2
710073 1000206676 Not Shown Protected Pad;;PU,Vesicant;Black;PURE GY No Model Compatibility List $18.56 / Each

4,5,6,12,13,14
K 710562 1000210970 K09 Guide Rail;19x1070L No Model Compatibility List $155.74 / Each

9
K 710720 1000212618 K10 Adjust set;Semi-Assy;;Service;;GM30C;; No Model Compatibility List $63.86 / Each

1
711550 1000221243 Not Shown Protected Pad;Black Obsidian;Kiss Gyms; No Model Compatibility List $28.70 / Each

4,5,6,12,13,14
A 714800 1000318315 AK1 Up Weight Plate Set-Exreawork;;;;;GM17; No Model Compatibility List $185.87 / Each

3
Q 716649 1000338414 Q02 Superstructure group;Semi-Assy;;;;GM01;P No Model Compatibility List $64.19 / Each

1
718114 1000349290 AB1 Frame set;;;Iced Sliver;GM17KM-G3;;Servi No Model Compatibility List $0.00 / Each
Out Of Stock 		3
718115 1000349291 AD1 pedal arm set;;right;Iced Sliver;GM17KM- No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
718116 1000349292 AD2 pedal arm set;;left;Iced Sliver;GM17KM-G No Model Compatibility List $1076.37 / Each

8,9,3
718117 1000349293 AE1 Handle Set;;right;Iced Sliver;GM17KM-G3; No Model Compatibility List $0.00 / Each
Out Of Stock 		11
718118 1000349294 AE2 Handle Set;;left;Iced Sliver;GM17KM-G3;; No Model Compatibility List $0.00 / Each
Out Of Stock 		11
A 718119 1000349295 AH1 Adjustment set;cam;;Iced Sliver;GM17KM-G No Model Compatibility List $79.40 / Each

1
718253 1000349645 AD4 Fixing Plate Set;;R;painting;;Iced Slive No Model Compatibility List $0.00 / Each
Out Of Stock 		3
718254 1000349646 AD5 Fixing Plate Set;;;painting;;Iced Sliver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
718255 1000349647 AF1 Cam Set;;;painting;;Iced Sliver;GM17KM-G No Model Compatibility List $0.00 / Each
Out Of Stock 		1
718256 1000349648 AF5 Movable Pulley Set;;;painting;;Iced Sliv No Model Compatibility List $0.00 / Each
Out Of Stock 		8

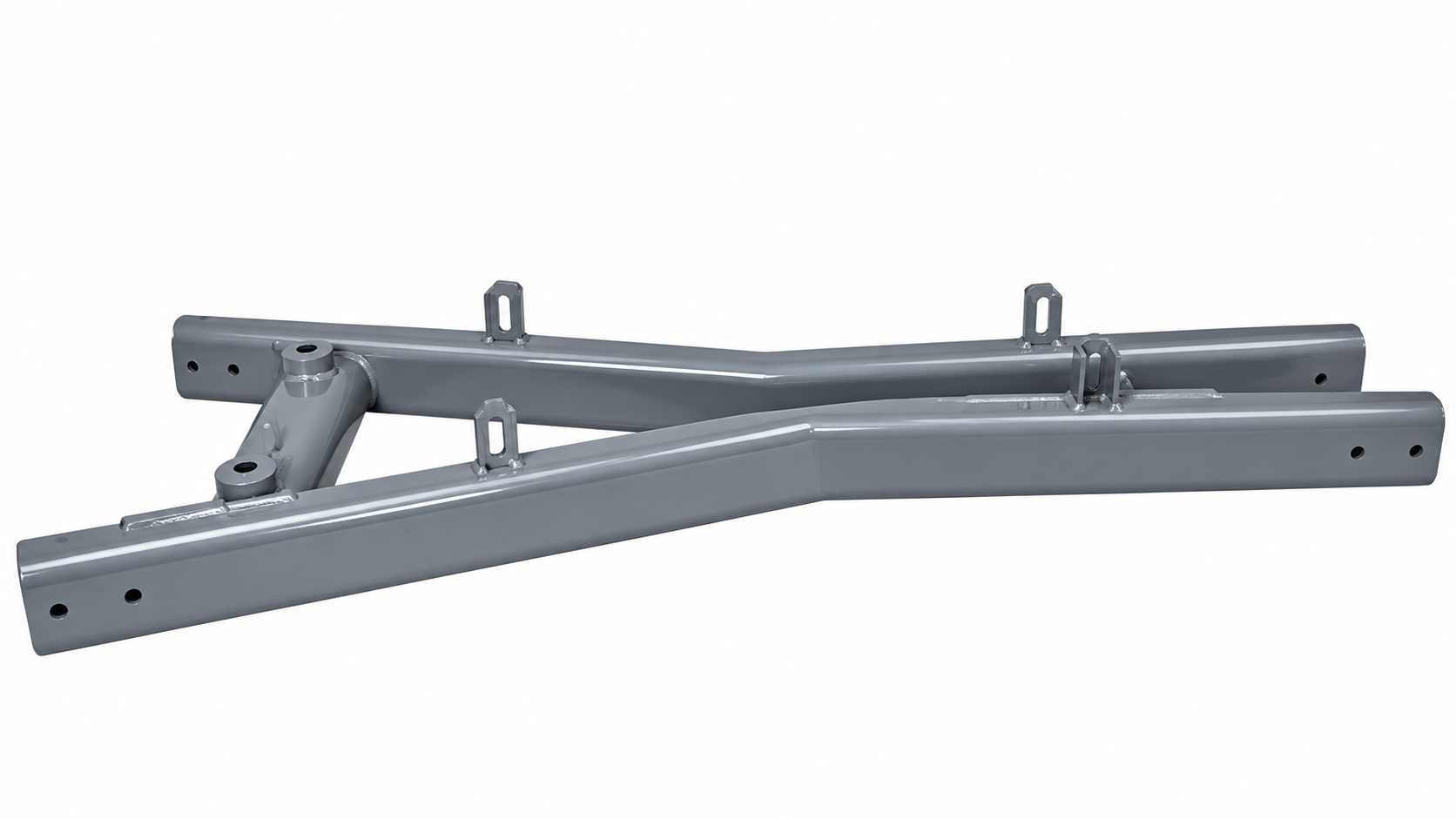

718257 1000349649 AG1 CON Tube Set;;;painting;;Iced Sliver;GM1 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
718258 1000349650 AG2 Pedal Set;;;painting;;Iced Sliver;GM17KM No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9
718259 1000349651 AH2 Connecting Set;Belt;;painting;;Iced Sliv No Model Compatibility List $0.00 / Each
Out Of Stock 		15
718260 1000349652 D16 Cover;;;painting;;Iced Sliver;GM17KM-G3; No Model Compatibility List $0.00 / Each
Out Of Stock 		9
Q 719572 1000362618 Q01 Cover set;Semi-Assy;;Arcylic;;GM06;;incl No Model Compatibility List $505.28 / Each

9
N 719669 1000363588 Not Shown Stopper set;Guide Rod;;painting;;;MS20; No Model Compatibility List $35.46 / Each

3
719732 1000364516 AC1 base set;;;painting;;Iced Sliver;GM17;Se No Model Compatibility List $0.00 / Each
Out Of Stock 		3
K 720426 1000372591 K10 Adjustable Pin;Weight Plate;;42CrMo;Chro No Model Compatibility List $54.73 / Each

7,3,12,13,14
725282 069145 Not Shown Manual;Assembly;GM17 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
725283 069148 Not Shown Hardware;GM17 No Model Compatibility List $148.95 / Each

1
Pulley; 90mm 725583 073572 F17 Pulley; 90mm No Model Compatibility List $44.28 / Each

8
Placard Holder 725996 079123 B46 Placard Holder No Model Compatibility List $34.94 / Each

4,5,6
Screw;Hex Socket;Umbrella;;;M8x1.25Px18L 726047 079527 B47 Screw;Hex Socket;Umbrella;;;M8x1.25Px18L No Model Compatibility List $2.18 / Each

2
726483 082220 V01 Illustration Decal;ENG;GM17 No Model Compatibility List $33.46 / Each

7,3
726607 083458 Z62 Washer;Lock;8.2x13.5x2.0t No Model Compatibility List $2.00 / Each

2
Sticker;Cover;Up;AL;SNAP-GM01 726620 083532 V08 Sticker;Cover;Up;AL;SNAP-GM01 No Model Compatibility List $25.56 / Each

9
Screw Set;M6X1.0PX5L;BP;POT 726707 084241 Z06 Screw Set;M6X1.0PX5L;BP;POT No Model Compatibility List $0.39 / Each

2
Cover set;Semi-Assy;GM01 726868 085728 7 Cover set;Semi-Assy;GM01 No Model Compatibility List $81.28 / Each

9
729261 See Pad Matrix J05 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
729662 ZMS4003274 Not Shown Decal, QR, G3-S74 Hip Adductor No Model Compatibility List $6.37 / Each

7,3
