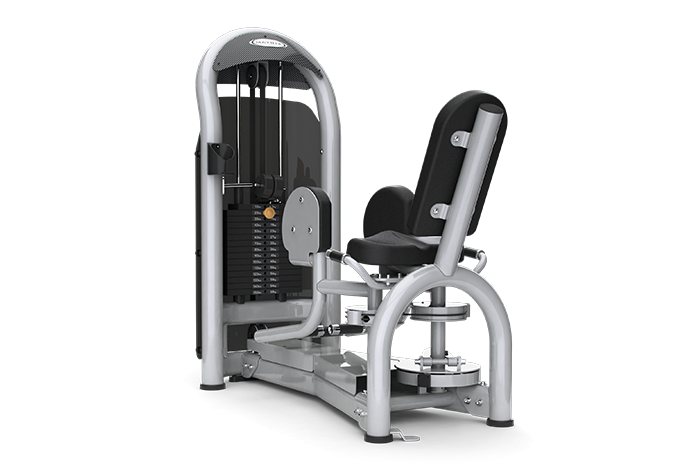

Matrix Commercial - G3-S75P - 2008

Repair Parts for Matrix Commercial G3-S75P G3GM18

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Name: G3-S75P

Version: 2008

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 700140 000509-E B15 Foot Pad;Rubber;89mm No Model Compatibility List $9.10 / Each

9,3,12,13,14
C 700141 000510-D C11 Foot Pad;Rubber;76.2mm No Model Compatibility List $5.69 / Each

9,3,12,13,14
H 700153 000523-C H25 Rubber Pad;GM17 No Model Compatibility List $3.15 / Each

12,13,14
B 700162 000542-C B14 Foot pad;Weight Plate;Rubber;GM01 No Model Compatibility List $25.51 / Each

9,3,12,13,14
H 700177 000586-F H10 Foam Grip;25.4x5.0x75L No Model Compatibility List $3.35 / Each

11
D 700181 000591-C D22 Foam Grip;31.8x5.0x105L No Model Compatibility List $9.10 / Each

11
B 700256 000791-B B21 Water Bottle Holder No Model Compatibility List $13.47 / Each

1
Q 700447 001401-A Q04 End Cap;76.2 No Model Compatibility List $3.64 / Each

9
Q 700448 001402-A Q07 End Cap;Round No Model Compatibility List $1.79 / Each

9
Q 700452 001407-A Q11 End-Cover;Square Tube;GM03 No Model Compatibility List $1.66 / Each

9,3
Q 700454 001410-A Q08 End Cover;Elliptical;40x80 No Model Compatibility List $3.64 / Each

9
K 700492 001508-E K20 Long Guide Rubber Plate;POM No Model Compatibility List $27.48 / Each

3
Q 700493 001509-D Q05 Fix Rubber Block;Cover;Rubber;GM01 No Model Compatibility List $1.79 / Each

9
K 700494 001510-B K11 Grommet;Guide Rod No Model Compatibility List $1.79 / Each

2,3
D 700495 001511-A D21 Fix Rubber Block;Swivel Axle;POM;GM17 No Model Compatibility List $6.29 / Each

8
Q 700496 001512-C Q03 Cover;Pulley;ABS;GM01 ABS No Model Compatibility List $1.79 / Each

8,9
K 700497 001513-A K07 Rubber Block;Shock Absorb No Model Compatibility List $8.55 / Each

1
L 700517 001521-E L08 Stopper Block;Incremental Rubber No Model Compatibility List $2.44 / Each

1
D 700518 001522-B D25 Stopper Block;Rubber No Model Compatibility List $3.64 / Each

1
D 700519 001523-E D26 Rubber Stop;CAM No Model Compatibility List $3.64 / Each

1
Q 700521 001526-D Q06 Bolt;Cover;M8x1.25Px40L No Model Compatibility List $2.52 / Each

2,9
B 700526 001529-B B27 Stopper Bolt;Rubber No Model Compatibility List $1.79 / Each

2
D 701159 004077-A2 D28 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

8
H 701183 004118-00 H08 Bearing;Dry;Flange;LEF-2015 LFF-2015 No Model Compatibility List $3.64 / Each

8
B 701288 004356-00 B43 Screw;Phillip;BH;M4x0.7Px12L;Gap; No Model Compatibility List $2.00 / Each

2
D 701430 004479-00 D47 Screw;Round;Hex Socket;M8X1.25PX15L No Model Compatibility List $2.00 / Each

2
D 701488 004531-00 D44 Screw;Hex Socket;Round;M5X0.8PX25L;Chromed No Model Compatibility List $0.21 / Each

7,2,12,13,14
G 701546 004574-AC G31 Screw;Hex Socket;Sink;M8x1.25Px15L No Model Compatibility List $1.22 / Each

2
B 701568 004601-AC B33 Screw;Hex;M5x0.8Px15L No Model Compatibility List $1.22 / Each

2
C 701670 004703-AF C12 Screw;Flat Hex Socket;M8x1.25Px20L No Model Compatibility List $1.79 / Each

2
L 701694 004720-AH L09 Screw;Hex Socket;Oval;M8X1.25PX20L No Model Compatibility List $2.00 / Each

2
G 701862 004884-00 G08 Nut;Hex;M8X1.25P No Model Compatibility List $1.79 / Each

2
E 701901 004929-00 E10 Nut;Nylon;M8x1.25P;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
F 701914 004943-00 F23 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

2,3
B 701939 004975-00 B16 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

2
H 701968 005007-00 H24 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

2
F 701980 005016-00 F25 Washer;Spring;5.1x9.3x1.3t;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
K 702000 005040-00 K18 Washer;Flat;Diam.8.5xDiam.19.0x1.5T;;Bla No Model Compatibility List $1.85 / Each

2
F 702056 005084-00 F24 Washer;Flat;5.3X10.0X1.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
L 702098 005130-00 L10 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
H 702102 005132-00 H30 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
B 702146 005180-A B51 Washer;Sawtooth;INT;4.3X8X0.5T;;BAN; No Model Compatibility List $0.34 / Each

2
K 702308 005847-A K25 Lanyard;Weight Selection Pin No Model Compatibility List $20.05 / Each

3,12,13,14
V 702316 005984-G V08 Decal;Upper Cover No Model Compatibility List $25.51 / Each

7,9,3
V 702383 006611-E V03 Decal;Weight Plate;15LBS (Contains decals up to 295lbs) No Model Compatibility List $27.59 / Each

7,3
V 702399 006627-A V02 Decal;Angle Adjustable;GM18 No Model Compatibility List $3.64 / Each

7,3
V 702407 006651-B V15 Decal;Weight Plate;5P No Model Compatibility List $3.41 / Each

7,3
702415 006664-A V14 Decal;Beginning;GM17 No Model Compatibility List $0.70 / Each

7,3
F 702520 008448-D F12 Fix Plate;Pulley;;SPC;;BED;;GM01 No Model Compatibility List $3.15 / Each

8,3
B 702523 008450-G B44 Upper Cover Snug Plate;L Shaped Bracket;SPC Thickness: 1.5mm No Model Compatibility List $1.53 / Each

2,9,3,4,5,6
D 702530 008522-C D18 Washer;Swivel Axle;;;SS41;;Cr;;; No Model Compatibility List $3.64 / Each

2,8
G 702531 008523-B G37 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $9.10 / Each

2
B 702546 008589-F B42 Fixing Horn Plate;Cover;D;SPC;;Zn Plate No Model Compatibility List $1.01 / Each

9,3
K 702646 009219-D K05 Connecting Axle;Belt;SS41;Zn Plate(BL);GM01 No Model Compatibility List $6.79 / Each

8,15,3
702652 009227-E F43 Fix Cap;Pulley; No Model Compatibility List $4.58 / Each

8,9
D 702679 009303-I D19 Axle;Swivel Arm;SCM4;20x415L;GM17 No Model Compatibility List $58.92 / Each

8,3
H 702680 009304-E H06 Adjustable Axle;Center;20x119L SCM4 No Model Compatibility List $17.76 / Each

8
D 702710 009355-B D49 Stopper Mast;Foam;AL6061;GM02 No Model Compatibility List $3.64 / Each

1
E 702711 009356-B E08 Stopper Mast;Foam;AL6061;GM03 No Model Compatibility List $3.64 / Each

1
E 702721 009371-E E05 Cap;Grip;GM03 No Model Compatibility List $15.34 / Each

9,11
D 702722 009372-E D23 Cap;Grip;GM02 No Model Compatibility List $13.36 / Each

9,11
A 703459 014780-H AF4 Pulley Set;GM01 No Model Compatibility List $91.23 / Each

8
A 703463 014784-G AF6 Pulley Set;GM06 No Model Compatibility List $106.37 / Each

8
A 703640 015771-A AL1 Weight Storage Horn Set No Model Compatibility List $37.62 / Each

3
A 703641 015772-A AL2 Incremental Weight Adjustment Rod;GM01 No Model Compatibility List $34.40 / Each

3
K 703738 015943-AA K06 Weight Plate Set;15 Lbs;Dry Bearing No Model Compatibility List $67.57 / Each

8,3
D 704137 020304-AC D42 Screw;Hex Socket;M10X1.5PX35L;Cr Plate No Model Compatibility List $2.00 / Each

2,3
G 704206 020479-A G33 Washer;Flat;10.2x22.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
704275 022204-A B45 Rear Upper Cover Snug Piece No Model Compatibility List $1.01 / Each

9
D 704320 022401-B D24 Grip End Cap, 31mm, Ctr Hole, AL 6061 No Model Compatibility List $17.52 / Each

9,11
705060 033409-AA F44 Pulley set-Exreawork;-;-;-;FW63 No Model Compatibility List $16.87 / Each

8
F 705079 035711-A F47 Belt;Flat;Kevlar **Order BY THE FOOT, e.g. 8 ft = qty 8** No Model Compatibility List $13.68 / Each

9,15,3
N 706633 064015-A Not Shown Hardware; No Model Compatibility List $31.72 / Each

1
D 707889 1000096640 D17 Steel Rope;6x911.2L;GM17 No Model Compatibility List $74.02 / Each

1
F 708066 1000098835 F46 Steel Rope;GM17 No Model Compatibility List $30.39 / Each

1
B 708446 1000102862 B28 Screw;Hex Socket;Round;M8x1.25Px30L;Cr P No Model Compatibility List $2.00 / Each

2
H 708453 1000102869 H12 Screw;Hex Socket;Round;M12x1.75Px25L;Cr No Model Compatibility List $3.43 / Each

2
L 708454 1000102870 L14 Screw;Hex Socket;BH;M5x0.8Px16L;Cr Plate No Model Compatibility List $0.42 / Each

2,3
B 708483 1000102909 B50 Washer;Internal Teeth;5.3x10.0x0.6t;BE No Model Compatibility List $0.10 / Each

2
K 708486 1000102912 K15 Circlip;External C Type;S-30;BED No Model Compatibility List $2.00 / Each

2
K 708489 1000102915 K13 Circlip;E Type;;E-15;Cr Plate No Model Compatibility List $0.86 / Each

2,3
D 708649 1000104672 D41 Screw;BH;M5x0.8Px10L;HS;CST;CST;CST;CHM; No Model Compatibility List $0.60 / Each

2
B 708656 1000104683 B23 RVN;NLS7-580-5.7;Pattern;YZN No Model Compatibility List $0.96 / Each

1
F 708669 1000104698 F56 Screw;RND;M10x1.5Px95L;HS;G8.8;CHM;BP No Model Compatibility List $8.03 / Each

2
F 708674 1000104704 F22 Screw;RND;M5x0.8Px35L;HS;CHM;BP;G8.8 No Model Compatibility List $1.04 / Each

2
708678 1000104711 F50 Screw;BH;M10x1.5Px40L;HS;CHM;BP;G8.8 No Model Compatibility List $4.26 / Each

2
709062 1000108794 G38 Screw;Hex;M10x1.5Px30L;CHM;BP;G8.8 No Model Compatibility List $1.72 / Each

2
710073 1000206676 Not Shown Protected Pad;;PU,Vesicant;Black;PURE GY No Model Compatibility List $18.56 / Each

4,5,6,12,13,14
K 710562 1000210970 K09 Guide Rail;19x1070L No Model Compatibility List $155.74 / Each

9
710669 1000212173 J04 LEG PAD;LEFT;PU;BLACK;-; No Model Compatibility List $57.43 / Each

4,5,6,12,13,14
K 710720 1000212618 K10 Adjust set;Semi-Assy;;Service;;GM30C;; No Model Compatibility List $63.86 / Each

1
711550 1000221243 Not Shown Protected Pad;Black Obsidian;Kiss Gyms; No Model Compatibility List $28.70 / Each

4,5,6,12,13,14
A 714800 1000318315 AK1 Up Weight Plate Set-Exreawork;;;;;GM17; No Model Compatibility List $185.87 / Each

3
716625 1000337889 V08 LOGO Label;Cap;Planet Fitness;Black Word No Model Compatibility List $13.49 / Each

9,4,5,6
Q 716649 1000338414 Q02 Superstructure group;Semi-Assy;;;;GM01;P No Model Compatibility List $64.19 / Each

1
718114 1000349290 AB1 Frame set;;;Iced Sliver;GM17KM-G3;;Servi No Model Compatibility List $0.00 / Each
Out Of Stock 		3

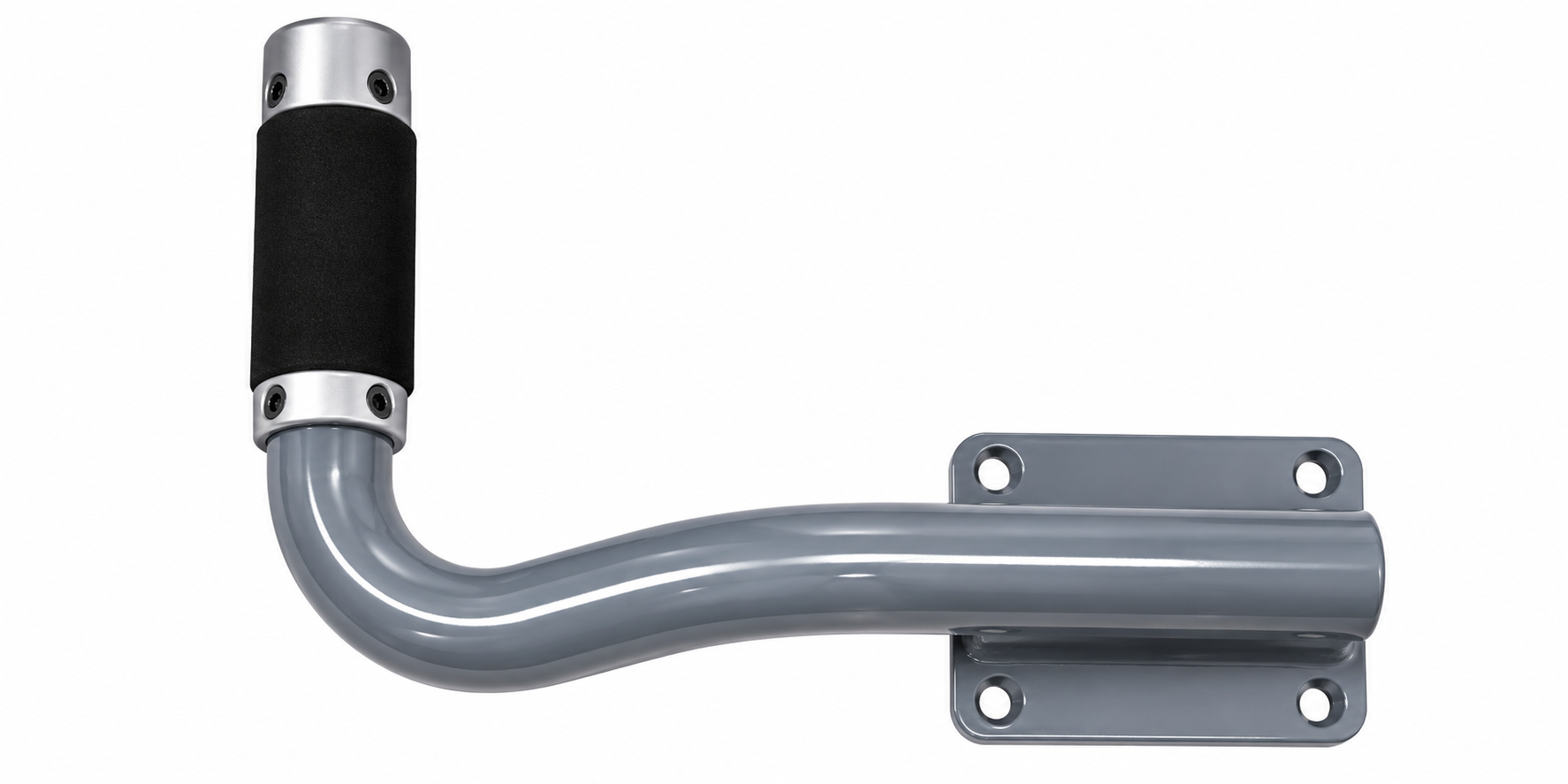

718117 1000349293 AE1 Handle Set;;right;Iced Sliver;GM17KM-G3; No Model Compatibility List $0.00 / Each
Out Of Stock 		11

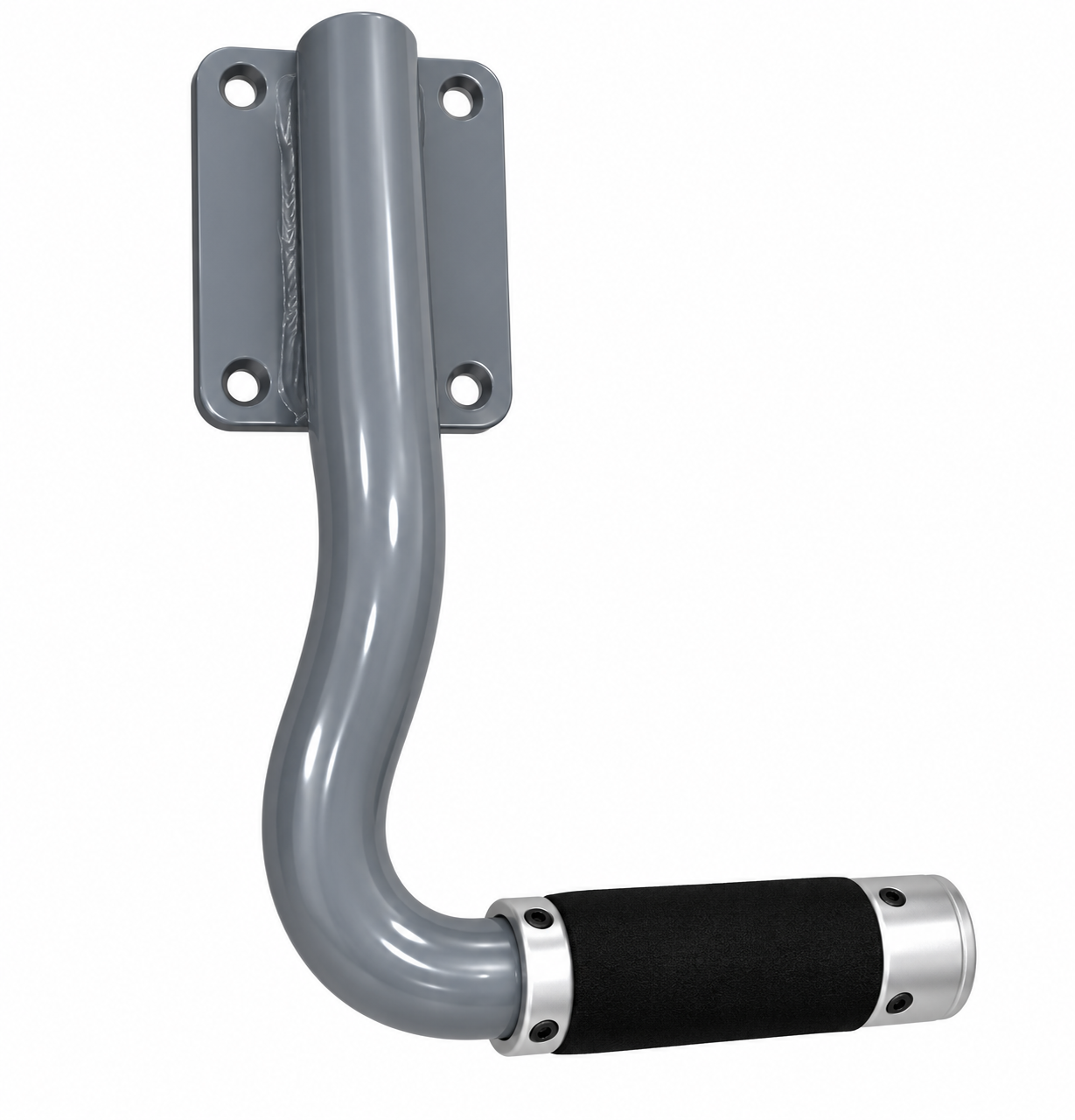

718118 1000349294 AE2 Handle Set;;left;Iced Sliver;GM17KM-G3;; No Model Compatibility List $0.00 / Each
Out Of Stock 		11
A 718120 1000349296 AH1 Adjustment set;cam;;Iced Sliver;GM18KM-G No Model Compatibility List $67.57 / Each

1
718121 1000349297 AD2 pedal arm set;;left;Iced Sliver;GM18KM-G No Model Compatibility List $719.91 / Each

8,9,3
718122 1000349298 AD1 pedal arm set;;right;Iced Sliver;GM18KM- No Model Compatibility List $731.87 / Each

8,9,3
718253 1000349645 AD4 Fixing Plate Set;;R;painting;;Iced Slive No Model Compatibility List $0.00 / Each
Out Of Stock 		3
718254 1000349646 AD5 Fixing Plate Set;;;painting;;Iced Sliver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
718256 1000349648 AF5 Movable Pulley Set;;;painting;;Iced Sliv No Model Compatibility List $0.00 / Each
Out Of Stock 		8

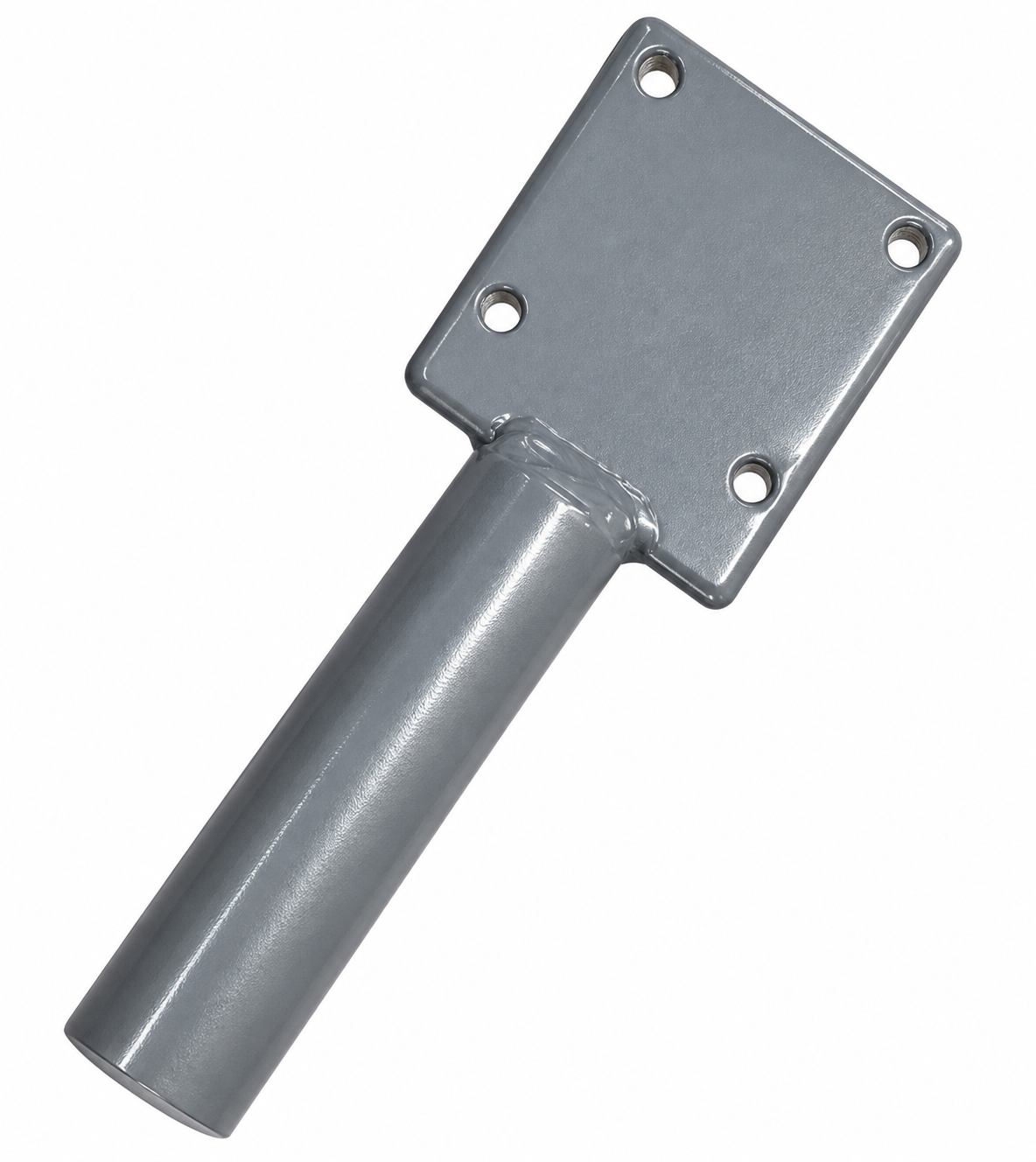

718259 1000349651 AH2 Connecting Set;Belt;;painting;;Iced Sliv No Model Compatibility List $0.00 / Each
Out Of Stock 		15

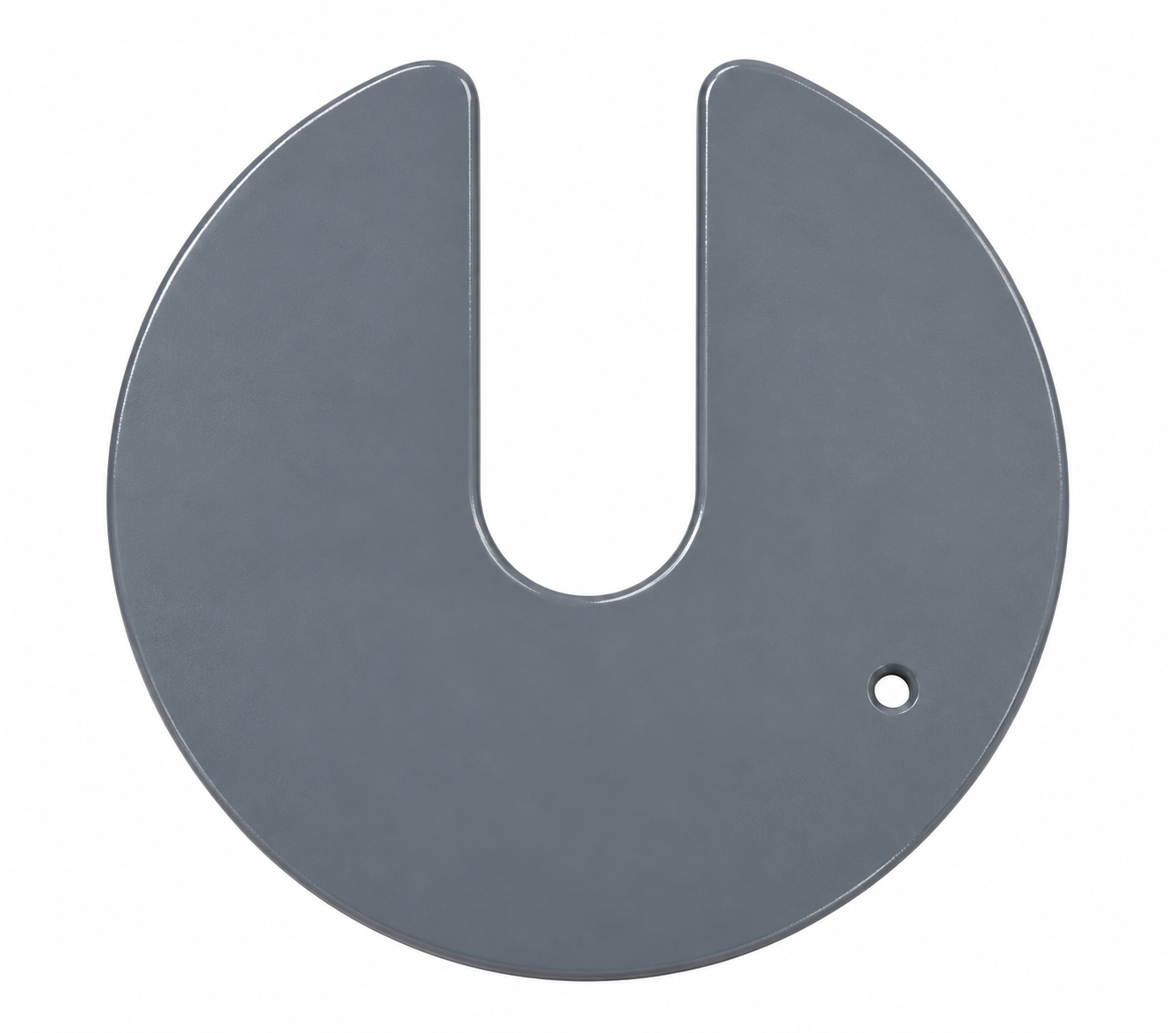

718260 1000349652 D16 Cover;;;painting;;Iced Sliver;GM17KM-G3; No Model Compatibility List $0.00 / Each
Out Of Stock 		9
718261 1000349656 AG1 CON Tube Set;;;painting;;Iced Sliver;GM1 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
718262 1000349657 AG2 Pedal Set;;;painting;;Iced Sliver;GM18KM No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9
718263 1000349659 AF7 Connecting Set;Belt;;painting;;Iced Sliv No Model Compatibility List $0.00 / Each
Out Of Stock 		15
Q 719572 1000362618 Q01 Cover set;Semi-Assy;;Arcylic;;GM06;;incl No Model Compatibility List $505.28 / Each

9
N 719669 1000363588 Not Shown Stopper set;Guide Rod;;painting;;;MS20; No Model Compatibility List $35.46 / Each

3
719732 1000364516 AC1 base set;;;painting;;Iced Sliver;GM17;Se No Model Compatibility List $0.00 / Each
Out Of Stock 		3
K 720426 1000372591 K10 Adjustable Pin;Weight Plate;;42CrMo;Chro No Model Compatibility List $54.73 / Each

7,3,12,13,14
724937 1000429673 AF1 Cam set;Semi-Assy;;Iced Sliver;;;GM18KM- No Model Compatibility List $223.05 / Each

1
725287 069227 Not Shown Manual;Assembly;GM18 No Model Compatibility List $17.65 / Each

3
725301 069489 Not Shown Semi-Assy;Hardware;GM18 No Model Compatibility List $152.62 / Each

1
Pulley; 90mm 725583 073572 F17 Pulley; 90mm No Model Compatibility List $44.28 / Each

8
Placard Holder 725996 079123 B46 Placard Holder No Model Compatibility List $34.94 / Each

4,5,6
Screw;Hex Socket;Umbrella;;;M8x1.25Px18L 726047 079527 B47 Screw;Hex Socket;Umbrella;;;M8x1.25Px18L No Model Compatibility List $2.18 / Each

2
726607 083458 Z62 Washer;Lock;8.2x13.5x2.0t No Model Compatibility List $2.00 / Each

2
Sticker;Cover;Up;AL;SNAP-GM01 726620 083532 V08 Sticker;Cover;Up;AL;SNAP-GM01 No Model Compatibility List $25.56 / Each

9
Screw Set;M6X1.0PX5L;BP;POT 726707 084241 Z06 Screw Set;M6X1.0PX5L;BP;POT No Model Compatibility List $0.39 / Each

2
Cover set;Semi-Assy;GM01 726868 085728 7 Cover set;Semi-Assy;GM01 No Model Compatibility List $81.28 / Each

9
726887 085791 4 Cover Set;Upper;Snap Badged No Model Compatibility List $96.33 / Each

9
Instructional Placard 727287 088379 V01 Instructional Placard No Model Compatibility List $30.94 / Each

4,5,6
729035 Order Kit AB1 AB1 Frame Set;;;painting;;Iced Sliver;GM17KM No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729036 Order Kit AC1 AC1 Base Set;Welding;GM17 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729037 Order Kit AD2 AD2 Pedal Arm Set;;L;painting;;Iced Sliver;G No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
729038 Order Kit AE1 AE1 Handle set;;R;painting;;Iced Sliver;GM17 No Model Compatibility List $0.00 / Each
Out Of Stock 		11
729039 Order Kit AE2 AE2 Handle set;;L;painting;;Iced Sliver;GM17 No Model Compatibility List $0.00 / Each
Out Of Stock 		11
729040 Order Kit AH1 AH1 Adjustable Set;Cam;;painting;;Iced Slive No Model Compatibility List $0.00 / Each
Out Of Stock 		1
729261 See Pad Matrix J02 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
729663 ZMS4003275 Not Shown Decal, QR, G3-S75 Hip Abductor No Model Compatibility List $6.37 / Each

7,3
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
