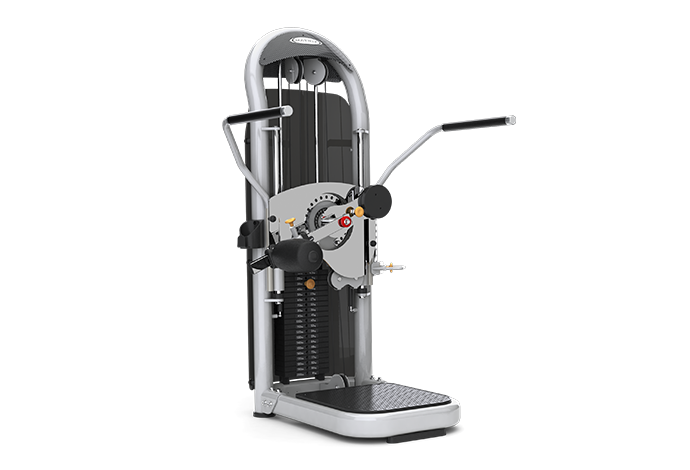

Matrix Commercial - G3-S76P - 2008

Repair Parts for Matrix Commercial G3-S76P G3GM22

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Name: G3-S76P

Version: 2008

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
N 700122 000454-H Not Shown Cover;Snug;S45C;Cr Plate;GM01 No Model Compatibility List $9.10 / Each

9,3
B 700139 000508-D B26 Foot Pad;Rubber;60mm No Model Compatibility List $5.15 / Each

9,3,12,13,14
B 700140 000509-E B15 Foot Pad;Rubber;89mm No Model Compatibility List $9.10 / Each

9,3,12,13,14
C 700162 000542-C C05 Foot pad;Weight Plate;Rubber;GM01 No Model Compatibility List $25.51 / Each

9,3,12,13,14
M 700186 000600-A M19 Foam Grip;31.8x5.0x450L No Model Compatibility List $19.47 / Each

11
M 700233 000752-A M25 Elastomer;Rubber;GM22 No Model Compatibility List $3.61 / Each

1
B 700256 000791-B B18 Water Bottle Holder No Model Compatibility List $13.47 / Each

1
D 700398 001240-F D09 Pad;Swivel Axle Label;GM03 No Model Compatibility List $1.79 / Each

8,12,13,14
H 700448 001402-A H10 End Cap;Round No Model Compatibility List $1.79 / Each

9
K 700492 001508-E K24 Long Guide Rubber Plate;POM No Model Compatibility List $27.48 / Each

3
Q 700493 001509-D Q05 Fix Rubber Block;Cover;Rubber;GM01 No Model Compatibility List $1.79 / Each

9
K 700494 001510-B K11 Grommet;Guide Rod No Model Compatibility List $1.79 / Each

2,3
Z 700497 001513-A Z30 Rubber Block;Shock Absorb No Model Compatibility List $8.55 / Each

1
D 700519 001523-E D39 Rubber Stop;CAM No Model Compatibility List $3.64 / Each

1
Q 700521 001526-D Q06 Bolt;Cover;M8x1.25Px40L No Model Compatibility List $2.52 / Each

2,9
D 701159 004077-A2 D10 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

8
B 701288 004356-00 B43 Screw;Phillip;BH;M4x0.7Px12L;Gap; No Model Compatibility List $2.00 / Each

2
B 701436 004482-AB B46 Screw;Hex Socket;Round;M8x1.25Px20L;Cr No Model Compatibility List $2.00 / Each

2
Z 701522 004555-AB Z08 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A No Model Compatibility List $4.00 / Each

2
C 701654 004693-AD C20 Screw;Flat Hex Socket;M8x1.25Px15L No Model Compatibility List $1.66 / Each

2
K 701694 004720-AH K17 Screw;Hex Socket;Oval;M8X1.25PX20L No Model Compatibility List $2.00 / Each

2
D 701758 004780-00 D20 Screw;Hex Socket;BH;M10x1.5Px25L;Adhere No Model Compatibility List $2.00 / Each

2
F 701914 004943-00 F22 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

2,3
D 701968 005007-00 D11 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

2
Z 701981 005017-00 Z10 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

7,2,12,13,14
K 702000 005040-00 K18 Washer;Flat;Diam.8.5xDiam.19.0x1.5T;;Bla No Model Compatibility List $1.85 / Each

2
Z 702056 005084-00 Z36 Washer;Flat;5.3X10.0X1.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
K 702098 005130-00 K19 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 702102 005132-00 Z24 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
Z 702146 005180-A Z34 Washer;Sawtooth;INT;4.3X8X0.5T;;BAN; No Model Compatibility List $0.34 / Each

2
H 702241 005366-00 H21 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

2
K 702308 005847-A K25 Lanyard;Weight Selection Pin No Model Compatibility List $20.05 / Each

3,12,13,14
V 702316 005984-G V08 Decal;Upper Cover No Model Compatibility List $25.51 / Each

7,9,3
V 702383 006611-E V04 Decal;Weight Plate;15LBS (Contains decals up to 295lbs) No Model Compatibility List $27.59 / Each

7,3
V 702402 006630-A V02 Decal;Leg Pad Adjustable;MX-S76;GM22 No Model Compatibility List $2.55 / Each

7,3,12,13,14
H 702505 008234-C H26 Bushing;Fixed Plate No Model Compatibility List $9.10 / Each

8,3
Z 702523 008450-G Z06 Upper Cover Snug Plate;L Shaped Bracket;SPC Thickness: 1.5mm No Model Compatibility List $1.53 / Each

2,9,3,4,5,6
Z 702530 008522-C Z12 Washer;Swivel Axle;;;SS41;;Cr;;; No Model Compatibility List $3.64 / Each

2,8
Z 702531 008523-B Z39 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $9.10 / Each

2
Z 702546 008589-F Z04 Fixing Horn Plate;Cover;D;SPC;;Zn Plate No Model Compatibility List $1.01 / Each

9,3
B 702547 008592-E B45 Elevation Adjustable Cover, SPC 6.0T(Chromed) No Model Compatibility List $139.13 / Each

7,9,10,12,13,14
H 702662 009277-E H08 Swivel Axle;Foot Pad;50.8X260L;GM22 No Model Compatibility List $76.75 / Each

8,9,3,12,13,14
N 702670 009288-K Not Shown Axle;Pin;Market;GM01 No Model Compatibility List $10.35 / Each

8,12,13,14
D 702695 009322-B D06 Balance Plate;SS41;GM22 No Model Compatibility List $91.26 / Each

3
M 702699 009330-I M23 Guide Rail;Elevation;30X820L;GM22 No Model Compatibility List $191.75 / Each

9,10
M 702710 009355-B M20 Stopper Mast;Foam;AL6061;GM02 No Model Compatibility List $3.64 / Each

1
M 702722 009372-E M21 Cap;Grip;GM02 No Model Compatibility List $13.36 / Each

9,11
M 702758 009554-C M26 Air Shock, 20 KG Route > 320 No Model Compatibility List $39.42 / Each

1
K 702772 009641-F K04 Bayonet;Weight Plate;20 Aperture No Model Compatibility List $46.10 / Each

3
D 702944 013411-Z1G2 D07 Adjust Pin Assembly;Yellow Knob No Model Compatibility List $31.64 / Each

3,12,13,14
H 702965 013422-Z1G2 H05 Adjustment Knob Set;Seat;Yellow No Model Compatibility List $36.48 / Each

12,13,14
M 702966 013422-ZG2 M18 Adjust Pin Assembly;ROM;Yellow No Model Compatibility List $36.48 / Each

3,12,13,14
M 703464 014788-E M18 Metal Pin; Pull Pin No Model Compatibility List $36.48 / Each

3,12,13,14
K 703738 015943-AA K06 Weight Plate Set;15 Lbs;Dry Bearing No Model Compatibility List $67.57 / Each

8,3
C 703869 018873-A C10 Foot Pad;Pedal;GM22 No Model Compatibility List $109.51 / Each

8,9,3,12,13,14
H 703902 019153-A H01 Pull pin knob; Yellow No Model Compatibility List $6.79 / Each

12,13,14
704032 020120-A Z14 Screw;Hex Socket;Round;M12 x 1.75P x 30L [MS40,51,80] No Model Compatibility List $1.22 / Each

2
H 704039 020126-DB H25 Screw;Seat Stopper;M8x1.25Px20L No Model Compatibility List $1.79 / Each

2,12,13,14
Z 704193 020465-AB Z09 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
Q 704232 020699-A Q10 Rivet;1/8X12.5L No Model Compatibility List $1.79 / Each

1
V 704252 021612-A V24 Decal;Adjustic;MX-S76;GM22 No Model Compatibility List $7.31 / Each

7,3
D 704282 022222-C D12 Cam Cover;SUS304;GM22 No Model Compatibility List $178.88 / Each

9
Z 704317 022398-E Z13 Washer;Swivel Axle;SS41; No Model Compatibility List $4.06 / Each

2,8
705032 031753-J Not Shown Axle;Pin;35CrMo;GM02 No Model Compatibility List $11.73 / Each

8,12,13,14
N 706633 064015-A Not Shown Hardware; No Model Compatibility List $31.72 / Each

1
706759 065406-A Z26 Screw;Shoulder;12x25L;Cr; No Model Compatibility List $3.74 / Each

2
706760 065415-A Z53 Bushing, GM22 No Model Compatibility List $4.37 / Each

8
D 706986 067941-C D08 Cap;25x50x3.0T;GM20 No Model Compatibility List $1.79 / Each

9
H 707066 1000090006 H24 End Cover;Seat Tube Sleeve No Model Compatibility List $3.64 / Each

9,3,12,13,14
N 707084 1000090177 Not Shown Pull Pin Handle;Orange;TPP;137C;MS10 No Model Compatibility List $9.10 / Each

12,13,14,11
F 707869 1000096553 F05 Steel Rope;4.8x5289L;GM22 No Model Compatibility List $162.63 / Each

1
H 707973 1000097264 H06 Sleeve;Seat Tube No Model Compatibility List $10.24 / Each

3,12,13,14
H 708071 1000098871 H05 Pull Pin Set;Seat;Orange Knob No Model Compatibility List $40.64 / Each

12,13,14
M 708084 1000099214 M18 Pull Pin Set;Orange Knob No Model Compatibility List $36.48 / Each

12,13,14
H 708091 1000099499 H27 Screw;SH;M8X1.25PX14L;;HS;;CHM;;SP No Model Compatibility List $1.66 / Each

2
D 708099 1000099693 D07 Pull Pin Set;Orange Knob No Model Compatibility List $73.92 / Each

12,13,14
B 708446 1000102862 B34 Screw;Hex Socket;Round;M8x1.25Px30L;Cr P No Model Compatibility List $2.00 / Each

2
708463 1000102879 H22 Screw;Button Head;!!!??!!!;;Hex Socket;; No Model Compatibility List $3.35 / Each

2
Z 708464 1000102880 Z16 Screw;Hex Socket;BH;M12x1.75Px30L;Cr Pla No Model Compatibility List $5.04 / Each

2
D 708469 1000102887 D33 Screw;Hex Socket;Countersunk;M8x1.25Px16 No Model Compatibility List $2.18 / Each

2
B 708473 1000102893 B33 Screw;Hex Socket;Flat;M8x1.25Px20L;Cr Pl No Model Compatibility List $1.38 / Each

2
Z 708478 1000102898 Z02 Screw;Hex Head;M5x0.8Px15L;Zn;Adhere No Model Compatibility List $0.21 / Each

2
Z 708483 1000102909 Z35 Washer;Internal Teeth;5.3x10.0x0.6t;BE No Model Compatibility List $0.10 / Each

2
K 708486 1000102912 K13 Circlip;External C Type;S-30;BED No Model Compatibility List $2.00 / Each

2
M 708487 1000102913 M16 Circlip;Internal C Type;R-47;BED No Model Compatibility List $1.79 / Each

2
Z 708489 1000102915 Z31 Circlip;E Type;;E-15;Cr Plate No Model Compatibility List $0.86 / Each

2,3
Z 708651 1000104676 Z15 E-Shaped Ring;E-24 No Model Compatibility List $0.36 / Each

1
H 708655 1000104682 H19 Circlip;External C Type;S-25;BAN No Model Compatibility List $0.81 / Each

2
B 708656 1000104683 B37 RVN;NLS7-580-5.7;Pattern;YZN No Model Compatibility List $0.96 / Each

1
B 708657 1000104684 B31 RVN;Pattern;YZN;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $3.35 / Each

1
708685 1000104721 F21 Screw;HH;M10x45L-20L;-;HE;-;CHM;BP;G8.8; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
708687 1000104724 H07 Washer;FLT;13.0x35.0x2.5t;CHM No Model Compatibility List $1.30 / Each

2
D 708689 1000104726 D40 Washer;WW;20.7x29.1x0.3t;65Mn;BAN No Model Compatibility List $2.00 / Each

2
K 708711 1000105039 K16 Pin;Spring;10X70;OXIDIZE No Model Compatibility List $3.54 / Each

2,12,13,14
K 710568 1000210976 K09 Guide Rail;19X1620L No Model Compatibility List $230.39 / Each

9
K 710720 1000212618 K10 Adjust set;Semi-Assy;;Service;;GM30C;; No Model Compatibility List $63.86 / Each

1
V 713028 1000232600 V20 Warning Label;-;-;-;PC;-;- No Model Compatibility List $7.28 / Each

1

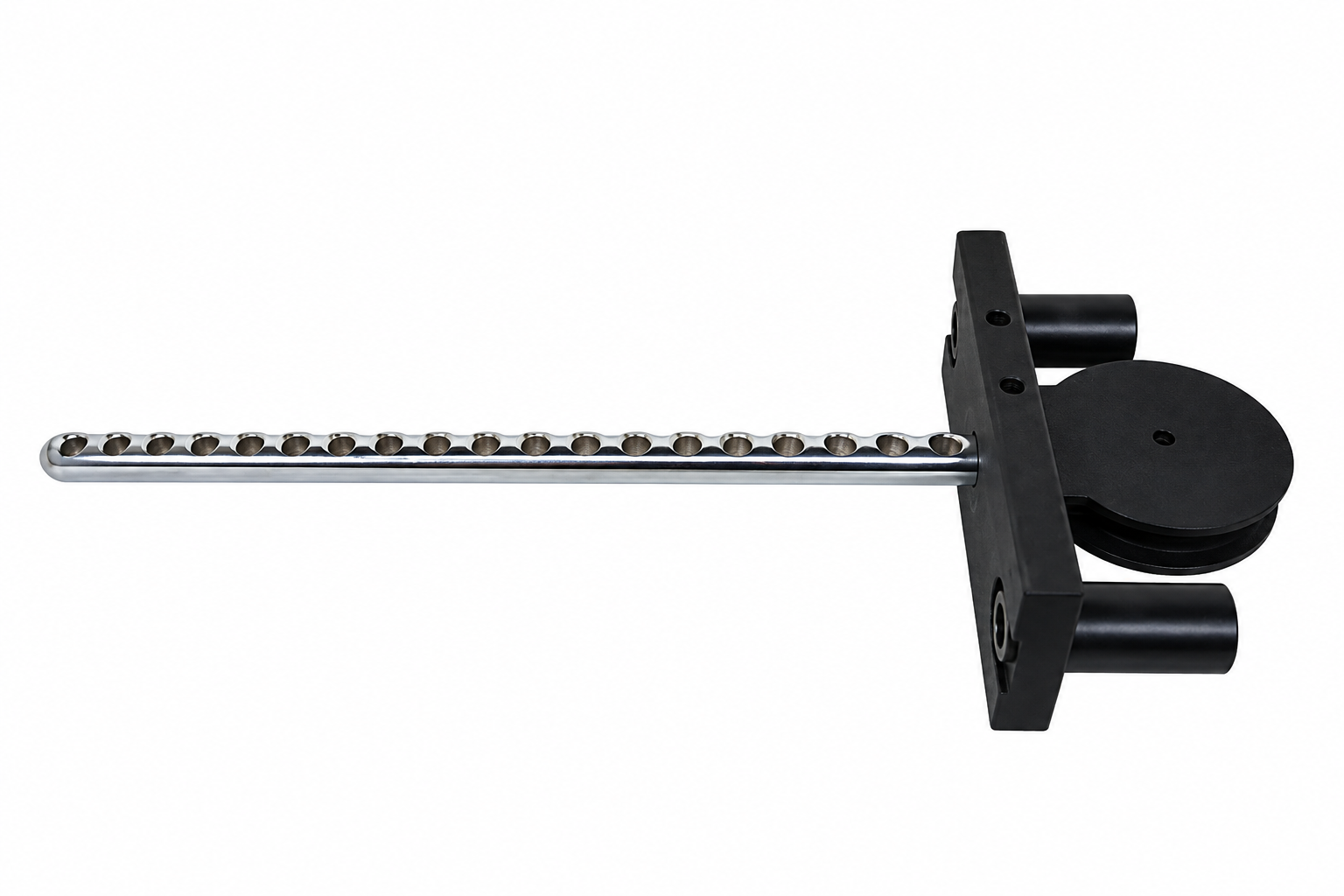

A 714798 1000318313 AK1 Up Weight Plate Set-Exreawork;;;;;MS51; No Model Compatibility List $228.12 / Each

3
718123 1000349299 AB1 Frame set;;;Iced Sliver;GM22KM-G3;;Servi No Model Compatibility List $0.00 / Each
Out Of Stock 		3
718124 1000349300 AF1 CAM SET;;;Iced Sliver;GM22KM-G3;;Service No Model Compatibility List $0.00 / Each
Out Of Stock 		1
718125 1000349301 AH1 Leg Adjustable Set;;;Iced Sliver;GM22KM- No Model Compatibility List $285.58 / Each

1
718126 1000349302 AM1 Elevation Rack Set;;;Iced Sliver;GM22KM- No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,10
718264 1000349664 AC1 base set;;;painting;;Iced Sliver;GM22;Se No Model Compatibility List $0.00 / Each
Out Of Stock 		3
718265 1000349665 C03 PEDAL;;;painting;;Iced Sliver;GM22;Servi No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9
719569 1000362560 Q01 Cover set;Semi-Assy;;;;GM22;Light brown; No Model Compatibility List $660.76 / Each

9
N 719669 1000363588 Not Shown Stopper set;Guide Rod;;painting;;;MS20; No Model Compatibility List $35.46 / Each

3
K 720426 1000372591 K10 Adjustable Pin;Weight Plate;;42CrMo;Chro No Model Compatibility List $54.73 / Each

7,3,12,13,14
N 722509 1000393222 Not Shown Spring;Compression;1.3x12.7x38Lx7;SWP; No Model Compatibility List $1.66 / Each

2
H 725256 103296 H09 Bushing No Model Compatibility List $9.57 / Each

8
725305 069609 D31 Fixing Axle;Pull Pin;;35CrMo;Chrome;GM22 No Model Compatibility List $0.00 / Each
Out Of Stock 		7,8,12,13,14
725306 069628 V20 Manual;Assembly;GM22 No Model Compatibility List $17.65 / Each

3
725307 069630 Not Shown Hardware;GM22 No Model Compatibility List $143.99 / Each

1
725344 070261 D07 Adjustment Pin Set No Model Compatibility List $23.32 / Each

12,13,14
Pulley; 90mm 725583 073572 F17 Pulley; 90mm No Model Compatibility List $44.28 / Each

8
Placard Holder 725996 079123 B46 Placard Holder No Model Compatibility List $34.94 / Each

4,5,6
Screw;Hex Socket;Umbrella;;;M8x1.25Px18L 726047 079527 B47 Screw;Hex Socket;Umbrella;;;M8x1.25Px18L No Model Compatibility List $2.18 / Each

2
726607 083458 Z62 Washer;Lock;8.2x13.5x2.0t No Model Compatibility List $2.00 / Each

2
Sticker;Cover;Up;AL;SNAP-GM01 726620 083532 V08 Sticker;Cover;Up;AL;SNAP-GM01 No Model Compatibility List $25.56 / Each

9
726704 084179 V07 Illustration Decal;A;ENG;GM22 No Model Compatibility List $33.46 / Each

7,3
Screw Set;M6X1.0PX5L;BP;POT 726707 084241 Z06 Screw Set;M6X1.0PX5L;BP;POT No Model Compatibility List $0.39 / Each

2
Cover set;Semi-Assy;GM01 726868 085728 7 Cover set;Semi-Assy;GM01 No Model Compatibility List $81.28 / Each

9
726887 085791 4 Cover Set;Upper;Snap Badged No Model Compatibility List $96.33 / Each

9
727231 088003 AD1 SWIVEL ARM SET No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729041 Order Kit AM1 M15 Bearing;Linear;KS30-PP;;INA; No Model Compatibility List $0.00 / Each
Out Of Stock 		8
729261 See Pad Matrix H11 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
729665 ZMS4003277 Not Shown Decal, QR, G3-S76 Rotary Hip No Model Compatibility List $5.90 / Each

7,3
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
