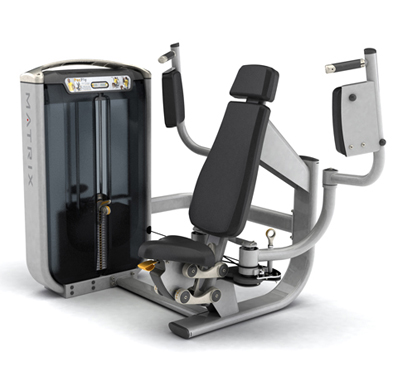

Matrix Commercial - G7-S12 PY - 2009

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
001523-E 700519 001523-E H27 Rubber Stop;CAM No Model Compatibility List $2.80 / Each

1
001527-G 700524 001527-G C27 Stopper Bolt;Back Pad;GM07 No Model Compatibility List $2.58 / Each

2,4,5,6,12,13,14
001679-00 700570 001679-00 B66 Tie Strap;Adhesive;Nylon;66;HC-101;W No Model Compatibility List $1.90 / Each

2
004479-ABX 701431 004479-ABX B24 Screw;Hex Socket;Round;M8x1.25Px15L;Cr;A No Model Compatibility List $1.54 / Each

2
004518-00 701465 004518-00 Z01 Screw;SH;M10X1.5PX75L;;HS;;CHM;; No Model Compatibility List $2.80 / Each

2
701618 004636-AD J45 Screw;BH;4X15L;SM;PH;;CHM;;POT No Model Compatibility List $0.62 / Each

2
004696-AB 701660 004696-AB B29 Screw;Hex Socket;8X1.25X20L;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
701691 004719-AB B26 Screw;BH;M8X1.25PX12L;;HS;;CHM;;G12.9 No Model Compatibility List $0.30 / Each

2
701767 004789-AC Z04 Screw;BH;M10X1.5PX75L;;HS;;CHM;;G12.9 No Model Compatibility List $2.84 / Each

2
004870-00 701851 004870-00 B37 Screw;Plain Tapping;Rail Lock;5x15L No Model Compatibility List $1.22 / Each

2,9,12,13,14
004929-00 701901 004929-00 B27 Nut;Nylon;M8x1.25P;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
004938-00 701911 004938-00 H37 Nut;Nylon;M6X1.0P;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005017-00 701981 005017-00 D37 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.02 / Each

7,2,12,13,14
005117-AB 702085 005117-AB H34 Washer;Flat;8.2x16.0x2.0T;Chromed No Model Compatibility List $1.02 / Each

7,2,12,13,14
005130-00 702098 005130-00 B25 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005145-AC 702119 005145-AC B25 Washer;Flat;8.2x19.0x2.0T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005330-00 702217 005330-00 J44 Tinnamen Nut No Model Compatibility List $1.22 / Each

2
005811-00 702299 005811-00 B62 Cable Tie;Nylon;Black;160L No Model Compatibility List $1.16 / Each

2,4,5,6
008522-C 702530 008522-C H16 Washer;Swivel Axle;;;SS41;;Cr;;; No Model Compatibility List $2.80 / Each

2,8
008523-B 702531 008523-B Z11 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $7.00 / Each

2
019151-AA 703901 019151-AA K10 Rubber Bumper;Weight Stack No Model Compatibility List $2.80 / Each

3,4,5,6
020084-AC 703998 020084-AC H08 Screw;Hex Socket;Round;M8x1.25Px40L;Chromed No Model Compatibility List $0.40 / Each

7,2,12,13,14
020096-00 704004 020096-00 B24 Screw;Hex Socket;Round;M8x1.25Px15L;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
020112-A 704023 020112-A B31 Screw;Hex Socket;Round;M10x1.5Px50L(Tooth15) No Model Compatibility List $1.02 / Each

2
020196-A 704079 020196-A B39 Screw;Phillip;BH;Tapped;3x6L;;Zn-BL No Model Compatibility List $3.08 / Each

2
704127 020294-00 Z13 SCREW;BH;M10X1.5PX20L;;HS;;CHM;; No Model Compatibility List $1.42 / Each

2
020465-AB 704193 020465-AB B22 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
040816-A 705313 040816-A B38 Screw;Phillip;BH;Tapped;3x8L; No Model Compatibility List $1.54 / Each

2
707235 1000091482 C31 Fixing Sleeve;Axle;20#;Zn;GM51 No Model Compatibility List $5.18 / Each

8,3
707381 1000092375 K03 Weight Plate;10 P;SPHC;GM48 No Model Compatibility List $45.48 / Each

3
707428 1000092642 J20 Spring;RCL;;4130CrMo;Spray teflon;GM40 No Model Compatibility List $81.54 / Each

2
707431 1000092646 L02 Axle Sleeve;Guide Rod;23X20X15L;GM40 No Model Compatibility List $4.20 / Each

8,3
707434 1000092654 AL4 ADJ Base Three;Incremental Weight Plate; No Model Compatibility List $57.98 / Each

7,3,12,13,14
707435 1000092656 L43 Nut;HX;M10X1.5PX10L;SS41;CHM;; No Model Compatibility List $0.66 / Each

2
707437 1000092666 J25 Head pad;Black;Vesicant;GM40 No Model Compatibility List $19.48 / Each

4,5,6,12,13,14
1000092669 707439 1000092669 J28 Plastic Cover;Back Pad;GM40 No Model Compatibility List $50.32 / Each

9,4,5,6,12,13,14
707440 1000092670 J29 Plastic Cover;Head pad;GM40 No Model Compatibility List $15.22 / Each

9,12,13,14
1000096013 707821 1000096013 C15 Cap Two;ABS;GM40 No Model Compatibility List $3.22 / Each

9
1000096014 707822 1000096014 D24 Bushing;15x19x20T;GM40 No Model Compatibility List $3.58 / Each

8
1000096017 707824 1000096017 Z101 Rubber Pad;Fixing;GM40 No Model Compatibility List $1.84 / Each

12,13,14
707826 1000096021 L21 Screw;SET;M10X1.5P No Model Compatibility List $0.62 / Each

2
707827 1000096022 L31 Magnet;Counte;GM40 No Model Compatibility List $1.52 / Each

8
707828 1000096023 L32 Half-moon Key;20#;GM40 No Model Compatibility List $0.68 / Each

9
707829 1000096024 Q08 Fixing Base;PC;GM40 No Model Compatibility List $2.58 / Each

3
707830 1000096025 Q09 Decal Plate;U;GM40 No Model Compatibility List $53.92 / Each

7,3
707831 1000096026 B32 Fixing Base;Sensor;ABS;GM40 No Model Compatibility List $6.40 / Each

3
707833 1000096167 L15 Axle Sleeve Two;Weight Plate;Rubber;GM40 No Model Compatibility List $7.40 / Each

8,3
707861 1000096514 B34 Control Board;Matrix;H102;S1.60;GM40 No Model Compatibility List $38.98 / Each

7
707864 1000096531 B33 Speed Sensor Wire;1200mm(2.5-5P);GM40 No Model Compatibility List $16.80 / Each

4,5,6
707879 1000096575 B36 Overlay;Manipulate;GM40 No Model Compatibility List $1.88 / Each

1
707929 1000096999 K06 Cover;Front;Rubber;Black;GM40 No Model Compatibility List $1.16 / Each

9,4,5,6
1000097206 707946 1000097206 C30 Screw;SH;M8X1.25PX25L;;HS;;CHM;;BP No Model Compatibility List $1.54 / Each

2
707982 1000097385 J33 Stopper Sleeve;CON Rod Axle;ABS;GM40 No Model Compatibility List $1.98 / Each

8,3
708010 1000097728 H05 ADJ Plate;SPHC;GM52 No Model Compatibility List $76.70 / Each

3
708011 1000097729 H06 Stopper;SPHC;WZN;GM52 No Model Compatibility List $22.64 / Each

1
708012 1000097734 H38 Pull Pin Set;ADJ;45#;GM52 No Model Compatibility List $21.26 / Each

12,13,14
708013 1000097736 D21 Shaft;Swivel Arm;WZN;GM52 No Model Compatibility List $20.96 / Each

3
708014 1000097750 Not Shown Hardware Kit;GM52-KM No Model Compatibility List $109.56 / Each

1
708015 1000097752 V11 Illustration Decal;Front;GM52 No Model Compatibility List $58.26 / Each

7,3
708027 1000097850 J40 SCREW;SH;M8X1.25PX95L;;HS;;CHM;;G12.9 No Model Compatibility List $2.58 / Each

2
708032 1000098050 D22 Pulley Cover;Small;Base;ABS;GM40 No Model Compatibility List $6.76 / Each

8,9,3
708048 1000098549 D59 Bushing;30x25x20mm;GM44 No Model Compatibility List $8.32 / Each

8
708117 1000099786 D51 Washer;Wave;65Mn;BAN;28.0x20.3x0.5;GM51 No Model Compatibility List $0.62 / Each

2,4,5,6
708145 1000100527 J48 Hand pad;Black;Vesicant;GM48-KM No Model Compatibility List $25.98 / Each

4,5,6,12,13,14
708386 1000102584 Z05 Screw;Hex;M10x1.5Px20L;Cr Plate;G12.9 No Model Compatibility List $1.06 / Each

2,3
708399 1000102647 L50 Screw;Settle;M5x0.8Px6L;Top End;BED No Model Compatibility List $0.38 / Each

2,9
1000102675 708402 1000102675 H40 Stopper Block;Pull Pin;GM43 No Model Compatibility List $5.40 / Each

12,13,14
708408 1000102696 L13 Dial;GM41 No Model Compatibility List $3.04 / Each

1
708442 1000102858 Z29 Screw;Hex Socket;BH;M5x0.8Px12L;Cr Plate No Model Compatibility List $0.38 / Each

2,3
1000102910 708484 1000102910 L45 Circlip;External C Type;S-12;BED No Model Compatibility List $1.02 / Each

2
1000102915 708489 1000102915 K14 Circlip;E Type;;E-15;Cr Plate No Model Compatibility List $0.66 / Each

2,3
1000103438 708563 1000103438 B28 Screw;Cross;BH;Tapped;4x10L;A Class;ke No Model Compatibility List $0.44 / Each

2
708565 1000103444 J43 Cover;Seat;GM40-KM No Model Compatibility List $3.58 / Each

9,12,13,14
1000104003 708593 1000104003 B19 Cap;Insert Nut;GM40-KM No Model Compatibility List $2.28 / Each

2,9
708595 1000104027 C12 Fixing Plate;Base;GM40 No Model Compatibility List $7.78 / Each

3
708647 1000104669 C36 Screw;FH;M6x1.0Px25L;HS;CST;CHM;8.8Class No Model Compatibility List $1.72 / Each

2
1000104672 708649 1000104672 L37 Screw;BH;M5x0.8Px10L;HS;CST;CST;CST;CHM; No Model Compatibility List $0.46 / Each

2
1000104682 708655 1000104682 Z27 Circlip;External C Type;S-25;BAN No Model Compatibility List $0.62 / Each

2
1000104691 708662 1000104691 Z02 Screw;RND;M10x1.5Px30L;HS;G12.9;CHM;BP No Model Compatibility List $2.80 / Each

2
708718 1000105067 D39 Circlip;External C Type;R-37;BAN No Model Compatibility List $0.38 / Each

2
708719 1000105068 B40 RVN;HX;NKHS-10;YZN No Model Compatibility List $1.72 / Each

1
708720 1000105069 C40 RVN;HX;NHS-610-3.0;YZN No Model Compatibility List $0.68 / Each

1
1000105174 708730 1000105174 B23 Nut;Nylon;M10x1.5P;G12.9;CHM No Model Compatibility List $1.38 / Each

2
708771 1000105750 J39 Clamp;E-Type;E-5;Cr Plate No Model Compatibility List $0.62 / Each

3,4,5,6
708823 1000106164 13 ROM Pull Pin Set;GM44(service)-2 No Model Compatibility List $90.96 / Each

12,13,14
708824 1000106165 F03 Steel Cable C;Exrta-Work;Steel Rope Head No Model Compatibility List $160.18 / Each

4,5,6
708996 1000108125 V12 Illustration Decal;Rear;GM52 No Model Compatibility List $58.26 / Each

7,3
709006 1000108188 B31 Screw;HH;M10x1.5Px55L;MT;CST;CHM;BP;G12. No Model Compatibility List $2.58 / Each

2
709024 1000108343 17 Weight Stack Shield;Rear;ABS;GM40(service) No Model Compatibility List $269.10 / Each

3,4,5,6
709025 1000108344 15 Incremental Weight Pin Set;GM41(service) No Model Compatibility List $55.76 / Each

3,12,13,14
709026 1000108345 18 Handle;Weight Stack;ADC12;GM40(service) No Model Compatibility List $172.68 / Each

3,4,5,6,11
709027 1000108347 19 Repetition Counter Set;PC;GM40(service) No Model Compatibility List $107.20 / Each

1
709028 1000108348 5 Accent Plate Set;D;PP;GM40(service) No Model Compatibility List $26.30 / Each

3,4,5,6
709029 1000108349 J18 Connecting Rod;Seat ADJ;ADC12;GM40 No Model Compatibility List $93.62 / Each

3,4,5,6,12,13,14
709041 1000108501 B16 Bushing;CON Rod;Peadel Arm;painting;GM40 No Model Compatibility List $2.14 / Each

8,3
709049 1000108729 11 Grip Set;Upper Arm;GM42 No Model Compatibility List $38.94 / Each

3,11
709052 1000108738 16 Upper Cover Set;Weight Stack;ABS;GM40(service)-5 No Model Compatibility List $44.90 / Each

9,3,4,5,6
709063 1000108795 Z17 Screw;RND;M8x1.25Px60L;HS;CHM;BP;G8.8 No Model Compatibility List $2.66 / Each

2
1000108801 709069 1000108801 L34 Screw;RND;M5x0.8Px15L;HS;CHM;BP;G8.8 No Model Compatibility List $1.38 / Each

2
709070 1000108803 L33 Screw;RND;M5x0.8Px12L;HS;CHM;BP;G8.8 No Model Compatibility List $0.26 / Each

2
709071 1000108804 L36 Screw;BH;M5x0.8Px15L;HS;CHM;BP;G8.8 No Model Compatibility List $0.54 / Each

2
1000108805 709072 1000108805 Q14 Screw;RND;M8x1.25Px20L;HS;CHM;BP;G12.9 No Model Compatibility List $1.38 / Each

2
709076 1000108910 L46 Washer;Flat;12.5x23x1.0t;CHM No Model Compatibility List $1.02 / Each

2
1000108924 709078 1000108924 Z26 Screw;RND;M10x1.5Px20L;HS;CHM;BP;G8.8 No Model Compatibility List $7.00 / Each

2
709086 1000109333 H35 Screw;RND;M6x1.0Px35L;HS;G8.8;CHM;BP No Model Compatibility List $2.74 / Each

2
709126 1000110167 H41 Screw;SH;Hex SocketM6X1.0PX40L;Cr;G8.8 No Model Compatibility List $3.28 / Each

2
709149 1000110480 V10 Sticker;Pedal Arm adjustable;GM52 No Model Compatibility List $6.38 / Each

8,9,3
709202 1000111004 L18 Handle set;Semi-Assy;;Incremental Weight No Model Compatibility List $16.84 / Each

3,11
709208 1000111139 D33 Cushion Pad; Peadal Arm;GM52-KM No Model Compatibility List $20.26 / Each

3,12,13,14
709517 1000200981 K07 Guide Rod;Weight plate No Model Compatibility List $96.02 / Each

3
709612 1000201700 Z32 WASHER;FLT;25.5X38.0X1.0T;BRONZE;-;; No Model Compatibility List $4.06 / Each

2
709718 1000202352 K13 Cushion;Guide Rod No Model Compatibility List $6.48 / Each

3
709861 1000204046 H36 Washer;Flat;6.4X14.0X3.0T;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
709919 1000204728 B13 FIXING PLATE;ROPE WHEEL;;;SPHC;;;GM59-KM No Model Compatibility List $2.58 / Each

8,3
710040 1000206252 V03 Decal;Weight Plate;10P;GM40 No Model Compatibility List $43.80 / Each

7,3
710580 1000211102 AJ2 Seat Grip Set No Model Compatibility List $55.32 / Each

12,13,14,11
710684 1000212387 F13 Fixing Plate;Cable Head;-;45#;BED;GM41; No Model Compatibility List $12.28 / Each

3,4,5,6
710800 1000213831 Z28 Stopper piece;Steel Rope;SPHC4.0t;NKL No Model Compatibility List $0.80 / Each

1
711335 1000220031 H09 Screw;Thin Head;M8x1.25Px35L;-;HS;-;CHM; No Model Compatibility List $1.28 / Each

2
712010 1000225001 D38 BEARING;BAL;61904RZ;#20X#37X9T;TPI; No Model Compatibility List $14.28 / Each

8
1000232600 713028 1000232600 V02 Warning Label;-;-;-;PC;-;- No Model Compatibility List $5.60 / Each

1
713412 1000302307 F01 Steel Rope-Extrawork;frame;-;Press Rope No Model Compatibility List $64.98 / Each

3
713653 1000306137 H02 Cam;Steel Rope;Big;UHMWPE;GM52 No Model Compatibility List $259.98 / Each

1
713678 1000306439 F06 Stopper Plate Set;Cam;Front-Rear;paintin No Model Compatibility List $12.98 / Each

3
1000317876 714760 1000317876 D50 End Cap;;;PP;;Diam.X50.8;; No Model Compatibility List $1.68 / Each

9
714875 1000319382 B10 Fixing Rack;Cover;D;painting;;Iced Slive No Model Compatibility List $5.18 / Each

9,4,5,6
714876 1000319387 B11 Fixing Rack;Cover;U;painting;;Iced Slive No Model Compatibility List $5.18 / Each

9,4,5,6
714877 1000319392 B58 Stopper;Pulley;;painting;;Iced Sliver;GM No Model Compatibility List $7.78 / Each

8
714882 1000319417 L30 Fixing Rack;Counte;;painting;;Iced Slive No Model Compatibility List $10.38 / Each

4,5,6
714884 1000319422 Z100 Frame Fix Plate;;;painting;;Iced Sliver; No Model Compatibility List $12.98 / Each

3
714890 1000319458 B12 Slide Pulley Fixing Base;;;painting;;Ice No Model Compatibility List $64.98 / Each

8,3
714891 1000319463 2 Down Cover Set;Fixing Frame;;Iced Sliver No Model Compatibility List $5.18 / Each

9,3
714892 1000319468 3 Upper Cover Set;Fixing Frame;;Iced Slive No Model Compatibility List $7.78 / Each

9,3
714899 1000319503 14 Seat ADJ Set;;Down;Iced Sliver;GM40-KM;; No Model Compatibility List $80.58 / Each

12,13,14
714900 1000319508 4 Movable Pulley Fixing Set;;;Iced Sliver; No Model Compatibility List $129.98 / Each

8
715040 1000320777 C33 Shaft;Cover;;painting;;Iced Sliver;GM51- No Model Compatibility List $14.28 / Each

9,3
715041 1000320779 AB1 Frame Set;;;painting;;Iced Sliver;GM52-K No Model Compatibility List $0.00 / Each
Out Of Stock
3
715042 1000320780 AC1 base set;;;painting;;Iced Sliver;GM52-KM No Model Compatibility List $0.00 / Each
Out Of Stock
3
715043 1000320781 AD1 Pedal Arm;;RU;painting;;Iced Sliver;GM52 No Model Compatibility List $0.00 / Each
Out Of Stock
8,9,3
715044 1000320782 AD2 Pedal Arm;;RD;painting;;Iced Sliver;GM52 No Model Compatibility List $0.00 / Each
Out Of Stock
8,9,3
715045 1000320783 AD4 Pedal Arm;;LU;painting;;Iced Sliver;GM52 No Model Compatibility List $0.00 / Each
Out Of Stock
8,9,3
715046 1000320784 AD3 Pedal Arm;;LD;painting;;Iced Sliver;GM52 No Model Compatibility List $0.00 / Each
Out Of Stock
8,9,3
715047 1000320785 AH2 Fixing Plate Set;;;painting;;Iced Sliver No Model Compatibility List $0.00 / Each
Out Of Stock
3
715164 1000320997 1 Frame set;;;Iced Sliver;GM52-KM;;Service No Model Compatibility List $464.08 / Each

3
715165 1000320998 6 Base Set;;;Iced Sliver;GM52-KM;;Service No Model Compatibility List $435.48 / Each

3
715166 1000320999 7 pedal arm set;;right up;Iced Sliver;GM52 No Model Compatibility List $144.28 / Each

8,9,3
715167 1000321000 8 pedal arm set;;right down;Iced Sliver;GM No Model Compatibility List $340.58 / Each

8,9,3
715168 1000321001 9 pedal arm set;;left up;Iced Sliver;GM52- No Model Compatibility List $144.28 / Each

8,9,3
715169 1000321002 10 pedal arm set;;left down;Iced Sliver;GM5 No Model Compatibility List $340.58 / Each

8,9,3
715170 1000321003 12 Fixed chipset;;;Iced Sliver;GM52-KM;;Ser No Model Compatibility List $70.18 / Each

1
715171 1000321004 AG1 Link Tube Set;;up;Iced Sliver;GM52-KM;;S No Model Compatibility List $84.48 / Each

3
715172 1000321005 AG2 Link Tube Set;;down;Iced Sliver;GM52-KM; No Model Compatibility List $64.98 / Each

3
716192 1000334510 B17 Fixing Plate;;down;NBR;;;GM40; No Model Compatibility List $12.98 / Each

3
1000393222 722509 1000393222 H39 Spring;Compression;1.3x12.7x38Lx7;SWP; No Model Compatibility List $1.28 / Each

2
725362 070571 L38 Washer;Flat;5.2X10.0X1.5T;;CHM; No Model Compatibility List $0.38 / Each

2
073572 725583 073572 F17 Pulley; 90mm No Model Compatibility List $34.06 / Each

8
073573 725584 073573 F21 Pulley; 115mm No Model Compatibility List $32.44 / Each

8
726956 086226 V09 Nameplate;Motor Cover;LOGO;T5X-02; No Model Compatibility List $32.52 / Each

9,3,10
728057 092924 D36 Screw;Hex Scoket;Round;M8x1.25Px10L;Cr;A No Model Compatibility List $0.40 / Each

2
093501 728185 093501 V08 Warning sticker;small;GM40-KM No Model Compatibility List $1.28 / Each

1
728703 096046 J32 Axle;CON Rod;45#;GM40 No Model Compatibility List $15.02 / Each

8,3
728706 096086 L01 Weight Plate;Incremental;3P;HT200;GM41 No Model Compatibility List $67.18 / Each

3
728719 096165 H19 Adjustment Grip Set;Semi-Assy;;;;GM44;; No Model Compatibility List $19.92 / Each

11
728731 096216 J35 Stopper Sleeve;WASHER;GM40 No Model Compatibility List $0.16 / Each

2,3
728734 096243 D23 Pin;20#;ZnGM52 No Model Compatibility List $3.14 / Each

12,13,14
728913 098970 B15 Fixing Block;Pulley;SPHC;GM40 No Model Compatibility List $14.96 / Each

8
728914 098972 J21 Spring;EXT;;SWP;ZNC;GM40 No Model Compatibility List $1.38 / Each

2
728915 098973 J16 Fixing Block;Spring;45#;GM40 No Model Compatibility List $1.22 / Each

2
728916 098978 B13 Fixing Plate;Pulley;Right;SPHC;GM40 No Model Compatibility List $4.26 / Each

8,3
728918 098980 Q06 Kettle Base;ABS;GM40 No Model Compatibility List $26.84 / Each

3
728919 098984 Q03 Cover;Rear;ABS;GM40 No Model Compatibility List $116.98 / Each

9
728920 098985 Q02 Weight Stack Shield;Front;ABS;GM40 No Model Compatibility List $113.56 / Each

3,4,5,6
728921 098986 Q05 Grip;Up Cover;ADC12;GM40 No Model Compatibility List $150.78 / Each

9,4,5,6,11
728922 098987 Q01 Cover;Up;ABS;GM40 No Model Compatibility List $29.88 / Each

9
728923 098988 Q04 Cover;Front;ABS;GM40 No Model Compatibility List $113.56 / Each

9
728926 099026 AJ1 Seat ADJ;Down;Painting;GM40 No Model Compatibility List $0.00 / Each
Out Of Stock
12,13,14
728927 099030 J10 ADJ Plate;Seat;ZG20;GM40 No Model Compatibility List $76.50 / Each

3,12,13,14
728928 099035 J13 Axle;Pull Pin;42CrMo;GM40 No Model Compatibility List $32.64 / Each

8,12,13,14
728929 099036 J14 Axle Sleeve;Pull Pin;42CrMo;GM40 No Model Compatibility List $12.80 / Each

8,3,12,13,14
728930 099052 L12 ADJ Base;L;Incremental Weight Plate;GM40 No Model Compatibility List $18.08 / Each

3
728931 099053 L03 ADJ Base;R;Incremental Weight Plate;GM40 No Model Compatibility List $1.52 / Each

3
728932 099055 K09 Fixing Block;UP;Guide Rod;45#GM40 No Model Compatibility List $16.80 / Each

3
728933 099056 L07 U;Cover;IncrementalWeightPlate;20#;GM40 No Model Compatibility List $18.08 / Each

9,3
728934 099059 K02 ADJ Rod;Weight Plate;20#;GM40 No Model Compatibility List $84.34 / Each

3
728936 099063 L40 Cover;Incremental Weight Plate;PC;GM40 No Model Compatibility List $15.64 / Each

9,3
728937 099064 L17 Sleeve;D;IncrementalWeight Plate;POM;GM4 No Model Compatibility List $4.34 / Each

3
728938 099065 C13 Cap;ABS;GM40 No Model Compatibility List $3.80 / Each

9
View Drawing
