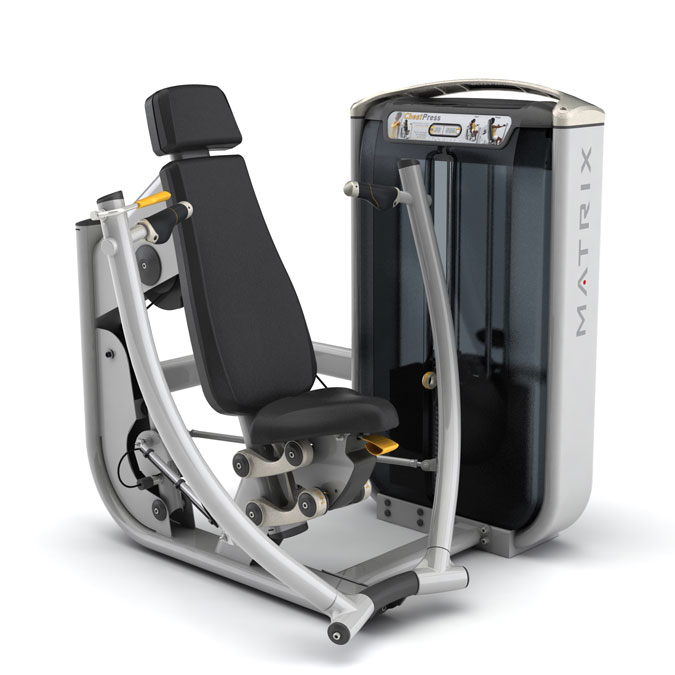

Matrix Commercial - G7-S13 PY - 2009

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
001523-E 700519 001523-E H33 Rubber Stop;CAM No Model Compatibility List $2.80 / Each

1
001679-00 700570 001679-00 B66 Tie Strap;Adhesive;Nylon;66;HC-101;W No Model Compatibility List $1.90 / Each

2
004072-A2 701154 004072-A2 F40 Ball Bearing;Flywheel;6002ZZ No Model Compatibility List $8.92 / Each

8
004078-A2 701160 004078-A2 D12 Ball Bearing;6005ZZ;Z25XZ47X12T;;TPI;;; Yes Model Compatibility List $14.72 / Each

8
004081-A2 701165 004081-A2 D62 Ball Bearing;6204ZZ;20x47x14t;TPI Yes Model Compatibility List $12.22 / Each

8
701280 004349-A F32 BOLT BH M3X25 ZNC No Model Compatibility List $0.94 / Each

2
004518-00 701465 004518-00 Z03 Screw;SH;M10X1.5PX75L;;HS;;CHM;; No Model Compatibility List $2.80 / Each

2
701618 004636-AD J45 Screw;BH;4X15L;SM;PH;;CHM;;POT No Model Compatibility List $0.62 / Each

2
004696-AB 701660 004696-AB B29 Screw;Hex Socket;8X1.25X20L;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
701691 004719-AB B26 Screw;BH;M8X1.25PX12L;;HS;;CHM;;G12.9 No Model Compatibility List $0.30 / Each

2
701767 004789-AC Z18 Screw;BH;M10X1.5PX75L;;HS;;CHM;;G12.9 No Model Compatibility List $2.84 / Each

2
701833 004851-00 Z17 Set Screw;M5x0.8Px5L;Cr No Model Compatibility List $1.10 / Each

2
004855-AC 701836 004855-AC D41 Set Screw;M6X1.0PX4L No Model Compatibility List $1.38 / Each

2
004870-00 701851 004870-00 B37 Screw;Plain Tapping;Rail Lock;5x15L No Model Compatibility List $1.22 / Each

2,9,12,13,14
701884 004910-00 F12 Nut;NLK;M10X1.5P;;CHM;; No Model Compatibility List $0.62 / Each

2
004929-00 701901 004929-00 Z25 Nut;Nylon;M8x1.25P;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
004938-00 701911 004938-00 Z13 Nut;Nylon;M6X1.0P;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005017-00 701981 005017-00 C36 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.02 / Each

7,2,12,13,14
005084-00 702056 005084-00 L51 Washer;Flat;5.3X10.0X1.0T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
702080 005113-00 F26 WASHER;FLT;Diam.X16.2XDiam.X28.0X1.2T;;B No Model Compatibility List $1.42 / Each

2
005116-00 702082 005116-00 Z26 Washer;Flat;25.5X38.0X2.0T;Black Zinc No Model Compatibility List $1.38 / Each

2,4,5,6
005130-00 702098 005130-00 B25 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005144-AC 702117 005144-AC B60 Washer;Flat;10.2X35.0X2.0T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005219-00 702177 005219-00 D50 Washer;Wavy;26.0x35.0x0.3T No Model Compatibility List $1.38 / Each

2,4,5,6
005330-00 702217 005330-00 J44 Tinnamen Nut No Model Compatibility List $1.22 / Each

2
005377-00 702250 005377-00 K14 Clamp;E-Shaped Ring;E-15 No Model Compatibility List $0.50 / Each

4,5,6
005811-00 702299 005811-00 B62 Cable Tie;Nylon;Black;160L No Model Compatibility List $1.16 / Each

2,4,5,6
008523-B 702531 008523-B Z21 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $7.00 / Each

2
019151-AA 703901 019151-AA K12 Rubber Bumper;Weight Stack No Model Compatibility List $2.80 / Each

3,4,5,6
020092-AB 704002 020092-AB Z37 Screw;Hex Socket;Round;M8x1.25Px35L;Adhe No Model Compatibility List $2.58 / Each

2
020096-00 704004 020096-00 B24 Screw;Hex Socket;Round;M8x1.25Px15L;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
020112-A 704023 020112-A B31 Screw;Hex Socket;Round;M10x1.5Px50L(Tooth15) No Model Compatibility List $1.02 / Each

2
020196-A 704079 020196-A B39 Screw;Phillip;BH;Tapped;3x6L;;Zn-BL No Model Compatibility List $3.08 / Each

2
020465-AB 704193 020465-AB B30 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
020478-AC 704204 020478-AC H36 Washer;Flat;10.2X20.0X2.0T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
020479-A 704206 020479-A F13 Washer;Flat;10.2x22.0x2.0T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
040816-A 705313 040816-A B38 Screw;Phillip;BH;Tapped;3x8L; No Model Compatibility List $1.54 / Each

2
066570-00 706885 066570-00 F33 Nut;NLK;M4X0.7P;;BZN;; No Model Compatibility List $1.38 / Each

2
707171 1000091026 D14 Ring;GM41 No Model Compatibility List $7.40 / Each

1
707428 1000092642 J20 Spring;RCL;;4130CrMo;Spray teflon;GM40 No Model Compatibility List $81.54 / Each

2
707429 1000092644 J39 Clamp;Inner C type;6;GM40 No Model Compatibility List $0.38 / Each

4,5,6

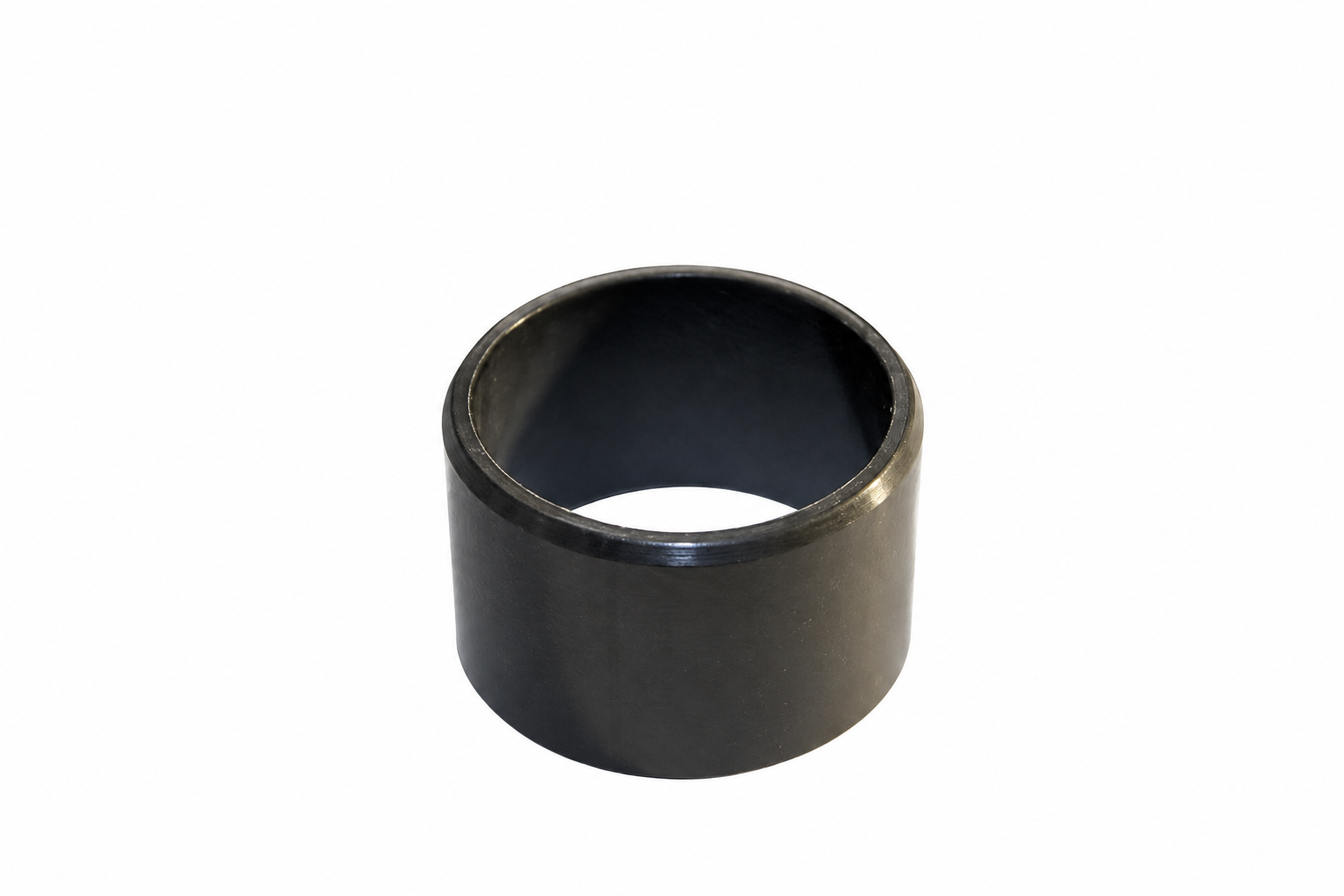

707431 1000092646 L02 Axle Sleeve;Guide Rod;23X20X15L;GM40 No Model Compatibility List $4.20 / Each

8,3
707434 1000092654 AL4 ADJ Base Three;Incremental Weight Plate; No Model Compatibility List $57.98 / Each

7,3,12,13,14
707435 1000092656 L43 Nut;HX;M10X1.5PX10L;SS41;CHM;; No Model Compatibility List $0.66 / Each

2
707436 1000092663 F07 Screw;SH;10XM8X46L;HS;G8.8;CHM;; No Model Compatibility List $2.14 / Each

2
707437 1000092666 J25 Head pad;Black;Vesicant;GM40 No Model Compatibility List $19.48 / Each

4,5,6,12,13,14
707438 1000092667 J26 Back Pad;Black;Vesicant;GM40 No Model Compatibility List $63.68 / Each

4,5,6,12,13,14
1000092669 707439 1000092669 J28 Plastic Cover;Back Pad;GM40 No Model Compatibility List $50.32 / Each

9,4,5,6,12,13,14
707440 1000092670 J29 Plastic Cover;Head pad;GM40 No Model Compatibility List $15.22 / Each

9,12,13,14
707517 1000093096 D11 Axle;Fixing;20#;GM41 No Model Compatibility List $6.70 / Each

8
707518 1000093100 H25 Axle Tao;Peadal Arm ADJ;20#;GM41 No Model Compatibility List $10.78 / Each

8,3
707519 1000093101 H23 Axle;Peadal Arm ADJ;42CrMo;GM41 No Model Compatibility List $11.52 / Each

8,3
707520 1000093102 H22 Fixing Axle;Peadal Arm ADJ;20#;GM41 No Model Compatibility List $11.78 / Each

8,3
707521 1000093119 D25 Bearing;Rod End;Left THREAD(EXTERNAL);M12;G No Model Compatibility List $32.20 / Each

7,8,9,3,12,13,14
707522 1000093120 D26 Bearing;Rod End;Right;THREAD(EXTERNAL);M12;G No Model Compatibility List $32.20 / Each

7,8,9,3,12,13,14
1000096013 707821 1000096013 C23 Cap Two;ABS;GM40 No Model Compatibility List $3.22 / Each

9
1000096014 707822 1000096014 D24 Bushing;15x19x20T;GM40 No Model Compatibility List $3.58 / Each

8
707823 1000096016 F15 Inner C type Clamp;15;GM40 No Model Compatibility List $1.32 / Each

4,5,6
1000096017 707824 1000096017 G08 Rubber Pad;Fixing;GM40 No Model Compatibility List $1.84 / Each

12,13,14
707826 1000096021 L21 Screw;SET;M10X1.5P No Model Compatibility List $0.62 / Each

2
707827 1000096022 L31 Magnet;Counte;GM40 No Model Compatibility List $1.52 / Each

8
707828 1000096023 L32 Half-moon Key;20#;GM40 No Model Compatibility List $0.68 / Each

9
707829 1000096024 Q08 Fixing Base;PC;GM40 No Model Compatibility List $2.58 / Each

3
707830 1000096025 Q09 Decal Plate;U;GM40 No Model Compatibility List $53.92 / Each

7,3
707831 1000096026 B32 Fixing Base;Sensor;ABS;GM40 No Model Compatibility List $6.40 / Each

3
707833 1000096167 L15 Axle Sleeve Two;Weight Plate;Rubber;GM40 No Model Compatibility List $7.40 / Each

8,3
707853 1000096395 D10 Bearing;Needle;NKI35/20;;;;;; No Model Compatibility List $104.60 / Each

8
707854 1000096396 H29 Sleeve;ADJ Axle;ABS;GM41 No Model Compatibility List $0.92 / Each

8,3
707859 1000096510 D43 Nut;HX;M12X1.75P;SS41;CHM;; No Model Compatibility List $1.06 / Each

2
707860 1000096511 D44 Nut;HX;M12X1.75P;SS41;CHM;;LEFT KNOB No Model Compatibility List $1.06 / Each

2
707861 1000096514 B34 Control Board;Matrix;H102;S1.60;GM40 No Model Compatibility List $38.98 / Each

7
707864 1000096531 B33 Speed Sensor Wire;1200mm(2.5-5P);GM40 No Model Compatibility List $16.80 / Each

4,5,6
707879 1000096575 B36 Overlay;Manipulate;GM40 No Model Compatibility List $1.88 / Each

1
707927 1000096996 D27 Cap Three;PP;GM40 No Model Compatibility List $2.14 / Each

7,9,12,13,14
707982 1000097385 J33 Stopper Sleeve;CON Rod Axle;ABS;GM40 No Model Compatibility List $1.98 / Each

8,3
707984 1000097422 D23 Fixing Sleeve;Rubber;Steel Cable;GM41 No Model Compatibility List $0.62 / Each

3,4,5,6
707985 1000097423 H24 Spring;;;;ZNC;LONG;GM41 No Model Compatibility List $0.74 / Each

2
707986 1000097424 H26 Spring;;;;ZNC;SHORT;GM41 No Model Compatibility List $0.66 / Each

2
707995 1000097484 H30 Clamp;Brake Cable;ABS;GM41 No Model Compatibility List $0.40 / Each

8,4,5,6
708027 1000097850 J40 SCREW;SH;M8X1.25PX95L;;HS;;CHM;;G12.9 No Model Compatibility List $2.58 / Each

2
708031 1000098049 C24 Pulley Cover;Big;Base;ABS;GM40 No Model Compatibility List $6.56 / Each

8,9,3
708032 1000098050 C17 Pulley Cover;Small;Base;ABS;GM40 No Model Compatibility List $6.76 / Each

8,9,3
708033 1000098051 C20 Bearing Cover;Base;ABS;GM40 No Model Compatibility List $6.34 / Each

8,9,3
708059 1000098628 D37 Bushing;12x18x12L;GM41 No Model Compatibility List $0.08 / Each

8
1000098705 708063 1000098705 H37 Bushing;26x20x20L;GM41 No Model Compatibility List $7.94 / Each

8
708069 1000098853 H35 Nut;HX;M5X0.8P;SS41;CHM;; No Model Compatibility List $0.82 / Each

2
708070 1000098859 Z42 Screw;Socket Head;M6x1.0Px60L;;Hex Socke No Model Compatibility List $2.58 / Each

2
708092 1000099579 H34 Screw;SH;M8X1.25PX12L;;HS;;CHM;;BP No Model Compatibility List $0.46 / Each

2
708111 1000099778 V11 Illustration Decal;Front;GM41-KM No Model Compatibility List $24.38 / Each

7,3
708112 1000099779 V12 Illustration Decal;Rear;GM41-KM No Model Compatibility List $22.56 / Each

7,3

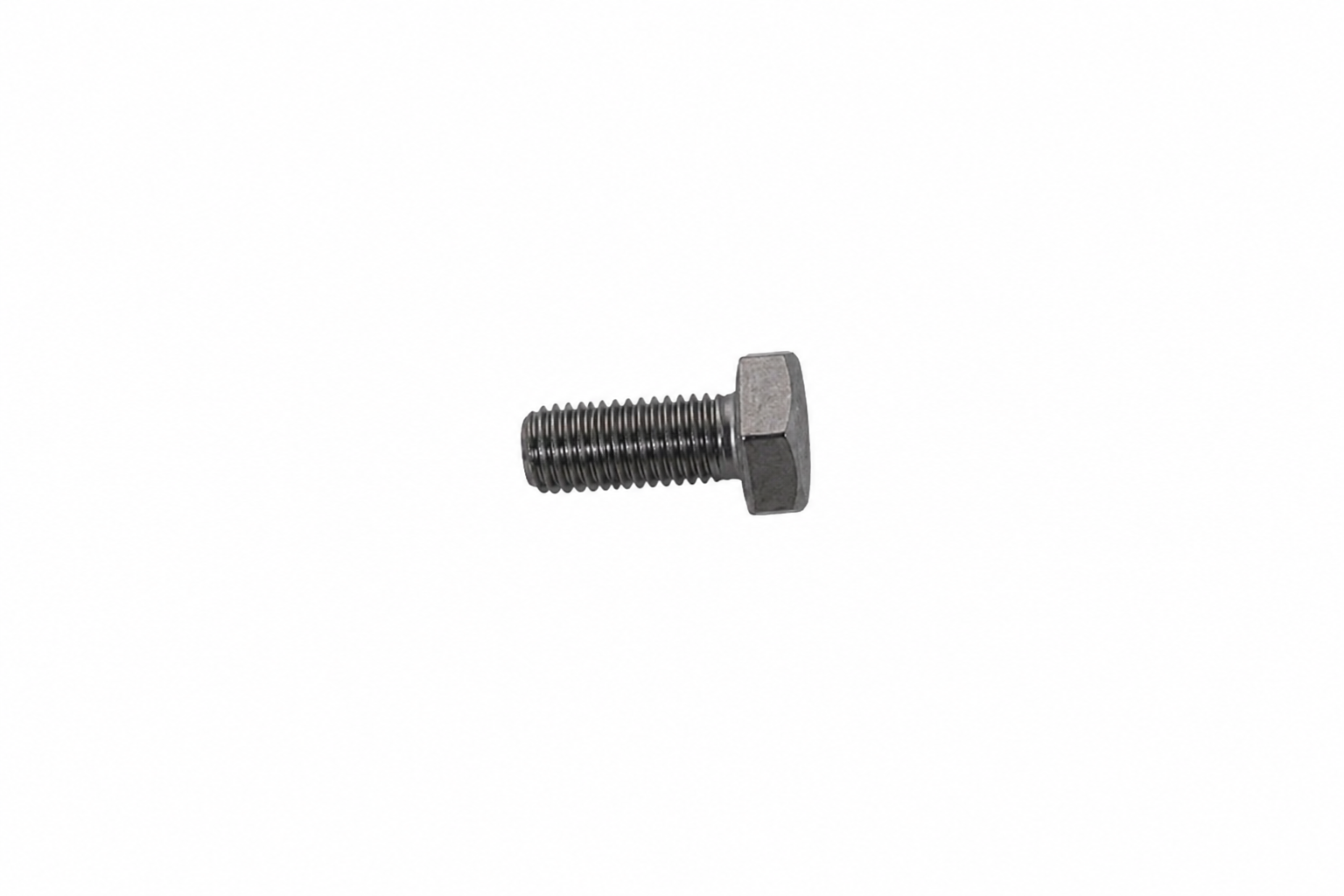

708386 1000102584 Z19 Screw;Hex;M10x1.5Px20L;Cr Plate;G12.9 No Model Compatibility List $1.06 / Each

2,3
708399 1000102647 L50 Screw;Settle;M5x0.8Px6L;Top End;BED No Model Compatibility List $0.38 / Each

2,9
708408 1000102696 L13 Dial;GM41 No Model Compatibility List $3.04 / Each

1
708445 1000102861 D47 Screw;Hex Socket;Round;M6x1.0Px25L;Cr Pl No Model Compatibility List $1.06 / Each

2
708447 1000102863 B45 Screw;Hex Socket;Round;M10x1.5Px15L;Cr P No Model Compatibility List $1.38 / Each

2
1000102910 708484 1000102910 L45 Circlip;External C Type;S-12;BED No Model Compatibility List $1.02 / Each

2
1000102913 708487 1000102913 D49 Circlip;Internal C Type;R-47;BED No Model Compatibility List $1.38 / Each

2
1000103438 708563 1000103438 B28 Screw;Cross;BH;Tapped;4x10L;A Class;ke No Model Compatibility List $0.44 / Each

2
708565 1000103444 J43 Cover;Seat;GM40-KM No Model Compatibility List $3.58 / Each

9,12,13,14
1000104003 708593 1000104003 B19 Cap;Insert Nut;GM40-KM No Model Compatibility List $2.28 / Each

2,9
708596 1000104035 H41 Steel Cable;ADJ;Exrta-work;GM41 No Model Compatibility List $14.02 / Each

4,5,6
1000104672 708649 1000104672 L37 Screw;BH;M5x0.8Px10L;HS;CST;CST;CST;CHM; No Model Compatibility List $0.46 / Each

2
1000104682 708655 1000104682 D13 Circlip;External C Type;S-25;BAN No Model Compatibility List $0.62 / Each

2
1000104691 708662 1000104691 Z04 Screw;RND;M10x1.5Px30L;HS;G12.9;CHM;BP No Model Compatibility List $2.80 / Each

2
1000104705 708675 1000104705 L38 Screw;RND;M6x1.0Px15L;HS;CHM;BP;G8.8 No Model Compatibility List $0.40 / Each

2
708719 1000105068 B42 RVN;HX;NKHS-10;YZN No Model Compatibility List $1.72 / Each

1
708720 1000105069 C50 RVN;HX;NHS-610-3.0;YZN No Model Compatibility List $0.68 / Each

1
708722 1000105072 F14 Washer;WW;65Mn;BAN;15.5x22.5x0.3t No Model Compatibility List $0.38 / Each

2
1000105174 708730 1000105174 B23 Nut;Nylon;M10x1.5P;G12.9;CHM No Model Compatibility List $1.38 / Each

2
708736 1000105202 C33 Screw;RND;CHM;M10x1.5Px110L-15L;HS;G12.9 No Model Compatibility List $5.10 / Each

2
708742 1000105259 Z05 Screw;Round;M10x1.5Px105L;Hex Socket;G12 No Model Compatibility List $4.94 / Each

2

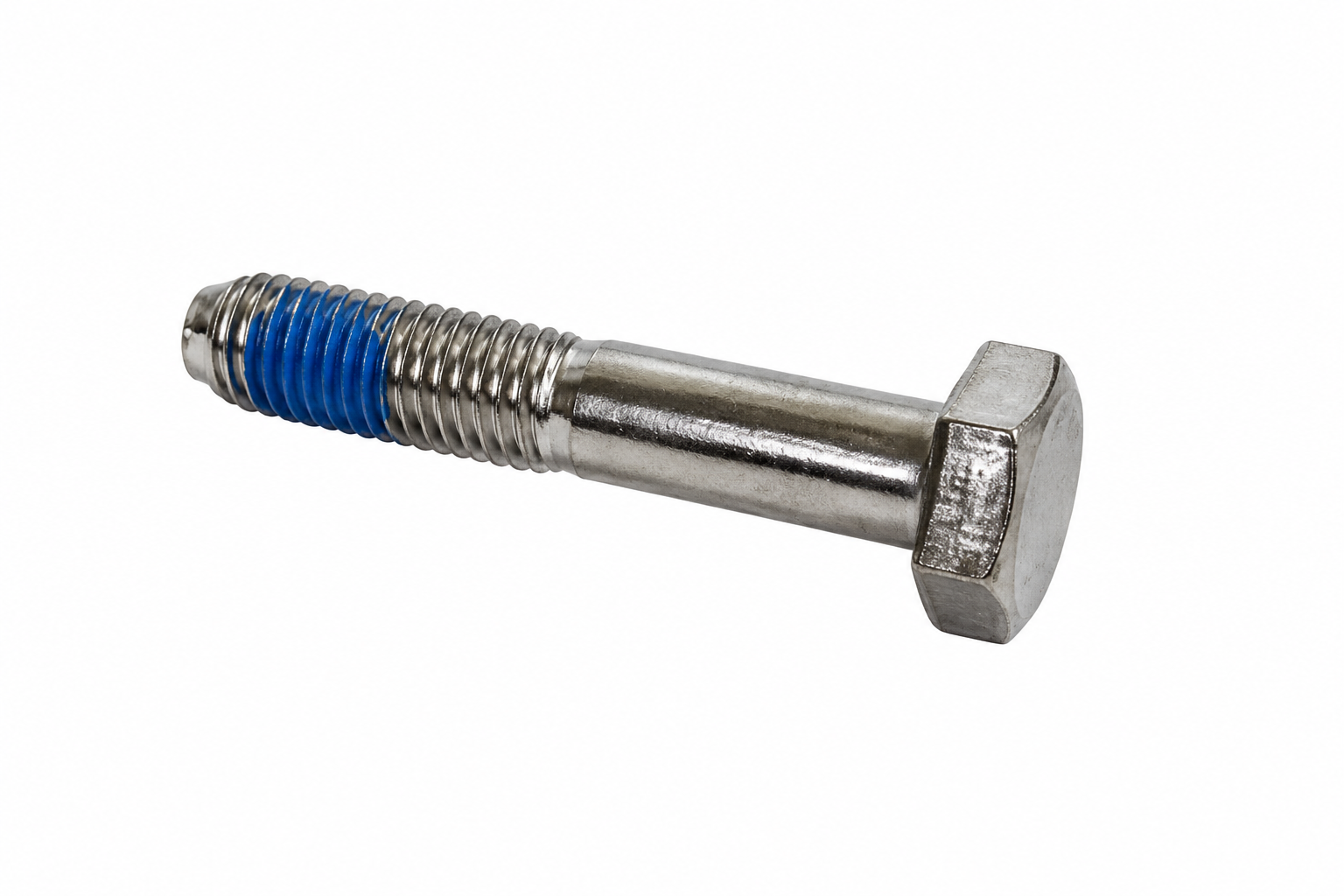

709006 1000108188 B21 Screw;HH;M10x1.5Px55L;MT;CST;CHM;BP;G12. No Model Compatibility List $2.58 / Each

2
709007 1000108189 C21 Screw;RND;M10x1.5Px50L-15L;MT;HS;CST;CHM No Model Compatibility List $2.74 / Each

2
709024 1000108343 9 Weight Stack Shield;Rear;ABS;GM40(service) No Model Compatibility List $269.10 / Each

3,4,5,6
709025 1000108344 10 Incremental Weight Pin Set;GM41(service) No Model Compatibility List $55.76 / Each

3,12,13,14
709026 1000108345 7 Handle;Weight Stack;ADC12;GM40(service) No Model Compatibility List $172.68 / Each

3,4,5,6,11
709027 1000108347 8 Repetition Counter Set;PC;GM40(service) No Model Compatibility List $107.20 / Each

1
709028 1000108348 2 Accent Plate Set;D;PP;GM40(service) No Model Compatibility List $26.30 / Each

3,4,5,6
709052 1000108738 6 Upper Cover Set;Weight Stack;ABS;GM40(service)-5 No Model Compatibility List $44.90 / Each

9,3,4,5,6
1000108799 709067 1000108799 C31 Screw;RND;M8x1.25Px25L;HS;CHM;BP;G8.8 No Model Compatibility List $2.74 / Each

2
709068 1000108800 Z06 Screw;RND;M6x1.0Px12L;HS;CHM;BP;G10.9 No Model Compatibility List $0.34 / Each

2
1000108801 709069 1000108801 L34 Screw;RND;M5x0.8Px15L;HS;CHM;BP;G8.8 No Model Compatibility List $1.38 / Each

2
709070 1000108803 L33 Screw;RND;M5x0.8Px12L;HS;CHM;BP;G8.8 No Model Compatibility List $0.26 / Each

2
709071 1000108804 L36 Screw;BH;M5x0.8Px15L;HS;CHM;BP;G8.8 No Model Compatibility List $0.54 / Each

2
1000108805 709072 1000108805 Q14 Screw;RND;M8x1.25Px20L;HS;CHM;BP;G12.9 No Model Compatibility List $1.38 / Each

2
1000108806 709073 1000108806 Z02 Screw;RND;M10x1.5Px15L;HS;CHM;BP;G12.9 No Model Compatibility List $0.68 / Each

2
709076 1000108910 L46 Washer;Flat;12.5x23x1.0t;CHM No Model Compatibility List $1.02 / Each

2
709143 1000110445 F05 Cam;Small;VHMWPE;GM41 No Model Compatibility List $198.62 / Each

1
709189 1000110802 D36 Grip;Pedal Arm ;wrap rubber;GM40-KM No Model Compatibility List $11.94 / Each

8,9,3,11
709202 1000111004 L18 Handle set;Semi-Assy;;Incremental Weight No Model Compatibility List $16.84 / Each

3,11
709304 1000112963 AD3 Grip;Arm Adjustment;GM41 No Model Compatibility List $33.36 / Each

3,11
709493 1000200704 AH5 PEDAL ARM SET;ADJUSTIC;DISPLAY;WELD;GM41 No Model Compatibility List $0.00 / Each
Out Of Stock
8,9,3
709512 1000200891 H40 Screw;SH;8XM6X41L;MT;HS;G12.9;CHM; No Model Compatibility List $2.80 / Each

2
709517 1000200981 K07 Guide Rod;Weight plate No Model Compatibility List $96.02 / Each

3
1000201046 709531 1000201046 D56 Washer;FLT;4.3X8X0.8T;SPHC;CHM;NA; No Model Compatibility List $1.38 / Each

2
709718 1000202352 K13 Cushion;Guide Rod No Model Compatibility List $6.48 / Each

3
709875 1000204186 AL3 Top Weight Plate Set No Model Compatibility List $292.04 / Each

3
709919 1000204728 B13 FIXING PLATE;ROPE WHEEL;;;SPHC;;;GM59-KM No Model Compatibility List $2.58 / Each

8,3
710040 1000206252 V03 Decal;Weight Plate;10P;GM40 No Model Compatibility List $43.80 / Each

7,3
710572 1000211061 Not Shown Direction Label;SEAT ADJUSTABLE;-;PC;;; No Model Compatibility List $6.48 / Each

12,13,14
710580 1000211102 AJ2 Seat Grip Set No Model Compatibility List $55.32 / Each

12,13,14,11
710684 1000212387 F16 Fixing Plate;Cable Head;-;45#;BED;GM41; No Model Compatibility List $12.28 / Each

3,4,5,6
1000212388 710685 1000212388 F19 Fixing Plate;Cable Head-;45#;BED;GM40; No Model Compatibility List $16.56 / Each

3,4,5,6
710812 1000213950 F09 Steel Rope;;;;;SERVICE;GM41-KM; No Model Compatibility List $76.58 / Each

1
710857 1000214495 H27 Axle, CENTRAL;20;WZN;ADJUSTABLE; No Model Compatibility List $15.80 / Each

8
711205 1000217603 B63 STOPPER PIECE;INDUCTOR;-;SPHC;ZH;GM40; No Model Compatibility List $2.58 / Each

1
1000230001 712638 1000230001 D40 Snap Ring;External;S-10; No Model Compatibility List $1.38 / Each

2
1000232600 713028 1000232600 V02 Warning Label;-;-;-;PC;-;- No Model Compatibility List $5.60 / Each

1
713402 1000302268 K09 Fixing Axle;Rop;Long;45#;Chrome;GM40-KM No Model Compatibility List $12.98 / Each

7,8,12,13,14
713405 1000302291 F08 Steel Rope-Extrawork;frame;-;Press Rope No Model Compatibility List $84.22 / Each

3
713646 1000306124 F11 Cam;Steel Rope;Big;VHMWPE;GM41 No Model Compatibility List $129.98 / Each

1
713886 1000309242 Z12 Washer;Flat;Diam.6.2XDiam.20.0X1.0T;;Chr No Model Compatibility List $1.28 / Each

7,2,12,13,14
714402 1000314399 D61 Axle;Swivel Arm;;45#;Chrome;GM42; No Model Compatibility List $19.48 / Each

7,8,3,12,13,14
714875 1000319382 B10 Fixing Rack;Cover;D;painting;;Iced Slive No Model Compatibility List $5.18 / Each

9,4,5,6
714876 1000319387 B11 Fixing Rack;Cover;U;painting;;Iced Slive No Model Compatibility List $5.18 / Each

9,4,5,6
714877 1000319392 B58 Stopper;Pulley;;painting;;Iced Sliver;GM No Model Compatibility List $7.78 / Each

8
714879 1000319402 F06 Steel Rope Stopper Plate;;;painting;;Ice No Model Compatibility List $9.08 / Each

3
714881 1000319412 AG2 ConnectingTube;;D;painting;;Iced Sliver; No Model Compatibility List $41.58 / Each

3
714882 1000319417 L30 Fixing Rack;Counte;;painting;;Iced Slive No Model Compatibility List $10.38 / Each

4,5,6
714884 1000319422 Z100 Frame Fix Plate;;;painting;;Iced Sliver; No Model Compatibility List $12.98 / Each

3
714890 1000319458 B12 Slide Pulley Fixing Base;;;painting;;Ice No Model Compatibility List $64.98 / Each

8,3
714891 1000319463 3 Down Cover Set;Fixing Frame;;Iced Sliver No Model Compatibility List $5.18 / Each

9,3
714892 1000319468 4 Upper Cover Set;Fixing Frame;;Iced Slive No Model Compatibility List $7.78 / Each

9,3
714898 1000319498 AF1 Cam Fixing Set;;;Iced Sliver;GM40-KM;;Se No Model Compatibility List $32.48 / Each

1
714899 1000319503 AJ1 Seat ADJ Set;;Down;Iced Sliver;GM40-KM;; No Model Compatibility List $80.58 / Each

12,13,14
714900 1000319508 5 Movable Pulley Fixing Set;;;Iced Sliver; No Model Compatibility List $129.98 / Each

8
714994 1000320676 AB1 Frame Set;;;painting;;Iced Sliver;GM41-K No Model Compatibility List $0.00 / Each
Out Of Stock
3
714995 1000320677 AD1 Pedal Arm Set;;L;painting;;Iced Sliver;G No Model Compatibility List $0.00 / Each
Out Of Stock
8,9,3
714996 1000320679 AC1 base set;;;painting;;Iced Sliver;GM41-KM No Model Compatibility List $0.00 / Each
Out Of Stock
3
715082 1000320906 11 pedal arm set;;left;Iced Sliver;GM41-KM; No Model Compatibility List $501.78 / Each

8,9,3
715083 1000320907 12 Link Set;;;Iced Sliver;GM41-KM;;Service No Model Compatibility List $63.68 / Each

3
715084 1000320908 13 Base Set;;;Iced Sliver;GM41-KM;;Service No Model Compatibility List $652.58 / Each

3
715085 1000320909 AG1 Link Tube Set;;up;Iced Sliver;GM41-KM;;S No Model Compatibility List $131.28 / Each

3
715086 1000320911 AH19 Fixing Set;Pedal Arm;down;Iced Sliver;GM No Model Compatibility List $157.28 / Each

8,9,3
715087 1000320913 15 Adjustment Tube Set;Pedal Arm;;Iced Sliv No Model Compatibility List $175.48 / Each

8,9,3
716192 1000334510 B17 Fixing Plate;;down;NBR;;;GM40; No Model Compatibility List $12.98 / Each

3
716193 1000334511 C15 Rubber Foot Pad;Base;;NBR;;;GM40; No Model Compatibility List $7.78 / Each

9,3,12,13,14
717110 1000341631 Not Shown Retrofit Kit;Pedal Arm set;Semi-Assy;down;Old frames No Model Compatibility List $29.88 / Each

8,9,3
1000345425 717480 1000345425 L41 Stopper Ring;Guide Rod;;;Chrome;GM41;; No Model Compatibility List $14.02 / Each

7,3,12,13,14
719327 1000359766 AC18 Pedal Arm Assembly Rendering;;;;;GM41;; No Model Compatibility List $194.98 / Each

8,9,3
719730 1000364336 H66 Sleeve; Fix GM41 No Model Compatibility List $0.00 / Each
Out Of Stock
3
720427 1000372592 L59 Adjustable Pin Set;;;Weight plate;GM40;; No Model Compatibility List $84.22 / Each

3,12,13,14
721555 1000384117 F31 Stopper Plate;Cam Stopper;;;;;GM41-KM;L No Model Compatibility List $2.58 / Each

3
724972 100429 AD2 Peadal Arm Set;Right;Painting;GM41 No Model Compatibility List $0.00 / Each
Out Of Stock
3
724973 100442 D45 Fixing Plate;ADJ;Grip;GM41 No Model Compatibility List $0.82 / Each

3,11
724974 100465 Not shown HARDWARE KIT;GM41-KM No Model Compatibility List $161.04 / Each

1
725362 070571 L38 Washer;Flat;5.2X10.0X1.5T;;CHM; No Model Compatibility List $0.38 / Each

2
073573 725584 073573 F21 Pulley; 115mm No Model Compatibility List $32.44 / Each

8
726162 080409 C38 Screw;TH;M6X1.0PX25L;;HS;;;;; No Model Compatibility List $1.28 / Each

2
726956 086226 V09 Nameplate;Motor Cover;LOGO;T5X-02; No Model Compatibility List $32.52 / Each

9,3,10
090440 727687 090440 H08 Stopper BlockRubber;GM30 No Model Compatibility List $2.10 / Each

1
728703 096046 J32 Axle;CON Rod;45#;GM40 No Model Compatibility List $15.02 / Each

8,3
728706 096086 L01 Weight Plate;Incremental;3P;HT200;GM41 No Model Compatibility List $67.18 / Each

3
728707 096088 AK1 Weght Plate Set;12.5P;GM41 No Model Compatibility List $51.98 / Each

3
728708 096103 AD4 Stopper Set;ADJ Axle;Painting;GM41 No Model Compatibility List $5.60 / Each

8
728709 096108 D38 Swivel Axle;ADJ;Grip;GM41 No Model Compatibility List $22.24 / Each

8,11
728710 096109 H21 Axle Sleeve;Pin;Peadal ADJ;20#;GM41 No Model Compatibility List $19.02 / Each

8,3,12,13,14
728723 096186 J27 Seat Set;BL;Semi-Assy;GM40-KM No Model Compatibility List $239.18 / Each

12,13,14
728729 096214 D34 Fixing Ring;ADC12;GM40 No Model Compatibility List $13.80 / Each

4,5,6
728730 096215 D35 Cap Cover;Grip;ADC12;GM40 No Model Compatibility List $15.50 / Each

9,4,5,6,11
728731 096216 J35 Stopper Sleeve;WASHER;GM40 No Model Compatibility List $0.16 / Each

2,3
728732 096223 H31 Lead Tube;20#;GM41 D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $1.38 / Each

3
728733 096240 14 Arm Set;Right;GM41-KM No Model Compatibility List $734.18 / Each

3
728735 096260 D51 Stopper Tube;Swivel Arm;GM41 No Model Compatibility List $12.58 / Each

3
728914 098972 J21 Spring;EXT;;SWP;ZNC;GM40 No Model Compatibility List $1.38 / Each

2
728915 098973 J16 Fixing Block;Spring;45#;GM40 No Model Compatibility List $1.22 / Each

2
728918 098980 Q06 Kettle Base;ABS;GM40 No Model Compatibility List $26.84 / Each

3
728919 098984 Q03 Cover;Rear;ABS;GM40 No Model Compatibility List $116.98 / Each

9
728920 098985 Q02 Weight Stack Shield;Front;ABS;GM40 No Model Compatibility List $113.56 / Each

3,4,5,6
728921 098986 Q05 Grip;Up Cover;ADC12;GM40 No Model Compatibility List $150.78 / Each

9,4,5,6,11
728922 098987 Q01 Cover;Up;ABS;GM40 No Model Compatibility List $29.88 / Each

9
728923 098988 Q04 Cover;Front;ABS;GM40 No Model Compatibility List $113.56 / Each

9
728925 099006 H38 Axle;Seat ADJ;42CrMo;GM40 No Model Compatibility List $14.34 / Each

8,12,13,14
728927 099030 J10 ADJ Plate;Seat;ZG20;GM40 No Model Compatibility List $76.50 / Each

3,12,13,14
728928 099035 J13 Axle;Pull Pin;42CrMo;GM40 No Model Compatibility List $32.64 / Each

8,12,13,14
728929 099036 J14 Axle Sleeve;Pull Pin;42CrMo;GM40 No Model Compatibility List $12.80 / Each

8,3,12,13,14
728930 099052 L12 ADJ Base;L;Incremental Weight Plate;GM40 No Model Compatibility List $18.08 / Each

3
728931 099053 L03 ADJ Base;R;Incremental Weight Plate;GM40 No Model Compatibility List $1.52 / Each

3
728933 099056 L07 U;Cover;IncrementalWeightPlate;20#;GM40 No Model Compatibility List $18.08 / Each

9,3
728934 099059 K02 ADJ Rod;Weight Plate;20#;GM40 No Model Compatibility List $84.34 / Each

3
728936 099063 L40 Cover;Incremental Weight Plate;PC;GM40 No Model Compatibility List $15.64 / Each

9,3
728937 099064 L17 Sleeve;D;IncrementalWeight Plate;POM;GM4 No Model Compatibility List $4.34 / Each

3
728938 099065 C13 Cap;ABS;GM40 No Model Compatibility List $3.80 / Each

9
728940 099090 J18 CON Rod;Seat Adjustment;ADC12;;;ADC12 No Model Compatibility List $31.18 / Each

3,4,5,6,12,13,14
728977 N/A AH3 Console Mast,Old version (4 holes on front) No Model Compatibility List $0.00 / Each
Out Of Stock
7
729611 ZMS4003222 Not Shown Decal, QR, G7-S13 Conv Chest Press No Model Compatibility List $4.54 / Each

7,3
View Drawing
