Matrix Commercial - G7-S42 PY - 2009

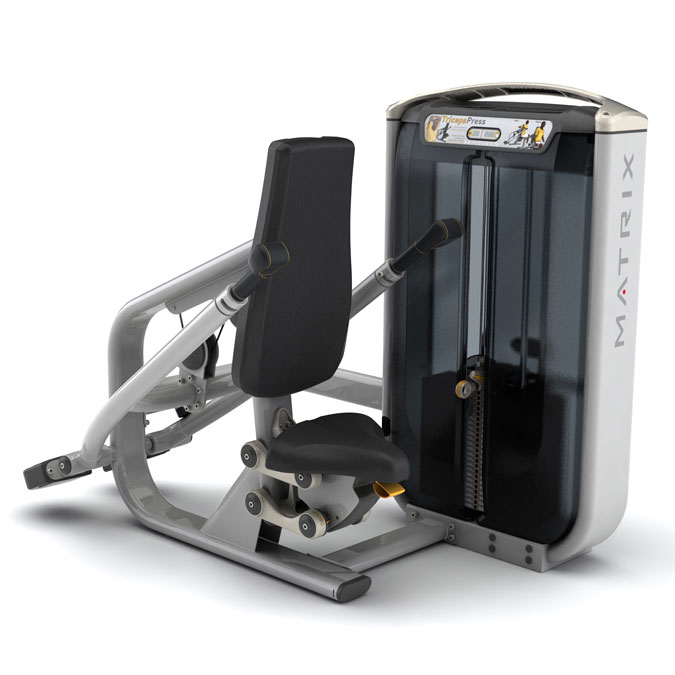

Repair Parts for Matrix Commercial G7-S42 PY G7GM47

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Name: G7-S42 PY

Version: 2009

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 700570 001679-00 B66 Tie Strap;Adhesive;Nylon;66;HC-101;W No Model Compatibility List $2.81 / Each

2
D 701159 004077-A2 D11 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

8
D 701160 004078-A2 D10 Ball Bearing;6005ZZ;Z25XZ47X12T;;TPI;;; Yes Model Compatibility List $19.14 / Each

8
F 701190 004133-00 F22 Bearing;Lower Link Arm End;;PHS 12(M12x1.75P);Huei Yes Model Compatibility List $18.51 / Each

8,9,3
Z 701465 004518-00 Z01 Screw;SH;M10X1.5PX75L;;HS;;CHM;; No Model Compatibility List $3.64 / Each

2
701618 004636-AD J45 Screw;BH;4X15L;SM;PH;;CHM;;POT No Model Compatibility List $0.81 / Each

2
B 701660 004696-AB B29 Screw;Hex Socket;8X1.25X20L;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
701691 004719-AB B26 Screw;BH;M8X1.25PX12L;;HS;;CHM;;G12.9 No Model Compatibility List $0.39 / Each

2
701767 004789-AC Z04 Screw;BH;M10X1.5PX75L;;HS;;CHM;;G12.9 No Model Compatibility List $3.69 / Each

2
B 701851 004870-00 B37 Screw;Plain Tapping;Rail Lock;5x15L No Model Compatibility List $1.59 / Each

2,9,12,13,14
Z 701901 004929-00 Z08 Nut;Nylon;M8x1.25P;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 701981 005017-00 Z03 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

7,2,12,13,14
G 702014 005048-AC G10 Washer;Flat;8.2x15.0x1.2T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
L 702056 005084-00 L51 Washer;Flat;5.3X10.0X1.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
C 702098 005130-00 C31 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 702119 005145-AC Z09 Washer;Flat;8.2x19.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
D 702177 005219-00 D13 Washer;Wavy;26.0x35.0x0.3T No Model Compatibility List $1.79 / Each

2,4,5,6
J 702217 005330-00 J44 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

2
K 702250 005377-00 K14 Clamp;E-Shaped Ring;E-15 No Model Compatibility List $0.65 / Each

4,5,6
B 702299 005811-00 B62 Cable Tie;Nylon;Black;160L No Model Compatibility List $1.51 / Each

2,4,5,6
Z 702531 008523-B Z11 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $9.10 / Each

2
K 703901 019151-AA K12 Rubber Bumper;Weight Stack No Model Compatibility List $3.64 / Each

3,4,5,6
B 704004 020096-00 B24 Screw;Hex Socket;Round;M8x1.25Px15L;Chromed Yes Model Compatibility List $9.99 / Each

7,2,12,13,14
B 704023 020112-A B31 Screw;Hex Socket;Round;M10x1.5Px50L(Tooth15) No Model Compatibility List $1.33 / Each

2
B 704079 020196-A B39 Screw;Phillip;BH;Tapped;3x6L;;Zn-BL No Model Compatibility List $4.00 / Each

2
L 704110 020256-AD L37 Screw;BH;M5X0.8PX10L;;HS;;CHM;; No Model Compatibility List $0.70 / Each

2
B 704193 020465-AB B22 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
C 704996 028632-AB C33 Screw;Hex Socket;Round;M10x1.5Px45L;Cr; No Model Compatibility List $4.16 / Each

2
B 705313 040816-A B38 Screw;Phillip;BH;Tapped;3x8L; No Model Compatibility List $2.00 / Each

2
Z 705459 049249-00 Z12 Screw;SH;M10X1.5PX65L;;HS;;CHM;; No Model Compatibility List $3.35 / Each

2
J 705926 056549-AB J40 Screw;SH;M8X1.25PX90L;;HS;;CHM;; No Model Compatibility List $4.76 / Each

2
707163 1000090828 AC3 Welding;Painting;GM47-KM No Model Compatibility List $577.95 / Each

1
707164 1000090872 Not Shown Hardware;Semi-Assy;GM47-KM No Model Compatibility List $178.91 / Each

1
707427 1000092641 L16 Axle Sleeve;Weight Plate;Rubber;GM40 No Model Compatibility List $7.28 / Each

8,3
707428 1000092642 J20 Spring;RCL;;4130CrMo;Spray teflon;GM40 No Model Compatibility List $106.00 / Each

2
707431 1000092646 L02 Axle Sleeve;Guide Rod;23X20X15L;GM40 No Model Compatibility List $5.46 / Each

8,3
707434 1000092654 AL4 ADJ Base Three;Incremental Weight Plate; No Model Compatibility List $75.37 / Each

7,3,12,13,14
707435 1000092656 L43 Nut;HX;M10X1.5PX10L;SS41;CHM;; No Model Compatibility List $0.86 / Each

2
707438 1000092667 J26 Back Pad;Black;Vesicant;GM40 No Model Compatibility List $82.78 / Each

4,5,6,12,13,14
J 707439 1000092669 J28 Plastic Cover;Back Pad;GM40 No Model Compatibility List $65.42 / Each

9,4,5,6,12,13,14
707651 1000094011 F12 Screw;SH;M12x45L-20L;-;HS;-;CHM;P-T;G12. No Model Compatibility List $6.73 / Each

2
C 707821 1000096013 C15 Cap Two;ABS;GM40 No Model Compatibility List $4.19 / Each

9
D 707822 1000096014 D24 Bushing;15x19x20T;GM40 No Model Compatibility List $4.65 / Each

8
Z 707824 1000096017 Z101 Rubber Pad;Fixing;GM40 No Model Compatibility List $2.39 / Each

12,13,14
707826 1000096021 L21 Screw;SET;M10X1.5P No Model Compatibility List $0.81 / Each

2
707827 1000096022 L31 Magnet;Counte;GM40 No Model Compatibility List $1.98 / Each

8
707828 1000096023 L32 Half-moon Key;20#;GM40 No Model Compatibility List $0.88 / Each

9
707829 1000096024 Q08 Fixing Base;PC;GM40 No Model Compatibility List $3.35 / Each

3
707830 1000096025 Q09 Decal Plate;U;GM40 No Model Compatibility List $70.10 / Each

7,3
707831 1000096026 B32 Fixing Base;Sensor;ABS;GM40 No Model Compatibility List $8.32 / Each

3
707833 1000096167 L15 Axle Sleeve Two;Weight Plate;Rubber;GM40 No Model Compatibility List $9.62 / Each

8,3
707861 1000096514 B34 Control Board;Matrix;H102;S1.60;GM40 No Model Compatibility List $50.67 / Each

7
B 707864 1000096531 B33 Speed Sensor Wire;1200mm(2.5-5P);GM40 No Model Compatibility List $21.84 / Each

4,5,6
707879 1000096575 B36 Overlay;Manipulate;GM40 No Model Compatibility List $2.44 / Each

1
707982 1000097385 J33 Stopper Sleeve;CON Rod Axle;ABS;GM40 No Model Compatibility List $2.57 / Each

8,3
708025 1000097848 L34 Screw;SH;M5X0.8PX15L;;HS;;CHM;; No Model Compatibility List $0.81 / Each

2
708026 1000097849 L36 Screw;BH;M5X0.8PX15L;;HS;;CHM;; No Model Compatibility List $0.81 / Each

2
708031 1000098049 C16 Pulley Cover;Big;Base;ABS;GM40 No Model Compatibility List $8.53 / Each

8,9,3
708032 1000098050 C17 Pulley Cover;Small;Base;ABS;GM40 No Model Compatibility List $8.79 / Each

8,9,3
708033 1000098051 C21 Bearing Cover;Base;ABS;GM40 No Model Compatibility List $8.24 / Each

8,9,3
708043 1000098476 K01 End Cap;Weight Plate;HDPE;Dark-Gray;GM47 No Model Compatibility List $0.60 / Each

9,3
708044 1000098477 K04 Spring Pin;8.5X90L;GM47 No Model Compatibility List $4.06 / Each

2,12,13,14
708062 1000098704 G08 Stopper Pad;Black;GM43 No Model Compatibility List $8.24 / Each

4,5,6,12,13,14
708146 1000100531 V11 InstructionLabel;F;GM47-KM No Model Compatibility List $78.78 / Each

1
708147 1000100532 V12 InstructionLabel;B;GM47-KM No Model Compatibility List $78.78 / Each

1
708386 1000102584 Z05 Screw;Hex;M10x1.5Px20L;Cr Plate;G12.9 No Model Compatibility List $1.38 / Each

2,3
708399 1000102647 L44 Screw;Settle;M5x0.8Px6L;Top End;BED No Model Compatibility List $0.49 / Each

2,9
708400 1000102648 D29 Balance Brick;HT200;GM47 No Model Compatibility List $224.90 / Each

1
708401 1000102649 K05 Spring Pin;12X22L;GM47-KM No Model Compatibility List $2.18 / Each

2,12,13,14
708408 1000102696 L13 Dial;GM41 No Model Compatibility List $3.95 / Each

1
L 708484 1000102910 L45 Circlip;External C Type;S-12;BED No Model Compatibility List $1.33 / Each

2
B 708563 1000103438 B28 Screw;Cross;BH;Tapped;4x10L;A Class;ke No Model Compatibility List $0.57 / Each

2
708565 1000103444 J43 Cover;Seat;GM40-KM No Model Compatibility List $4.65 / Each

9,12,13,14
B 708593 1000104003 B20 Cap;Insert Nut;GM40-KM No Model Compatibility List $2.96 / Each

2,9
L 708649 1000104672 L37 Screw;BH;M5x0.8Px10L;HS;CST;CST;CST;CHM; No Model Compatibility List $0.60 / Each

2
D 708655 1000104682 D14 Circlip;External C Type;S-25;BAN No Model Compatibility List $0.81 / Each

2
Z 708662 1000104691 Z02 Screw;RND;M10x1.5Px30L;HS;G12.9;CHM;BP No Model Compatibility List $3.64 / Each

2
708672 1000104702 L38 Screw;RND;M4x0.7Px10L;HS;G8.8;BAN;BP No Model Compatibility List $2.13 / Each

2
708719 1000105068 B40 RVN;HX;NKHS-10;YZN No Model Compatibility List $2.24 / Each

1
708720 1000105069 C40 RVN;HX;NHS-610-3.0;YZN No Model Compatibility List $0.88 / Each

1
B 708730 1000105174 B23 Nut;Nylon;M10x1.5P;G12.9;CHM No Model Compatibility List $1.79 / Each

2
708735 1000105201 L46 Washer;FLT;12.5x23x1.5t;CHM No Model Compatibility List $0.21 / Each

2
708771 1000105750 J39 Clamp;E-Type;E-5;Cr Plate No Model Compatibility List $0.81 / Each

3,4,5,6
709006 1000108188 B21 Screw;HH;M10x1.5Px55L;MT;CST;CHM;BP;G12. No Model Compatibility List $3.35 / Each

2
709024 1000108343 13 Weight Stack Shield;Rear;ABS;GM40(service) No Model Compatibility List $349.83 / Each

3,4,5,6
709025 1000108344 11 Incremental Weight Pin Set;GM41(service) No Model Compatibility List $72.49 / Each

3,12,13,14
709026 1000108345 14 Handle;Weight Stack;ADC12;GM40(service) No Model Compatibility List $224.48 / Each

3,4,5,6,11
709027 1000108347 15 Repetition Counter Set;PC;GM40(service) No Model Compatibility List $139.36 / Each

1
709028 1000108348 5 Accent Plate Set;D;PP;GM40(service) No Model Compatibility List $34.19 / Each

3,4,5,6
709029 1000108349 J18 Connecting Rod;Seat ADJ;ADC12;GM40 No Model Compatibility List $121.71 / Each

3,4,5,6,12,13,14
709052 1000108738 12 Upper Cover Set;Weight Stack;ABS;GM40(service)-5 No Model Compatibility List $58.37 / Each

9,3,4,5,6
709063 1000108795 Z17 Screw;RND;M8x1.25Px60L;HS;CHM;BP;G8.8 No Model Compatibility List $3.46 / Each

2
C 709067 1000108799 C30 Screw;RND;M8x1.25Px25L;HS;CHM;BP;G8.8 No Model Compatibility List $3.56 / Each

2
709070 1000108803 L33 Screw;RND;M5x0.8Px12L;HS;CHM;BP;G8.8 No Model Compatibility List $0.34 / Each

2
Q 709072 1000108805 Q14 Screw;RND;M8x1.25Px20L;HS;CHM;BP;G12.9 No Model Compatibility List $1.79 / Each

2
709108 1000109773 Z20 Screw;RND;M10x1.5Px140L;HS;CHM;BP;G8.8 No Model Compatibility List $12.48 / Each

2
709193 1000110807 V27 Serial No. Sticker;Frame;GM40-KM No Model Compatibility List $0.00 / Each
Out Of Stock 		3
709194 1000110809 D25 Grip3;GM47-KM No Model Compatibility List $213.54 / Each

11
709202 1000111004 L18 Handle set;Semi-Assy;;Incremental Weight No Model Compatibility List $21.89 / Each

3,11
709214 1000111162 V29 Nameplate;GM47-KM No Model Compatibility List $0.00 / Each
Out Of Stock 		3
709517 1000200981 K07 Guide Rod;Weight plate No Model Compatibility List $124.83 / Each

3
709629 1000201771 V20 Spec Label;;WEIGHT PLATE;;PC;;GM47; No Model Compatibility List $2.44 / Each

3
709718 1000202352 K13 Cushion;Guide Rod No Model Compatibility List $8.42 / Each

3
Z 709811 1000203445 Z16 SCREW;HANDTAILOR;-;GM47;-;G12.9;CHM; No Model Compatibility List $7.28 / Each

2
C 709865 1000204083 C14 Axle;Peadal Arm;42CrMo;GM40 No Model Compatibility List $60.53 / Each

8,3
709875 1000204186 AL3 Top Weight Plate Set No Model Compatibility List $379.65 / Each

3
709919 1000204728 B13 FIXING PLATE;ROPE WHEEL;;;SPHC;;;GM59-KM No Model Compatibility List $3.35 / Each

8,3
710040 1000206252 V03 Decal;Weight Plate;10P;GM40 No Model Compatibility List $56.94 / Each

7,3
710572 1000211061 V05 Direction Label;SEAT ADJUSTABLE;-;PC;;; No Model Compatibility List $8.42 / Each

12,13,14
710580 1000211102 AJ2 Seat Grip Set No Model Compatibility List $71.92 / Each

12,13,14,11
710681 1000212332 V60 Decorated Label;ROUND;GRAY 11C;PC;;;GM47 No Model Compatibility List $3.98 / Each

1
711205 1000217603 B63 STOPPER PIECE;INDUCTOR;-;SPHC;ZH;GM40; No Model Compatibility List $3.35 / Each

1
V 713028 1000232600 V02 Warning Label;-;-;-;PC;-;- No Model Compatibility List $7.28 / Each

1
713055 1000232855 F01 Steel Rope-Extrawork;Cable End;;;3727MM; No Model Compatibility List $145.99 / Each

9,4,5,6
713402 1000302268 K09 Fixing Axle;Rop;Long;45#;Chrome;GM40-KM No Model Compatibility List $16.87 / Each

7,8,12,13,14
713410 1000302298 F01 Steel Rope-Extrawork;frame;-;Press Rope No Model Compatibility List $200.75 / Each

3
713715 1000306822 C22 Spacer;Sung Base;;20#;GM47 No Model Compatibility List $2.18 / Each

2,3,4,5,6
D 713716 1000306824 D23 Screw Sleeve;Grip(Arm Rest);;20#;Chrome; No Model Compatibility List $7.28 / Each

7,2,3,12,13,14,11
713727 1000307043 B19 Pulley;Pulley;;NYLON 66+G30%(Anti-fire); No Model Compatibility List $21.94 / Each

8
714875 1000319382 B10 Fixing Rack;Cover;D;painting;;Iced Slive No Model Compatibility List $6.73 / Each

9,4,5,6
714876 1000319387 B11 Fixing Rack;Cover;U;painting;;Iced Slive No Model Compatibility List $6.73 / Each

9,4,5,6
714877 1000319392 B58 Stopper;Pulley;;painting;;Iced Sliver;GM No Model Compatibility List $10.11 / Each

8
714882 1000319417 L30 Fixing Rack;Counte;;painting;;Iced Slive No Model Compatibility List $13.49 / Each

4,5,6
714884 1000319422 Z100 Frame Fix Plate;;;painting;;Iced Sliver; No Model Compatibility List $16.87 / Each

3
714890 1000319458 B12 Slide Pulley Fixing Base;;;painting;;Ice No Model Compatibility List $84.47 / Each

8,3
714891 1000319463 2 Down Cover Set;Fixing Frame;;Iced Sliver No Model Compatibility List $6.73 / Each

9,3
714892 1000319468 3 Upper Cover Set;Fixing Frame;;Iced Slive No Model Compatibility List $10.11 / Each

9,3
714899 1000319503 AJ1 Seat ADJ Set;;Down;Iced Sliver;GM40-KM;; No Model Compatibility List $104.75 / Each

12,13,14
714900 1000319508 4 Movable Pulley Fixing Set;;;Iced Sliver; No Model Compatibility List $168.97 / Each

8
715023 1000320742 AB1 Frame Set;;;painting;;Iced Sliver;GM47-K No Model Compatibility List $650.62 / Each

3
715132 1000320962 1 Frame set;;;Iced Sliver;GM47-KM;;Service No Model Compatibility List $657.38 / Each

3
715133 1000320963 AG3 Link Tube Set;;up;Iced Sliver;GM47-KM;;S No Model Compatibility List $106.44 / Each

3
715134 1000320964 AG2 Link Tube Set;;down;Iced Sliver;GM47-KM; No Model Compatibility List $45.60 / Each

3
715135 1000320965 AC1 Base Set;;;Iced Sliver;GM47-KM;;Service No Model Compatibility List $735.12 / Each

3
715136 1000320966 AD1 pedal arm set;;left;Iced Sliver;GM47-KM; No Model Compatibility List $444.44 / Each

8,9,3
715137 1000320967 AD2 pedal arm set;;right;Iced Sliver;GM47-KM No Model Compatibility List $446.13 / Each

8,9,3
716192 1000334510 B17 Fixing Plate;;down;NBR;;;GM40; No Model Compatibility List $16.87 / Each

3
716195 1000334513 C18 Food Pad;Buffer;;NBR;;;GM47; No Model Compatibility List $10.11 / Each

12,13,14
L 717480 1000345425 L41 Stopper Ring;Guide Rod;;;Chrome;GM41;; No Model Compatibility List $18.23 / Each

7,3,12,13,14
720427 1000372592 L59 Adjustable Pin Set;;;Weight plate;GM40;; No Model Compatibility List $109.49 / Each

3,12,13,14
725362 070571 L38 Washer;Flat;5.2X10.0X1.5T;;CHM; No Model Compatibility List $0.49 / Each

2
Pulley; 115mm 725584 073573 F21 Pulley; 115mm No Model Compatibility List $42.17 / Each

8
725805 076692 F14 Nut;Nylock;M12x1.75P;;Chrome; No Model Compatibility List $1.66 / Each

7,2,12,13,14
726162 080409 C38 Screw;TH;M6X1.0PX25L;;HS;;;;; No Model Compatibility List $1.66 / Each

2
726956 086226 V09 Nameplate;Motor Cover;LOGO;T5X-02; No Model Compatibility List $42.28 / Each

9,3,10
727078 087097 D15 Screw;SH;M10X1.5PX15L;;HS;;CHM;; No Model Compatibility List $1.66 / Each

2
728703 096046 J32 Axle;CON Rod;45#;GM40 No Model Compatibility List $19.53 / Each

8,3
728706 096086 L01 Weight Plate;Incremental;3P;HT200;GM41 No Model Compatibility List $87.33 / Each

3
728707 096088 AK1 Weght Plate Set;12.5P;GM41 No Model Compatibility List $67.57 / Each

3
728731 096216 J35 Stopper Sleeve;WASHER;GM40 No Model Compatibility List $0.21 / Each

2,3
728914 098972 J21 Spring;EXT;;SWP;ZNC;GM40 No Model Compatibility List $1.79 / Each

2
728915 098973 J16 Fixing Block;Spring;45#;GM40 No Model Compatibility List $1.59 / Each

2
728918 098980 Q06 Kettle Base;ABS;GM40 No Model Compatibility List $34.89 / Each

3
728919 098984 Q03 Cover;Rear;ABS;GM40 No Model Compatibility List $152.07 / Each

9
728920 098985 Q02 Weight Stack Shield;Front;ABS;GM40 No Model Compatibility List $147.63 / Each

3,4,5,6
728921 098986 Q05 Grip;Up Cover;ADC12;GM40 No Model Compatibility List $196.01 / Each

9,4,5,6,11
728922 098987 Q01 Cover;Up;ABS;GM40 No Model Compatibility List $38.84 / Each

9
728923 098988 Q04 Cover;Front;ABS;GM40 No Model Compatibility List $147.63 / Each

9
728927 099030 J10 ADJ Plate;Seat;ZG20;GM40 No Model Compatibility List $99.45 / Each

3,12,13,14
728928 099035 J13 Axle;Pull Pin;42CrMo;GM40 No Model Compatibility List $42.43 / Each

8,12,13,14
728929 099036 J14 Axle Sleeve;Pull Pin;42CrMo;GM40 No Model Compatibility List $16.64 / Each

8,3,12,13,14
728930 099052 L12 ADJ Base;L;Incremental Weight Plate;GM40 No Model Compatibility List $23.50 / Each

3
728931 099053 L03 ADJ Base;R;Incremental Weight Plate;GM40 No Model Compatibility List $1.98 / Each

3
728933 099056 L07 U;Cover;IncrementalWeightPlate;20#;GM40 No Model Compatibility List $23.50 / Each

9,3
728934 099059 K02 ADJ Rod;Weight Plate;20#;GM40 No Model Compatibility List $109.64 / Each

3
728936 099063 L40 Cover;Incremental Weight Plate;PC;GM40 No Model Compatibility List $20.33 / Each

9,3
728937 099064 L17 Sleeve;D;IncrementalWeight Plate;POM;GM4 No Model Compatibility List $5.64 / Each

3
729615 ZMS4003226 Not Shown Decal, QR, G7-S42 Triceps Pres No Model Compatibility List $5.90 / Each

7,3
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
