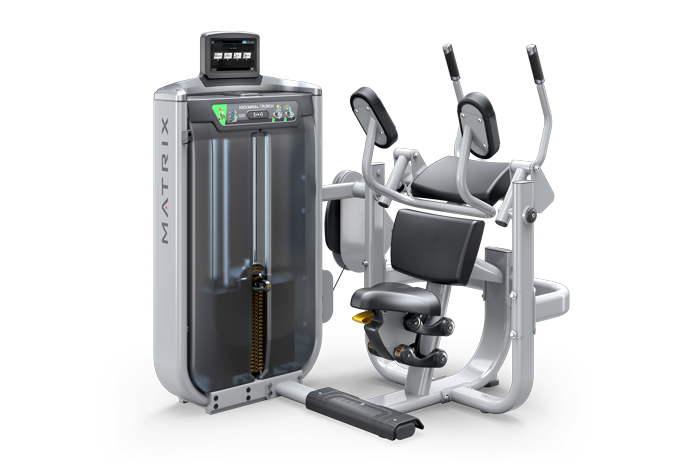

Matrix Commercial - G7-S51-02 - 2018

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
000514-C 700145 000514-C C58 Foot pad;Tube;Rubber;GM07 No Model Compatibility List $2.80 / Each

9,3,12,13,14
001679-00 700570 001679-00 B66 Tie Strap;Adhesive;Nylon;66;HC-101;W No Model Compatibility List $1.90 / Each

2
701412 004462-Z Z21 Screw;Hex Socket;Round;M6x1.0Px15L; No Model Compatibility List $1.02 / Each

2
701416 004466-00 Z23 Screw;Hex Socket;Round;M6x1.0Px12L;Adher No Model Compatibility List $1.12 / Each

2
701513 004549-00 B41 Screw;Hex Socket;Round;M10x1.5Px55L;Cr; No Model Compatibility List $4.82 / Each

2
701618 004636-AD J46 Screw;BH;4X15L;SM;PH;;CHM;;POT No Model Compatibility List $0.62 / Each

2
004696-AB 701660 004696-AB B29 Screw;Hex Socket;8X1.25X20L;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
004706-A 701673 004706-A G35 Screw;TH;M6X1.0PX16L;;HS;;BZN;; No Model Compatibility List $1.28 / Each

2
701691 004719-AB B27 Screw;BH;M8X1.25PX12L;;HS;;CHM;;G12.9 No Model Compatibility List $0.30 / Each

2
701772 004793-00 Z33 Screw;Button Head;M10X1.5PX15L;;Hex Sock No Model Compatibility List $2.32 / Each

2
004855-AC 701836 004855-AC Z50 Set Screw;M6X1.0PX4L No Model Compatibility List $1.38 / Each

2
004870-00 701851 004870-00 B37 Screw;Plain Tapping;Rail Lock;5x15L No Model Compatibility List $1.22 / Each

2,9,12,13,14
701859 004881-00 F33 NUT;HX;M4X0.7P;SS41;BZN;; No Model Compatibility List $0.78 / Each

2
004929-00 701901 004929-00 B26 Nut;Nylon;M8x1.25P;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
004938-00 701911 004938-00 J39 Nut;Nylon;M6X1.0P;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
004964-00 701927 004964-00 Z64 Nut;Hex;Flange;M10x1.25P;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
005009-AB 701970 005009-AB B50 Washer;Spring;SW8 8.2x15.4x2T;Zinc Plating No Model Compatibility List $1.54 / Each

2
005017-00 701981 005017-00 C80 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.02 / Each

7,2,12,13,14
005043-7 702006 005043-7 B22 Washer;Flat;Diam.X10xDiam.X30x2.0T;;Chro No Model Compatibility List $1.28 / Each

7,2,12,13,14
005062-00 702030 005062-00 B45 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.22 / Each

7,2,12,13,14
005084-00 702056 005084-00 L51 Washer;Flat;5.3X10.0X1.0T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005145-AC 702119 005145-AC B25 Washer;Flat;8.2x19.0x2.0T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005330-00 702217 005330-00 J44 Tinnamen Nut No Model Compatibility List $1.22 / Each

2
005377-00 702250 005377-00 K14 Clamp;E-Shaped Ring;E-15 No Model Compatibility List $0.50 / Each

4,5,6
005811-00 702299 005811-00 B62 Cable Tie;Nylon;Black;160L No Model Compatibility List $1.16 / Each

2,4,5,6
006078-00 702325 006078-00 V10 Decal;Grounding;TM08 No Model Compatibility List $1.46 / Each

7,3
008523-B 702531 008523-B C62 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $7.00 / Each

2
019151-AA 703901 019151-AA K08 Rubber Bumper;Weight Stack No Model Compatibility List $2.80 / Each

3,4,5,6
703996 020081-00 Z17 Screw;SH;M8X1.25PX60L;;HS;;;;G12.9 No Model Compatibility List $0.78 / Each

2
020196-A 704079 020196-A B39 Screw;Phillip;BH;Tapped;3x6L;;Zn-BL No Model Compatibility List $3.08 / Each

2
704127 020294-00 Z43 SCREW;BH;M10X1.5PX20L;;HS;;CHM;; No Model Compatibility List $1.42 / Each

2
020329-00 704145 020329-00 D26 Set Screw;M6X1.0PX12L No Model Compatibility List $0.16 / Each

2
020465-AB 704193 020465-AB B43 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
035882-AB 705105 035882-AB Z08 Screw;SH;M8x1.25Px75L;MT;HS;G12.9;CHM;P- No Model Compatibility List $7.00 / Each

2
040816-A 705313 040816-A B38 Screw;Phillip;BH;Tapped;3x8L; No Model Compatibility List $1.54 / Each

2
705696 055200-AB Z05 Screw;Hex;M10X1.5PX25L;;HE;;CHM;; No Model Compatibility List $7.00 / Each

2
707381 1000092375 AK1 Weight Plate;10 P;SPHC;GM48 No Model Compatibility List $45.48 / Each

3
707428 1000092642 J20 Spring;RCL;;4130CrMo;Spray teflon;GM40 No Model Compatibility List $81.54 / Each

2
707434 1000092654 AL4 ADJ Base Three;Incremental Weight Plate; No Model Compatibility List $57.98 / Each

7,3,12,13,14
707435 1000092656 L43 Nut;HX;M10X1.5PX10L;SS41;CHM;; No Model Compatibility List $0.66 / Each

2
707521 1000093119 E06 Bearing;Rod End;Left THREAD(EXTERNAL);M12;G No Model Compatibility List $32.20 / Each

7,8,9,3,12,13,14
707522 1000093120 E07 Bearing;Rod End;Right;THREAD(EXTERNAL);M12;G No Model Compatibility List $32.20 / Each

7,8,9,3,12,13,14
1000096017 707824 1000096017 Z101 Rubber Pad;Fixing;GM40 No Model Compatibility List $1.84 / Each

12,13,14
707826 1000096021 L21 Screw;SET;M10X1.5P No Model Compatibility List $0.62 / Each

2
707828 1000096023 L32 Half-moon Key;20#;GM40 No Model Compatibility List $0.68 / Each

9
707829 1000096024 Q08 Fixing Base;PC;GM40 No Model Compatibility List $2.58 / Each

3
707831 1000096026 B32 Fixing Base;Sensor;ABS;GM40 No Model Compatibility List $6.40 / Each

3
707833 1000096167 L15 Axle Sleeve Two;Weight Plate;Rubber;GM40 No Model Compatibility List $7.40 / Each

8,3
707859 1000096510 E04 Nut;HX;M12X1.75P;SS41;CHM;; No Model Compatibility List $1.06 / Each

2
707860 1000096511 E05 Nut;HX;M12X1.75P;SS41;CHM;;LEFT KNOB No Model Compatibility List $1.06 / Each

2
707861 1000096514 B34 Control Board;Matrix;H102;S1.60;GM40 No Model Compatibility List $38.98 / Each

7
707864 1000096531 B33 Speed Sensor Wire;1200mm(2.5-5P);GM40 No Model Compatibility List $16.80 / Each

4,5,6
707982 1000097385 J33 Stopper Sleeve;CON Rod Axle;ABS;GM40 No Model Compatibility List $1.98 / Each

8,3
708027 1000097850 J40 SCREW;SH;M8X1.25PX95L;;HS;;CHM;;G12.9 No Model Compatibility List $2.58 / Each

2
708032 1000098050 C17 Pulley Cover;Small;Base;ABS;GM40 No Model Compatibility List $6.76 / Each

8,9,3
708033 1000098051 G41 Bearing Cover;Base;ABS;GM40 No Model Compatibility List $6.34 / Each

8,9,3
708051 1000098555 Z61 Washer;Flat;30.3X45X2.0T;SPHC ;WZN; No Model Compatibility List $0.54 / Each

2
708052 1000098556 Z62 Washer;Wavy;30.5X39.2X0.4T;;; No Model Compatibility List $0.58 / Each

2,4,5,6
1000099212 708082 1000099212 Z32 Screw;SH;M6x1.0Px15L;-;HS;-;CHM;-;-; No Model Compatibility List $0.66 / Each

2
708408 1000102696 L13 Dial;GM41 No Model Compatibility List $3.04 / Each

1
708443 1000102859 Z55 Screw;Hex Socket;Round;M4x0.7Px10L;Cr Pl No Model Compatibility List $0.40 / Each

2
1000102893 708473 1000102893 C48 Screw;Hex Socket;Flat;M8x1.25Px20L;Cr Pl No Model Compatibility List $1.06 / Each

2
1000102910 708484 1000102910 L45 Circlip;External C Type;S-12;BED No Model Compatibility List $1.02 / Each

2
1000103438 708563 1000103438 J45 Screw;Cross;BH;Tapped;4x10L;A Class;ke No Model Compatibility List $0.44 / Each

2
708565 1000103444 J43 Cover;Seat;GM40-KM No Model Compatibility List $3.58 / Each

9,12,13,14
1000104672 708649 1000104672 L37 Screw;BH;M5x0.8Px10L;HS;CST;CST;CST;CHM; No Model Compatibility List $0.46 / Each

2
1000104725 708688 1000104725 Z34 Washer;Spring;6.1x10.0x1.2t;CHM No Model Compatibility List $0.50 / Each

2
1000105174 708730 1000105174 B23 Nut;Nylon;M10x1.5P;G12.9;CHM No Model Compatibility List $1.38 / Each

2
709061 1000108793 Z44 Screw;RND;M5x0.8Px10L;HS;CHM;BP;G8.8 No Model Compatibility List $0.16 / Each

2
1000108799 709067 1000108799 C30 Screw;RND;M8x1.25Px25L;HS;CHM;BP;G8.8 No Model Compatibility List $2.74 / Each

2
1000108801 709069 1000108801 D49 Screw;RND;M5x0.8Px15L;HS;CHM;BP;G8.8 No Model Compatibility List $1.38 / Each

2
709070 1000108803 L33 Screw;RND;M5x0.8Px12L;HS;CHM;BP;G8.8 No Model Compatibility List $0.26 / Each

2
709071 1000108804 L36 Screw;BH;M5x0.8Px15L;HS;CHM;BP;G8.8 No Model Compatibility List $0.54 / Each

2
1000108805 709072 1000108805 Q14 Screw;RND;M8x1.25Px20L;HS;CHM;BP;G12.9 No Model Compatibility List $1.38 / Each

2
709076 1000108910 L46 Washer;Flat;12.5x23x1.0t;CHM No Model Compatibility List $1.02 / Each

2
1000108924 709078 1000108924 Z01 Screw;RND;M10x1.5Px20L;HS;CHM;BP;G8.8 No Model Compatibility List $7.00 / Each

2
1000109127 709081 1000109127 V20 Decal;Pinch Point ;MS21KM-G3 No Model Compatibility List $1.36 / Each

7,3,12,13,14
709198 1000110841 D11 Grip;Pedal Arm ;wrap rubber;GM42-KM No Model Compatibility List $12.88 / Each

8,9,3,11
709517 1000200981 K07 Guide Rod;Weight plate No Model Compatibility List $96.02 / Each

3
709696 1000202036 J16 SCREW;RND;-;-;-;SEAT ADJ;-; No Model Compatibility List $5.18 / Each

2,12,13,14
709718 1000202352 K13 Cushion;Guide Rod No Model Compatibility List $6.48 / Each

3
709861 1000204046 Z07 Washer;Flat;6.4X14.0X3.0T;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
709875 1000204186 AL7 Top Weight Plate Set No Model Compatibility List $292.04 / Each

3
710475 1000210485 L50 SCREW;SET;M5X0.8PX6L;FLAT POINT;HS;G8.8; No Model Compatibility List $1.28 / Each

2
710580 1000211102 AJ2 Seat Grip Set No Model Compatibility List $55.32 / Each

12,13,14,11
710644 1000211532 Z53 SCREW;RND;M10X1.5PX20L;-;HS;G12.9;CHM; No Model Compatibility List $1.88 / Each

2
1000212388 710685 1000212388 F23 Fixing Plate;Cable Head-;45#;BED;GM40; No Model Compatibility List $16.56 / Each

3,4,5,6
711205 1000217603 B63 STOPPER PIECE;INDUCTOR;-;SPHC;ZH;GM40; No Model Compatibility List $2.58 / Each

1
711206 1000217605 L40 PLASTIC COVER;HEAD PLATE;TPC;;;;GM40; No Model Compatibility List $15.70 / Each

9,3
712810 1000230891 Z35 SCREW;SET;M10X1.5PX65L;FLATHEADED;HS;;;C No Model Compatibility List $2.58 / Each

2
713056 1000232864 L31 PERMANENT MAGNET;-;1500##;##; No Model Compatibility List $5.60 / Each

8
1000307173 713740 1000307173 B73 Plastic Cover;Nut;;;;;; No Model Compatibility List $1.28 / Each

2,9
714882 1000319417 L30 Fixing Rack;Counte;;painting;;Iced Slive No Model Compatibility List $10.38 / Each

4,5,6
714884 1000319422 Z100 Frame Fix Plate;;;painting;;Iced Sliver; No Model Compatibility List $12.98 / Each

3
716192 1000334510 B17 Fixing Plate;;down;NBR;;;GM40; No Model Compatibility List $12.98 / Each

3
716193 1000334511 G33 Rubber Foot Pad;Base;;NBR;;;GM40; No Model Compatibility List $7.78 / Each

9,3,12,13,14
717691 1000346841 Z60 Stopper Plate;Bearing;;SPHC;?35.0x5.0T;; No Model Compatibility List $2.32 / Each

8,3
719682 1000363760 V02 Warning Label;Frame;;;PC;;English; No Model Compatibility List $0.00 / Each
Out Of Stock
3
719683 1000363766 V02 Warning Label;Frame;;;PC;;French;GM40 No Model Compatibility List $3.88 / Each

3
1000371560 720322 1000371560 D32 Cap;Elliptical;;TPU;;Diam.50.0xDiam.100. No Model Compatibility List $5.18 / Each

9
720723 1000375328 C13 Cap;Elliptical;;TPU;;Diam.50x150x3T;GM10 No Model Compatibility List $7.78 / Each

9
722552 1000393987 B16 Sleeve;CON Tube;;painting;;Iced Sliver;G No Model Compatibility List $2.32 / Each

3
722683 1000397609 F11 Pulley;;;NYLON 66+G30%(Anti-fire);Black; No Model Compatibility List $42.88 / Each

8,4,5,6
722692 1000397778 D12 Stopper Ring;Grip;;;Chrome;ADC12; No Model Compatibility List $12.98 / Each

7,4,5,6,12,13,14,11
722693 1000397779 D15 Cap;Grip;;;Chrome;ADC12; No Model Compatibility List $15.58 / Each

7,9,4,5,6,12,13,14,11
722695 1000397803 B12 Stopper Piece;pulley;;SPHC;173x31.5x30x2 No Model Compatibility List $9.08 / Each

8
722701 1000397869 Q99 Cover;;up;ABS/PA757;Deep Grey;740.0x173. No Model Compatibility List $36.38 / Each

9
722702 1000397883 Q93 Cover;;back;ABS/PA757;Limpid;1104.8x648. No Model Compatibility List $141.68 / Each

9,4,5,6
722703 1000397892 Q94 Decorte Cover;;up;ABS/PA757;Deep Grey;33 No Model Compatibility List $11.68 / Each

9
722704 1000397899 Q95 Cover;Frame;Bright Silver;Up;Painting;AD No Model Compatibility List $172.88 / Each

9,3
722705 1000397910 Q98 Kettle Plate;;left;ABS;;252.6x121.0x16.0 No Model Compatibility List $12.98 / Each

3
722706 1000397914 Q97 Kettle Plate;;right;ABS;;252.6x121.0x16. No Model Compatibility List $12.98 / Each

3
722707 1000397915 Q96 Kettle Plate;;mid;TPU;426C/80393;113.0x7 No Model Compatibility List $5.18 / Each

3
722709 1000397921 Z09 Screw;Socket Head;M10X1.5PX180L-35L;;Hex No Model Compatibility List $5.18 / Each

2
722732 1000398249 L18 Handle Set;Assembly;;Incremental weight No Model Compatibility List $36.38 / Each

3,11
722734 1000398254 L59 Adjustment Pin Assembly;Assembly;;weight No Model Compatibility List $94.88 / Each

3,12,13,14
722791 1000398505 AL1 WPS set;Aid;;2.5lbs;GM121-KM; No Model Compatibility List $0.00 / Each
Out Of Stock
1
722831 1000398771 AF1 Steel Rope-Extrawork;frame;;Press Rope H No Model Compatibility List $93.58 / Each

3
722839 1000398860 J18 CON Rod;Seat Adjustment;ADC12;;Black Mat No Model Compatibility List $37.68 / Each

3,4,5,6,12,13,14
722840 1000398862 G05 Axle;Swivel;;42CrMo;;GM124;o20x113L; No Model Compatibility List $14.28 / Each

8
722841 1000398872 Not Shown hardware set;;;;GM124; No Model Compatibility List $103.98 / Each

1
722883 1000399677 Z10 Screw;Socket Head;M10X1.5PX130L-35L;;Hex No Model Compatibility List $0.00 / Each
Out Of Stock
2
722970 1000401872 Q26 Hanging Hook;Main Tube;;TPU;Black 6C;;GM No Model Compatibility List $20.78 / Each

3,4,5,6
722982 1000402051 F31 Stopper Plate;Cam Stopper;;PA66;;;GM124; No Model Compatibility List $2.32 / Each

3
723107 1000403789 E39 Limit Pillar;Pedal Arm;;35CrMo;;GM124;Di No Model Compatibility List $14.28 / Each

8,9,3
723285 1000406223 G14 Cushion;Foot Pad;;NBR;7547;;GM124; No Model Compatibility List $35.08 / Each

9,3,12,13,14
723356 1000406464 K62 Socket;Power Switch;;PA66+G20%;;110x58x1 No Model Compatibility List $5.18 / Each

4,5,6
723482 1000407026 Q35 Stopper Plate;Steel Rope;2;PA66+GF30%;;9 No Model Compatibility List $12.98 / Each

3
723512 1000407478 V11 Instructional Labe;Cover;;;PC;Front;Engl No Model Compatibility List $25.98 / Each

9
723513 1000407479 V12 Instructional Labe;Cover;;;PC;Rear;Engli No Model Compatibility List $25.98 / Each

9
723514 1000407480 Not Shown Manual;Assembly;;English;;GM124 No Model Compatibility List $14.28 / Each

3
723524 1000407607 M05 Cap;;;TPU;;;GM114; No Model Compatibility List $3.88 / Each

9
723527 1000407753 V06 EN LABEL;;;;;;;GM124; No Model Compatibility List $1.02 / Each

1
723530 1000407813 Z46 Nut;Hex;M24x1.5Px18L;Grade 8.8;Black Zin No Model Compatibility List $0.00 / Each
Out Of Stock
2,4,5,6
723531 1000407816 Z47 Washer;Disc Spring;Diam.50xDiam.25.4x1.5 No Model Compatibility List $0.00 / Each
Out Of Stock
2
723552 1000408107 C49 Ring;Protect;Side;ABS PA757S;;Diam.146x1 No Model Compatibility List $3.88 / Each

1
723566 1000408504 K09 Fixing Axle;Steel Rope Head;Short;45#;Ch No Model Compatibility List $0.00 / Each
Out Of Stock
8
723584 1000409299 F32 Screw;Flat Head;M4x0.7P-30L;;Hex Socket; No Model Compatibility List $1.02 / Each

2
723679 1000411786 V03 Spec Label;Weight Plate;10LBS;;PC;;;GM11 No Model Compatibility List $12.98 / Each

3
723682 1000411799 V14 Direction Label;Seat ADJ Tube;55X20mm;;P No Model Compatibility List $1.68 / Each

3,12,13,14
723683 1000411801 V13 Spec Label;Seat ADJ Tube;55X20mm;;PC;Rig No Model Compatibility List $1.68 / Each

3,12,13,14
723685 1000411806 B36 Manipulate Overlay;;;;;GM111 No Model Compatibility List $1.68 / Each

1
723686 1000411812 V16 Direction Label;Incremental Weight Plate No Model Compatibility List $2.32 / Each

3
723860 1000412812 AZ9 Label set;;;;Silver Gray;Advanced config No Model Compatibility List $0.00 / Each
Out Of Stock
1
723861 1000412813 AZ9 Label set;;;;Orange;Advanced configurati No Model Compatibility List $0.00 / Each
Out Of Stock
1
723862 1000412814 AZ9 Label set;;;;Brown;Advanced configuratio No Model Compatibility List $0.00 / Each
Out Of Stock
1
723863 1000412815 AZ9 Label set;;;;Pink;Advanced configuration No Model Compatibility List $0.00 / Each
Out Of Stock
12,13,14
723864 1000412816 AZ9 Label set;;;;Gray;Advanced configuration No Model Compatibility List $0.00 / Each
Out Of Stock
1
723879 1000413064 AB1 Frame Set;;;painting;;Iced Sliver;GM124; No Model Compatibility List $0.00 / Each
Out Of Stock
3
723880 1000413071 AC11 User frame set;Semi-Assy;;Iced Sliver;;; No Model Compatibility List $0.00 / Each
Out Of Stock
3
723881 1000413087 AH21 Support set;Semi-Assy;right;Iced Sliver; No Model Compatibility List $0.00 / Each
Out Of Stock
3
723882 1000413101 AH11 Support set;Semi-Assy;left;Iced Sliver;; No Model Compatibility List $0.00 / Each
Out Of Stock
3
723883 1000413126 AG3 PEDAL SET;;;painting;;Iced Sliver;GM124; No Model Compatibility List $40.28 / Each

8,9
723884 1000413144 G04 PEDAL;;;painting;;Iced Sliver;GM124; No Model Compatibility List $62.38 / Each

8,9
723886 1000413152 AD11 Pedal Arm set;Semi-Assy;down;Iced Sliver No Model Compatibility List $263.88 / Each

8,9,3
723887 1000413166 1 Handle set;Semi-Assy;right;Iced Sliver;; No Model Compatibility List $0.00 / Each
Out Of Stock
11
723888 1000413167 AD09 Handle set;;R;painting;;Iced Sliver;GM12 No Model Compatibility List $0.00 / Each
Out Of Stock
11
723889 1000413180 AD18 Fix Base;Pedal Arm;;painting;;Iced Slive No Model Compatibility List $0.00 / Each
Out Of Stock
8,9,3
723890 1000413205 2 Handle set;Semi-Assy;left;Iced Sliver;;; No Model Compatibility List $81.88 / Each

11
723891 1000413206 AD07 Handle set;;L;painting;;Iced Sliver;GM12 No Model Compatibility List $0.00 / Each
Out Of Stock
11
723894 1000413224 AM21 Swivel arm set;Semi-Assy;right;Iced Sliv No Model Compatibility List $124.78 / Each

3
723895 1000413238 AM11 Swivel arm set;Semi-Assy;left;Iced Slive No Model Compatibility List $80.58 / Each

3
723896 1000413258 AJ11 Seat Bushing Fabricate Drawing;Semi-Assy No Model Compatibility List $0.00 / Each
Out Of Stock
8,12,13,14
723897 1000413267 4 Seat Connect Rod;Semi-Assy;right down;Bl No Model Compatibility List $33.78 / Each

3,12,13,14
723898 1000413268 5 Seat Connect Rod;Semi-Assy;left down;Bla No Model Compatibility List $33.78 / Each

3,12,13,14
723899 1000413269 AG1 Connecting Set;;;painting;;Iced Sliver;G No Model Compatibility List $0.00 / Each
Out Of Stock
1
723900 1000413276 E03 Connect Mast;;;painting;;Iced Sliver;GM1 No Model Compatibility List $12.98 / Each

1
723901 1000413283 6 Connect Rod;Semi-Assy;;Iced Sliver;;;GM1 No Model Compatibility List $135.18 / Each

3
723902 1000413291 3 Seat Adjustable Set;Semi-Assy;;Iced Sliv No Model Compatibility List $141.68 / Each

12,13,14
723903 1000413304 F18 Sleeve;BRACKET COVER;;painting;;Iced Sli No Model Compatibility List $10.38 / Each

2,9,3,4,5,6
723904 1000413311 F04 PULLEY PLATE;Cam;Outer;painting;;Iced Sl No Model Compatibility List $28.58 / Each

8,3
723905 1000413316 F04 PULLEY PLATE;Cam;Outer;painting;;Black M No Model Compatibility List $28.58 / Each

8,3,4,5,6
723935 1000413485 B14 Fixing Rack Cover;;D;;;Iced Sliver;GM113 No Model Compatibility List $25.98 / Each

9,4,5,6
723939 1000413494 B44 Support Board;Cover;Reat-Up;;;Iced Slive No Model Compatibility List $19.48 / Each

9,3
723941 1000413504 B13 Fix Base;Pulley;;painting;;Iced Sliver;G No Model Compatibility List $28.58 / Each

8,3
723943 1000413515 B11 Fixing Rack;BRACKET COVER;U;;;Iced Slive No Model Compatibility List $7.78 / Each

2,9,3,4,5,6
723948 1000413579 AB2 Pulley Set;Fixing;;painting;;Iced Sliver No Model Compatibility List $53.28 / Each

8
723954 1000413637 G36 Fixing Plate;CON Tube;;;;Iced Sliver;GM1 No Model Compatibility List $31.18 / Each

3
723956 1000413648 7 Cam Fixing Set;Semi-Assy;;Iced Sliver;;; No Model Compatibility List $288.58 / Each

1
723960 1000413684 AF12 Cam Fixing Set;Assembly;;Iced Silver;GM1 No Model Compatibility List $0.00 / Each
Out Of Stock
3
724011 1000414178 F07 PULLEY PLATE;Pulley;;;;Iced Sliver;GM113 No Model Compatibility List $0.00 / Each
Out Of Stock
8,3
724013 1000414192 F07 PULLEY PLATE;Pulley;;;;Flat Black;GM113; No Model Compatibility List $5.18 / Each

8,3,4,5,6
724365 1000418540 V11 Instructional Labe;Cover;;;PC;Front;Fren No Model Compatibility List $0.00 / Each
Out Of Stock
9
724369 1000418608 V12 Instructional Labe;Cover;;;PC;Rear;Frenc No Model Compatibility List $0.00 / Each
Out Of Stock
9
724484 1000420787 8 Disassembly connect set;Semi-Assy;;;CAM; No Model Compatibility List $0.00 / Each
Out Of Stock
3
724490 1000420808 Z56 Screw;Round Head;M16x1.5Px50L;;Hex Socke No Model Compatibility List $7.78 / Each

2
724713 1000424165 Q95 Cover;Frame;U;painting;;Black Matte;GM11 No Model Compatibility List $133.88 / Each

9,3,4,5,6
725362 070571 L38 Washer;Flat;5.2X10.0X1.5T;;CHM; No Model Compatibility List $0.38 / Each

2
070970 725411 070970 Z01 Screw;SH;M10X1.5PX80L;;HS;;CHM;; No Model Compatibility List $86.38 / Each

2
726554 082795 Z61 Spacing Ring;Bearing;SS41; No Model Compatibility List $2.80 / Each

8,4,5,6
726878 085758 T05 Washer;Lock;10.0x20.0x1.5t;;;; No Model Compatibility List $0.34 / Each

2
090440 727687 090440 H08 Stopper BlockRubber;GM30 No Model Compatibility List $2.10 / Each

1
0000095638 728614 0000095638 J15 Foot Pad;Adjustable;M12X58H;12.9;EP304; Yes Model Compatibility List $26.04 / Each

3,9,12,13,14
728703 096046 J32 Axle;CON Rod;45#;GM40 No Model Compatibility List $15.02 / Each

8,3
728731 096216 J35 Stopper Sleeve;WASHER;GM40 No Model Compatibility List $0.16 / Each

2,3
728914 098972 J21 Spring;EXT;;SWP;ZNC;GM40 No Model Compatibility List $1.38 / Each

2
728920 098985 Q02 Weight Stack Shield;Front;ABS;GM40 No Model Compatibility List $113.56 / Each

3,4,5,6
728923 098988 Q04 Cover;Front;ABS;GM40 No Model Compatibility List $113.56 / Each

9
728927 099030 J10 ADJ Plate;Seat;ZG20;GM40 No Model Compatibility List $76.50 / Each

3,12,13,14
728928 099035 J13 Axle;Pull Pin;42CrMo;GM40 No Model Compatibility List $32.64 / Each

8,12,13,14
728929 099036 J14 Axle Sleeve;Pull Pin;42CrMo;GM40 No Model Compatibility List $12.80 / Each

8,3,12,13,14
728930 099052 L12 ADJ Base;L;Incremental Weight Plate;GM40 No Model Compatibility List $18.08 / Each

3
728931 099053 L03 ADJ Base;R;Incremental Weight Plate;GM40 No Model Compatibility List $1.52 / Each

3
728933 099056 L07 U;Cover;IncrementalWeightPlate;20#;GM40 No Model Compatibility List $18.08 / Each

9,3
728934 099059 K02 ADJ Rod;Weight Plate;20#;GM40 No Model Compatibility List $84.34 / Each

3
728937 099064 L17 Sleeve;D;IncrementalWeight Plate;POM;GM4 No Model Compatibility List $4.34 / Each

3
729261 See Pad Matrix J65 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6,12,13,14
View Drawing
