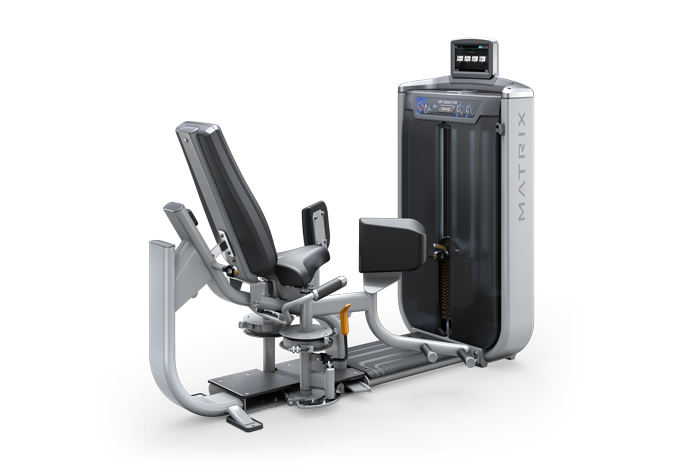

Matrix Commercial - G7-S74-02 - 2018

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
000591-C 700181 000591-C D16 Foam Grip;31.8x5.0x105L No Model Compatibility List $7.00 / Each

11
001530-C 700527 001530-C D08 SCREW;;M10X1.5P;;;;;;BACK PAD;SR20 HEAD No Model Compatibility List $1.28 / Each

2,4,5,6,12,13,14
001679-00 700570 001679-00 B66 Tie Strap;Adhesive;Nylon;66;HC-101;W No Model Compatibility List $1.90 / Each

2
701412 004462-Z Z21 Screw;Hex Socket;Round;M6x1.0Px15L; No Model Compatibility List $1.02 / Each

2
004479-ABX 701431 004479-ABX B16 Screw;Hex Socket;Round;M8x1.25Px15L;Cr;A No Model Compatibility List $1.54 / Each

2
004482-AB 701436 004482-AB Z27 Screw;Hex Socket;Round;M8x1.25Px20L;Cr No Model Compatibility List $1.54 / Each

2
004693-AD 701654 004693-AD C22 Screw;Flat Hex Socket;M8x1.25Px15L No Model Compatibility List $1.28 / Each

2
701691 004719-AB C54 Screw;BH;M8X1.25PX12L;;HS;;CHM;;G12.9 No Model Compatibility List $0.30 / Each

2
701767 004789-AC Z22 Screw;BH;M10X1.5PX75L;;HS;;CHM;;G12.9 No Model Compatibility List $2.84 / Each

2
004855-AC 701836 004855-AC D19 Set Screw;M6X1.0PX4L No Model Compatibility List $1.38 / Each

2
004870-00 701851 004870-00 B37 Screw;Plain Tapping;Rail Lock;5x15L No Model Compatibility List $1.22 / Each

2,9,12,13,14
004929-00 701901 004929-00 B20 Nut;Nylon;M8x1.25P;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005017-00 701981 005017-00 Z26 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.02 / Each

7,2,12,13,14
005043-7 702006 005043-7 C56 Washer;Flat;Diam.X10xDiam.X30x2.0T;;Chro No Model Compatibility List $1.28 / Each

7,2,12,13,14
005084-00 702056 005084-00 L51 Washer;Flat;5.3X10.0X1.0T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005117-AB 702085 005117-AB Z30 Washer;Flat;8.2x16.0x2.0T;Chromed No Model Compatibility List $1.02 / Each

7,2,12,13,14
005145-AC 702119 005145-AC C44 Washer;Flat;8.2x19.0x2.0T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005377-00 702250 005377-00 K14 Clamp;E-Shaped Ring;E-15 No Model Compatibility List $0.50 / Each

4,5,6
005811-00 702299 005811-00 B62 Cable Tie;Nylon;Black;160L No Model Compatibility List $1.16 / Each

2,4,5,6
006078-00 702325 006078-00 V12 Decal;Grounding;TM08 No Model Compatibility List $1.46 / Each

7,3
009355-B 702710 009355-B D21 Stopper Mast;Foam;AL6061;GM02 No Model Compatibility List $2.80 / Each

1
009372-E 702722 009372-E D04 Cap;Grip;GM02 No Model Compatibility List $10.28 / Each

9,11
019151-AA 703901 019151-AA K11 Rubber Bumper;Weight Stack No Model Compatibility List $2.80 / Each

3,4,5,6
703996 020081-00 Z17 Screw;SH;M8X1.25PX60L;;HS;;;;G12.9 No Model Compatibility List $0.78 / Each

2
020196-A 704079 020196-A B39 Screw;Phillip;BH;Tapped;3x6L;;Zn-BL No Model Compatibility List $3.08 / Each

2
020256-AD 704110 020256-AD C60 Screw;BH;M5X0.8PX10L;;HS;;CHM;; No Model Compatibility List $0.54 / Each

2
020329-00 704145 020329-00 D26 Set Screw;M6X1.0PX12L No Model Compatibility List $0.16 / Each

2
020465-A 704192 020465-A C80 Washer;Flat;10.2x25x2.0T No Model Compatibility List $1.54 / Each

2
020465-AB 704193 020465-AB Z10 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
020478-AC 704204 020478-AC Z20 Washer;Flat;10.2X20.0X2.0T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
040816-A 705313 040816-A B38 Screw;Phillip;BH;Tapped;3x8L; No Model Compatibility List $1.54 / Each

2
048970-BA 705367 048970-BA C15 Foot Pad;Rubber;GM151 No Model Compatibility List $6.48 / Each

9,3,12,13,14
705696 055200-AB Z24 Screw;Hex;M10X1.5PX25L;;HE;;CHM;; No Model Compatibility List $7.00 / Each

2
707170 1000091018 C53 Stopper Ring;Seat Pad;Pull Pin;GM45 No Model Compatibility List $9.64 / Each

12,13,14
707381 1000092375 AK1 Weight Plate;10 P;SPHC;GM48 No Model Compatibility List $45.48 / Each

3
707434 1000092654 AL4 ADJ Base Three;Incremental Weight Plate; No Model Compatibility List $57.98 / Each

7,3,12,13,14
707435 1000092656 L43 Nut;HX;M10X1.5PX10L;SS41;CHM;; No Model Compatibility List $0.66 / Each

2
1000092669 707439 1000092669 J28 Plastic Cover;Back Pad;GM40 No Model Compatibility List $50.32 / Each

9,4,5,6,12,13,14
707826 1000096021 L21 Screw;SET;M10X1.5P No Model Compatibility List $0.62 / Each

2
707828 1000096023 L23 Half-moon Key;20#;GM40 No Model Compatibility List $0.68 / Each

9
707829 1000096024 Q08 Fixing Base;PC;GM40 No Model Compatibility List $2.58 / Each

3
707831 1000096026 B32 Fixing Base;Sensor;ABS;GM40 No Model Compatibility List $6.40 / Each

3
707861 1000096514 B34 Control Board;Matrix;H102;S1.60;GM40 No Model Compatibility List $38.98 / Each

7
707864 1000096531 B33 Speed Sensor Wire;1200mm(2.5-5P);GM40 No Model Compatibility List $16.80 / Each

4,5,6
708038 1000098134 C48 Pin;Spring;4x20 No Model Compatibility List $0.82 / Each

2,12,13,14
708062 1000098704 C70 Stopper Pad;Black;GM43 No Model Compatibility List $6.34 / Each

4,5,6,12,13,14
708117 1000099786 D07 Washer;Wave;65Mn;BAN;28.0x20.3x0.5;GM51 No Model Compatibility List $0.62 / Each

2,4,5,6
1000102675 708402 1000102675 C72 Stopper Block;Pull Pin;GM43 No Model Compatibility List $5.40 / Each

12,13,14
708407 1000102687 H01 Stopper Pad;GM43 No Model Compatibility List $4.66 / Each

12,13,14
708408 1000102696 L13 Dial;GM41 No Model Compatibility List $3.04 / Each

1
708445 1000102861 B24 Screw;Hex Socket;Round;M6x1.0Px25L;Cr Pl No Model Compatibility List $1.06 / Each

2
1000103438 708563 1000103438 B22 Screw;Cross;BH;Tapped;4x10L;A Class;ke No Model Compatibility List $0.44 / Each

2
1000104672 708649 1000104672 L37 Screw;BH;M5x0.8Px10L;HS;CST;CST;CST;CHM; No Model Compatibility List $0.46 / Each

2
1000104691 708662 1000104691 Z25 Screw;RND;M10x1.5Px30L;HS;G12.9;CHM;BP No Model Compatibility List $2.80 / Each

2
1000105174 708730 1000105174 B13 Nut;Nylon;M10x1.5P;G12.9;CHM No Model Compatibility List $1.38 / Each

2
1000108187 709005 1000108187 C81 Screw;RND;M8x1.25Px45L-20L;MT;HS;CHM No Model Compatibility List $2.80 / Each

2
1000108801 709069 1000108801 L34 Screw;RND;M5x0.8Px15L;HS;CHM;BP;G8.8 No Model Compatibility List $1.38 / Each

2
709070 1000108803 L42 Screw;RND;M5x0.8Px12L;HS;CHM;BP;G8.8 No Model Compatibility List $0.26 / Each

2
709071 1000108804 L36 Screw;BH;M5x0.8Px15L;HS;CHM;BP;G8.8 No Model Compatibility List $0.54 / Each

2
1000108805 709072 1000108805 Q14 Screw;RND;M8x1.25Px20L;HS;CHM;BP;G12.9 No Model Compatibility List $1.38 / Each

2
1000109127 709081 1000109127 V09 Decal;Pinch Point ;MS21KM-G3 No Model Compatibility List $1.36 / Each

7,3,12,13,14
709198 1000110841 D11 Grip;Pedal Arm ;wrap rubber;GM42-KM No Model Compatibility List $12.88 / Each

8,9,3,11
709497 1000200716 K10 ELASTOMER;WEIGHT;RUBBER;;;;GM61; No Model Compatibility List $19.26 / Each

3
709517 1000200981 K07 Guide Rod;Weight plate No Model Compatibility List $96.02 / Each

3
709718 1000202352 K13 Cushion;Guide Rod No Model Compatibility List $6.48 / Each

3
709875 1000204186 AL3 Top Weight Plate Set No Model Compatibility List $292.04 / Each

3
710459 1000210343 C73 Rubber Pad;Pedal;GM51-KM No Model Compatibility List $84.70 / Each

8,9,12,13,14
710475 1000210485 L50 SCREW;SET;M5X0.8PX6L;FLAT POINT;HS;G8.8; No Model Compatibility List $1.28 / Each

2
710800 1000213831 D41 Stopper piece;Steel Rope;SPHC4.0t;NKL No Model Compatibility List $0.80 / Each

1
711205 1000217603 B63 STOPPER PIECE;INDUCTOR;-;SPHC;ZH;GM40; No Model Compatibility List $2.58 / Each

1
711206 1000217605 L40 PLASTIC COVER;HEAD PLATE;TPC;;;;GM40; No Model Compatibility List $15.70 / Each

9,3
1000231572 712934 1000231572 C45 SCREW;SH;M10X1.5PX20L;;;HS;BP;CHM; No Model Compatibility List $1.54 / Each

2
713056 1000232864 L31 PERMANENT MAGNET;-;1500##;##; No Model Compatibility List $5.60 / Each

8
715038 1000320775 AC2 Handle set;;;painting;;Iced Sliver;GM51- No Model Compatibility List $0.00 / Each
Out Of Stock
11
715040 1000320777 C63 Shaft;Cover;;painting;;Iced Sliver;GM51- No Model Compatibility List $14.28 / Each

9,3
716192 1000334510 B27 Fixing Plate;;down;NBR;;;GM40; No Model Compatibility List $12.98 / Each

3
717511 1000345659 C43 Cap;Elliptical;;TPU;BL/Black C;Diam.50.0 No Model Compatibility List $11.68 / Each

9,4,5,6
719683 1000363766 V02 Warning Label;Frame;;;PC;;French;GM40 No Model Compatibility List $3.88 / Each

3
720723 1000375328 B41 Cap;Elliptical;;TPU;;Diam.50x150x3T;GM10 No Model Compatibility List $7.78 / Each

9
1000393222 722509 1000393222 C78 Spring;Compression;1.3x12.7x38Lx7;SWP; No Model Compatibility List $1.28 / Each

2
722653 1000397041 C42 Chain;Transmission;;;CHM;;PITCH 12.7 No Model Compatibility List $7.78 / Each

1
722682 1000397599 Q01 Stopper Plate;Steel Rope;;PA66+GF30%;;13 No Model Compatibility List $24.68 / Each

3
722683 1000397609 F01 Pulley;;;NYLON 66+G30%(Anti-fire);Black; No Model Compatibility List $42.88 / Each

8,4,5,6
722692 1000397778 D12 Stopper Ring;Grip;;;Chrome;ADC12; No Model Compatibility List $12.98 / Each

7,4,5,6,12,13,14,11
722693 1000397779 D15 Cap;Grip;;;Chrome;ADC12; No Model Compatibility List $15.58 / Each

7,9,4,5,6,12,13,14,11
722701 1000397869 Q99 Cover;;up;ABS/PA757;Deep Grey;740.0x173. No Model Compatibility List $36.38 / Each

9
722702 1000397883 Q93 Cover;;back;ABS/PA757;Limpid;1104.8x648. No Model Compatibility List $141.68 / Each

9,4,5,6
722703 1000397892 Q94 Decorte Cover;;up;ABS/PA757;Deep Grey;33 No Model Compatibility List $11.68 / Each

9
722704 1000397899 Q95 Cover;Frame;Bright Silver;Up;Painting;AD No Model Compatibility List $172.88 / Each

9,3
722705 1000397910 Q98 Kettle Plate;;left;ABS;;252.6x121.0x16.0 No Model Compatibility List $12.98 / Each

3
722706 1000397914 Q97 Kettle Plate;;right;ABS;;252.6x121.0x16. No Model Compatibility List $12.98 / Each

3
722707 1000397915 Q96 Kettle Plate;;mid;TPU;426C/80393;113.0x7 No Model Compatibility List $5.18 / Each

3
722731 1000398241 C75 Adjustment Pin Assembly;Assembly;;;GM112 No Model Compatibility List $0.00 / Each
Out Of Stock
3,12,13,14
722732 1000398249 L18 Handle Set;Assembly;;Incremental weight No Model Compatibility List $36.38 / Each

3,11
722734 1000398254 L59 Adjustment Pin Assembly;Assembly;;weight No Model Compatibility List $94.88 / Each

3,12,13,14
722739 1000398285 B06 Support Base;Pulley;U;painting;;Black Ma No Model Compatibility List $0.00 / Each
Out Of Stock
8,3,4,5,6

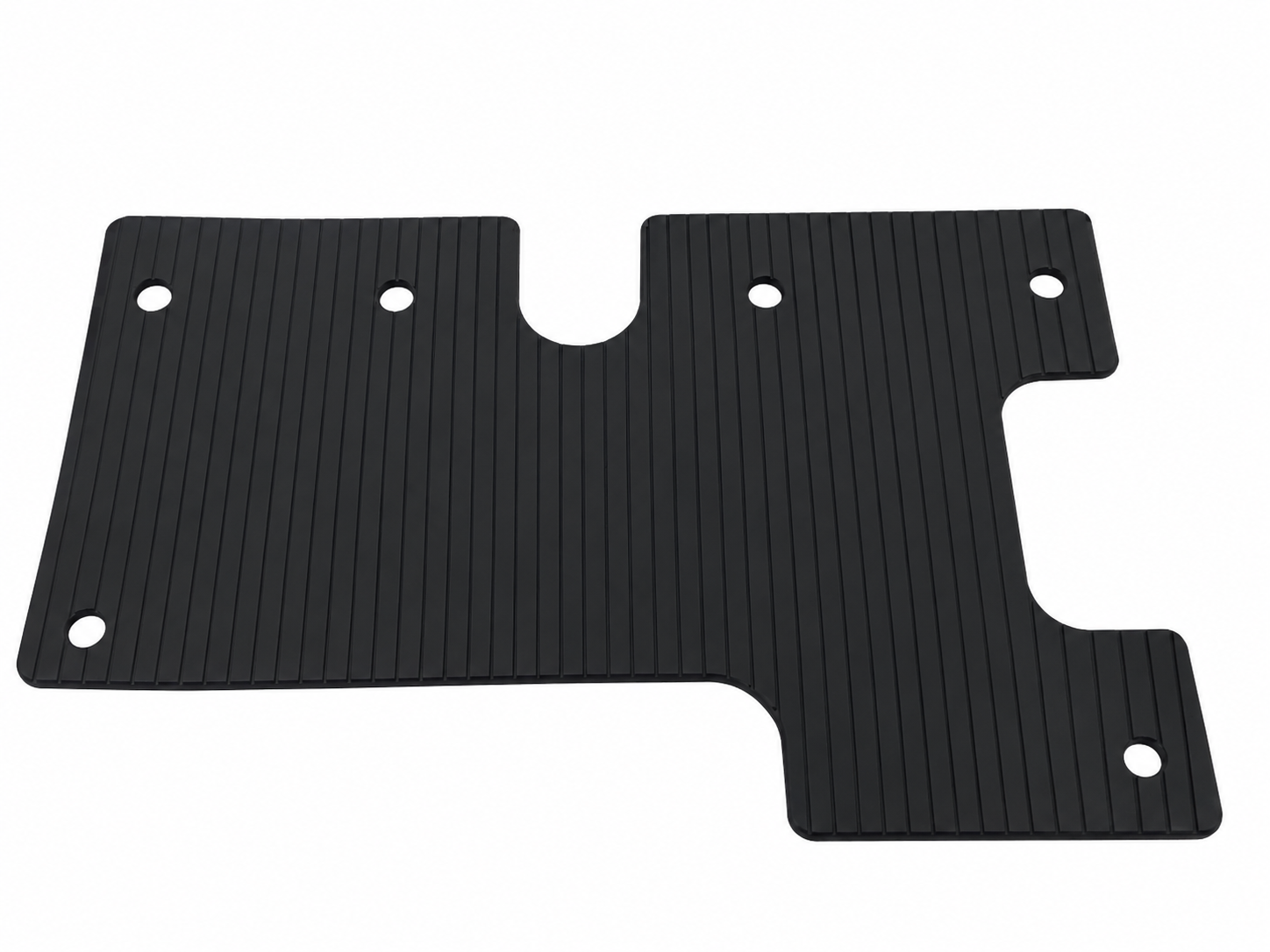

722742 1000398321 C52 Butt Plate;Protect;Rear-Down;;;;GM120;ru No Model Compatibility List $0.00 / Each
Out Of Stock
3
722748 1000398356 AJ6 Slider Bar Arm Sub;Adjustable;;painting; No Model Compatibility List $0.00 / Each
Out Of Stock
3
722787 1000398482 K02 Adjustable Mast-Extrawork;Weight Plate;d No Model Compatibility List $89.68 / Each

3
722788 1000398485 Not Shown Hardware Set;Semi-Assy;;;;;GM120; No Model Compatibility List $24.68 / Each

1
722789 1000398495 C65 Axle;;Right;42CrMo;White Zinc;GM120;Diam No Model Compatibility List $0.00 / Each
Out Of Stock
8
722790 1000398496 C64 Axle;;Left;42CrMo;White Zinc;GM120;Diam. No Model Compatibility List $0.00 / Each
Out Of Stock
8
722791 1000398505 AL1 WPS set;Aid;;2.5lbs;GM121-KM; No Model Compatibility List $0.00 / Each
Out Of Stock
1
722853 1000398971 F11 Steel Rope-Extrawork;frame;;;Diam.6.0;GM No Model Compatibility List $101.38 / Each

3
722946 1000401114 AJ7 Adjustment Pull pin Set;Adjustable;D;wel No Model Compatibility List $0.00 / Each
Out Of Stock
12,13,14
722970 1000401872 Q26 Hanging Hook;Main Tube;;TPU;Black 6C;;GM No Model Compatibility List $20.78 / Each

3,4,5,6

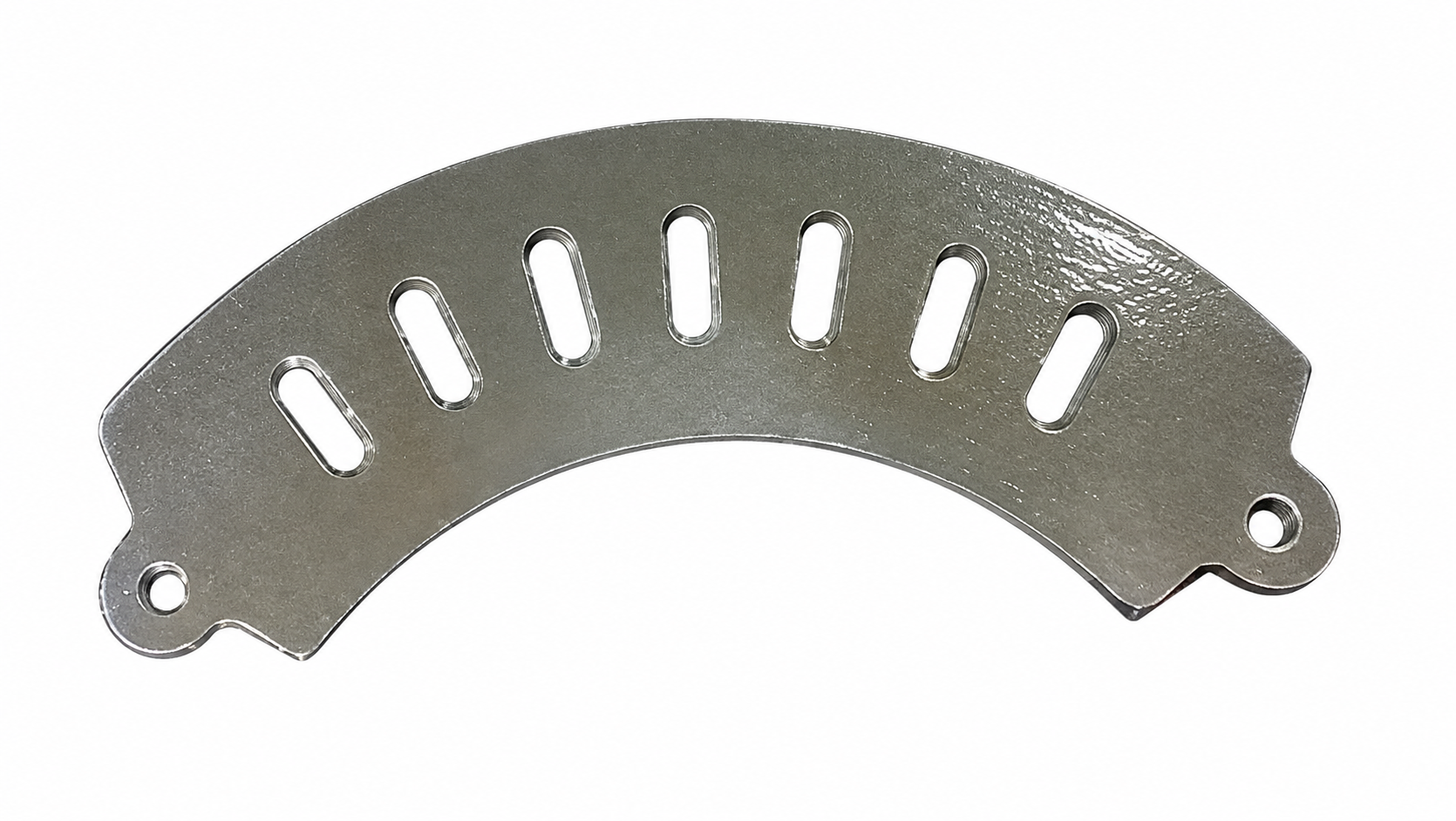

723087 1000403379 H09 Protected Plate;Cam;D;SPHC;3.0T;;GM120;H No Model Compatibility List $0.00 / Each
Out Of Stock
3

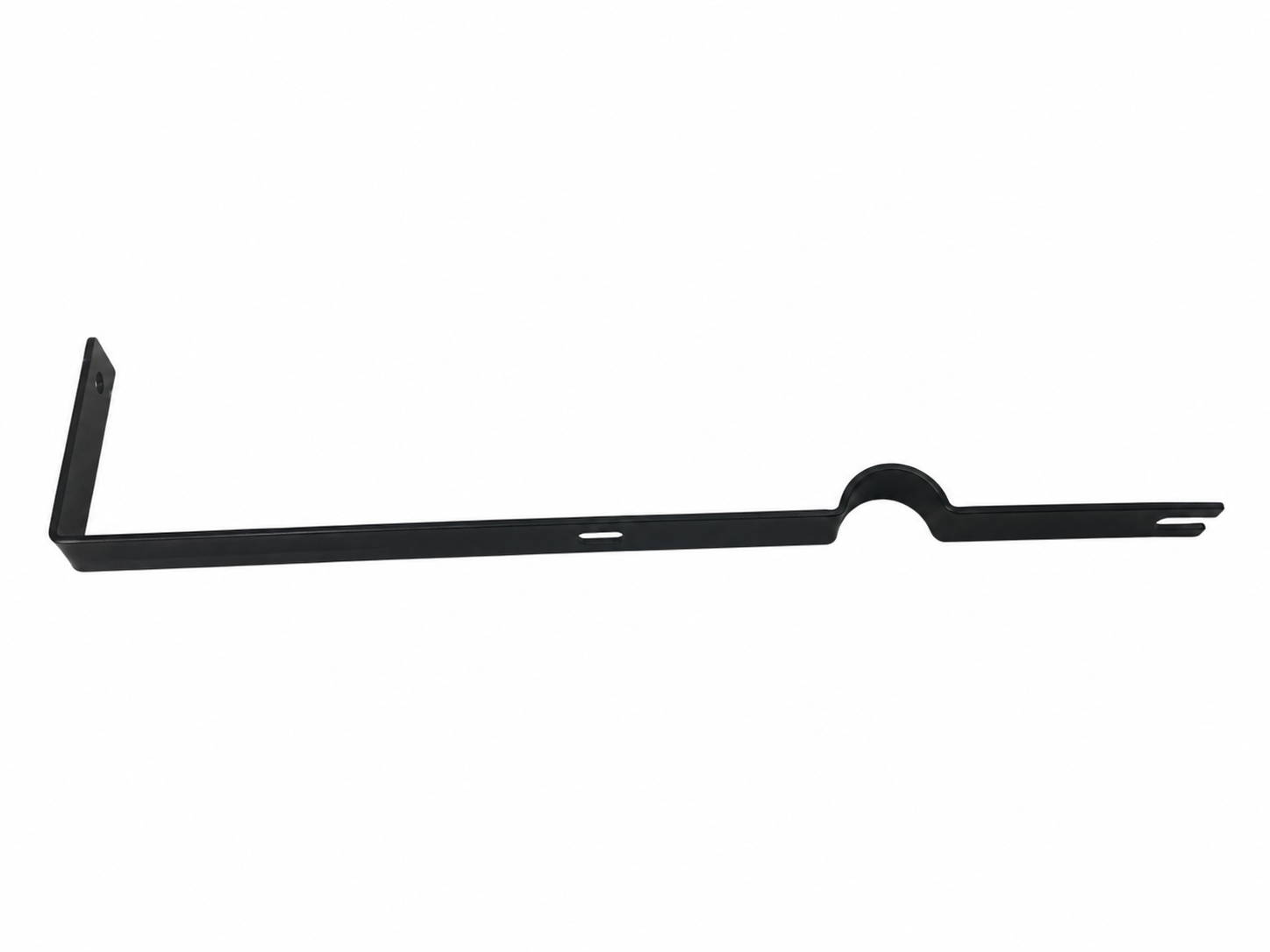

723088 1000403463 L30 Fixing Rack;ECB;;painting;;Black Matte;G No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6
723113 1000403913 D27 Stopper Block;Cam Stopper;;PU;;;GM120; No Model Compatibility List $0.00 / Each
Out Of Stock
1
723124 1000404050 C57 Grip;Adjustable Handle;down;ABS/PA746;Ye No Model Compatibility List $9.08 / Each

11
723125 1000404051 C58 Grip;Adjustable Handle;up;ABS/PA746;Yell No Model Compatibility List $6.48 / Each

11
723356 1000406464 K62 Socket;Power Switch;;PA66+G20%;;110x58x1 No Model Compatibility List $5.18 / Each

4,5,6
723565 1000408503 K09 Fixing Axle;Steel Rope Head;Long;45#;Chr No Model Compatibility List $20.78 / Each

7,8,12,13,14
723582 1000409138 F06 Stopper Sleeve;;;PU;;?25x26L; No Model Compatibility List $3.88 / Each

3
723679 1000411786 V15 Spec Label;Weight Plate;10LBS;;PC;;;GM11 No Model Compatibility List $12.98 / Each

3
723685 1000411806 B36 Manipulate Overlay;;;;;GM111 No Model Compatibility List $1.68 / Each

1
723686 1000411812 V16 Direction Label;Incremental Weight Plate No Model Compatibility List $2.32 / Each

3
723698 1000412084 V01 Instructional Labe;Cover;PC;;PC;Front;En No Model Compatibility List $25.98 / Each

9
723699 1000412085 V02 Instructional Labe;Cover;;;PC;Rear;Engli No Model Compatibility List $25.98 / Each

9
723700 1000412086 V13 EN LABEL;;;;PETP;;English;GM120-KM; No Model Compatibility List $1.02 / Each

1
723701 1000412101 V14 Decal;cam adjustable;;;PC;;;GM115-KM No Model Compatibility List $0.00 / Each
Out Of Stock
7,3
723860 1000412812 AZ9 Label set;;;;Silver Gray;Advanced config No Model Compatibility List $0.00 / Each
Out Of Stock
1
723861 1000412813 AZ9 Label set;;;;Orange;Advanced configurati No Model Compatibility List $0.00 / Each
Out Of Stock
1
723862 1000412814 AZ9 Label set;;;;Brown;Advanced configuratio No Model Compatibility List $0.00 / Each
Out Of Stock
1
723863 1000412815 AZ9 Label set;;;;Pink;Advanced configuration No Model Compatibility List $0.00 / Each
Out Of Stock
12,13,14
723864 1000412816 AZ9 Label set;;;;Gray;Advanced configuration No Model Compatibility List $0.00 / Each
Out Of Stock
1
723871 1000412951 C31 Fix Sleeve;Swivel Axle;;20#;White Zinc;G No Model Compatibility List $0.00 / Each
Out Of Stock
8,3
723935 1000413485 B14 Fixing Rack Cover;;D;;;Iced Sliver;GM113 No Model Compatibility List $25.98 / Each

9,4,5,6
723939 1000413494 B30 Support Board;Cover;Reat-Up;;;Iced Slive No Model Compatibility List $19.48 / Each

9,3
723943 1000413515 B11 Fixing Rack;BRACKET COVER;U;;;Iced Slive No Model Compatibility List $7.78 / Each

2,9,3,4,5,6
723985 1000413895 F20 Plastic Sleeve;Steel Rope;Side;PP;BL/Bla No Model Compatibility List $0.00 / Each
Out Of Stock
9,3
724014 1000414194 AB1 Frame Set;;;painting;;Iced Sliver;GM120; No Model Compatibility List $0.00 / Each
Out Of Stock
3
724021 1000414293 H07 Stopper;Steel Cable;Inner;;;Iced Sliver; No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6
724022 1000414300 3 Handle Set;;;assembly;GM120;;Iced Sliver No Model Compatibility List $0.00 / Each
Out Of Stock
3,11
724024 1000414315 C51 protect piece;Cam;D;painting;;Iced Slive No Model Compatibility List $89.68 / Each

1
724084 1000414754 1 Swivel arm set;;left;;GM120;;Iced Slive No Model Compatibility List $386.08 / Each

3
724085 1000414762 AD51 Swivel arm set;;left;;GM120;;Iced Slive No Model Compatibility List $0.00 / Each
Out Of Stock
3
724086 1000414787 2 Swivel arm set;;right;;GM120;;Iced Sliv No Model Compatibility List $434.18 / Each

3
724087 1000414794 AD61 Swivel arm set;;right;;GM120;;Iced Sliv No Model Compatibility List $0.00 / Each
Out Of Stock
3
724088 1000414803 AH11 CAM SET;;down;assembly;GM120;;Iced Slive No Model Compatibility List $161.18 / Each

3
724145 1000415651 Not Shown Manual;Assembly;;NA/EU;;GM120 No Model Compatibility List $0.00 / Each
Out Of Stock
3
724196 1000416353 F21 Steel Rope-Extrawork;Link Arm;B;Press Ro No Model Compatibility List $0.00 / Each
Out Of Stock
3
724303 1000417904 B26 Screw;Socket Head;M4X0.7PX14L-5L;Machine No Model Compatibility List $0.00 / Each
Out Of Stock
2,4,5,6
724359 1000418442 V03 Instructional Labe;Cover;PC;;PC;Front;Fr No Model Compatibility List $0.00 / Each
Out Of Stock
9
724449 1000419760 AJ3 Adjustable Set-Exreawork;Back Pad;;rigid No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6,12,13,14
724450 1000419781 C76 Axle, central;back pad;;20#;Anti-rust oi No Model Compatibility List $0.00 / Each
Out Of Stock
8,4,5,6,12,13,14
724496 1000420899 AJ01 Back Pad Fix Set;;;painting;;Iced Sliver No Model Compatibility List $59.78 / Each

4,5,6,12,13,14
724497 1000420916 AC01 Base Set;;;;GM120;;Iced Sliver No Model Compatibility List $0.00 / Each
Out Of Stock
3
724562 1000422082 D20 Stopper Axle;Rop;;20#;;GM120;Diam.20x35L No Model Compatibility List $7.78 / Each

8
724683 1000423441 C71 Adjustment Pull Pin;back pad;;S45C;Zinc; No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6,12,13,14
725362 070571 L38 Washer;Flat;5.2X10.0X1.5T;;CHM; No Model Compatibility List $0.38 / Each

2
726162 080409 C38 Screw;TH;M6X1.0PX25L;;HS;;;;; No Model Compatibility List $1.28 / Each

2
081649 726404 081649 C24 Washer;SPL;SW8 8.2X13.5X2.0T;;CHM; No Model Compatibility List $1.54 / Each

2
726560 082870 F41 Screw;Socket Head;M10X1.5PX60L;;Hex Sock No Model Compatibility List $3.88 / Each

2
084241 726707 084241 Z06 Screw Set;M6X1.0PX5L;BP;POT No Model Compatibility List $0.30 / Each

2
728920 098985 Q02 Weight Stack Shield;Front;ABS;GM40 No Model Compatibility List $113.56 / Each

3,4,5,6
728923 098988 Q04 Cover;Front;ABS;GM40 No Model Compatibility List $113.56 / Each

9
728924 098998 C32 Fixing Plate;Base;GM40 No Model Compatibility List $1.76 / Each

3
728930 099052 L12 ADJ Base;L;Incremental Weight Plate;GM40 No Model Compatibility List $18.08 / Each

3
728931 099053 L03 ADJ Base;R;Incremental Weight Plate;GM40 No Model Compatibility List $1.52 / Each

3
728933 099056 L07 U;Cover;IncrementalWeightPlate;20#;GM40 No Model Compatibility List $18.08 / Each

9,3
728937 099064 L17 Sleeve;D;IncrementalWeight Plate;POM;GM4 No Model Compatibility List $4.34 / Each

3
729261 See Pad Matrix J50 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6,12,13,14
View Drawing
