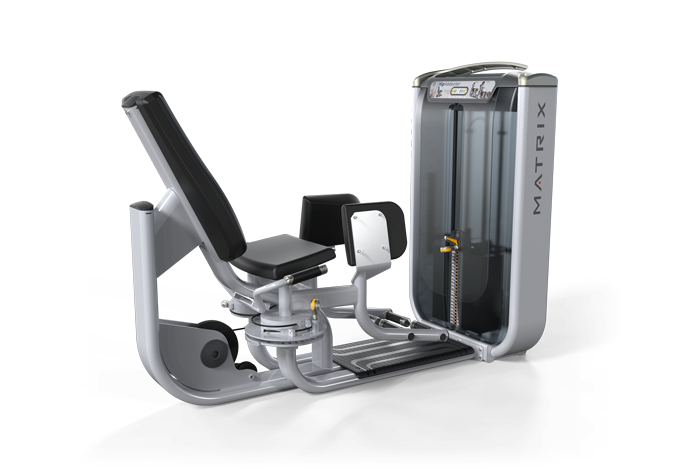

Matrix Commercial - G7-S75 PY - 2009

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
000591-C 700181 000591-C D19 Foam Grip;31.8x5.0x105L No Model Compatibility List $7.00 / Each

11
001522-B 700518 001522-B C28 Stopper Block;Rubber No Model Compatibility List $2.80 / Each

1
001523-E 700519 001523-E H08 Rubber Stop;CAM No Model Compatibility List $2.80 / Each

1
001529-B 700526 001529-B H07 Stopper Bolt;Rubber No Model Compatibility List $1.38 / Each

2
001679-00 700570 001679-00 B66 Tie Strap;Adhesive;Nylon;66;HC-101;W No Model Compatibility List $1.90 / Each

2
004072-A2 701154 004072-A2 F40 Ball Bearing;Flywheel;6002ZZ No Model Compatibility List $8.92 / Each

8
004077-A2 701159 004077-A2 D28 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $15.42 / Each

8
004479-ABX 701431 004479-ABX H09 Screw;Hex Socket;Round;M8x1.25Px15L;Cr;A No Model Compatibility List $1.54 / Each

2
004482-AB 701436 004482-AB Z03 Screw;Hex Socket;Round;M8x1.25Px20L;Cr No Model Compatibility List $1.54 / Each

2
004696-AB 701660 004696-AB Z31 Screw;Hex Socket;8X1.25X20L;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
701691 004719-AB B26 Screw;BH;M8X1.25PX12L;;HS;;CHM;;G12.9 No Model Compatibility List $0.30 / Each

2
701767 004789-AC Z02 Screw;BH;M10X1.5PX75L;;HS;;CHM;;G12.9 No Model Compatibility List $2.84 / Each

2
004855-AC 701836 004855-AC Z50 Set Screw;M6X1.0PX4L No Model Compatibility List $1.38 / Each

2
004870-00 701851 004870-00 B37 Screw;Plain Tapping;Rail Lock;5x15L No Model Compatibility List $1.22 / Each

2,9,12,13,14
004929-00 701901 004929-00 B27 Nut;Nylon;M8x1.25P;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005017-00 701981 005017-00 D37 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.02 / Each

7,2,12,13,14
005084-00 702056 005084-00 L51 Washer;Flat;5.3X10.0X1.0T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
702080 005113-00 F26 WASHER;FLT;Diam.X16.2XDiam.X28.0X1.2T;;B No Model Compatibility List $1.42 / Each

2
005117-AB 702085 005117-AB Z34 Washer;Flat;8.2x16.0x2.0T;Chromed No Model Compatibility List $1.02 / Each

7,2,12,13,14
005130-00 702098 005130-00 B25 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005811-00 702299 005811-00 B62 Cable Tie;Nylon;Black;160L No Model Compatibility List $1.16 / Each

2,4,5,6
008522-C 702530 008522-C Z20 Washer;Swivel Axle;;;SS41;;Cr;;; No Model Compatibility List $2.80 / Each

2,8
019151-AA 703901 019151-AA K10 Rubber Bumper;Weight Stack No Model Compatibility List $2.80 / Each

3,4,5,6
020112-A 704023 020112-A B16 Screw;Hex Socket;Round;M10x1.5Px50L(Tooth15) No Model Compatibility List $1.02 / Each

2
020196-A 704079 020196-A B39 Screw;Phillip;BH;Tapped;3x6L;;Zn-BL No Model Compatibility List $3.08 / Each

2
704127 020294-00 Z01 SCREW;BH;M10X1.5PX20L;;HS;;CHM;; No Model Compatibility List $1.42 / Each

2
020329-00 704145 020329-00 D26 Set Screw;M6X1.0PX12L No Model Compatibility List $0.16 / Each

2
020465-AB 704193 020465-AB B22 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
020478-AC 704204 020478-AC C32 Washer;Flat;10.2X20.0X2.0T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
020479-A 704206 020479-A Z24 Washer;Flat;10.2x22.0x2.0T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
040816-A 705313 040816-A B38 Screw;Phillip;BH;Tapped;3x8L; No Model Compatibility List $1.54 / Each

2
049252-AB 705461 049252-AB C22 SCREW;SH;M10X1.5PX120L;;HS;;CHM;; No Model Compatibility List $5.18 / Each

2
707231 1000091434 Z23 Axle;Swivel;42CrMo;Zn;20x262.5;GM51 No Model Compatibility List $23.56 / Each

8
707232 1000091440 D19 Foam;Pedal Tube;GM51;30.4x5.0x374L No Model Compatibility List $20.10 / Each

8,9,3
707233 1000091474 J02 Leg Pad;Black;GM51 No Model Compatibility List $41.58 / Each

4,5,6,12,13,14
707234 1000091481 Not Shown Hardw Are Kit Set ;GM51 No Model Compatibility List $94.24 / Each

1
707235 1000091482 Z21 Fixing Sleeve;Axle;20#;Zn;GM51 No Model Compatibility List $5.18 / Each

8,3
707381 1000092375 K03 Weight Plate;10 P;SPHC;GM48 No Model Compatibility List $45.48 / Each

3
707431 1000092646 L02 Axle Sleeve;Guide Rod;23X20X15L;GM40 No Model Compatibility List $4.20 / Each

8,3
707434 1000092654 AL4 ADJ Base Three;Incremental Weight Plate; No Model Compatibility List $57.98 / Each

7,3,12,13,14
707435 1000092656 L43 Nut;HX;M10X1.5PX10L;SS41;CHM;; No Model Compatibility List $0.66 / Each

2
707436 1000092663 F05 Screw;SH;10XM8X46L;HS;G8.8;CHM;; No Model Compatibility List $2.14 / Each

2
707438 1000092667 J26 Back Pad;Black;Vesicant;GM40 No Model Compatibility List $63.68 / Each

4,5,6,12,13,14
1000092669 707439 1000092669 J28 Plastic Cover;Back Pad;GM40 No Model Compatibility List $50.32 / Each

9,4,5,6,12,13,14
1000096013 707821 1000096013 C30 Cap Two;ABS;GM40 No Model Compatibility List $3.22 / Each

9
707823 1000096016 F12 Inner C type Clamp;15;GM40 No Model Compatibility List $1.32 / Each

4,5,6
707826 1000096021 L21 Screw;SET;M10X1.5P No Model Compatibility List $0.62 / Each

2
707827 1000096022 L31 Magnet;Counte;GM40 No Model Compatibility List $1.52 / Each

8
707828 1000096023 L32 Half-moon Key;20#;GM40 No Model Compatibility List $0.68 / Each

9
707829 1000096024 Q08 Fixing Base;PC;GM40 No Model Compatibility List $2.58 / Each

3
707830 1000096025 Q09 Decal Plate;U;GM40 No Model Compatibility List $53.92 / Each

7,3
707831 1000096026 B32 Fixing Base;Sensor;ABS;GM40 No Model Compatibility List $6.40 / Each

3
707833 1000096167 L15 Axle Sleeve Two;Weight Plate;Rubber;GM40 No Model Compatibility List $7.40 / Each

8,3
707861 1000096514 B34 Control Board;Matrix;H102;S1.60;GM40 No Model Compatibility List $38.98 / Each

7
707864 1000096531 B33 Speed Sensor Wire;1200mm(2.5-5P);GM40 No Model Compatibility List $16.80 / Each

4,5,6
707879 1000096575 B36 Overlay;Manipulate;GM40 No Model Compatibility List $1.88 / Each

1
708031 1000098049 Z30 Pulley Cover;Big;Base;ABS;GM40 No Model Compatibility List $6.56 / Each

8,9,3
708117 1000099786 Z25 Washer;Wave;65Mn;BAN;28.0x20.3x0.5;GM51 No Model Compatibility List $0.62 / Each

2,4,5,6
708153 1000100687 J03 Seat PAD;BL;GM49-KM No Model Compatibility List $77.20 / Each

12,13,14
708325 1000102076 V11 Illustration Decal;Front;GM51-KM No Model Compatibility List $69.34 / Each

7,3
708326 1000102077 V12 Illustration Decal;Rear;GM51-KM No Model Compatibility List $69.34 / Each

7,3
708399 1000102647 L50 Screw;Settle;M5x0.8Px6L;Top End;BED No Model Compatibility List $0.38 / Each

2,9
708408 1000102696 L13 Dial;GM41 No Model Compatibility List $3.04 / Each

1
708442 1000102858 Z29 Screw;Hex Socket;BH;M5x0.8Px12L;Cr Plate No Model Compatibility List $0.38 / Each

2,3
1000102910 708484 1000102910 L45 Circlip;External C Type;S-12;BED No Model Compatibility List $1.02 / Each

2
1000102915 708489 1000102915 K14 Circlip;E Type;;E-15;Cr Plate No Model Compatibility List $0.66 / Each

2,3
1000103438 708563 1000103438 B28 Screw;Cross;BH;Tapped;4x10L;A Class;ke No Model Compatibility List $0.44 / Each

2
1000104672 708649 1000104672 L37 Screw;BH;M5x0.8Px10L;HS;CST;CST;CST;CHM; No Model Compatibility List $0.46 / Each

2
1000104691 708662 1000104691 Z06 Screw;RND;M10x1.5Px30L;HS;G12.9;CHM;BP No Model Compatibility List $2.80 / Each

2
708697 1000104901 D38 Washer;Swivel;20#;Zn;GM51-KM No Model Compatibility List $2.58 / Each

2
708718 1000105067 D39 Circlip;External C Type;R-37;BAN No Model Compatibility List $0.38 / Each

2
708719 1000105068 B40 RVN;HX;NKHS-10;YZN No Model Compatibility List $1.72 / Each

1
708720 1000105069 C25 RVN;HX;NHS-610-3.0;YZN No Model Compatibility List $0.68 / Each

1
708722 1000105072 F08 Washer;WW;65Mn;BAN;15.5x22.5x0.3t No Model Compatibility List $0.38 / Each

2
1000105174 708730 1000105174 B24 Nut;Nylon;M10x1.5P;G12.9;CHM No Model Compatibility List $1.38 / Each

2
708742 1000105259 Z05 Screw;Round;M10x1.5Px105L;Hex Socket;G12 No Model Compatibility List $4.94 / Each

2
708852 1000106265 8 Pull ROM Pin Set;GM44(service)-1 No Model Compatibility List $60.52 / Each

12,13,14
708871 1000106865 F20 Steel Rope;A;Exrta-Work;Steel Rope Head; No Model Compatibility List $73.62 / Each

1
708872 1000106866 F21 Steel Rope;B;Exrta-Work;Steel Rope Head; No Model Compatibility List $41.86 / Each

1
708873 1000106867 F22 Steel Rope;3;Exrta-Work;Steel Rope Head; No Model Compatibility List $41.86 / Each

1
708923 1000107280 D35 End Cap;AL6061;Ni;GM51-KM No Model Compatibility List $21.26 / Each

9
709024 1000108343 14 Weight Stack Shield;Rear;ABS;GM40(service) No Model Compatibility List $269.10 / Each

3,4,5,6
709025 1000108344 12 Incremental Weight Pin Set;GM41(service) No Model Compatibility List $55.76 / Each

3,12,13,14
709026 1000108345 15 Handle;Weight Stack;ADC12;GM40(service) No Model Compatibility List $172.68 / Each

3,4,5,6,11
709027 1000108347 16 Repetition Counter Set;PC;GM40(service) No Model Compatibility List $107.20 / Each

1
709028 1000108348 4 Accent Plate Set;D;PP;GM40(service) No Model Compatibility List $26.30 / Each

3,4,5,6
709052 1000108738 13 Upper Cover Set;Weight Stack;ABS;GM40(service)-5 No Model Compatibility List $44.90 / Each

9,3,4,5,6
709063 1000108795 Z17 Screw;RND;M8x1.25Px60L;HS;CHM;BP;G8.8 No Model Compatibility List $2.66 / Each

2
1000108801 709069 1000108801 L34 Screw;RND;M5x0.8Px15L;HS;CHM;BP;G8.8 No Model Compatibility List $1.38 / Each

2
709070 1000108803 L33 Screw;RND;M5x0.8Px12L;HS;CHM;BP;G8.8 No Model Compatibility List $0.26 / Each

2
709071 1000108804 L36 Screw;BH;M5x0.8Px15L;HS;CHM;BP;G8.8 No Model Compatibility List $0.54 / Each

2
1000108805 709072 1000108805 Q14 Screw;RND;M8x1.25Px20L;HS;CHM;BP;G12.9 No Model Compatibility List $1.38 / Each

2
709076 1000108910 L46 Washer;Flat;12.5x23x1.0t;CHM No Model Compatibility List $1.02 / Each

2
709148 1000110461 F03 Cam;Small;VHMWPE;GM51 No Model Compatibility List $124.50 / Each

1
709198 1000110841 D11 Grip;Pedal Arm ;wrap rubber;GM42-KM No Model Compatibility List $12.88 / Each

8,9,3,11
709202 1000111004 L18 Handle set;Semi-Assy;;Incremental Weight No Model Compatibility List $16.84 / Each

3,11
709451 1000200120 D33 Axle;Pull Pin No Model Compatibility List $18.44 / Each

8,12,13,14
709517 1000200981 K07 Guide Rod;Weight plate No Model Compatibility List $96.02 / Each

3
709718 1000202352 K13 Cushion;Guide Rod No Model Compatibility List $6.48 / Each

3
709875 1000204186 AL3 Top Weight Plate Set No Model Compatibility List $292.04 / Each

3
709919 1000204728 B59 FIXING PLATE;ROPE WHEEL;;;SPHC;;;GM59-KM No Model Compatibility List $2.58 / Each

8,3
710040 1000206252 V03 Decal;Weight Plate;10P;GM40 No Model Compatibility List $43.80 / Each

7,3
710459 1000210343 Z33 Rubber Pad;Pedal;GM51-KM No Model Compatibility List $84.70 / Each

8,9,12,13,14
710644 1000211532 Z35 SCREW;RND;M10X1.5PX20L;-;HS;G12.9;CHM; No Model Compatibility List $1.88 / Each

2
710645 1000211540 B50 SUPPORT PLATE;PULLEY;F;PAINTING;QF294S;M No Model Compatibility List $9.08 / Each

8,3
710684 1000212387 F13 Fixing Plate;Cable Head;-;45#;BED;GM41; No Model Compatibility List $12.28 / Each

3,4,5,6
1000212388 710685 1000212388 F11 Fixing Plate;Cable Head-;45#;BED;GM40; No Model Compatibility List $16.56 / Each

3,4,5,6
710800 1000213831 Z28 Stopper piece;Steel Rope;SPHC4.0t;NKL No Model Compatibility List $0.80 / Each

1
711205 1000217603 B63 STOPPER PIECE;INDUCTOR;-;SPHC;ZH;GM40; No Model Compatibility List $2.58 / Each

1
712010 1000225001 D40 BEARING;BAL;61904RZ;#20X#37X9T;TPI; No Model Compatibility List $14.28 / Each

8
1000232600 713028 1000232600 V02 Warning Label;-;-;-;PC;-;- No Model Compatibility List $5.60 / Each

1
713402 1000302268 K09 Fixing Axle;Rop;Long;45#;Chrome;GM40-KM No Model Compatibility List $12.98 / Each

7,8,12,13,14
713652 1000306135 F04 Cam;Steel Rope;Big;UHMWPE;GM51 No Model Compatibility List $154.42 / Each

1
713670 1000306318 F20 Steel Rope;Screw;Diam.4.8x3472L;STACK No Model Compatibility List $60.36 / Each

2,4,5,6
1000317876 714760 1000317876 D23 End Cap;;;PP;;Diam.X50.8;; No Model Compatibility List $1.68 / Each

9
714875 1000319382 B10 Fixing Rack;Cover;D;painting;;Iced Slive No Model Compatibility List $5.18 / Each

9,4,5,6
714876 1000319387 B11 Fixing Rack;Cover;U;painting;;Iced Slive No Model Compatibility List $5.18 / Each

9,4,5,6
714879 1000319402 F06 Steel Rope Stopper Plate;;;painting;;Ice No Model Compatibility List $9.08 / Each

3
714882 1000319417 L30 Fixing Rack;Counte;;painting;;Iced Slive No Model Compatibility List $10.38 / Each

4,5,6
714891 1000319463 2 Down Cover Set;Fixing Frame;;Iced Sliver No Model Compatibility List $5.18 / Each

9,3
714892 1000319468 3 Upper Cover Set;Fixing Frame;;Iced Slive No Model Compatibility List $7.78 / Each

9,3
714898 1000319498 AF1 Cam Fixing Set;;;Iced Sliver;GM40-KM;;Se No Model Compatibility List $32.48 / Each

1
715034 1000320771 AB1 Frame Set;;;painting;;Iced Sliver;GM51-K No Model Compatibility List $0.00 / Each
Out Of Stock
3
715035 1000320772 AC1 base set;;;painting;;Iced Sliver;GM51-KM No Model Compatibility List $0.00 / Each
Out Of Stock
3
715036 1000320773 AD1 Swivel Arm Set;;L;painting;;Iced Sliver; No Model Compatibility List $0.00 / Each
Out Of Stock
3
715037 1000320774 AD2 Swivel Arm Set;;R;painting;;Iced Sliver; No Model Compatibility List $0.00 / Each
Out Of Stock
3
715038 1000320775 AC2 Handle set;;;painting;;Iced Sliver;GM51- No Model Compatibility List $0.00 / Each
Out Of Stock
11
715039 1000320776 AH1 Cam Set;;;painting;;Iced Sliver;GM51-KM; No Model Compatibility List $0.00 / Each
Out Of Stock
1
715040 1000320777 Z22 Shaft;Cover;;painting;;Iced Sliver;GM51- No Model Compatibility List $14.28 / Each

9,3
715158 1000320990 1 Frame set;;;Iced Sliver;GM51-KM;;Service No Model Compatibility List $523.88 / Each

3
715159 1000320991 5 Base Set;;;Iced Sliver;GM51-KM;;Service No Model Compatibility List $744.88 / Each

3
715160 1000320992 6 pedal arm set;;left;Iced Sliver;GM51-KM; No Model Compatibility List $310.68 / Each

8,9,3
715161 1000320993 7 pedal arm set;;right;Iced Sliver;GM51-KM No Model Compatibility List $417.28 / Each

8,9,3
715162 1000320994 9 Handle Set;;;Iced Sliver;GM51-KM;;Servic No Model Compatibility List $157.28 / Each

11
715163 1000320995 10 CAM SET;;;Iced Sliver;GM51-KM;;Service No Model Compatibility List $202.78 / Each

1
716192 1000334510 B17 Fixing Plate;;down;NBR;;;GM40; No Model Compatibility List $12.98 / Each

3
716193 1000334511 C26 Rubber Foot Pad;Base;;NBR;;;GM40; No Model Compatibility List $7.78 / Each

9,3,12,13,14
720427 1000372592 L59 Adjustable Pin Set;;;Weight plate;GM40;; No Model Compatibility List $84.22 / Each

3,12,13,14
1000393222 722509 1000393222 D32 Spring;Compression;1.3x12.7x38Lx7;SWP; No Model Compatibility List $1.28 / Each

2
725362 070571 L38 Washer;Flat;5.2X10.0X1.5T;;CHM; No Model Compatibility List $0.38 / Each

2
073572 725583 073572 F17 Pulley; 90mm No Model Compatibility List $34.06 / Each

8
073573 725584 073573 F21 Pulley; 115mm No Model Compatibility List $32.44 / Each

8
726162 080409 C38 Screw;TH;M6X1.0PX25L;;HS;;;;; No Model Compatibility List $1.28 / Each

2
081649 726404 081649 C24 Washer;SPL;SW8 8.2X13.5X2.0T;;CHM; No Model Compatibility List $1.54 / Each

2
726956 086226 V09 Nameplate;Motor Cover;LOGO;T5X-02; No Model Compatibility List $32.52 / Each

9,3,10
093501 728185 093501 V08 Warning sticker;small;GM40-KM No Model Compatibility List $1.28 / Each

1
728706 096086 L01 Weight Plate;Incremental;3P;HT200;GM41 No Model Compatibility List $67.18 / Each

3
728719 096165 H19 Adjustment Grip Set;Semi-Assy;;;;GM44;; No Model Compatibility List $19.92 / Each

11
728725 096208 D12 Adjustment Handle Lower Stopper Ring No Model Compatibility List $9.46 / Each

11
728726 096209 D15 Cap;Grip;Peadal Arm;ADC12;GM42 No Model Compatibility List $11.62 / Each

9,3,4,5,6,11
728918 098980 Q06 Kettle Base;ABS;GM40 No Model Compatibility List $26.84 / Each

3
728919 098984 Q03 Cover;Rear;ABS;GM40 No Model Compatibility List $116.98 / Each

9
728920 098985 Q02 Weight Stack Shield;Front;ABS;GM40 No Model Compatibility List $113.56 / Each

3,4,5,6
728921 098986 Q05 Grip;Up Cover;ADC12;GM40 No Model Compatibility List $150.78 / Each

9,4,5,6,11
728922 098987 Q01 Cover;Up;ABS;GM40 No Model Compatibility List $29.88 / Each

9
728923 098988 Q04 Cover;Front;ABS;GM40 No Model Compatibility List $113.56 / Each

9
728925 099006 H38 Axle;Seat ADJ;42CrMo;GM40 No Model Compatibility List $14.34 / Each

8,12,13,14
728930 099052 L12 ADJ Base;L;Incremental Weight Plate;GM40 No Model Compatibility List $18.08 / Each

3
728931 099053 L03 ADJ Base;R;Incremental Weight Plate;GM40 No Model Compatibility List $1.52 / Each

3
728933 099056 L07 U;Cover;IncrementalWeightPlate;20#;GM40 No Model Compatibility List $18.08 / Each

9,3
728934 099059 K02 ADJ Rod;Weight Plate;20#;GM40 No Model Compatibility List $84.34 / Each

3
728936 099063 L40 Cover;Incremental Weight Plate;PC;GM40 No Model Compatibility List $15.64 / Each

9,3
728937 099064 L17 Sleeve;D;IncrementalWeight Plate;POM;GM4 No Model Compatibility List $4.34 / Each

3
728938 099065 C13 Cap;ABS;GM40 No Model Compatibility List $3.80 / Each

9
729624 ZMS4003236 Not Shown Decal, QR, G7-S75 Hip Abductor No Model Compatibility List $4.54 / Each

7,3
729896 ZMS4008029 7 pedal arm set;;right;Iced Sliver;GM51-KM No Model Compatibility List $353.58 / Each

8,9,3
729897 ZMS4008032 6 pedal arm set;;left;Iced Sliver;GM51-KM; No Model Compatibility List $263.88 / Each

8,9,3
View Drawing
