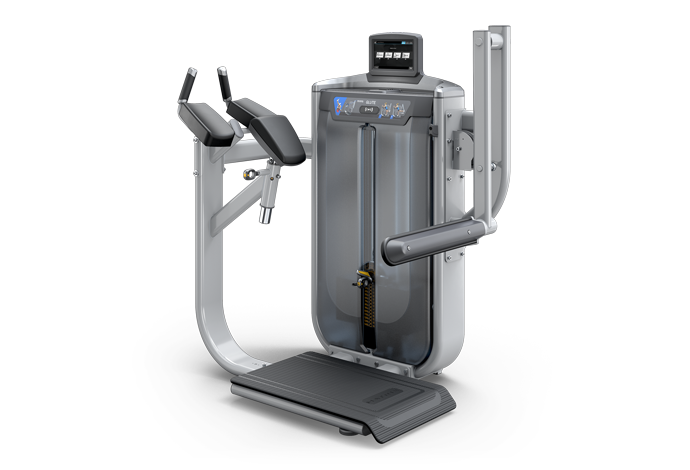

Matrix Commercial - G7-S78-02 - 2018

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
001679-00 700570 001679-00 B66 Tie Strap;Adhesive;Nylon;66;HC-101;W No Model Compatibility List $1.90 / Each

2
701412 004462-Z Z21 Screw;Hex Socket;Round;M6x1.0Px15L; No Model Compatibility List $1.02 / Each

2
004479-ABX 701431 004479-ABX D13 Screw;Hex Socket;Round;M8x1.25Px15L;Cr;A No Model Compatibility List $1.54 / Each

2
004482-AB 701436 004482-AB Z13 Screw;Hex Socket;Round;M8x1.25Px20L;Cr No Model Compatibility List $1.54 / Each

2
701513 004549-00 E25 Screw;Hex Socket;Round;M10x1.5Px55L;Cr; No Model Compatibility List $4.82 / Each

2
004696-AB 701660 004696-AB B22 Screw;Hex Socket;8X1.25X20L;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
004699-00 701664 004699-00 D14 Screw;Hex Socket;M8X1.25PX15L No Model Compatibility List $1.38 / Each

2
701691 004719-AB B26 Screw;BH;M8X1.25PX12L;;HS;;CHM;;G12.9 No Model Compatibility List $0.30 / Each

2
701757 004779-00 Z15 Screw;Oval;Hex Socket;M10x1.5Px30L;Chromed No Model Compatibility List $1.28 / Each

7,2,12,13,14
701764 004786-00 Z14 Screw;Hex Socket;BH;CrMo;M10x1.5Px25L No Model Compatibility List $2.80 / Each

2
004855-AC 701836 004855-AC C26 Set Screw;M6X1.0PX4L No Model Compatibility List $1.38 / Each

2
004870-00 701851 004870-00 B37 Screw;Plain Tapping;Rail Lock;5x15L No Model Compatibility List $1.22 / Each

2,9,12,13,14
004929-00 701901 004929-00 B17 Nut;Nylon;M8x1.25P;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005017-00 701981 005017-00 Z05 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.02 / Each

7,2,12,13,14
005048-AC 702014 005048-AC D17 Washer;Flat;8.2x15.0x1.2T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005117-AB 702085 005117-AB Z12 Washer;Flat;8.2x16.0x2.0T;Chromed No Model Compatibility List $1.02 / Each

7,2,12,13,14
005145-AC 702119 005145-AC B25 Washer;Flat;8.2x19.0x2.0T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005377-00 702250 005377-00 K14 Clamp;E-Shaped Ring;E-15 No Model Compatibility List $0.50 / Each

4,5,6
005811-00 702299 005811-00 B62 Cable Tie;Nylon;Black;160L No Model Compatibility List $1.16 / Each

2,4,5,6
006078-00 702325 006078-00 V03 Decal;Grounding;TM08 No Model Compatibility List $1.46 / Each

7,3
008523-B 702531 008523-B C13 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $7.00 / Each

2
019151-AA 703901 019151-AA K10 Rubber Bumper;Weight Stack No Model Compatibility List $2.80 / Each

3,4,5,6
703996 020081-00 Z17 Screw;SH;M8X1.25PX60L;;HS;;;;G12.9 No Model Compatibility List $0.78 / Each

2
020126-DB 704039 020126-DB C51 Screw;Seat Stopper;M8x1.25Px20L No Model Compatibility List $1.38 / Each

2,12,13,14
020196-A 704079 020196-A B39 Screw;Phillip;BH;Tapped;3x6L;;Zn-BL No Model Compatibility List $3.08 / Each

2
020329-00 704145 020329-00 C27 Set Screw;M6X1.0PX12L No Model Compatibility List $0.16 / Each

2
020465-AB 704193 020465-AB Z02 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
040816-A 705313 040816-A B38 Screw;Phillip;BH;Tapped;3x8L; No Model Compatibility List $1.54 / Each

2
705696 055200-AB Z01 Screw;Hex;M10X1.5PX25L;;HE;;CHM;; No Model Compatibility List $7.00 / Each

2
707427 1000092641 L16 Axle Sleeve;Weight Plate;Rubber;GM40 No Model Compatibility List $5.60 / Each

8,3
707431 1000092646 L02 Axle Sleeve;Guide Rod;23X20X15L;GM40 No Model Compatibility List $4.20 / Each

8,3
707434 1000092654 AL4 ADJ Base Three;Incremental Weight Plate; No Model Compatibility List $57.98 / Each

7,3,12,13,14
707435 1000092656 L43 Nut;HX;M10X1.5PX10L;SS41;CHM;; No Model Compatibility List $0.66 / Each

2
707826 1000096021 L21 Screw;SET;M10X1.5P No Model Compatibility List $0.62 / Each

2
707828 1000096023 L32 Half-moon Key;20#;GM40 No Model Compatibility List $0.68 / Each

9
707829 1000096024 Q08 Fixing Base;PC;GM40 No Model Compatibility List $2.58 / Each

3
707831 1000096026 B32 Fixing Base;Sensor;ABS;GM40 No Model Compatibility List $6.40 / Each

3
707861 1000096514 B34 Control Board;Matrix;H102;S1.60;GM40 No Model Compatibility List $38.98 / Each

7
707864 1000096531 B33 Speed Sensor Wire;1200mm(2.5-5P);GM40 No Model Compatibility List $16.80 / Each

4,5,6
708033 1000098051 E22 Bearing Cover;Base;ABS;GM40 No Model Compatibility List $6.34 / Each

8,9,3
708095 1000099592 J02 Fixing Base;Chest Pad;GM43 No Model Compatibility List $29.48 / Each

3,12,13,14
708321 1000102056 AH04 Support Set;Chest Pad;CHM;GM55 No Model Compatibility List $124.28 / Each

3,12,13,14
708366 1000102273 G18 Rubber Pad;Fixing;GM55 No Model Compatibility List $2.58 / Each

12,13,14
708406 1000102686 J15 Cap End;ADJ Tube;GM43 No Model Compatibility List $1.40 / Each

9,3
708408 1000102696 L13 Dial;GM41 No Model Compatibility List $3.04 / Each

1
708445 1000102861 B31 Screw;Hex Socket;Round;M6x1.0Px25L;Cr Pl No Model Compatibility List $1.06 / Each

2
1000102910 708484 1000102910 L45 Circlip;External C Type;S-12;BED No Model Compatibility List $1.02 / Each

2
1000103438 708563 1000103438 B27 Screw;Cross;BH;Tapped;4x10L;A Class;ke No Model Compatibility List $0.44 / Each

2
1000104672 708649 1000104672 L37 Screw;BH;M5x0.8Px10L;HS;CST;CST;CST;CHM; No Model Compatibility List $0.46 / Each

2
1000104693 708664 1000104693 Z03 Screw;RND;M10x1.5Px60L-15L;HS;G8.8;CHM;P No Model Compatibility List $3.86 / Each

2
1000104705 708675 1000104705 K28 Screw;RND;M6x1.0Px15L;HS;CHM;BP;G8.8 No Model Compatibility List $0.40 / Each

2
1000105174 708730 1000105174 Z06 Nut;Nylon;M10x1.5P;G12.9;CHM No Model Compatibility List $1.38 / Each

2
709006 1000108188 B18 Screw;HH;M10x1.5Px55L;MT;CST;CHM;BP;G12. No Model Compatibility List $2.58 / Each

2
1000108801 709069 1000108801 D49 Screw;RND;M5x0.8Px15L;HS;CHM;BP;G8.8 No Model Compatibility List $1.38 / Each

2
709070 1000108803 L33 Screw;RND;M5x0.8Px12L;HS;CHM;BP;G8.8 No Model Compatibility List $0.26 / Each

2
709071 1000108804 L36 Screw;BH;M5x0.8Px15L;HS;CHM;BP;G8.8 No Model Compatibility List $0.54 / Each

2
1000108805 709072 1000108805 Q14 Screw;RND;M8x1.25Px20L;HS;CHM;BP;G12.9 No Model Compatibility List $1.38 / Each

2
709076 1000108910 L46 Washer;Flat;12.5x23x1.0t;CHM No Model Compatibility List $1.02 / Each

2
1000109127 709081 1000109127 V05 Decal;Pinch Point ;MS21KM-G3 No Model Compatibility List $1.36 / Each

7,3,12,13,14
709198 1000110841 D11 Grip;Pedal Arm ;wrap rubber;GM42-KM No Model Compatibility List $12.88 / Each

8,9,3,11
709517 1000200981 K01 Guide Rod;Weight plate No Model Compatibility List $96.02 / Each

3
1000201047 709532 1000201047 E28 Screw;BH;M4X0.7PX10L;MT;NL;HS;G8.8;CHM; No Model Compatibility List $1.38 / Each

2
709718 1000202352 K07 Cushion;Guide Rod No Model Compatibility List $6.48 / Each

3
709876 1000204187 AL3 Support Base;Incremental Weight;GM40 No Model Compatibility List $180.68 / Each

3
710475 1000210485 L50 SCREW;SET;M5X0.8PX6L;FLAT POINT;HS;G8.8; No Model Compatibility List $1.28 / Each

2
711205 1000217603 B63 STOPPER PIECE;INDUCTOR;-;SPHC;ZH;GM40; No Model Compatibility List $2.58 / Each

1
711206 1000217605 L20 PLASTIC COVER;HEAD PLATE;TPC;;;;GM40; No Model Compatibility List $15.70 / Each

9,3
713056 1000232864 L31 PERMANENT MAGNET;-;1500##;##; No Model Compatibility List $5.60 / Each

8
714761 1000317877 C18 PLASTIC LINER;Fixing Tube;;POM;;;GM43; No Model Compatibility List $3.88 / Each

9,3
714882 1000319417 L30 Fixing Rack;Counte;;painting;;Iced Slive No Model Compatibility List $10.38 / Each

4,5,6
716192 1000334510 B21 Fixing Plate;;down;NBR;;;GM40; No Model Compatibility List $12.98 / Each

3
716193 1000334511 G14 Rubber Foot Pad;Base;;NBR;;;GM40; No Model Compatibility List $7.78 / Each

9,3,12,13,14
717402 1000344796 B65 Insulator;PET;12Wx40Lx0.2T;GM Battery ca No Model Compatibility List $0.00 / Each
Out Of Stock
3
1000345425 717480 1000345425 K27 Stopper Ring;Guide Rod;;;Chrome;GM41;; No Model Compatibility List $14.02 / Each

7,3,12,13,14
717691 1000346841 E23 Stopper Plate;Bearing;;SPHC;?35.0x5.0T;; No Model Compatibility List $2.32 / Each

8,3
719082 1000355733 F11 Tube Cap;Base;;TPU;BL/Black C;F40xF80;FW No Model Compatibility List $0.00 / Each
Out Of Stock
9,3,4,5,6
719682 1000363760 V02 Warning Label;Frame;;;PC;;English; No Model Compatibility List $0.00 / Each
Out Of Stock
3
719683 1000363766 V02 Warning Label;Frame;;;PC;;French;GM40 No Model Compatibility List $3.88 / Each

3
1000371560 720322 1000371560 G13 Cap;Elliptical;;TPU;;Diam.50.0xDiam.100. No Model Compatibility List $5.18 / Each

9
720723 1000375328 C20 Cap;Elliptical;;TPU;;Diam.50x150x3T;GM10 No Model Compatibility List $7.78 / Each

9
721488 1000383495 Z08 Screw;TH;M10x1.5Px20L;Machine Thread;Hex No Model Compatibility List $2.32 / Each

7,2,4,5,6,12,13,14
1000393222 722509 1000393222 C24 Spring;Compression;1.3x12.7x38Lx7;SWP; No Model Compatibility List $1.28 / Each

2
722682 1000397599 E12 Stopper Plate;Steel Rope;;PA66+GF30%;;13 No Model Compatibility List $24.68 / Each

3
722683 1000397609 E13 Pulley;;;NYLON 66+G30%(Anti-fire);Black; No Model Compatibility List $42.88 / Each

8,4,5,6
722692 1000397778 D12 Stopper Ring;Grip;;;Chrome;ADC12; No Model Compatibility List $12.98 / Each

7,4,5,6,12,13,14,11
722693 1000397779 D15 Cap;Grip;;;Chrome;ADC12; No Model Compatibility List $15.58 / Each

7,9,4,5,6,12,13,14,11
722701 1000397869 Q99 Cover;;up;ABS/PA757;Deep Grey;740.0x173. No Model Compatibility List $36.38 / Each

9
722702 1000397883 Q93 Cover;;back;ABS/PA757;Limpid;1104.8x648. No Model Compatibility List $141.68 / Each

9,4,5,6
722703 1000397892 Q94 Decorte Cover;;up;ABS/PA757;Deep Grey;33 No Model Compatibility List $11.68 / Each

9
722704 1000397899 Q95 Cover;Frame;Bright Silver;Up;Painting;AD No Model Compatibility List $172.88 / Each

9,3
722705 1000397910 Q98 Kettle Plate;;left;ABS;;252.6x121.0x16.0 No Model Compatibility List $12.98 / Each

3
722706 1000397914 Q97 Kettle Plate;;right;ABS;;252.6x121.0x16. No Model Compatibility List $12.98 / Each

3
722707 1000397915 Q96 Kettle Plate;;mid;TPU;426C/80393;113.0x7 No Model Compatibility List $5.18 / Each

3
722709 1000397921 Z04 Screw;Socket Head;M10X1.5PX180L-35L;;Hex No Model Compatibility List $5.18 / Each

2
722731 1000398241 C36 Adjustment Pin Assembly;Assembly;;;GM112 No Model Compatibility List $0.00 / Each
Out Of Stock
3,12,13,14
722732 1000398249 L18 Handle Set;Assembly;;Incremental weight No Model Compatibility List $36.38 / Each

3,11
722734 1000398254 L59 Adjustment Pin Assembly;Assembly;;weight No Model Compatibility List $94.88 / Each

3,12,13,14
722915 1000400344 D10 Rubber Cushion;;;SBR;BL/Black C;;GM128-K No Model Compatibility List $46.78 / Each

3,4,5,6
722916 1000400345 D16 Back Cover;Foot Pad;;ABS/PA757;;;GM128-K No Model Compatibility List $15.58 / Each

9,3,4,5,6,12,13,14
722917 1000400381 F12 Steel Rope-Extrawork;frame;;Press Rope H No Model Compatibility List $0.00 / Each
Out Of Stock
3
722918 1000400399 G10 Pedal;;;SBR;BL/Black C;;GM128-KM; No Model Compatibility List $311.98 / Each

8,9,4,5,6
722919 1000400428 V27 LOGO Label;;;;;;;GM128-KM; No Model Compatibility List $1.02 / Each

1
722920 1000400434 Not Shown Manual;Assembly;;English;;GM128-KM No Model Compatibility List $14.28 / Each

3
722921 1000400444 Not Shown hardware set;;;;GM128-KM; No Model Compatibility List $67.58 / Each

1
722970 1000401872 B30 Hanging Hook;Main Tube;;TPU;Black 6C;;GM No Model Compatibility List $20.78 / Each

3,4,5,6
723129 1000404084 AL2 Incremental Weight Plate Set;Semi-Assy;; No Model Compatibility List $70.18 / Each

3
723356 1000406464 K62 Socket;Power Switch;;PA66+G20%;;110x58x1 No Model Compatibility List $5.18 / Each

4,5,6
723482 1000407026 B13 Stopper Plate;Steel Rope;2;PA66+GF30%;;9 No Model Compatibility List $12.98 / Each

3
723566 1000408504 K05 Fixing Axle;Steel Rope Head;Short;45#;Ch No Model Compatibility List $0.00 / Each
Out Of Stock
8
723619 1000410499 V29 Sticker;Frame;;;;;;GM128-KM;Carton; No Model Compatibility List $0.00 / Each
Out Of Stock
3
723625 1000410581 V11 Instructional Labe;Frame;;;PC;Front;Engl No Model Compatibility List $25.98 / Each

3
723626 1000410582 V12 Instructional Labe;Frame;;;PC;Rear;Engli No Model Compatibility List $25.98 / Each

3
723679 1000411786 V01 Spec Label;Weight Plate;10LBS;;PC;;;GM11 No Model Compatibility List $12.98 / Each

3
723685 1000411806 B36 Manipulate Overlay;;;;;GM111 No Model Compatibility List $1.68 / Each

1
723686 1000411812 V04 Direction Label;Incremental Weight Plate No Model Compatibility List $2.32 / Each

3
723860 1000412812 AZ9 Label set;;;;Silver Gray;Advanced config No Model Compatibility List $0.00 / Each
Out Of Stock
1
723861 1000412813 AZ9 Label set;;;;Orange;Advanced configurati No Model Compatibility List $0.00 / Each
Out Of Stock
1
723862 1000412814 AZ9 Label set;;;;Brown;Advanced configuratio No Model Compatibility List $0.00 / Each
Out Of Stock
1
723863 1000412815 AZ9 Label set;;;;Pink;Advanced configuration No Model Compatibility List $0.00 / Each
Out Of Stock
12,13,14
723864 1000412816 AZ9 Label set;;;;Gray;Advanced configuration No Model Compatibility List $0.00 / Each
Out Of Stock
1
723935 1000413485 B11 Fixing Rack Cover;;D;;;Iced Sliver;GM113 No Model Compatibility List $25.98 / Each

9,4,5,6
723939 1000413494 B24 Support Board;Cover;Reat-Up;;;Iced Slive No Model Compatibility List $19.48 / Each

9,3
723941 1000413504 B10 Fix Base;Pulley;;painting;;Iced Sliver;G No Model Compatibility List $28.58 / Each

8,3
723943 1000413515 B12 Fixing Rack;BRACKET COVER;U;;;Iced Slive No Model Compatibility List $7.78 / Each

2,9,3,4,5,6
723954 1000413637 G15 Fixing Plate;CON Tube;;;;Iced Sliver;GM1 No Model Compatibility List $31.18 / Each

3
723984 1000413887 K02 Incremental Adjustable Rod-Exreawork;Inc No Model Compatibility List $0.00 / Each
Out Of Stock
3
724010 1000414156 V13 Decal;CHEST PAD ADJUST;;;;;;GM128-KM No Model Compatibility List $2.32 / Each

7,3,12,13,14
724090 1000414847 AB1 Frame Set;;;painting;;Iced Sliver;GM128- No Model Compatibility List $0.00 / Each
Out Of Stock
3
724095 1000414912 1 User frame set;Semi-Assy;;Iced Sliver;;; No Model Compatibility List $0.00 / Each
Out Of Stock
3
724096 1000414913 AC1 base set;;;painting;;Iced Sliver;GM128-K No Model Compatibility List $0.00 / Each
Out Of Stock
3
724097 1000414927 AD1 Kick set;;;painting;;Iced Sliver;GM128-K No Model Compatibility List $118.28 / Each

1
724098 1000414947 AE11 Pedal Arm Connect Set;;;Iced Sliver;;;GM No Model Compatibility List $213.18 / Each

8,9,3
724099 1000414959 AF11 Pedal Arm set;Semi-Assy;;Iced Sliver;;;G No Model Compatibility List $149.48 / Each

8,9,3
724101 1000414976 AG1 PEDAL SET;;;painting;;Iced Sliver;GM128- No Model Compatibility List $0.00 / Each
Out Of Stock
8,9
724102 1000414983 G17 Fixing Plate;Foot Pad;;;;Iced Sliver;GM1 No Model Compatibility List $139.08 / Each

9,3,12,13,14
724103 1000414990 AH1 Connecting Set;Disassembly;;;;Iced Slive No Model Compatibility List $0.00 / Each
Out Of Stock
3
724104 1000415002 AK2 Support Set;Weight Plate;;;;Iced Sliver; No Model Compatibility List $35.08 / Each

3
724298 1000417399 C23 Axle, central;Adjustable Pull Pin;;42CrM No Model Compatibility List $22.08 / Each

8,12,13,14
724353 1000418365 V11 Instructional Labe;Frame;;;PC;Front;Fren No Model Compatibility List $0.00 / Each
Out Of Stock
3
724354 1000418366 V12 Instructional Labe;Frame;;;PC;Rear;Frenc No Model Compatibility List $0.00 / Each
Out Of Stock
3
724575 1000422325 F13 Bearing;Rod End;SI14TK/K;M14X2.P;;??;?? No Model Compatibility List $19.48 / Each

8,9,3
724713 1000424165 Q95 Cover;Frame;U;painting;;Black Matte;GM11 No Model Compatibility List $133.88 / Each

9,3,4,5,6
725362 070571 L38 Washer;Flat;5.2X10.0X1.5T;;CHM; No Model Compatibility List $0.38 / Each

2
070970 725411 070970 Z01 Screw;SH;M10X1.5PX80L;;HS;;CHM;; No Model Compatibility List $86.38 / Each

2
726162 080409 C38 Screw;TH;M6X1.0PX25L;;HS;;;;; No Model Compatibility List $1.28 / Each

2
726987 086517 H65 Screw;Round Hex Socket;M10x1.5Px25L No Model Compatibility List $2.80 / Each

2
090440 727687 090440 H08 Stopper BlockRubber;GM30 No Model Compatibility List $2.10 / Each

1
0000095638 728614 0000095638 J15 Foot Pad;Adjustable;M12X58H;12.9;EP304; Yes Model Compatibility List $26.04 / Each

3,9,12,13,14
728707 096088 AK1 Weght Plate Set;12.5P;GM41 No Model Compatibility List $51.98 / Each

3
728920 098985 Q02 Weight Stack Shield;Front;ABS;GM40 No Model Compatibility List $113.56 / Each

3,4,5,6
728923 098988 Q04 Cover;Front;ABS;GM40 No Model Compatibility List $113.56 / Each

9
728930 099052 L12 ADJ Base;L;Incremental Weight Plate;GM40 No Model Compatibility List $18.08 / Each

3
728931 099053 L03 ADJ Base;R;Incremental Weight Plate;GM40 No Model Compatibility List $1.52 / Each

3
728933 099056 L07 U;Cover;IncrementalWeightPlate;20#;GM40 No Model Compatibility List $18.08 / Each

9,3
728937 099064 L17 Sleeve;D;IncrementalWeight Plate;POM;GM4 No Model Compatibility List $4.34 / Each

3
729261 See Pad Matrix J03 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6,12,13,14
View Drawing
