Matrix Commercial - G7-S78 - 2009

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
001402-A 700448 001402-A C53 End Cap;Round No Model Compatibility List $1.38 / Each

9
001679-00 700570 001679-00 B66 Tie Strap;Adhesive;Nylon;66;HC-101;W No Model Compatibility List $1.90 / Each

2
004072-A2 701154 004072-A2 F40 Ball Bearing;Flywheel;6002ZZ No Model Compatibility List $8.92 / Each

8
004518-00 701465 004518-00 Z01 Screw;SH;M10X1.5PX75L;;HS;;CHM;; No Model Compatibility List $2.80 / Each

2
004696-AB 701660 004696-AB B29 Screw;Hex Socket;8X1.25X20L;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
701691 004719-AB B26 Screw;BH;M8X1.25PX12L;;HS;;CHM;;G12.9 No Model Compatibility List $0.30 / Each

2
701764 004786-00 Z06 Screw;Hex Socket;BH;CrMo;M10x1.5Px25L No Model Compatibility List $2.80 / Each

2
701791 004805-AD C60 Screw;Hex;10X1.5X65L;Chrome No Model Compatibility List $2.80 / Each

7,2,12,13,14
004855-AC 701836 004855-AC D10 Set Screw;M6X1.0PX4L No Model Compatibility List $1.38 / Each

2
004860-00 701843 004860-00 D02 Screw;Phillip;Large Oval Head;M4X0.7PX8L No Model Compatibility List $1.38 / Each

2
004870-00 701851 004870-00 B37 Screw;Plain Tapping;Rail Lock;5x15L No Model Compatibility List $1.22 / Each

2,9,12,13,14
004924-AB 701892 004924-AB Z14 NUT;NLK;M5X0.8P;;CHM;; No Model Compatibility List $1.28 / Each

2
004929-00 701901 004929-00 B27 Nut;Nylon;M8x1.25P;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005017-00 701981 005017-00 Z03 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.02 / Each

7,2,12,13,14
005084-00 702056 005084-00 L51 Washer;Flat;5.3X10.0X1.0T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005130-00 702098 005130-00 B25 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005811-00 702299 005811-00 B62 Cable Tie;Nylon;Black;160L No Model Compatibility List $1.16 / Each

2,4,5,6
008523-B 702531 008523-B Z23 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $7.00 / Each

2
019151-AA 703901 019151-AA K10 Rubber Bumper;Weight Stack No Model Compatibility List $2.80 / Each

3,4,5,6
020096-00 704004 020096-00 B24 Screw;Hex Socket;Round;M8x1.25Px15L;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
020126-DB 704039 020126-DB C51 Screw;Seat Stopper;M8x1.25Px20L No Model Compatibility List $1.38 / Each

2,12,13,14
020196-A 704079 020196-A B39 Screw;Phillip;BH;Tapped;3x6L;;Zn-BL No Model Compatibility List $3.08 / Each

2
704127 020294-00 Z05 SCREW;BH;M10X1.5PX20L;;HS;;CHM;; No Model Compatibility List $1.42 / Each

2
020329-00 704145 020329-00 D16 Set Screw;M6X1.0PX12L No Model Compatibility List $0.16 / Each

2
020465-AB 704193 020465-AB B22 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
704996 028632-AB C57 Screw;Hex Socket;Round;M10x1.5Px45L;Cr; No Model Compatibility List $3.20 / Each

2
040816-A 705313 040816-A B38 Screw;Phillip;BH;Tapped;3x8L; No Model Compatibility List $1.54 / Each

2
707325 1000092068 M05 Fixing Sleeve;GuideRode;Rubber;GM57 No Model Compatibility List $6.92 / Each

3
1000092071 707326 1000092071 C49 Elastomer Pad;Rubber;GM57 No Model Compatibility List $1.52 / Each

12,13,14
707327 1000092072 C54 Stopper Plate;SPHC;GM57 No Model Compatibility List $3.66 / Each

3
707381 1000092375 K03 Weight Plate;10 P;SPHC;GM48 No Model Compatibility List $45.48 / Each

3
707427 1000092641 L16 Axle Sleeve;Weight Plate;Rubber;GM40 No Model Compatibility List $5.60 / Each

8,3
707431 1000092646 L02 Axle Sleeve;Guide Rod;23X20X15L;GM40 No Model Compatibility List $4.20 / Each

8,3
707434 1000092654 AL4 ADJ Base Three;Incremental Weight Plate; No Model Compatibility List $57.98 / Each

7,3,12,13,14
707435 1000092656 L33 Nut;HX;M10X1.5PX10L;SS41;CHM;; No Model Compatibility List $0.66 / Each

2
707436 1000092663 F07 Screw;SH;10XM8X46L;HS;G8.8;CHM;; No Model Compatibility List $2.14 / Each

2
707772 1000094941 J03 Chest pad;Black;Vesicant;GM43-KM No Model Compatibility List $27.28 / Each

4,5,6,12,13,14
1000096013 707821 1000096013 C14 Cap Two;ABS;GM40 No Model Compatibility List $3.22 / Each

9
707826 1000096021 L21 Screw;SET;M10X1.5P No Model Compatibility List $0.62 / Each

2
707827 1000096022 L31 Magnet;Counte;GM40 No Model Compatibility List $1.52 / Each

8
707828 1000096023 L32 Half-moon Key;20#;GM40 No Model Compatibility List $0.68 / Each

9
707829 1000096024 Q08 Fixing Base;PC;GM40 No Model Compatibility List $2.58 / Each

3
707830 1000096025 Q09 Decal Plate;U;GM40 No Model Compatibility List $53.92 / Each

7,3
707831 1000096026 B32 Fixing Base;Sensor;ABS;GM40 No Model Compatibility List $6.40 / Each

3
707861 1000096514 B34 Control Board;Matrix;H102;S1.60;GM40 No Model Compatibility List $38.98 / Each

7
707864 1000096531 B33 Speed Sensor Wire;1200mm(2.5-5P);GM40 No Model Compatibility List $16.80 / Each

4,5,6
707879 1000096575 B36 Overlay;Manipulate;GM40 No Model Compatibility List $1.88 / Each

1
708031 1000098049 C52 Pulley Cover;Big;Base;ABS;GM40 No Model Compatibility List $6.56 / Each

8,9,3
708095 1000099592 J02 Fixing Base;Chest Pad;GM43 No Model Compatibility List $29.48 / Each

3,12,13,14
708130 1000100135 F04 Shaft;Fixing;45#;GM49 No Model Compatibility List $6.86 / Each

3
708145 1000100527 J01 Hand pad;Black;Vesicant;GM48-KM No Model Compatibility List $25.98 / Each

4,5,6,12,13,14
708317 1000102027 C07 Guide Rod;Up;SKF:GM55 No Model Compatibility List $209.28 / Each

3
708318 1000102028 C11 End Cap;Guide Rod;Rubber;GM55 No Model Compatibility List $1.38 / Each

9,3
708319 1000102029 C21 Guide Rod;Down;SKF;GM55 No Model Compatibility List $196.72 / Each

3
708320 1000102031 C29 Bushing;Pulley;45#;Zn;GM55 No Model Compatibility List $2.96 / Each

8
708323 1000102071 Not Shown HARDWARE KIT;GM55-KM No Model Compatibility List $119.86 / Each

1
708324 1000102075 D01 Bearing;Linear;LBCD30A-2LS;;GM55;SKF;;; No Model Compatibility List $388.34 / Each

8

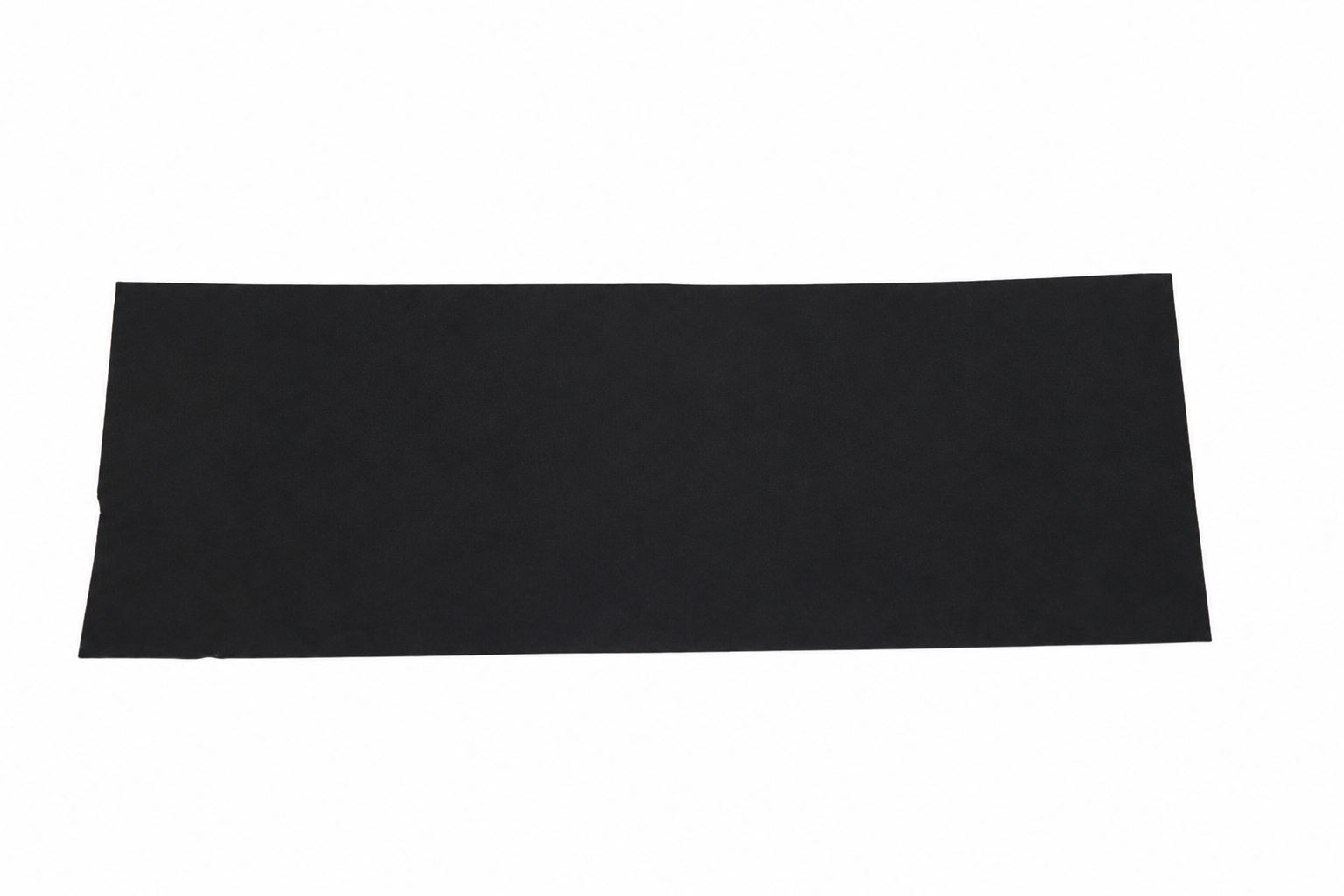

708366 1000102273 Z101 Rubber Pad;Fixing;GM55 No Model Compatibility List $2.58 / Each

12,13,14
708399 1000102647 L41 Screw;Settle;M5x0.8Px6L;Top End;BED No Model Compatibility List $0.38 / Each

2,9
708406 1000102686 J15 Cap End;ADJ Tube;GM43 No Model Compatibility List $1.40 / Each

9,3
1000102866 708450 1000102866 Z08 Screw;Hex Socket;Round;M10x1.5Px80L;Cr P No Model Compatibility List $0.66 / Each

2
1000102911 708485 1000102911 F16 Circlip;External C Type;S-15;BED No Model Compatibility List $1.28 / Each

2
1000102915 708489 1000102915 K09 Circlip;E Type;;E-15;Cr Plate No Model Compatibility List $0.66 / Each

2,3
708509 1000103029 C22 Pedal;baseGM57-KM No Model Compatibility List $11.20 / Each

8,9,3
1000103438 708563 1000103438 B28 Screw;Cross;BH;Tapped;4x10L;A Class;ke No Model Compatibility List $0.44 / Each

2
708585 1000103669 C59 Washer;Flat;8.2x14.0x1.5t;Cr Plat No Model Compatibility List $0.62 / Each

2
1000104003 708593 1000104003 B19 Cap;Insert Nut;GM40-KM No Model Compatibility List $2.28 / Each

2,9
708647 1000104669 C58 Screw;FH;M6x1.0Px25L;HS;CST;CHM;8.8Class No Model Compatibility List $1.72 / Each

2
1000104672 708649 1000104672 L37 Screw;BH;M5x0.8Px10L;HS;CST;CST;CST;CHM; No Model Compatibility List $0.46 / Each

2
708653 1000104679 C55 Circlip;Internal C Type;R-45;BAN No Model Compatibility List $0.76 / Each

2
1000104688 708660 1000104688 Z10 Screw;RND;M10x1.5Px110L;HS;G8.8;CHM;BP No Model Compatibility List $0.62 / Each

2
1000104691 708662 1000104691 Z02 Screw;RND;M10x1.5Px30L;HS;G12.9;CHM;BP No Model Compatibility List $2.80 / Each

2
1000104695 708666 1000104695 Z09 Screw;RND;M10x1.5Px85L;HS;G8.8;CHM;BP No Model Compatibility List $1.98 / Each

2
1000104705 708675 1000104705 K28 Screw;RND;M6x1.0Px15L;HS;CHM;BP;G8.8 No Model Compatibility List $0.40 / Each

2
708719 1000105068 B40 RVN;HX;NKHS-10;YZN No Model Compatibility List $1.72 / Each

1
708720 1000105069 C40 RVN;HX;NHS-610-3.0;YZN No Model Compatibility List $0.68 / Each

1
708722 1000105072 F15 Washer;WW;65Mn;BAN;15.5x22.5x0.3t No Model Compatibility List $0.38 / Each

2
1000105174 708730 1000105174 B23 Nut;Nylon;M10x1.5P;G12.9;CHM No Model Compatibility List $1.38 / Each

2
708751 1000105318 17 Grip Set;ADJ;Leg Pad;GM42(service) No Model Compatibility List $30.88 / Each

12,13,14,11
708801 1000106085 15 Incremental Weight Pin Set;GM41(services)-1 No Model Compatibility List $56.04 / Each

3,12,13,14
708845 1000106220 AK2 Support Set;Weight Plate;Painting;GM55 No Model Compatibility List $139.52 / Each

3
708852 1000106265 16 Pull ROM Pin Set;GM44(service)-1 No Model Compatibility List $60.52 / Each

12,13,14
709003 1000108173 V11 Illustration Decal;Front;GM55 No Model Compatibility List $58.26 / Each

7,3
709004 1000108174 V12 Illustration Decal;Rear;GM55 No Model Compatibility List $58.26 / Each

7,3
709006 1000108188 B31 Screw;HH;M10x1.5Px55L;MT;CST;CHM;BP;G12. No Model Compatibility List $2.58 / Each

2
709024 1000108343 13 Weight Stack Shield;Rear;ABS;GM40(service) No Model Compatibility List $269.10 / Each

3,4,5,6
709026 1000108345 10 Handle;Weight Stack;ADC12;GM40(service) No Model Compatibility List $172.68 / Each

3,4,5,6,11
709027 1000108347 11 Repetition Counter Set;PC;GM40(service) No Model Compatibility List $107.20 / Each

1
709028 1000108348 5 Accent Plate Set;D;PP;GM40(service) No Model Compatibility List $26.30 / Each

3,4,5,6
709052 1000108738 12 Upper Cover Set;Weight Stack;ABS;GM40(service)-5 No Model Compatibility List $44.90 / Each

9,3,4,5,6
709061 1000108793 D17 Screw;RND;M5x0.8Px10L;HS;CHM;BP;G8.8 No Model Compatibility List $0.16 / Each

2
709063 1000108795 Z17 Screw;RND;M8x1.25Px60L;HS;CHM;BP;G8.8 No Model Compatibility List $2.66 / Each

2
1000108801 709069 1000108801 L35 Screw;RND;M5x0.8Px15L;HS;CHM;BP;G8.8 No Model Compatibility List $1.38 / Each

2
709070 1000108803 L34 Screw;RND;M5x0.8Px12L;HS;CHM;BP;G8.8 No Model Compatibility List $0.26 / Each

2
709071 1000108804 L36 Screw;BH;M5x0.8Px15L;HS;CHM;BP;G8.8 No Model Compatibility List $0.54 / Each

2
1000108805 709072 1000108805 Q14 Screw;RND;M8x1.25Px20L;HS;CHM;BP;G12.9 No Model Compatibility List $1.38 / Each

2
709130 1000110206 V13 Decal;Chest Pad ADJ;GM55-KM No Model Compatibility List $5.48 / Each

7,3,12,13,14
709177 1000110718 D23 Rubber Pad;Pedal;GM55-KM No Model Compatibility List $38.98 / Each

8,9,12,13,14
709186 1000110798 C43 Rubber Pad;Left Pedal;GM42-KM No Model Compatibility List $83.18 / Each

8,9,12,13,14
709187 1000110799 C42 Rubber Pad;Right Pedal;GM42-KM No Model Compatibility List $83.18 / Each

8,9,12,13,14
709193 1000110807 V27 Serial No. Sticker;Frame;GM40-KM No Model Compatibility List $0.00 / Each
Out Of Stock
3
709198 1000110841 D11 Grip;Pedal Arm ;wrap rubber;GM42-KM No Model Compatibility List $12.88 / Each

8,9,3,11
709206 1000111093 C50 Sleeve;Adj Tube;GM55-KM No Model Compatibility List $3.96 / Each

3
709218 1000111170 V29 Nameplate;GM55-KM No Model Compatibility List $0.00 / Each
Out Of Stock
3
709451 1000200120 D33 Axle;Pull Pin No Model Compatibility List $18.44 / Each

8,12,13,14
709510 1000200876 Z102 Screw;Round;M8x1.25Px25L;Hex Socket;G12. No Model Compatibility List $2.58 / Each

2
709517 1000200981 K01 Guide Rod;Weight plate No Model Compatibility List $96.02 / Each

3
709718 1000202352 K07 Cushion;Guide Rod No Model Compatibility List $6.48 / Each

3
709875 1000204186 AL3 Top Weight Plate Set No Model Compatibility List $292.04 / Each

3
709919 1000204728 B13 FIXING PLATE;ROPE WHEEL;;;SPHC;;;GM59-KM No Model Compatibility List $2.58 / Each

8,3
710040 1000206252 V03 Decal;Weight Plate;10P;GM40 No Model Compatibility List $43.80 / Each

7,3
710684 1000212387 F13 Fixing Plate;Cable Head;-;45#;BED;GM41; No Model Compatibility List $12.28 / Each

3,4,5,6
710808 1000213945 F09 Steel Rope;;;;SERVICE;GM55-KM; No Model Compatibility List $45.48 / Each

1
711205 1000217603 B63 STOPPER PIECE;INDUCTOR;-;SPHC;ZH;GM40; No Model Compatibility List $2.58 / Each

1
712589 1000229643 AH04 Support Set;Chest Pad;CHM;GM55 No Model Compatibility List $207.98 / Each

3,12,13,14
1000232600 713028 1000232600 V02 Warning Label;-;-;-;PC;-;- No Model Compatibility List $5.60 / Each

1
713415 1000302313 F08 Steel Rope-Extrawork;frame;-;Press Rope No Model Compatibility List $70.18 / Each

3
713646 1000306124 F12 Cam;Steel Rope;Big;VHMWPE;GM41 No Model Compatibility List $129.98 / Each

1
713656 1000306141 F05 Cam;Steel Rope;Big;UHMWPE;GM55 No Model Compatibility List $129.98 / Each

1
713659 1000306184 K09 Fixing Axle;Steel Rope Head;Short;45#;Ch No Model Compatibility List $11.68 / Each

8
713730 1000307064 C61 Bushing;Pulley;Inner;;;GM55;; No Model Compatibility List $4.54 / Each

8
713732 1000307118 C70 Spacer;Pulley;;20#;White Zinc;GM55;15X No Model Compatibility List $6.48 / Each

2,8,3,4,5,6
713734 1000307120 C72 Location Plate;Service;;SPHC;;WZN;GM55; No Model Compatibility List $12.98 / Each

3
1000317876 714760 1000317876 D20 End Cap;;;PP;;Diam.X50.8;; No Model Compatibility List $1.68 / Each

9
714875 1000319382 B10 Fixing Rack;Cover;D;painting;;Iced Slive No Model Compatibility List $5.18 / Each

9,4,5,6
714876 1000319387 B11 Fixing Rack;Cover;U;painting;;Iced Slive No Model Compatibility List $5.18 / Each

9,4,5,6
714877 1000319392 B58 Stopper;Pulley;;painting;;Iced Sliver;GM No Model Compatibility List $7.78 / Each

8
714879 1000319402 F06 Steel Rope Stopper Plate;;;painting;;Ice No Model Compatibility List $9.08 / Each

3
714882 1000319417 L30 Fixing Rack;Counte;;painting;;Iced Slive No Model Compatibility List $10.38 / Each

4,5,6
714890 1000319458 B12 Slide Pulley Fixing Base;;;painting;;Ice No Model Compatibility List $64.98 / Each

8,3
714891 1000319463 2 Down Cover Set;Fixing Frame;;Iced Sliver No Model Compatibility List $5.18 / Each

9,3
714892 1000319468 3 Upper Cover Set;Fixing Frame;;Iced Slive No Model Compatibility List $7.78 / Each

9,3
714900 1000319508 4 Movable Pulley Fixing Set;;;Iced Sliver; No Model Compatibility List $129.98 / Each

8
715029 1000320764 AF1 Axle;Cam;;painting;;Iced Sliver;GM49-KM; No Model Compatibility List $0.00 / Each
Out Of Stock
8
715059 1000320804 AB1 Frame Set;;;painting;;Iced Sliver;GM55-K No Model Compatibility List $0.00 / Each
Out Of Stock
3
715060 1000320805 AC01 base set;;R;painting;;Iced Sliver;GM55-K No Model Compatibility List $0.00 / Each
Out Of Stock
3
715061 1000320806 AC02 base set;;L;painting;;Iced Sliver;GM55-K No Model Compatibility List $0.00 / Each
Out Of Stock
3
715062 1000320809 AG03 Connecting Set;;U;painting;;Iced Sliver; No Model Compatibility List $0.00 / Each
Out Of Stock
1
715151 1000320983 9 CAM SET;;;Iced Sliver;GM49-KM;;Service No Model Compatibility List $77.98 / Each

1
715188 1000321022 1 Frame set;;;Iced Sliver;GM55-KM;;Service No Model Compatibility List $492.68 / Each

3
715189 1000321023 6 Base Set;;right;Iced Sliver;GM55-KM;;Ser No Model Compatibility List $284.68 / Each

3
715190 1000321024 7 Base Set;;left;Iced Sliver;GM55-KM;;Serv No Model Compatibility List $565.48 / Each

3
715191 1000321025 AD1 Pedal Set;;;Iced Sliver;GM55-KM;;Service No Model Compatibility List $144.28 / Each

8,9
715192 1000321026 AG01 Link Set;Frame;right;Iced Sliver;GM55-KM No Model Compatibility List $84.48 / Each

3
715193 1000321027 8 Link Set;Frame;up;Iced Sliver;GM55-KM;;S No Model Compatibility List $76.68 / Each

3
715194 1000321028 Z100 Fixed chipset;Frame;;Iced Sliver;GM55-KM No Model Compatibility List $12.98 / Each

3
716192 1000334510 B17 Fixing Plate;;down;NBR;;;GM40; No Model Compatibility List $12.98 / Each

3
716193 1000334511 C62 Rubber Foot Pad;Base;;NBR;;;GM40; No Model Compatibility List $7.78 / Each

9,3,12,13,14
1000345425 717480 1000345425 K27 Stopper Ring;Guide Rod;;;Chrome;GM41;; No Model Compatibility List $14.02 / Each

7,3,12,13,14
720427 1000372592 L59 Adjustable Pin Set;;;Weight plate;GM40;; No Model Compatibility List $84.22 / Each

3,12,13,14
1000393222 722509 1000393222 D32 Spring;Compression;1.3x12.7x38Lx7;SWP; No Model Compatibility List $1.28 / Each

2
725265 103406 F14 Washer;Flat;8.2x20.0x1.8t;Cr Plat; No Model Compatibility List $0.16 / Each

2
725362 070571 L38 Washer;Flat;5.2X10.0X1.5T;;CHM; No Model Compatibility List $0.38 / Each

2
073572 725583 073572 F17 Pulley; 90mm No Model Compatibility List $34.06 / Each

8
073573 725584 073573 F21 Pulley; 115mm No Model Compatibility List $32.44 / Each

8
726162 080409 C38 Screw;TH;M6X1.0PX25L;;HS;;;;; No Model Compatibility List $1.28 / Each

2
726956 086226 V09 Nameplate;Motor Cover;LOGO;T5X-02; No Model Compatibility List $32.52 / Each

9,3,10
728706 096086 L01 Weight Plate;Incremental;3P;HT200;GM41 No Model Compatibility List $67.18 / Each

3
728719 096165 H19 Adjustment Grip Set;Semi-Assy;;;;GM44;; No Model Compatibility List $19.92 / Each

11
728725 096208 D12 Adjustment Handle Lower Stopper Ring No Model Compatibility List $9.46 / Each

11
728726 096209 D15 Cap;Grip;Peadal Arm;ADC12;GM42 No Model Compatibility List $11.62 / Each

9,3,4,5,6,11
728918 098980 Q06 Kettle Base;ABS;GM40 No Model Compatibility List $26.84 / Each

3
728919 098984 Q03 Cover;Rear;ABS;GM40 No Model Compatibility List $116.98 / Each

9
728920 098985 Q02 Weight Stack Shield;Front;ABS;GM40 No Model Compatibility List $113.56 / Each

3,4,5,6
728921 098986 Q05 Grip;Up Cover;ADC12;GM40 No Model Compatibility List $150.78 / Each

9,4,5,6,11
728922 098987 Q01 Cover;Up;ABS;GM40 No Model Compatibility List $29.88 / Each

9
728923 098988 Q04 Cover;Front;ABS;GM40 No Model Compatibility List $113.56 / Each

9
728930 099052 L12 ADJ Base;L;Incremental Weight Plate;GM40 No Model Compatibility List $18.08 / Each

3
728931 099053 L03 ADJ Base;R;Incremental Weight Plate;GM40 No Model Compatibility List $1.52 / Each

3
728933 099056 L07 U;Cover;IncrementalWeightPlate;20#;GM40 No Model Compatibility List $18.08 / Each

9,3
728934 099059 K02 ADJ Rod;Weight Plate;20#;GM40 No Model Compatibility List $84.34 / Each

3
728936 099063 L40 Cover;Incremental Weight Plate;PC;GM40 No Model Compatibility List $15.64 / Each

9,3
728937 099064 L17 Sleeve;D;IncrementalWeight Plate;POM;GM4 No Model Compatibility List $4.34 / Each

3
729622 ZMS4003234 Not Shown Decal, QR, G7-S78 Glute No Model Compatibility List $4.54 / Each

7,3
View Drawing
