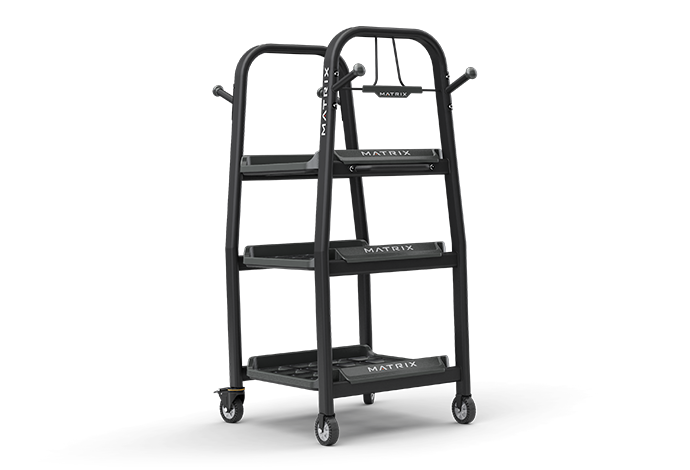

Matrix Commercial - GFT3S - 2015

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
004640-A 701621 004640-A Z12 Screw;Umbrella Cross Tapped;4X35L No Model Compatibility List $1.54 / Each

2
004720-AH 701694 004720-AH Z10 Screw;Hex Socket;Oval;M8X1.25PX20L No Model Compatibility List $1.54 / Each

2
005017-00 701981 005017-00 Q05 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.02 / Each

7,2,12,13,14
005062-00 702030 005062-00 Z21 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.22 / Each

7,2,12,13,14
005130-00 702098 005130-00 Z06 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005173-A 702142 005173-A Z09 WASHER;ARC;Diam.10.5XDiam.20.0X2.0T;;; No Model Compatibility List $0.78 / Each

2
020031-00 703971 020031-00 Z12 Screw;Umbrella;PH; M4X0.5PX38L No Model Compatibility List $1.28 / Each

2
020146-00 704055 020146-00 Z13 SCREW;HH;M8X1.25PX20L;;HE;;;;SP No Model Compatibility List $1.28 / Each

2
063841-00 706619 063841-00 Z20 Nut;HAC;M10X1.5P(Yrw8L);SS41;CHM;; No Model Compatibility List $1.38 / Each

2,4,5,6
1000102905 708481 1000102905 Z11 Washer;Flat;8.4x24x2.0t;Cr Plate No Model Compatibility List $1.28 / Each

2,3
1000104672 708649 1000104672 Z03 Screw;BH;M5x0.8Px10L;HS;CST;CST;CST;CHM; No Model Compatibility List $0.46 / Each

2
1000104691 708662 1000104691 Z22 Screw;RND;M10x1.5Px30L;HS;G12.9;CHM;BP No Model Compatibility List $2.80 / Each

2
1000108806 709073 1000108806 Z08 Screw;RND;M10x1.5Px15L;HS;CHM;BP;G12.9 No Model Compatibility List $0.68 / Each

2

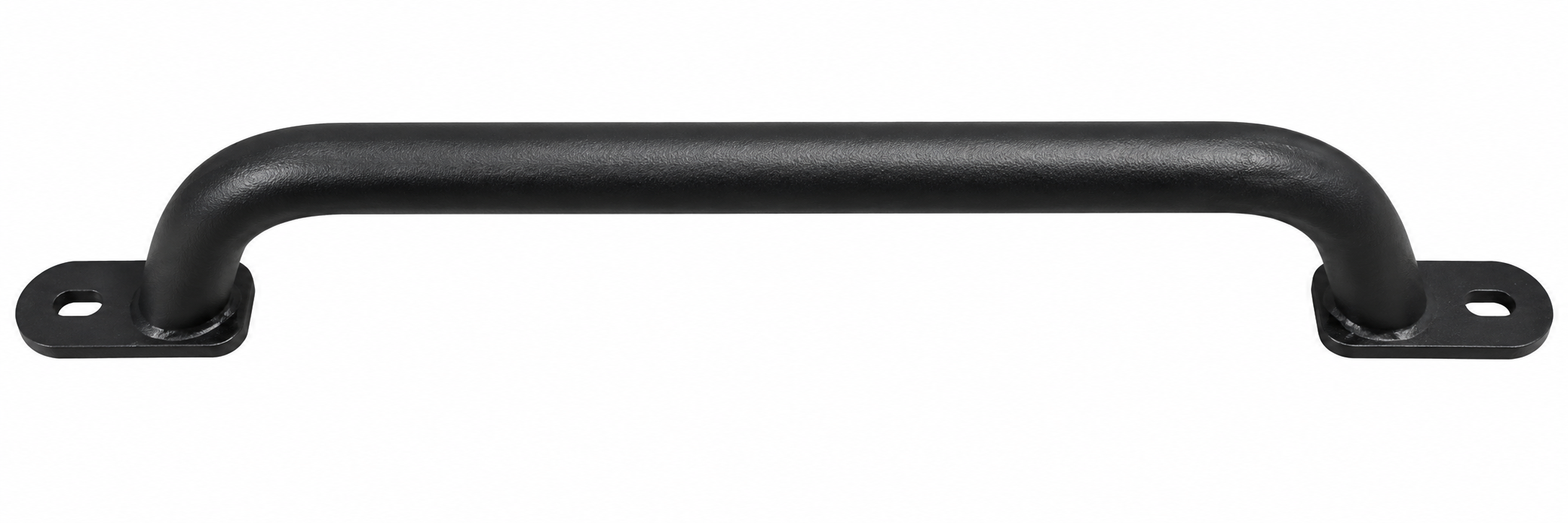

718553 1000351391 AE1 Handle set;;;painting;;;GT04-KM; No Model Compatibility List $0.00 / Each
Out Of Stock
11

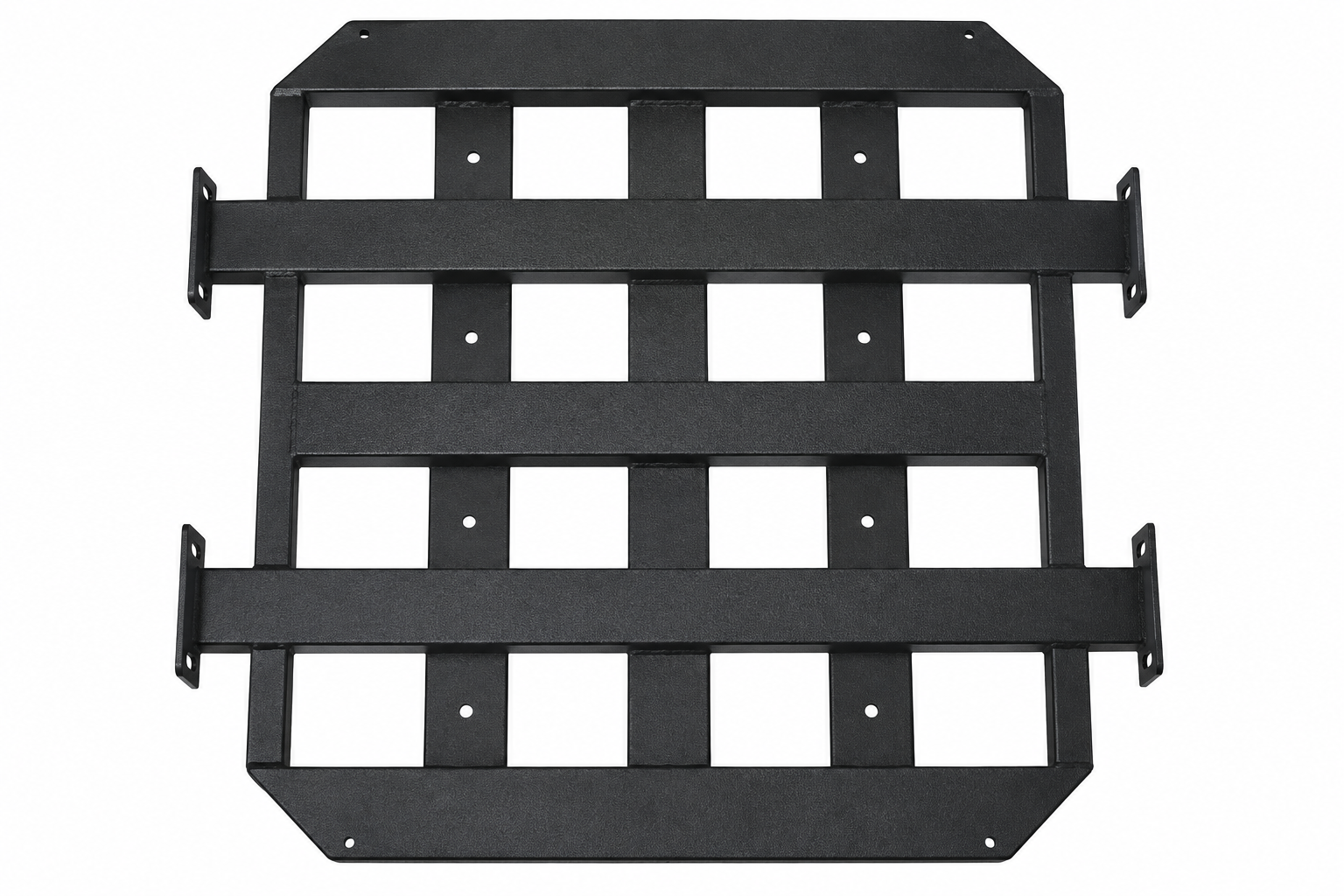

718554 1000351397 AG1 Disassembly connect set;;;painting;;;GT0 No Model Compatibility List $0.00 / Each
Out Of Stock
3
1000351406 718556 1000351406 Z01 Transport Wheels;;;;;Diam.125xW38;GT04-K No Model Compatibility List $42.88 / Each

8
1000351407 718557 1000351407 Z02 Transport Wheel with Brake;;;;Diam.125xW38;GT04-K No Model Compatibility List $90.98 / Each

8

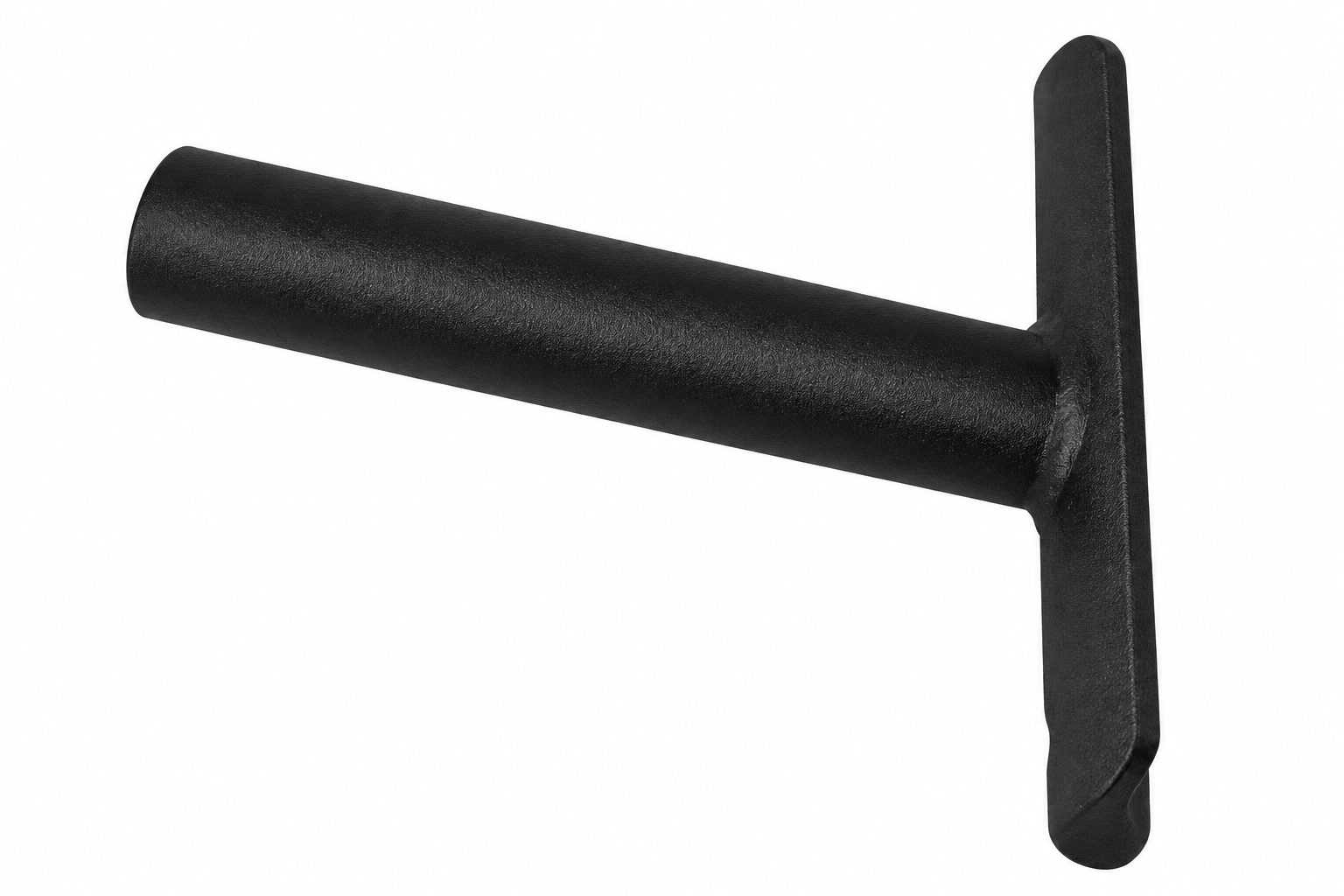

718561 1000351443 AG2 Hook Rod Set;;;painting;;;GT05-KM; No Model Compatibility List $0.00 / Each
Out Of Stock
3
1000351481 718563 1000351481 Q01 Plastic Tray;;;PA709;Gray/80435;;GT04-KM No Model Compatibility List $109.18 / Each

9
1000351482 718564 1000351482 Q02 Rubber Pad;;;NBR;BL/Black C;;GT04-KM; No Model Compatibility List $162.48 / Each

4,5,6,12,13,14
1000351483 718565 1000351483 Q03 Plastic Plate;;;PA6;Gray/80435;;GT04-KM; No Model Compatibility List $11.68 / Each

9,3
1000351484 718566 1000351484 Q04 End Cap;;;TPU;Gray/80435;;GT04-KM; No Model Compatibility List $12.98 / Each

9
718644 1000352519 Not Shown Hardware Set;Semi-Assy;;;;GT05-KM; No Model Compatibility List $18.18 / Each

1
719125 1000356121 Not Shown Manual set;Semi-Assy;;;;GT05;; No Model Compatibility List $0.00 / Each
Out Of Stock
1
719438 1000361341 Z18 Washer;Spring Lock;20.2x31x4.0t;65Mn;C No Model Compatibility List $0.00 / Each
Out Of Stock
2
719700 1000363993 B11 Shim;Wheel;;Zinc Plate;113x100x1.0T;;GT0 No Model Compatibility List $0.00 / Each
Out Of Stock
8,3
721134 1000380837 AG1 Disassembly connect set;;;Black Matte;GT No Model Compatibility List $178.08 / Each

3,4,5,6
721918 1000386562 1 Roller Frame Set;Assembly;;Black Matte;G No Model Compatibility List $0.00 / Each
Out Of Stock
8,3,4,5,6
724201 1000416384 AB2 Frame Set;;L;painting;;Black Matte;GT05; No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
724202 1000416385 AB1 Frame Set;;R;painting;;Black Matte;GT05; No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
081649 726404 081649 C24 Washer;SPL;SW8 8.2X13.5X2.0T;;CHM; No Model Compatibility List $1.54 / Each

2
