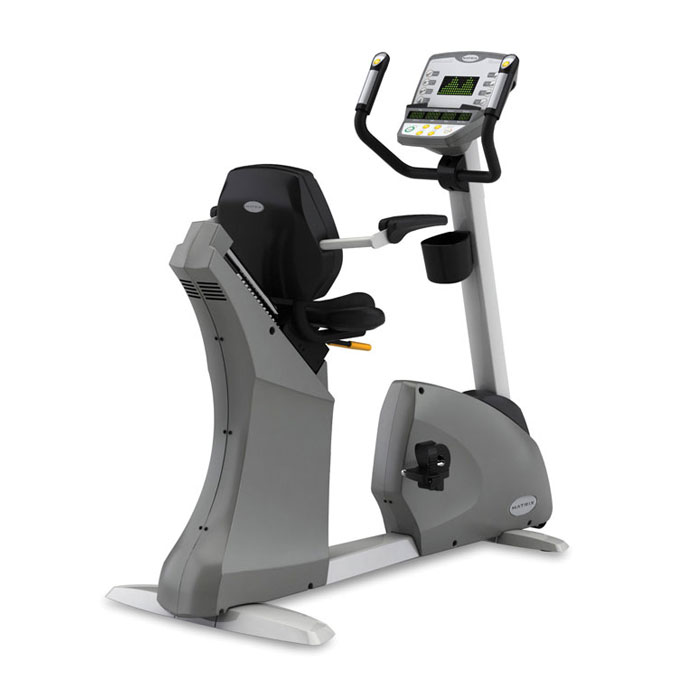

Matrix Commercial - H3x-01-G4 - 2009

Repair Parts for Matrix Commercial H3x-01-G4 CB87

Brand: Matrix Commercial

Category: Hybrid

Type: Stationary Bikes

Model Name: H3x-01-G4

Version: 2009

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Arm/pedal
  • Seat Parts
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
4 700057 000221-CA 40 Boot;Console Mast No Model Compatibility List $10.24 / Each

7
4 700072 000252-CA 41 Cover;Handlebar Yes Model Compatibility List $3.64 / Each

9,11
D 700237 000757-DA D57 Elastomer;;;;AS006;;;CB61 No Model Compatibility List $8.42 / Each

1
D 700280 000854-AA D47 Sleeve;Square;;Nylon;;;;CB61 No Model Compatibility List $1.79 / Each

3
1 700313 000932-E 181 Cap;C-Safe;Black;CB32 D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $1.66 / Each

9,4,5,6
T 700360 001130-00 T109 Cover;Crank Arm No Model Compatibility List $1.90 / Each

8,9,3
Q 700370 001143-B Q08 Cover;Crank;PVC;BL;RB70 No Model Compatibility List $9.10 / Each

8,9
D 700411 001279-AA D51 Spacer Ring No Model Compatibility List $9.10 / Each

2,3,4,5,6
700689 001800-DA 36 Security Block;Nylon; 6+30%FIBER(BLACK) No Model Compatibility List $8.42 / Each

4,5,6
D 700690 001801-BA D52 Wool Felt;Oiled;25.0x35.0x4.0t;CB61 No Model Compatibility List $3.35 / Each

1
P 700743 002121-FR P02 Console Cable;Upper;00(TKP H6630P1-08);CB61 No Model Compatibility List $50.67 / Each

7,4,5,6
P 700765 002221-FR P05 TV Power Wire;1550L;SCD-026A;CB61; No Model Compatibility List $15.63 / Each

4,5,6
5 700823 002428-ER 52 Console Cable;Lower;1250L;XAP-07V-1;CB61; No Model Compatibility List $54.73 / Each

7,4,5,6
5 700897 002683-BR 54 Generator Wire;900L;3.96-5P;CB61; Yes Model Compatibility List $11.67 / Each

8,4,5,6
P 700917 002756-CR P06 TV Signal Wire;1550L;FM-0086-NBG7;CB61; No Model Compatibility List $17.13 / Each

4,5,6
N 700924 002782-C Not Shown Power Cord;External(USA);3000,14AWG;110V(non-nema) Yes Model Compatibility List $72.98 / Each

4,5,6
N 700925 002787-C Not Shown Power Cord;External(USA);3000,14AWG;110V(nema) No Model Compatibility List $72.98 / Each

4,5,6
P 701032 003383-A P20 Ferrite Choke;FH0900B-2;Lian Ci;TM38 No Model Compatibility List $9.10 / Each

1
P 701035 003393-A P21 Ferrite Core;FH1500B;TM87 K1 RH12.5x12.5x8 No Model Compatibility List $3.64 / Each

1
5 701069 003561-C 55 Power Resistance;With Wire;400W 10;VH3. Yes Model Compatibility List $157.79 / Each

4,5,6,10
N 701146 004050-A Not Shown Pedal Strap Set(includes both sides);Rub No Model Compatibility List $36.48 / Each

8,9
R 701159 004077-A2 R19 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

8
T 701166 004082-A2 T105 Ball Bearing;6205ZZ;25X52X15T;;TPI;;; No Model Compatibility List $21.89 / Each

8
6 701193 004144-00 64 Drive Belt;Poly-V;340-J6 Yes Model Compatibility List $54.73 / Each

15,10
S 701265 004326-00 S13 Screw;Phillip;Round;M5x0.8Px8L; No Model Compatibility List $2.00 / Each

2
3 701269 004330-00 37 Screw;Phillip;Round;M6x1.0Px25L(Tooth8L) No Model Compatibility List $1.66 / Each

2
1 701289 004356-AB 183 Screw;Phillip;BH;M4x0.7Px12L;BED; No Model Compatibility List $1.66 / Each

2
6 701308 004369-00 61 Screw;Phillip;BH;M5x0.8Px15L;BED; No Model Compatibility List $2.00 / Each

2
4 701312 004370-00 42 Screw;Phillip;BH;M5x0.8Px10L;;Zn-BL No Model Compatibility List $2.00 / Each

2
Q 701321 004375-AC Q23 Screw;Phillip;BH;Stainess;M5x0.8Px15L;BE No Model Compatibility List $1.79 / Each

2
Q 701333 004385-AB Q21 Screw;Umbrella Cross;M5x0.8Px12L No Model Compatibility List $1.79 / Each

2
D 701354 004404-00 D94 Screw;Phillip;BH;M4x0.7Px8L;;Zn-BL No Model Compatibility List $2.00 / Each

2
G 701357 004408-00 G23 Screw;Phillip;BH;M3x0.5Px14L;;Zn-BL No Model Compatibility List $1.66 / Each

2
3 701372 004420-AD 34 Screw;Phillip;Sink;M5x0.8Px15L;BED;Adher No Model Compatibility List $1.66 / Each

2
D 701389 004446-00 D92 Screw;Round;Hex Socket;M4X0.7PX16L No Model Compatibility List $1.66 / Each

2
S 701390 004447-AB S10 Screw;Hex Socket;Round;M5x0.8Px12L;Adher No Model Compatibility List $1.43 / Each

2
D 701394 004449-00 D87 Screw;Round;Hex Socket;M5X0.8PX30L No Model Compatibility List $1.79 / Each

2
Z 701430 004479-00 Z31 Screw;Round;Hex Socket;M8X1.25PX15L No Model Compatibility List $2.00 / Each

2
I 701456 004505-00 I16 Screw;Hex Socket;Round;3/16x3/8L;;Zn-BL No Model Compatibility List $1.66 / Each

2
I 701457 004506-00 I21 Screw;Hex Socket;Round;3/16x5/8L;;Zn-BL No Model Compatibility List $1.79 / Each

2
Z 701504 004539-AC Z34 Screw;Round;Hex Socket;M8X1.25PX25L Yes Model Compatibility List $3.64 / Each

2
G 701626 004647-00 G22 Screw;Phillip;Round;3x12L No Model Compatibility List $1.79 / Each

2
1 701628 004649-00 164 Screw;Phillip;Round;3x6L;Black;Gap;;Zn- No Model Compatibility List $1.66 / Each

2,4,5,6
P 701631 004653-00 P60 Screw;Round;PH;Tapped;4X12L No Model Compatibility List $2.00 / Each

2
D 701649 004687-C D90 Bolt;Eye Hook;1/4"-20UNCx35L No Model Compatibility List $2.00 / Each

2
C 701661 004697-AD C33 Screw;Flat Hex Socket;M8x1.25Px25L No Model Compatibility List $3.64 / Each

2
Z 701713 004730-00 Z41 Screw;Oval Hex Socket;M8X1.25PX50L Yes Model Compatibility List $2.00 / Each

2
R 701727 004750-00 R26 Screw;Oval;Hex Socket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
L 701743 004767-00 L02 Screw;Hex Socket;BH;M8x1.25Px70L(Tooth12) No Model Compatibility List $1.79 / Each

2
3 701823 004844-00 32 Set Screw;M6X1.0PX16.0L No Model Compatibility List $1.66 / Each

2
6 701843 004860-00 67 Screw;Phillip;Large Oval Head;M4X0.7PX8L No Model Compatibility List $1.79 / Each

2
S 701870 004892-00 S08 Nut;Hex;3/8-26UNCX4H No Model Compatibility List $2.00 / Each

2
D 701875 004902-00 D91 Nut;Hex;1/4"-20UNC;;Zn-BL No Model Compatibility List $1.79 / Each

2
D 701891 004924-00 D88 Nut;Nylon;M5x0.8P;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
L 701905 004932-00 L03 Nut;Nylon;M8X1.25P(BED) No Model Compatibility List $1.66 / Each

2
S 701907 004933-00 S06 Nut;Nylon;1/4"'-20UNC;BED No Model Compatibility List $1.79 / Each

2
701920 004951-A 60 Nut;M5;Chromed No Model Compatibility List $1.66 / Each

7,2,12,13,14
T 701927 004964-00 T108 Nut;Hex;Flange;M10x1.25P;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
S 701931 004968-00 S04 Nut;Hex;Flange;3/8-26UNF;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
R 701951 004987-00 R22 Key;Round;Dual End;6X6X12L No Model Compatibility List $1.66 / Each

9
Z 701978 005015-00 Z43 Washer;Spring;SW8 8.2X13.5X2.0T Yes Model Compatibility List $2.00 / Each

2
R 701993 005032-00 R30 Washer;Flat;20.2x35.0x1.0T;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
L 701997 005035-00 L04 Washer;Flat;8.2x18x1.4T No Model Compatibility List $2.00 / Each

2
S 702037 005067-00 S03 Washer;Flat;10.2X15.0X1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
D 702049 005077-00 D84 Washer;Flat;6.2X12X1.0T;Black Zinc No Model Compatibility List $1.85 / Each

2,4,5,6
Q 702052 005080-00 Q22 Washer;Flat;5.2x13.0x1.5T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
S 702070 005102-00 S07 Washer;Flat;1/4"x15.0x1.0T;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
R 702076 005109-00 R25 Washer;Flat;8.5x25x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
Z 702105 005134-00 Z32 Washer;Flat;8.2x14.0x1.5T;BAN; No Model Compatibility List $2.00 / Each

2
Z 702136 005165-00 Z42 Washer;Arc;8.2x18x1.5T No Model Compatibility List $2.00 / Each

2
U 702151 005186-00 U14 Washer;Teflon;20.3X30X1.0T No Model Compatibility List $1.79 / Each

2
D 702152 005188-00 D83 Washer;Teflon;8.0X15.0X1.0T No Model Compatibility List $2.00 / Each

2
D 702175 005217-A D85 Washer;Teflon;5.2x10.0x1.0T No Model Compatibility List $1.79 / Each

2
T 702193 005239-00 T107 Washer;Lock;10.0x20.0x1.0T No Model Compatibility List $2.00 / Each

2
D 702203 005261-A D56 Sleeve;Flat;Teflon;PSM2530-20(SIMPLICItY No Model Compatibility List $79.30 / Each

3
U 702240 005365-00 U13 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

2
T 702241 005366-00 T106 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

2
6 702277 005444-00 68 Spring;Idler;2.0x16.0x103.0Lx26N No Model Compatibility List $3.35 / Each

2,8
D 702288 005484-C D48 Spring;Stretch;Adjust;SWP;BED No Model Compatibility List $9.96 / Each

2
S 702470 007768-D S05 Fix Plate;Eye Bolt No Model Compatibility List $1.79 / Each

2,3
F 702473 007854-C F03 Fix Plate;Guide Rail;;SPHC;5.0t;;;CB61 No Model Compatibility List $9.10 / Each

9,3
F 702474 007855-D F04 Fix Plate;Guide Rail;Right;SPHC;5.0T;;;CB61 No Model Compatibility List $8.42 / Each

9,3
3 702475 007861-C 33 Adjustment Plate;Seat Slide;SPCC;6.0t;CB61; No Model Compatibility List $58.92 / Each

3,12,13,14
702484 007970-B Q20 Connecting Plate;Side Cover;2 Hole No Model Compatibility List $1.79 / Each

9,3
R 702579 008723-C R06 Ring;26x10L;CB61 No Model Compatibility List $3.35 / Each

1
702580 008740-E R01 Mandrel;Flywheel;SCM440;25x97L;CB61; No Model Compatibility List $36.71 / Each

8
D 702582 008761-B D46 Screw;Special;M6X1.0PX20L-10L;;HS;CRMO;BAN;;S No Model Compatibility List $1.79 / Each

2
D 702583 008762-B D50 Screw;Special;M6X1.0PX20L-10L;;HS;CRMO;BAN;;S No Model Compatibility List $1.79 / Each

2
F 702584 008763-C F01 Tube;Seat Guide Rail;;Stainless Tube;25.0x3. 55X7.6L SS41 No Model Compatibility List $73.61 / Each

9,3,12,13,14
D 702766 009586-B D49 Adjustment Block;Position;;S45C;Zn Plate;;;;CB No Model Compatibility List $23.66 / Each

3
D 702779 009665-C D44 Fixing Base;Seat Axle Sleeve;Front;Anodizing No Model Compatibility List $63.28 / Each

8,3,12,13,14
D 702780 009666-C D45 Fixing Base;Axle Sleeve;After;Anodizing No Model Compatibility List $63.28 / Each

8,3
1 702848 012377-00 19 Transport Wheel Set;Front;US;CB61 No Model Compatibility List $11.96 / Each

8
S 702856 012818-00 S01 Generator;ECB;190 CE CB/RB MX/600;400W;JM07 Yes Model Compatibility List $602.29 / Each

8
A 703402 014158-EA AR1 DRIVE MAIN AXLE ASSEMBLY PICTURE Yes Model Compatibility List $54.60 / Each

8,3,10
T 703449 014724-A T110 Pedal Set;With Strap Yes Model Compatibility List $72.98 / Each

8,9
A 703724 015905-BB AD5 Arm Rest;Left;Foam;;;CB6 No Model Compatibility List $124.90 / Each

3
A 703726 015906-BB AD6 Arm Rest;Right;Foam;R;;CB6 No Model Compatibility List $124.90 / Each

3
1 703836 018589-DR 184 Console Cable;Upper;200L;KP H6630P1-08;EP71; No Model Compatibility List $33.77 / Each

7,4,5,6
1 703837 018591-CR 186 Battery Connecting Plate;9 Volt;150(XAP-02V-1+9V B No Model Compatibility List $9.10 / Each

3
6 703841 018617-A 65 Drive Belt;POLY-V;370-J8 Yes Model Compatibility List $54.73 / Each

15,10
D 703848 018627-A D86 Washer;Flat;5.2X10.0X1.0T;;BZN; No Model Compatibility List $2.00 / Each

2
R 703851 018650-E R05 Fix Pass axle Cover A;66x48.5L SS41(Pai No Model Compatibility List $34.16 / Each

8,9
3 703852 018652-B 31 Screw;SH;M6X1.0PX16.5L-8L;;HS;CRMO;BAN;; No Model Compatibility List $3.64 / Each

2
D 703853 018653-A D81 Screw;SH;M8X1.25PX22.5L-8L;CRMO;BAN; No Model Compatibility List $1.79 / Each

2
F 704163 020370-00 F11 Nut;Hex;M10X1.5P;SS41;BAN;; No Model Compatibility List $1.79 / Each

2
1 704978 028272-CR 154 Membrane Keypad;Left;Plane 4Key;CB64 No Model Compatibility List $9.10 / Each

9,12,13,14
1 704981 028501-BR 173 Signal Wire;1;140L;(XAP-10V-1)x2;CB61; No Model Compatibility List $13.39 / Each

4,5,6
1 704982 028502-BR 174 Signal Wire;2;105L;(XAP-08V-1)x2;CB61; No Model Compatibility List $10.35 / Each

4,5,6
1 704983 028503-BR 175 Signal Wire;3;130L;(XAP-05V-1)x2;CB61; No Model Compatibility List $11.86 / Each

4,5,6
1 704984 028504-BR 176 Signal Wire;4;50L;(XAP-05V-1)x2;CB61; No Model Compatibility List $8.42 / Each

4,5,6
5 704986 028508-A 58 Screw;Phillip;BH;M5x0.8Px40L(Tooth15L);; No Model Compatibility List $1.66 / Each

2
F 704989 028538-A F12 Washer;Anti-Strike;Mx-H3; No Model Compatibility List $1.66 / Each

2
4 705008 029034-AA 47 Back Pad;CB61/CB63 No Model Compatibility List $214.47 / Each

4,5,6,12,13,14
705009 029035-AA 43 Seat Pad;CB61/CB63 Yes Model Compatibility List $250.46 / Each

12,13,14
1 705038 032524-CR 156 Membrane Keypad;Right;Plane 4Key;CB64 No Model Compatibility List $9.10 / Each

9,12,13,14
P 705068 034585-CR P04 Pulse SensorWire;820L;(TKP H66031P-06); Yes Model Compatibility List $29.02 / Each

4,5,6,12,13,14
1 705069 034586-BR 177 Quickl Key Wire;200L;(TKP H6630P-06+TKP Yes Model Compatibility List $13.78 / Each

9,4,5,6
1 705070 034598-BR 155 Membrane Keypad;Down;Plane 4Key;CB64 No Model Compatibility List $17.42 / Each

9,12,13,14
1 705117 037811-B 157 LED Apertures Board No Model Compatibility List $3.35 / Each

1
J 705126 037907-AA J21 Leveler;Foot Pad Yes Model Compatibility List $9.10 / Each
9,3,12,13,14
J 705127 037908-AA J22 Leveler;Foot Pad;Adjustic No Model Compatibility List $9.10 / Each

9,3,12,13,14
3 705128 037909-AA 35 Leveler;Foot Pad;Adjustic;Center No Model Compatibility List $9.10 / Each

9,3,12,13,14
R 705213 039153-A R10 Ring;;;;26x10L ;;;;CB61 No Model Compatibility List $8.42 / Each

1
D 705216 039158-A D80 Fix Plate;Guide Rail;;SPHC;5.0t;;;CB61 No Model Compatibility List $8.42 / Each

9,3
1 705748 056004-A 166 Pulse Sensor Wire;300L No Model Compatibility List $17.94 / Each

4,5,6,12,13,14
5 705749 056005-A 59 Ground Wire;Pulse;1100L Yes Model Compatibility List $8.42 / Each

4,5,6,12,13,14
1 705752 056008-A 169 Ground Wire;Pulse Grip;100L;(KST FDFNYD2-250-1 HSG No Model Compatibility List $3.35 / Each

4,5,6,12,13,14,11
1 705753 056009-A 168 Power Wire;Heart Rate Board;220L;(TKP 2510A-3P Yes Model Compatibility List $16.54 / Each

4,5,6,12,13,14
D 705763 056060-AA D53 Seat Tube End Cap;1-1/4";Material:PP; Yes Model Compatibility List $1.66 / Each

9,3,12,13,14
5 705777 056225-A 53 Ferrite;PART OF #79 CABLE;NOT ORDERABLE; No Model Compatibility List $8.42 / Each

4,5,6
5 705778 056226-A 56 Resistor Cord;FH0900W;Lian Ci;EP68 No Model Compatibility List $8.42 / Each

4,5,6
P 706753 065247-A P10 TV Exchange Connector;;F HDR Into F HSG 9 No Model Compatibility List $9.41 / Each

4,5,6
1 707034 068631-A 160 Screw;Phillip;BH;Big;M3x0.5Px4L;; No Model Compatibility List $1.66 / Each

2
3 710776 1000213547 30 CONSOLE SET;H001S004;EP301;ES;EN;EP301; Yes Model Compatibility List $1300.00 / Each

7
1 711082 1000216383 11 Side Cover Set;Left;Front;H-3x/5x/7x-03-F; No Model Compatibility List $89.54 / Each

9
1 711083 1000216386 12 Side Cover Set;Right;Front;H-3x/5x/7x-03-F; No Model Compatibility List $89.54 / Each

9
T 719731 1000364363 T111/T112 crank set;;;RB85-SBOM;Clear coat;RB85;; Yes Model Compatibility List $168.97 / Each

8
Decal; Left Upper Rail 725477 071807 V13 Decal; Left Upper Rail No Model Compatibility List $1.79 / Each

7,9,3
Decal; Right Upper Rail 725478 071808 V14 Decal; Right Upper Rail No Model Compatibility List $1.79 / Each

7,9,3
Screw;Eye Bolt;1/4 725504 072171 S12 Screw;Eye Bolt;1/4"-20UNCX65L(25L)Eye10;ZN-BL No Model Compatibility List $1.66 / Each

2
Connect Wire;Console;2.0AR;RB123 726121 080124 P05 Connect Wire;Console;2.0AR;RB123 No Model Compatibility List $31.85 / Each

7,4,5,6
Pulse Wire;AL Rail;2.0AR;RB123 726122 080125 P11 Pulse Wire;AL Rail;2.0AR;RB123 No Model Compatibility List $29.09 / Each

9,4,5,6,12,13,14
Heart Rate Board Receiver;Inbuilt;All in one;SALUTRON 850 726625 0000083655 167 Heart Rate Board Receiver;Inbuilt;All in one;SALUTRON 850 Yes Model Compatibility List $425.88 / Each

12,13,14
726655 083864 162 Faceplate,Console Plastic(PAINT);EP68-US No Model Compatibility List $130.49 / Each

7,9,3,4,5,6
Console Back Cover 726656 0000083865 178 Console Back Cover No Model Compatibility List $135.36 / Each

4,5,6,7,9
726668 0000083902 182 Bottle Holder;Console Back Yes Model Compatibility List $137.88 / Each

4,5,6,7
Screw;Phillip;Round;M3x0.5Px30L;;Zn-BL 726738 084533 G21 Screw;Phillip;Round;M3x0.5Px30L;;Zn-BL No Model Compatibility List $1.79 / Each

2
Pedal Set 727707 0000090518 66 Pedal Set Yes Model Compatibility List $72.98 / Each

8,9
727751 090799 AD3 Handle;Seat Adjustment;Panto No Model Compatibility List $64.45 / Each

12,13,14,11
727752 090800 8 Seat Handlebar Set;MX-H5x-F; No Model Compatibility List $391.09 / Each

12,13,14,11
727754 090804 48 Cover;Back Pad Set;MX-H5x-F;CB72 No Model Compatibility List $68.35 / Each

9,4,5,6,12,13,14
727755 090806 AI2 Spring;Spiral;MX-H5x-F; No Model Compatibility List $114.17 / Each

2
727756 090807 3 Seat Rope Pulley Set;Semi-Assy;MX-H5x-F;CB72 No Model Compatibility List $299.34 / Each

8,12,13,14
727757 090809 17 Stabilizer Set;Rear;H5x-F; No Model Compatibility List $653.33 / Each

1
727758 090810 16 Stabilizer Set;Front;H5x-F; No Model Compatibility List $411.19 / Each

1
727761 090820 4 Pulley Axle Set;H5x-F; No Model Compatibility List $571.53 / Each

8
727764 090861 - Semi-Assy;Hardware;With Tool;H5x-F; No Model Compatibility List $80.00 / Each

1
727781 090936 161 Fix Plate;Reading Rack;SPHC 2.0t(BED); No Model Compatibility List $1.66 / Each

3,4,5,6
727902 091996 D89 Screw;Hex Socket;BH;M8x1.25Px16L;Black Z No Model Compatibility List $1.66 / Each

2,4,5,6
727976 092322 69 Screw;Hex Socket;Round;M8x1.25Px10L;;Zn- No Model Compatibility List $1.66 / Each

2
727980 092368 150 Overlay;Console;Upper;Eng;PET;0.2t;H3x-0 No Model Compatibility List $64.40 / Each

7
727981 092369 152 Overlay;Console;Under;Eng;PET;0.2t;H3x-0 No Model Compatibility List $23.76 / Each

7
727982 092370 151 Overlay;Console;Middle;Eng;PET;0.8t;H3x- No Model Compatibility List $13.26 / Each

7
727998 092426 18 Lower Control Board Set;E3XC-01;US;EP301 No Model Compatibility List $638.79 / Each

7
728014 092538 6 Handle Bar Set with HR Grips;H3x-01; No Model Compatibility List $393.56 / Each

7,12,13,14,11
728016 092548 22 Entertainment Port Fix Plate Set;H3x-01; No Model Compatibility List $93.99 / Each

3
728017 092554 - Assembly Manual;English;US;H3x-01; No Model Compatibility List $21.50 / Each

3
728082 093090 185 Battery;9v;PKLIR No Model Compatibility List $39.75 / Each

1
728089 093120 9 Seat Slide Set;CB72;H5x-F; No Model Compatibility List $1.30 / Each

12,13,14
728090 093121 10 Generator Set;ECBCB72;H5X-F; No Model Compatibility List $638.79 / Each

8
728091 093124 13 Side Cover Set;Left;Rear;CB72;H5x-F; No Model Compatibility List $262.52 / Each

9
728092 093125 14 Side Cover Set;Right;Rear;CB72;H5x-F; No Model Compatibility List $244.37 / Each

9
728093 093126 15 Main Tube Cover Set;CB72;H5x-F; No Model Compatibility List $154.54 / Each

9,3
728106 093149 158 Reading Rack Set;MX-E5XC;US;EP74 No Model Compatibility List $22.67 / Each

4,5,6
728107 093150 179 Console Battery Cover 1;MX-E3;US;EP68 No Model Compatibility List $8.42 / Each

7,9
Display Board;MX-H5X;US;CB64 728108 093151 171 Display Board;MX-H5X;US;CB64 No Model Compatibility List $402.77 / Each

1
728109 093152 170 Display Board;MX-H5X;US;CB64 No Model Compatibility List $345.46 / Each

1
728110 093153 163 Load Board;Program;MX-H5X;US;CB64 No Model Compatibility List $328.95 / Each

1
728111 093155 180 Battery Cover 2;MX-E3;US;EP68 No Model Compatibility List $9.44 / Each

9
728124 093188 21 Cup Holder Set;CB62;SBOM; No Model Compatibility List $41.99 / Each

1
728125 093189 172 Program Upload Board Set;E3xc-01;US;EP30 No Model Compatibility List $864.24 / Each

1
728126 093190 1 Console Mast Set;CB87;H3x-01; No Model Compatibility List $431.65 / Each

7
728127 093192 7 HR Grip Set;Sensor Grip Set;CB87;H3x-01; No Model Compatibility List $235.01 / Each

7,12,13,14,11
728169 093378 38 Nut;Nylon;M6x1.0P;;Zn-BL No Model Compatibility List $1.66 / Each

2
Screw;Hex Socket;Round;M8x1.25Px20.0L;Ad 728172 093382 Z21 Screw;Hex Socket;Round;M8x1.25Px20.0L;Ad No Model Compatibility List $1.66 / Each

2
728574 095374 2 Tension Wheel Set;Idler No Model Compatibility List $127.58 / Each

8
729011 Order Kit AT101 Pedal Axle No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9
T 1004805 014724-A T110 1 Foot Pedal Set w/Strap 1/2” Yes Model Compatibility List $56.99 / Each

31
HR Board Receiver (Used) 1029469 0000083655 HR Board Receiver 1 HR Board Receiver (Used) Yes Model Compatibility List $40.00 / Each

7
Seat Adjust Spiral Spring with Rope Pulley (Used) 1009596 0000090806 0 1 Seat Adjust Spiral Spring with Rope Pulley (Used) No Model Compatibility List $113.99 / Each

1
Seat Slide Set (Used) 1009600 0000093120 0 1 Seat Slide Set (Used) No Model Compatibility List $199.00 / Each

50
Console Cup Holder Accessory Tray 1003982 0000083902 Console Cup Holder Accessory Tray Yes Model Compatibility List $54.99 / Each
1
Q 1036645 007970-B Q20 PLATE CONNECTING COVER FRONT Yes Model Compatibility List $5.00 / Each

1
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
