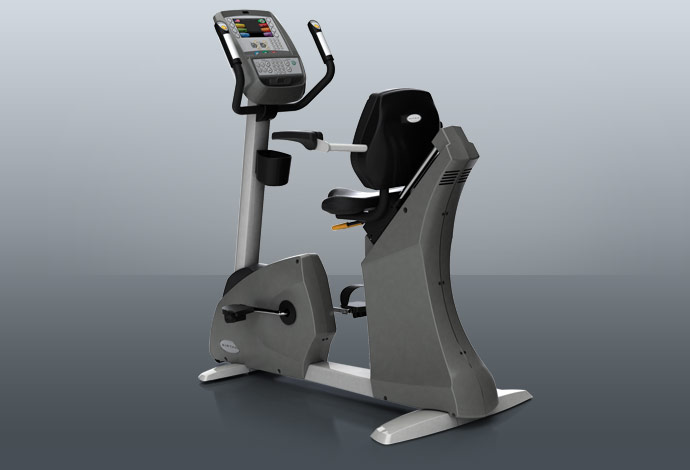

Matrix Commercial - H3xe - 2012

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
000041-AA 700024 000041-AA J19 Transport Wheel Yes Model Compatibility List $7.00 / Each

8
001130-00 700360 001130-00 D41 Cover;Crank Arm No Model Compatibility List $1.46 / Each

8,9,3
002782-C 700924 002782-C Not Shown Power Cord;External(USA);3000,14AWG;110V(non-nema) Yes Model Compatibility List $56.14 / Each

4,5,6
002787-C 700925 002787-C Not Shown Power Cord;External(USA);3000,14AWG;110V(nema) No Model Compatibility List $56.14 / Each

4,5,6
003383-A 701032 003383-A P54 Ferrite Choke;FH0900B-2;Lian Ci;TM38 No Model Compatibility List $7.00 / Each

1
003386-A 701033 003386-A P55 Ferrite Core;T31x16x19-C No Model Compatibility List $10.20 / Each

1
004050-A 701146 004050-A T07 Pedal Strap Set(includes both sides);Rub No Model Compatibility List $28.06 / Each

8,9
004336-00 701272 004336-00 N56 Screw;RND;M3X0.5PX10L;;PH;;BZN;; No Model Compatibility List $1.28 / Each

2
004364-00 701300 004364-00 N54 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $1.54 / Each

2
004369-00 701308 004369-00 P17 Screw;Phillip;BH;M5x0.8Px15L;BED; No Model Compatibility List $1.54 / Each

2
004370-00 701312 004370-00 Q15 Screw;Phillip;BH;M5x0.8Px10L;;Zn-BL No Model Compatibility List $1.54 / Each

2
004447-AB 701390 004447-AB Z31 Screw;Hex Socket;Round;M5x0.8Px12L;Adher No Model Compatibility List $1.10 / Each

2
004456-00 701402 004456-00 D36 Screw;Round;Hex Socket;M5x0.8Px16L No Model Compatibility List $1.38 / Each

2
004627-00 701605 004627-00 N55 Screw;Phillip;BH;Tapped;5x12L No Model Compatibility List $1.54 / Each

2
004653-00 701631 004653-00 G07 Screw;Round;PH;Tapped;4X12L No Model Compatibility List $1.54 / Each

2
004889-00 701866 004889-00 P55 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $1.54 / Each

2
004957-00 701924 004957-00 R09 Nut;Lock;M25X1.5P;SS41;BAN Yes Model Compatibility List $2.80 / Each

2
004980-A 701945 004980-A N60 Insert Nut;Hex;NHS-580-3.0(M5X0.8P) No Model Compatibility List $1.38 / Each

2
004987-00 701951 004987-00 R05 Key;Round;Dual End;6X6X12L No Model Compatibility List $1.28 / Each

9
004991-00 701955 004991-00 I12 Key;Round;Dual-End;6X6X20L No Model Compatibility List $1.82 / Each

9
005035-00 701997 005035-00 J17 Washer;Flat;8.2x18x1.4T No Model Compatibility List $1.54 / Each

2
005075-00 702046 005075-00 S05 Washer;Flat;6.2X16X2.0T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
005077-00 702049 005077-00 B30 Washer;Flat;6.2X12X1.0T;Black Zinc No Model Compatibility List $1.42 / Each

2,4,5,6
005220-00 702178 005220-00 J14 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $1.54 / Each

2,4,5,6
005365-00 702240 005365-00 I14 C-Clip;External;S-20 No Model Compatibility List $1.38 / Each

2
005366-00 702241 005366-00 R07 C-Clip;External;S-25 No Model Compatibility List $1.22 / Each

2
006078-00 702325 006078-00 V11 Decal;Grounding;TM08 No Model Compatibility List $1.46 / Each

7,3
008864-A 702589 008864-A N50 Screw;Special;Round;2.9x1.06Px7L(Hi-Lo) No Model Compatibility List $1.38 / Each

2
018652-B 703852 018652-B B20 Screw;SH;M6X1.0PX16.5L-8L;;HS;CRMO;BAN;; No Model Compatibility List $2.80 / Each

2
018653-A 703853 018653-A G16 Screw;SH;M8X1.25PX22.5L-8L;CRMO;BAN; No Model Compatibility List $1.38 / Each

2
020005-00 703962 020005-00 N53 Screw;Phillip;Round;M3x6L;;Zn-BL No Model Compatibility List $1.38 / Each

2
020069-00 703990 020069-00 J16 Screw;SH;M8X1.25PX12L;HS;BP;G12.9; No Model Compatibility List $1.38 / Each

2
056008-A 705752 056008-A W37 Ground Wire;Pulse Grip;100L;(KST FDFNYD2-250-1 HSG No Model Compatibility List $2.58 / Each

4,5,6,12,13,14,11
065248-A 706754 065248-A P03 TV Coax Adaptor;Female;F-A028-NBX7-C Yes Model Compatibility List $2.80 / Each

4,5,6
1000206768 710094 1000206768 N07 Program Keypad;27KEY;EP604 No Model Compatibility List $72.22 / Each

9,12,13,14
1000206777 710100 1000206777 P32 C Safe+TV Connect Wire;200(TKP H20J2-15x No Model Compatibility List $31.16 / Each

4,5,6
1000206779 710102 1000206779 P33 Console Cable;250(MOLEX,50-57-9408+MOLEX, No Model Compatibility List $43.52 / Each

7,4,5,6
1000206973 710155 1000206973 N04 Service Cover;Console;PAINTING;MATRIX SL No Model Compatibility List $56.56 / Each

7,9
710164 1000207104 P38 LI Battery;2200MA/H;EP606; No Model Compatibility List $0.00 / Each
Out Of Stock
1
1000207108 710166 1000207108 P36 Battery Con Wire;200(TKP H110-03S+TKP H6 No Model Compatibility List $10.88 / Each

4,5,6
1000207110 710167 1000207110 P37 Wire;Inverter;250(JST-1258-05+JST,PAP-04 No Model Compatibility List $12.56 / Each

4,5,6
1000207113 710170 1000207113 11 Console Set No Model Compatibility List $4.00 / Each

7
1000208205 710267 1000208205 P39 Wire;7 INCH TFT LCD;300(JS-1258-20+JST-P No Model Compatibility List $51.58 / Each

4,5,6
1000213752 710798 1000213752 W04 Control Board;USB;H001;U10CA1; No Model Compatibility List $21.30 / Each

7
1000214924 710880 1000214924 P08 Battery;650(FDFNYD2-187)X2 VHR-2N+FUSE Yes Model Compatibility List $25.30 / Each

7,12,13,14
1000216463 711098 1000216463 N57 Screw;RND;M3X0.5PX4L;PH;BZN; No Model Compatibility List $0.16 / Each

2
1000221258 711554 1000221258 Z42 Washer;ARC;8.2X19.0X1.5T;SST; No Model Compatibility List $1.38 / Each

2
712006 1000224909 AB1 Extrawork;Base Set;Console;BED;EP603 No Model Compatibility List $83.18 / Each

7,3
1000229037 712477 1000229037 N08 OVERLAY SET;TV;EP604;-; No Model Compatibility List $140.38 / Each

4,5,6
1000302039 713383 1000302039 5 Heart Sensor Set;Grip;right;;CB93;; Yes Model Compatibility List $70.18 / Each

11
1000302043 713385 1000302043 6 Heart Sensor Set;Grip;left;;CB93;; Yes Model Compatibility List $70.18 / Each

11
1000309219 713881 1000309219 P09 Battery WP1.2-12;12V 1.2Ah; Yes Model Compatibility List $56.14 / Each

1
1000365782 719804 1000365782 W11 Earphone board set;;;;EP91;; No Model Compatibility List $22.44 / Each

1
1000425274 724734 1000425274 AW31 Tuner Module;;;REV 2.0;S20170417;;US for No Model Compatibility List $452.38 / Each

1
726549 082734 P59 Washer;Senated;M5.3X10X0.6;Zinc Plate No Model Compatibility List $1.38 / Each

2,3
726554 082795 Z61 Spacing Ring;Bearing;SS41; No Model Compatibility List $2.80 / Each

8,4,5,6
727025 086724 N35 Cover;Console Display;TV Rack;Printing;T No Model Compatibility List $36.64 / Each

7,9,4,5,6
727391 088957 W29 Wire;Tuner Signal;250(PAP-12V-Sx2);T1xe; No Model Compatibility List $19.38 / Each

4,5,6
727468 089485 P21 Coax Splitter;1 to 2;F-A025;TM502; No Model Compatibility List $6.48 / Each

1
727714 090551 P56 Ferrite Choke;FH0850B;T7xe; No Model Compatibility List $6.48 / Each

1
727961 092217 W75 Heart Rate Power Wire;250L(2510A-03+XAP- No Model Compatibility List $7.02 / Each

4,5,6,12,13,14
728132 093219 AB1 RIGHT MAIN FRAME SET No Model Compatibility List $453.16 / Each

3
728169 093378 38 Nut;Nylon;M6x1.0P;;Zn-BL No Model Compatibility List $1.28 / Each

2
728371 094425 Not Shown No Model Compatibility List $0.00 / Each
Out Of Stock
1
0000094929 728450 0000094929 J11 Cap;Stabilizer;Left-Front;ABS/PA757;P804 Yes Model Compatibility List $9.26 / Each

9
0000095100 728498 0000095100 J12 Cap;Stabilizer;Right-Front;ABS/PA757;P80 Yes Model Compatibility List $7.26 / Each

9
095126 728507 095126 N02 Console Rear Cover;ABS/PA746;DG/80435;EP603 No Model Compatibility List $57.80 / Each

7,9
728541 095229 W05 Pulse Receiver Set;Salutron 4600;EP603 No Model Compatibility List $234.70 / Each

12,13,14
728559 095321 N01 Console Upper Cover;Faceplate;ABS/PA746;DG/80435;EP60 No Model Compatibility List $66.62 / Each

7,9,3,4,5,6
728562 095324 N05 Overlay;Manipulate;Upper;ENGLISH;EP604; No Model Compatibility List $32.14 / Each

1
0000095638 728614 0000095638 J15 Foot Pad;Adjustable;M12X58H;12.9;EP304; Yes Model Compatibility List $26.04 / Each

3,9,12,13,14
728977 N/A AB10 Console Mast,Old version (4 holes on front) No Model Compatibility List $0.00 / Each
Out Of Stock
7
729052 Order Parts Separately 11 Frame Assembly No Model Compatibility List $0.00 / Each
Out Of Stock
3
729118 Part of Kit 1 AC4 Stabilizer Frame;Rear;B;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
3
729123 Part of Kit 11 W10 Upper Handlebar Set;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
11
729124 Part of Kit 12 H01 Lower Handlebar Set;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
11
729125 Part of Kit 13 I03 Link Arm;Right;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
3
729129 Part of Kit 15 AJ4 Link Arm;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
3
729133 Part of Kit 16 T01 Stabilizer;Front;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
1
729135 Part of Kit 17 T02 Transmission Axle;42CrMo;EP217 No Model Compatibility List $0.00 / Each
Out Of Stock
8
729141 Part of Kit 21 R03 Axle;Transmission;42CRMO;-;-; No Model Compatibility List $0.00 / Each
Out Of Stock
8
729144 Part of Kit 22 U04 Generator;-;8.0KG EP537-1US;-;-;-; No Model Compatibility List $0.00 / Each
Out Of Stock
8
729152 Part of Kit 3 G08 Pedal Arm;Right;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
8,9,3
729194 Part of Kit 7 G10 Incline Arm;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
3,10
729201 Part of Kit 9 AD4 Upper Handlebar Set;Right;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
11
729279 ZMF4000340 11 Console, S3XE, E3XE w/10 pk VA and WIFI No Model Compatibility List $0.00 / Each
Out Of Stock
7
729280 ZMF4000341 11 Console, S3XE, E3XE w/20 pk VA and WIFI No Model Compatibility List $0.00 / Each
Out Of Stock
7
729287 ZMF4000352 11 Console, H,U,R3XE w/10 pk VA and WIFI No Model Compatibility List $0.00 / Each
Out Of Stock
7
729288 ZMF4000353 11 Console, H,U,R3XE w/20 pk VA and WIFI No Model Compatibility List $0.00 / Each
Out Of Stock
7
View Drawing
