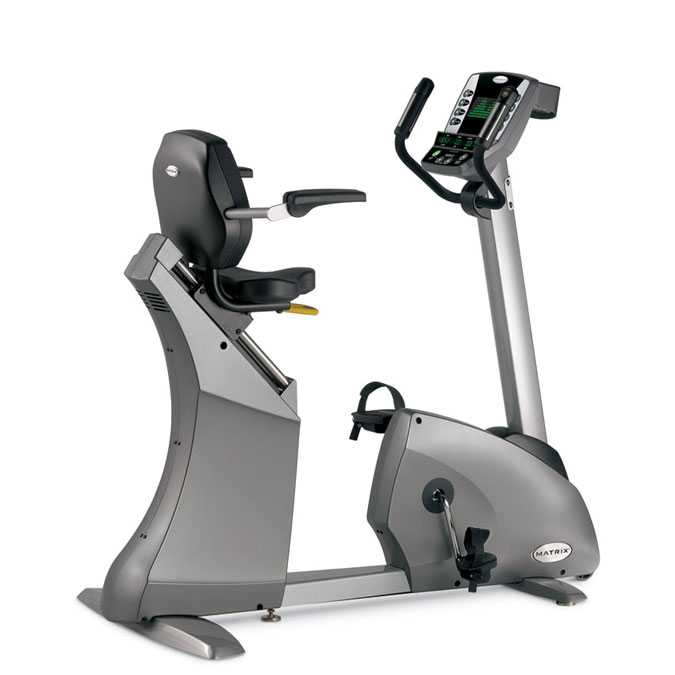

Matrix Commercial - H5x-06-G3 - 2006-2008

Repair Parts for Matrix Commercial H5x-06-G3 CB64

Brand: Matrix Commercial

Category: Hybrid

Type: Stationary Bikes

Model Name: H5x-06-G3

Version: 2006-2008

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Overlay/console
  • Arm/pedal
  • Controllers and Circuits
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
L 700005 000007-B L01 Transport Wheel;Nylon+30%FIBER;74;BL;CB32 Yes Model Compatibility List $9.10 / Each

8
Q 700057 000221-CA Q05 Boot;Console Mast No Model Compatibility List $10.24 / Each

7
C 700072 000252-CA C21 Cover;Handlebar Yes Model Compatibility List $3.64 / Each

9,11
B 700075 000279-B B41 Fix Plate;E-PORT No Model Compatibility List $9.10 / Each

3
N 700126 000475-CA N60 Grip;Sensor;U;PA-746;BL;EP71; No Model Compatibility List $9.10 / Each

11
D 700237 000757-DA D57 Elastomer;;;;AS006;;;CB61 No Model Compatibility List $8.42 / Each

1
D 700280 000854-AA D47 Sleeve;Square;;Nylon;;;;CB61 No Model Compatibility List $1.79 / Each

3
N 700313 000932-E N05 Cap;C-Safe;Black;CB32 D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $1.66 / Each

9,4,5,6
C 700357 001126-C C22 End Cap;Pulse Grips;Inner No Model Compatibility List $1.90 / Each

9,12,13,14,11
T 700360 001130-00 T109 Cover;Crank Arm No Model Compatibility List $1.90 / Each

8,9,3
Q 700370 001143-B Q08 Cover;Crank;PVC;BL;RB70 No Model Compatibility List $9.10 / Each

8,9
I 700395 001227-00 I09 Fixing Base;Spring;POM;AR01 No Model Compatibility List $8.42 / Each

2,3
D 700411 001279-AA D51 Spacer Ring No Model Compatibility List $9.10 / Each

2,3,4,5,6
700689 001800-DA I04 Security Block;Nylon; 6+30%FIBER(BLACK) No Model Compatibility List $8.42 / Each

4,5,6
D 700690 001801-BA D52 Wool Felt;Oiled;25.0x35.0x4.0t;CB61 No Model Compatibility List $3.35 / Each

1
P 700743 002121-FR P02 Console Cable;Upper;00(TKP H6630P1-08);CB61 No Model Compatibility List $50.67 / Each

7,4,5,6
P 700765 002221-FR P05 TV Power Wire;1550L;SCD-026A;CB61; No Model Compatibility List $15.63 / Each

4,5,6
P 700823 002428-ER P03 Console Cable;Lower;1250L;XAP-07V-1;CB61; No Model Compatibility List $54.73 / Each

7,4,5,6
P 700897 002683-BR P07 Generator Wire;900L;3.96-5P;CB61; Yes Model Compatibility List $11.67 / Each

8,4,5,6
P 700917 002756-CR P06 TV Signal Wire;1550L;FM-0086-NBG7;CB61; No Model Compatibility List $17.13 / Each

4,5,6
W 701032 003383-A W38 Ferrite Choke;FH0900B-2;Lian Ci;TM38 No Model Compatibility List $9.10 / Each

1
P 701069 003561-C P08 Power Resistance;With Wire;400W 10;VH3. Yes Model Compatibility List $157.79 / Each

4,5,6,10
R 701122 003911-E R03 Transmission Wheel;60;One-Way Bearing;HFL-2530 No Model Compatibility List $27.38 / Each

8
T 701146 004050-A T09 Pedal Strap Set(includes both sides);Rub No Model Compatibility List $36.48 / Each

8,9
I 701156 004074-A4 I11 Bearing;Ball;6003ZZ;17x35x10T;TPI; Yes Model Compatibility List $17.58 / Each

8
U 701159 004077-A2 U24 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

8
T 701166 004082-A2 T105 Ball Bearing;6205ZZ;25X52X15T;;TPI;;; No Model Compatibility List $21.89 / Each

8
R 701172 004092-00 R20 Bearing;One-Way;;HFL2530;INA Yes Model Compatibility List $84.11 / Each

8
R 701193 004144-00 R08 Drive Belt;Poly-V;340-J6 Yes Model Compatibility List $54.73 / Each

15,10
N 701265 004326-00 N54 Screw;Phillip;Round;M5x0.8Px8L; No Model Compatibility List $2.00 / Each

2
D 701267 004328-00 D99 Screw;Round;PH; M5X0.8PX15L No Model Compatibility List $1.79 / Each

2
I 701269 004330-00 I18 Screw;Phillip;Round;M6x1.0Px25L(Tooth8L) No Model Compatibility List $1.66 / Each

2
N 701275 004339-00 N25 Screw;Round;Crisscross;M3X0.5PX35L No Model Compatibility List $2.00 / Each

2
701302 004364-AD Q51 Screw;Phillip;BH;M5x0.8Px12L;Black; No Model Compatibility List $2.00 / Each

2,4,5,6
Z 701312 004370-00 Z13 Screw;Phillip;BH;M5x0.8Px10L;;Zn-BL No Model Compatibility List $2.00 / Each

2
Q 701321 004375-AC Q23 Screw;Phillip;BH;Stainess;M5x0.8Px15L;BE No Model Compatibility List $1.79 / Each

2
Q 701333 004385-AB Q21 Screw;Umbrella Cross;M5x0.8Px12L No Model Compatibility List $1.79 / Each

2
D 701354 004404-00 D94 Screw;Phillip;BH;M4x0.7Px8L;;Zn-BL No Model Compatibility List $2.00 / Each

2
B 701374 004422-00 B72 Screw;Plain;PH; M5X0.8PX15L(BED) No Model Compatibility List $1.66 / Each

2
D 701389 004446-00 D92 Screw;Round;Hex Socket;M4X0.7PX16L No Model Compatibility List $1.66 / Each

2
S 701390 004447-AB S10 Screw;Hex Socket;Round;M5x0.8Px12L;Adher No Model Compatibility List $1.43 / Each

2
D 701394 004449-00 D87 Screw;Round;Hex Socket;M5X0.8PX30L No Model Compatibility List $1.79 / Each

2
U 701428 004477-00 U11 Screw;Hex Socket;Round;M8x1.25Px10L No Model Compatibility List $1.66 / Each

2
Z 701430 004479-00 Z51 Screw;Round;Hex Socket;M8X1.25PX15L No Model Compatibility List $2.00 / Each

2
I 701456 004505-00 I16 Screw;Hex Socket;Round;3/16x3/8L;;Zn-BL No Model Compatibility List $1.66 / Each

2
I 701457 004506-00 I21 Screw;Hex Socket;Round;3/16x5/8L;;Zn-BL No Model Compatibility List $1.79 / Each

2
U 701476 004523-00 U29 Screw;Hex Socket;Round;M8x1.25Px40L;Adhe No Model Compatibility List $2.00 / Each

2
Z 701504 004539-AC Z34 Screw;Round;Hex Socket;M8X1.25PX25L Yes Model Compatibility List $3.64 / Each

2
I 701574 004608-00 I17 Screw;Phillip;BH;Tapped;3x10L No Model Compatibility List $2.00 / Each

2
P 701585 004616-00 P56 Screw;Umbrella Cross Tapped;4x12L No Model Compatibility List $2.00 / Each

2
P 701623 004644-A P52 Screw;Umbrella Cross Tapped;4x6L No Model Compatibility List $1.79 / Each

2
B 701631 004653-00 B71 Screw;Round;PH;Tapped;4X12L No Model Compatibility List $2.00 / Each

2
S 701644 004678-00 S02 Bolt;Eye Hook; 1/4"-20UNCX55L No Model Compatibility List $1.79 / Each

2
D 701649 004687-C D90 Bolt;Eye Hook;1/4"-20UNCx35L No Model Compatibility List $2.00 / Each

2
C 701661 004697-AD C33 Screw;Flat Hex Socket;M8x1.25Px25L No Model Compatibility List $3.64 / Each

2
D 701689 004718-AD D89 Screw;Oval;Hex Socket;M8X1.25PX10L No Model Compatibility List $2.00 / Each

2
B 701694 004720-AH B66 Screw;Hex Socket;Oval;M8X1.25PX20L No Model Compatibility List $2.00 / Each

2
Z 701713 004730-00 Z41 Screw;Oval Hex Socket;M8X1.25PX50L Yes Model Compatibility List $2.00 / Each

2
L 701743 004767-00 L02 Screw;Hex Socket;BH;M8x1.25Px70L(Tooth12) No Model Compatibility List $1.79 / Each

2
R 701781 004796-00 R26 Bol;M8x1.25Px20L Yes Model Compatibility List $2.00 / Each

1
B 701823 004844-00 B70 Set Screw;M6X1.0PX16.0L No Model Compatibility List $1.66 / Each

2
N 701858 004880-00 N26 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $2.00 / Each

2,4,5,6
B 701862 004884-00 B64 Nut;Hex;M8X1.25P No Model Compatibility List $1.79 / Each

2
S 701870 004892-00 S08 Nut;Hex;3/8-26UNCX4H No Model Compatibility List $2.00 / Each

2
D 701875 004902-00 D91 Nut;Hex;1/4"-20UNC;;Zn-BL No Model Compatibility List $1.79 / Each

2
R 701886 004916-C R27 Nut;Hex;M50X1.0P;Zinc Plated No Model Compatibility List $1.79 / Each

2,3
P 701891 004924-00 P59 Nut;Nylon;M5x0.8P;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
I 701893 004925-00 I19 Nut;Nylon;M6x1.0P;Zinc No Model Compatibility List $2.00 / Each

2
L 701905 004932-00 L03 Nut;Nylon;M8X1.25P(BED) No Model Compatibility List $1.66 / Each

2
S 701907 004933-00 S06 Nut;Nylon;1/4"'-20UNC;BED No Model Compatibility List $1.79 / Each

2
F 701913 004942-00 F11 Nut;Nylon;M10x1.5P;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
T 701927 004964-00 T108 Nut;Hex;Flange;M10x1.25P;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
S 701931 004968-00 S04 Nut;Hex;Flange;3/8-26UNF;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
B 701943 004978-00 B65 Insert Nut;Hex;NHS-1015-4.0(M10x1.5P) No Model Compatibility List $1.66 / Each

2
B 701944 004979-00 B61 Insert Nut;Hex;NHS-8125-3.0(M8x1.25P) No Model Compatibility List $1.79 / Each

2
B 701945 004980-A B62 Insert Nut;Hex;NHS-580-3.0(M5X0.8P) Yes Model Compatibility List $1.79 / Each

2
C 701947 004983-A C31 Insert Nut;Hex;NKHS-8125-2.5(M8x1.25P) No Model Compatibility List $1.79 / Each

2
B 701948 004984-A B68 Insert Nut;Hex;NKHS-580-2.5(M5x0.8P) No Model Compatibility List $1.66 / Each

2
R 701951 004987-00 R22 Key;Round;Dual End;6X6X12L No Model Compatibility List $1.66 / Each

9
I 701955 004991-00 I12 Key;Round;Dual-End;6X6X20L No Model Compatibility List $2.37 / Each

9
B 701964 005005-00 B67 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

2
Z 701978 005015-00 Z53 Washer;Spring;SW8 8.2X13.5X2.0T Yes Model Compatibility List $2.00 / Each

2
R 701993 005032-00 R30 Washer;Flat;20.2x35.0x1.0T;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
L 701997 005035-00 L04 Washer;Flat;8.2x18x1.4T No Model Compatibility List $2.00 / Each

2
S 702037 005067-00 S03 Washer;Flat;10.2X15.0X1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
I 702049 005077-00 I22 Washer;Flat;6.2X12X1.0T;Black Zinc No Model Compatibility List $1.85 / Each

2,4,5,6
Q 702052 005080-00 Q22 Washer;Flat;5.2x13.0x1.5T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
S 702070 005102-00 S07 Washer;Flat;1/4"x15.0x1.0T;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
U 702076 005109-00 U32 Washer;Flat;8.5x25x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
U 702088 005120-00 U28 Washer;Flat;20.2x30.0x1.0T;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
Z 702105 005134-00 Z52 Washer;Flat;8.2x14.0x1.5T;BAN; No Model Compatibility List $2.00 / Each

2
Z 702136 005165-00 Z42 Washer;Arc;8.2x18x1.5T No Model Compatibility List $2.00 / Each

2
R 702148 005182-00 R28 Washer;Teflon;25.3X40X1.0T No Model Compatibility List $3.64 / Each

2
U 702151 005186-00 U14 Washer;Teflon;20.3X30X1.0T No Model Compatibility List $1.79 / Each

2
D 702152 005188-00 D83 Washer;Teflon;8.0X15.0X1.0T No Model Compatibility List $2.00 / Each

2
D 702175 005217-A D85 Washer;Teflon;5.2x10.0x1.0T No Model Compatibility List $1.79 / Each

2
T 702193 005239-00 T107 Washer;Lock;10.0x20.0x1.0T No Model Compatibility List $2.00 / Each

2
D 702203 005261-A D56 Sleeve;Flat;Teflon;PSM2530-20(SIMPLICItY No Model Compatibility List $79.30 / Each

3
I 702227 005352-00 I13 C-Clip;Internal;R-35 No Model Compatibility List $2.00 / Each

2
I 702238 005363-00 I15 C-Clip;External;S-17 No Model Compatibility List $1.79 / Each

2
U 702240 005365-00 U13 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

2
T 702241 005366-00 T106 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

2
U 702277 005444-00 U05 Spring;Idler;2.0x16.0x103.0Lx26N No Model Compatibility List $3.35 / Each

2,8
D 702288 005484-C D48 Spring;Stretch;Adjust;SWP;BED No Model Compatibility List $9.96 / Each

2
I 702303 005841-C I05 Nylon Cord; 6 No Model Compatibility List $12.27 / Each

4,5,6
D 702304 005844-B D97 Fix Buckle Base;PVC;GM01 No Model Compatibility List $1.79 / Each

3
D 702306 005845-B D98 Fix Buckle Base;Nylon;GM01 No Model Compatibility List $1.79 / Each

3
702357 006415-A V10 Sticker;Instruction;White Back Black Word No Model Compatibility List $1.66 / Each

4,5,6
V 702366 006547-00 V14 Sticker;Swirl Spring;;;;;;AR01 AR01-V09A No Model Compatibility List $1.66 / Each

2
V 702411 006656-A V04 Decal;Serial Number;Aluminum No Model Compatibility List $1.66 / Each

7,3
V 702416 006675-C V13 Decal;Aperture;TV Rack Yes Model Compatibility List $21.48 / Each

7,3,4,5,6
V 702417 006678-C V12 Decal;Back Pad Cover No Model Compatibility List $13.26 / Each

7,9,3,4,5,6,12,13,14
n 702440 006923-B not shown Manual;Assembly;ENG;RB80; No Model Compatibility List $15.52 / Each

3
S 702470 007768-D S05 Fix Plate;Eye Bolt No Model Compatibility List $1.79 / Each

2,3
D 702471 007806-D D62 Contact Plate;Pulse Sensor No Model Compatibility List $3.82 / Each

3,4,5,6,12,13,14
F 702473 007854-C F03 Fix Plate;Guide Rail;;SPHC;5.0t;;;CB61 No Model Compatibility List $9.10 / Each

9,3
F 702474 007855-D F04 Fix Plate;Guide Rail;Right;SPHC;5.0T;;;CB61 No Model Compatibility List $8.42 / Each

9,3
D 702475 007861-C D41 Adjustment Plate;Seat Slide;SPCC;6.0t;CB61; No Model Compatibility List $58.92 / Each

3,12,13,14
702484 007970-B Q20 Connecting Plate;Side Cover;2 Hole No Model Compatibility List $1.79 / Each

9,3
I 702507 008311-00 I10 Cover;Spring;;SPC;1.5t;Zinc Plate;AR01; No Model Compatibility List $3.35 / Each

2,9,3
I 702509 008322-00 I06 Fix Plate, Steel Rope SPC 1.6T No Model Compatibility List $1.77 / Each

3
R 702579 008723-C R06 Ring;26x10L;CB61 No Model Compatibility List $3.35 / Each

1
D 702582 008761-B D46 Screw;Special;M6X1.0PX20L-10L;;HS;CRMO;BAN;;S No Model Compatibility List $1.79 / Each

2
D 702583 008762-B D50 Screw;Special;M6X1.0PX20L-10L;;HS;CRMO;BAN;;S No Model Compatibility List $1.79 / Each

2
F 702584 008763-C F01 Tube;Seat Guide Rail;;Stainless Tube;25.0x3. 55X7.6L SS41 No Model Compatibility List $73.61 / Each

9,3,12,13,14
702585 008765-C I01 Aluminum Ring; 3068X302X2T } No Model Compatibility List $19.47 / Each

1
U 702743 009475-B U06 Bushing;Cu MS;34;EP49 No Model Compatibility List $9.10 / Each

8
D 702766 009586-B D49 Adjustment Block;Position;;S45C;Zn Plate;;;;CB No Model Compatibility List $23.66 / Each

3
D 702779 009665-C D44 Fixing Base;Seat Axle Sleeve;Front;Anodizing No Model Compatibility List $63.28 / Each

8,3,12,13,14
D 702780 009666-C D45 Fixing Base;Axle Sleeve;After;Anodizing No Model Compatibility List $63.28 / Each

8,3
P 702823 011097-AR P11 Connector;TV;5C2V;CB61-P11A (CB61) RoHS No Model Compatibility List $8.81 / Each

4,5,6
S 702856 012818-00 S01 Generator;ECB;190 CE CB/RB MX/600;400W;JM07 Yes Model Compatibility List $602.29 / Each

8
P 703367 013782-AB P09 Lower Control Board;Generator;H002 Yes Model Compatibility List $638.79 / Each

7,8
n 703405 014267-F not shown Hardware Pack, CB-64 No Model Compatibility List $41.78 / Each

4,5,6
T 703449 014724-A T110 Pedal Set;With Strap Yes Model Compatibility List $72.98 / Each

8,9
Q 703549 015264-AA Q06 Stabilizer Cover;SL/GY;;;;CB61 No Model Compatibility List $110.11 / Each

9
A 703552 015300-AA AD4 Stationary Handlebar Set;SL/GY;;;;CB61 (MATRIX SILVER GRAY+CLEAR LACQUER) No Model Compatibility List $120.25 / Each

4,5,6,11
A 703553 015307-AA AJ1 Front Stabilizer Set;SL/GY;;F;;CB61 (MATRIX SILVER GRAY+CLEAR LACQUER) No Model Compatibility List $404.90 / Each

4,5,6
703723 015905-BA AD5 Arm Rest Set;Foam;Left;;CB6 PU(HARDNESS 45 5) Yes Model Compatibility List $124.93 / Each

3
703725 015906-BA AD6 Arm Rest Set;Foam;Right;;CB6 PU(HARDNESS 45 5) Yes Model Compatibility List $124.93 / Each

3
703835 018586-BA C32 Guide Rail Rubber Washer No Model Compatibility List $8.42 / Each

2,9
W 703836 018589-DR W32 Console Cable;Upper;200L;KP H6630P1-08;EP71; No Model Compatibility List $33.77 / Each

7,4,5,6
N 703838 018605-D N07 Overlay;Upper No Model Compatibility List $35.36 / Each

1
N 703839 018607-B N13 Overlay;Lower No Model Compatibility List $9.10 / Each

1
N 703840 018608-D N09 Overlay;Lower No Model Compatibility List $9.41 / Each

1
R 703841 018617-A R09 Drive Belt;POLY-V;370-J8 Yes Model Compatibility List $54.73 / Each

15,10
D 703848 018627-A D86 Washer;Flat;5.2X10.0X1.0T;;BZN; No Model Compatibility List $2.00 / Each

2
R 703851 018650-E R05 Fix Pass axle Cover A;66x48.5L SS41(Pai No Model Compatibility List $34.16 / Each

8,9
B 703852 018652-B B69 Screw;SH;M6X1.0PX16.5L-8L;;HS;CRMO;BAN;; No Model Compatibility List $3.64 / Each

2
D 703853 018653-A D81 Screw;SH;M8X1.25PX22.5L-8L;CRMO;BAN; No Model Compatibility List $1.79 / Each

2
A 703858 018721-AA AD3 Seat Adjustment Handle;Yellow;Coarse No Model Compatibility List $85.41 / Each

12,13,14,11
D 703961 020000-00 D100 Screw;Phillip;Round;M4x0.7Px12L; No Model Compatibility List $1.79 / Each

2
Z 703999 020085-00 Z21 Screw;Hex Socket;Round;M8x1.25Px20.0L;Ad No Model Compatibility List $1.79 / Each

2
V 704232 020699-A V06 Rivet;1/8X12.5L No Model Compatibility List $1.79 / Each

1
V 704977 027982-B V02 Decal;Side Cover;EP68-US;EP68 No Model Compatibility List $25.30 / Each

7,9,3
W 704978 028272-CR W25 Membrane Keypad;Left;Plane 4Key;CB64 No Model Compatibility List $9.10 / Each

9,12,13,14
N 704984 028504-BR N18 Signal Wire;4;50L;(XAP-05V-1)x2;CB61; No Model Compatibility List $8.42 / Each

4,5,6
P 704986 028508-A P57 Screw;Phillip;BH;M5x0.8Px40L(Tooth15L);; No Model Compatibility List $1.66 / Each

2
F 704989 028538-A F12 Washer;Anti-Strike;Mx-H3; No Model Compatibility List $1.66 / Each

2
705009 029035-AA D42 Seat Pad;CB61/CB63 Yes Model Compatibility List $250.46 / Each

12,13,14
W 705038 032524-CR W26 Membrane Keypad;Right;Plane 4Key;CB64 No Model Compatibility List $9.10 / Each

9,12,13,14
P 705068 034585-CR P10 Pulse SensorWire;820L;(TKP H66031P-06); Yes Model Compatibility List $29.02 / Each

4,5,6,12,13,14
Y 705069 034586-BR Y25 Quickl Key Wire;200L;(TKP H6630P-06+TKP Yes Model Compatibility List $13.78 / Each

9,4,5,6
W 705070 034598-BR W27 Membrane Keypad;Down;Plane 4Key;CB64 No Model Compatibility List $17.42 / Each

9,12,13,14
N 705117 037811-B N27 LED Apertures Board No Model Compatibility List $3.35 / Each

1
R 705125 037906-A R07 Sleeve;Center Tube;B;SS41;55x2.1L;CB61; No Model Compatibility List $9.10 / Each

3
J 705126 037907-AA J21 Leveler;Foot Pad Yes Model Compatibility List $9.10 / Each
9,3,12,13,14
Z 705128 037909-AA Z71 Leveler;Foot Pad;Adjustic;Center No Model Compatibility List $9.10 / Each

9,3,12,13,14
R 705213 039153-A R10 Ring;;;;26x10L ;;;;CB61 No Model Compatibility List $8.42 / Each

1
N 705214 039154-AA N01 Faceplate,Console(PAINT);EP68-US No Model Compatibility List $85.96 / Each

7,3,4,5,6
N 705215 039156-AA N06 Console Lower Cover;Battery No Model Compatibility List $30.84 / Each

7,9
D 705216 039158-A D80 Fix Plate;Guide Rail;;SPHC;5.0t;;;CB61 No Model Compatibility List $8.42 / Each

9,3
A 705217 039159-Z AC1 Console Mast Set; MX-H5x(CB64)SILVER GRAY+CLEAR LACQUER No Model Compatibility List $599.59 / Each

7,4,5,6
A 705218 039160-Z AC2 HR Handlebar Set;Includes HR Grips; MX-H5x(CB64)SILVER GRAY+CLEAR LACQUER No Model Compatibility List $361.50 / Each

7,4,5,6,12,13,14,11
A 705219 039161-Z AD2 Seat Frame Set; MATRIX-H5x(CB64) No Model Compatibility List $996.89 / Each

3,12,13,14
I 705220 039163-Z I01 Seat Rope Wheel Set; MATRIX-H5x(CB64) No Model Compatibility List $154.23 / Each

8,12,13,14
I 705221 039164-Z I03 Seat Tension Spring Set; MATRIX-H5x(CB64) No Model Compatibility List $78.49 / Each

2,12,13,14
705222 039165-Z I07 Bearing Housing Set;Left; MATRIX-H5x(CB64) No Model Compatibility List $67.03 / Each

8
I 705223 039166-Z I08 Bearing Housing Set;Right; MATRIX-H5x(CB64) No Model Compatibility List $62.06 / Each

8
R 705224 039168-Z R01 Drive Axle Set No Model Compatibility List $408.38 / Each

8,10
Q 705230 039190-Z Q07 Back Pad Cover;SUB ASSEMBLY MATRIX-H5x(CB64) No Model Compatibility List $69.42 / Each

9,3,4,5,6,12,13,14
D 705231 039191-Z D43 Back Pad; SUB ASSEMBLY MATRIX-H5x(CB64) Yes Model Compatibility List $277.29 / Each

3,4,5,6,12,13,14
U 705484 049286-A U31 Nut;Hex;Flange;M8x1.25P; No Model Compatibility List $1.85 / Each

2
W 705748 056004-A W35 Pulse Sensor Wire;300L No Model Compatibility List $17.94 / Each

4,5,6,12,13,14
W 705753 056009-A W37 Power Wire;Heart Rate Board;220L;(TKP 2510A-3P Yes Model Compatibility List $16.54 / Each

4,5,6,12,13,14
D 705763 056060-AA D53 Seat Tube End Cap;1-1/4";Material:PP; Yes Model Compatibility List $1.66 / Each

9,3,12,13,14
P 705777 056225-A P12 Ferrite;PART OF #79 CABLE;NOT ORDERABLE; No Model Compatibility List $8.42 / Each

4,5,6
P 705778 056226-A P14 Resistor Cord;FH0900W;Lian Ci;EP68 No Model Compatibility List $8.42 / Each

4,5,6
P 706751 065244-A P15 TV Singal Wire;1500(5CF) No Model Compatibility List $15.81 / Each

4,5,6
P 706753 065247-A P16 TV Exchange Connector;;F HDR Into F HSG 9 No Model Compatibility List $9.41 / Each

4,5,6
P 706754 065248-A P17 TV Coax Adaptor;Female;F-A028-NBX7-C Yes Model Compatibility List $7.00 / Each

4,5,6
A 710776 1000213547 AN1 CONSOLE SET;H001S004;EP301;ES;EN;EP301; Yes Model Compatibility List $1300.00 / Each

7
Q 711821 1000223176 Q02 Cover Set;H3x S/N before CB87110800944 No Model Compatibility List $323.78 / Each

9
I 712714 1000230339 I02 Rope Pulley;H-3x/5x/7x-04-F; No Model Compatibility List $27.01 / Each

8
T 719731 1000364363 T111/T112 crank set;;;RB85-SBOM;Clear coat;RB85;; Yes Model Compatibility List $168.97 / Each

8
Decal; Left Upper Rail 725477 071807 V13 Decal; Left Upper Rail No Model Compatibility List $1.79 / Each

7,9,3
Decal; Right Upper Rail 725478 071808 V14 Decal; Right Upper Rail No Model Compatibility List $1.79 / Each

7,9,3
Decal; Left Lower Rail 725479 071809 V15 Decal; Left Lower Rail No Model Compatibility List $3.64 / Each

7,9,3
Decal; Right Lower Rail 725480 071810 V16 Decal; Right Lower Rail No Model Compatibility List $3.64 / Each

7,9,3
Connect Wire;Console;2.0AR;RB123 726121 080124 P05 Connect Wire;Console;2.0AR;RB123 No Model Compatibility List $31.85 / Each

7,4,5,6
Pulse Wire;AL Rail;2.0AR;RB123 726122 080125 P11 Pulse Wire;AL Rail;2.0AR;RB123 No Model Compatibility List $29.09 / Each

9,4,5,6,12,13,14
726223 080783 C08 Water Bottle Holder No Model Compatibility List $22.57 / Each

1
Heart Rate Board Receiver;Inbuilt;All in one;SALUTRON 850 726625 0000083655 167 Heart Rate Board Receiver;Inbuilt;All in one;SALUTRON 850 Yes Model Compatibility List $425.88 / Each

12,13,14
Console Back Cover 726656 0000083865 178 Console Back Cover No Model Compatibility List $135.36 / Each

4,5,6,7,9
726658 083867 N24 CONSOLE LOWER COVER(PAINT);WH/GD;+PU; No Model Compatibility List $23.63 / Each

7,9
726668 0000083902 182 Bottle Holder;Console Back Yes Model Compatibility List $137.88 / Each

4,5,6,7
726901 085956 Q03 Painting;Cover;CN/GY;;R;CB32-Q03 VISION CARBON GRAY No Model Compatibility List $205.14 / Each

9
726902 085957 Q04 Painting;Cover;CN/GY;R;CB61;CB61-Q04 VISION CARBON GRAY No Model Compatibility List $205.14 / Each

9
726966 086265 D60 HR Grip Set; Left; Order D60 AND D61 for HR Grip Set No Model Compatibility List $94.72 / Each

7,12,13,14,11
726967 086266 D61 HR Grip Set; Right; Order D60 AND D61 for HR Grip Set - D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $94.72 / Each

7,12,13,14,11
Pedal Set 727707 0000090518 66 Pedal Set Yes Model Compatibility List $72.98 / Each

8,9
Control Board;Quick Key 727748 0000090779 N24 Control Board;Quick Key Yes Model Compatibility List $9.99 / Each

7,9
727757 090809 17 Stabilizer Set;Rear;H5x-F; No Model Compatibility List $653.33 / Each

1
727761 090820 4 Pulley Axle Set;H5x-F; No Model Compatibility List $571.53 / Each

8
Reading Rack;PA-746(Black) 727837 0000091243 N04 Reading Rack;PA-746(Black) No Model Compatibility List $27.38 / Each

4,5,6
728574 095374 2 Tension Wheel Set;Idler No Model Compatibility List $127.58 / Each

8
728575 095375 U22 Swivel;Idler;SS41;20x23.8L;CB72-U22; No Model Compatibility List $5.04 / Each

8
728576 095378 U30 SCREW;TH;M8X1.25PX40L;;HS;;;;BP;Zn Plate No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3
728588 095430 U27 Washer;FLT;9.3X23.0X2.0T;;BZN; No Model Compatibility List $1.66 / Each

2
729011 Order Kit AT101 Pedal Axle No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9
729097 Part of AU1 U23 Supt Plate;Idler;;SPHC; 4.0t ;Zn Plate;; No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3
Console Display (Used) 1002071 028271-AB 0 1 Console Display (Used) No Model Compatibility List $249.00 / Each

30
P 1002425 013782-AB P09 1 Lower Control Board Controller Yes Model Compatibility List $359.00 / Each

1
Holder Bottle (Used) 1003986 0000080783 0 1 Holder Bottle (Used) No Model Compatibility List $15.99 / Each

1
T 1004805 014724-A T110 1 Foot Pedal Set w/Strap 1/2” Yes Model Compatibility List $56.99 / Each

31
Lower Motor Control Board Controller 1009196-R 0000090779 0 1 Lower Motor Control Board Controller Yes Model Compatibility List $399.00 / Each

48
Console Cup Holder Accessory Tray 1003982 0000083902 Console Cup Holder Accessory Tray Yes Model Compatibility List $54.99 / Each
1
Q 1036645 007970-B Q20 PLATE CONNECTING COVER FRONT Yes Model Compatibility List $5.00 / Each

1
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
