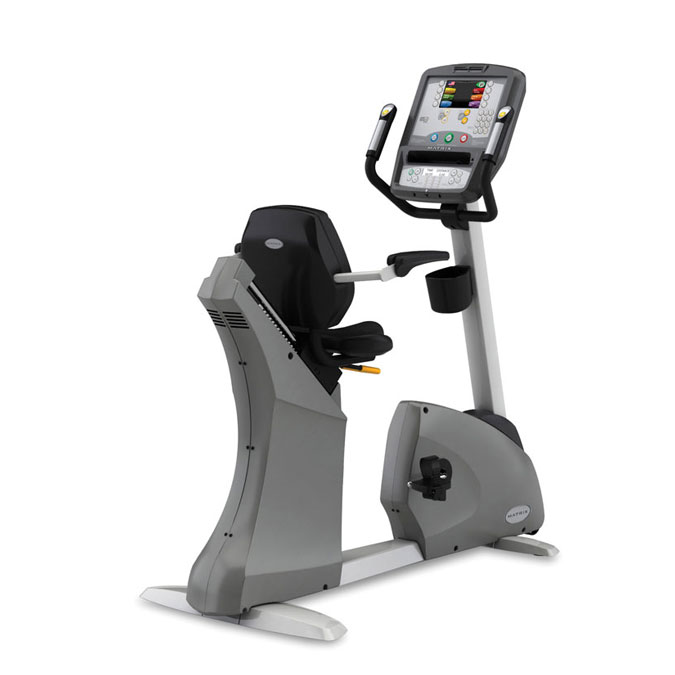

Matrix Commercial - H7x-01-G4 - 2009

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
000007-B 700005 000007-B L01 Transport Wheel;Nylon+30%FIBER;74;BL;CB32 No Model Compatibility List $7.00 / Each

8
000221-CA 700057 000221-CA Q05 Boot;Console Mast No Model Compatibility List $7.88 / Each

7
000252-CA 700072 000252-CA C08 Cover;Handlebar Yes Model Compatibility List $2.80 / Each

9,11
000337-CA 700091 000337-CA Q07 Cover;Back Pad Set;;ABS;;BL;;CB61 No Model Compatibility List $17.86 / Each

9,4,5,6,12,13,14
000757-DA 700237 000757-DA D57 Elastomer;;;;AS006;;;CB61 No Model Compatibility List $6.48 / Each

1
000854-AA 700280 000854-AA D47 Sleeve;Square;;Nylon;;;;CB61 No Model Compatibility List $1.38 / Each

3
001130-00 700360 001130-00 T109 Cover;Crank Arm No Model Compatibility List $1.46 / Each

8,9,3
001143-B 700370 001143-B Q08 Cover;Crank;PVC;BL;RB70 No Model Compatibility List $7.00 / Each

8,9
001227-00 700395 001227-00 I09 Fixing Base;Spring;POM;AR01 No Model Compatibility List $6.48 / Each

2,3
001279-AA 700411 001279-AA D51 Spacer Ring No Model Compatibility List $7.00 / Each

2,3,4,5,6
700689 001800-DA I04 Security Block;Nylon; 6+30%FIBER(BLACK) No Model Compatibility List $6.48 / Each

4,5,6
001801-BA 700690 001801-BA D52 Wool Felt;Oiled;25.0x35.0x4.0t;CB61 No Model Compatibility List $2.58 / Each

1
002683-BR 700897 002683-BR P07 Generator Wire;900L;3.96-5P;CB61; Yes Model Compatibility List $8.98 / Each

8,4,5,6
002756-CR 700917 002756-CR P06 TV Signal Wire;1550L;FM-0086-NBG7;CB61; No Model Compatibility List $13.18 / Each

4,5,6
002782-C 700924 002782-C Not Shown Power Cord;External(USA);3000,14AWG;110V(non-nema) Yes Model Compatibility List $56.14 / Each

4,5,6
002787-C 700925 002787-C Not Shown Power Cord;External(USA);3000,14AWG;110V(nema) No Model Compatibility List $56.14 / Each

4,5,6
003378-00 701031 003378-00 P25 Ferrite Core No Model Compatibility List $10.08 / Each

1
003393-A 701035 003393-A P21 Ferrite Core;FH1500B;TM87 K1 RH12.5x12.5x8 No Model Compatibility List $2.80 / Each

1
003561-C 701069 003561-C P08 Power Resistance;With Wire;400W 10;VH3. Yes Model Compatibility List $121.38 / Each

4,5,6,10
003911-E 701122 003911-E R03 Transmission Wheel;60;One-Way Bearing;HFL-2530 No Model Compatibility List $21.06 / Each

8
004050-A 701146 004050-A T09 / Pedal Strap Set(includes both sides);Rub No Model Compatibility List $28.06 / Each

8,9
004074-A4 701156 004074-A4 I11 Bearing;Ball;6003ZZ;17x35x10T;TPI; Yes Model Compatibility List $13.52 / Each

8
004077-A2 701159 004077-A2 U24 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $15.42 / Each

8
004082-A2 701166 004082-A2 T105 Ball Bearing;6205ZZ;25X52X15T;;TPI;;; No Model Compatibility List $16.84 / Each

8
004092-00 701172 004092-00 R20 Bearing;One-Way;;HFL2530;INA Yes Model Compatibility List $64.70 / Each

8
004144-00 701193 004144-00 R08 Drive Belt;Poly-V;340-J6 Yes Model Compatibility List $42.10 / Each

15,10
004328-00 701267 004328-00 D99 Screw;Round;PH; M5X0.8PX15L No Model Compatibility List $1.38 / Each

2
004330-00 701269 004330-00 I18 Screw;Phillip;Round;M6x1.0Px25L(Tooth8L) No Model Compatibility List $1.28 / Each

2
004364-00 701300 004364-00 S13 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $1.54 / Each

2
004369-00 701308 004369-00 P55 Screw;Phillip;BH;M5x0.8Px15L;BED; No Model Compatibility List $1.54 / Each

2
004370-00 701312 004370-00 Z13 Screw;Phillip;BH;M5x0.8Px10L;;Zn-BL No Model Compatibility List $1.54 / Each

2
004385-AB 701333 004385-AB Q21 Screw;Umbrella Cross;M5x0.8Px12L No Model Compatibility List $1.38 / Each

2
004404-00 701354 004404-00 D94 Screw;Phillip;BH;M4x0.7Px8L;;Zn-BL No Model Compatibility List $1.54 / Each

2
004420-AD 701372 004420-AD B72 Screw;Phillip;Sink;M5x0.8Px15L;BED;Adher No Model Compatibility List $1.28 / Each

2
004446-00 701389 004446-00 D92 Screw;Round;Hex Socket;M4X0.7PX16L No Model Compatibility List $1.28 / Each

2
004447-AB 701390 004447-AB S10 Screw;Hex Socket;Round;M5x0.8Px12L;Adher No Model Compatibility List $1.10 / Each

2
004449-00 701394 004449-00 D87 Screw;Round;Hex Socket;M5X0.8PX30L No Model Compatibility List $1.38 / Each

2
004479-00 701430 004479-00 Z51 Screw;Round;Hex Socket;M8X1.25PX15L No Model Compatibility List $1.54 / Each

2
004505-00 701456 004505-00 I16 Screw;Hex Socket;Round;3/16x3/8L;;Zn-BL No Model Compatibility List $1.28 / Each

2
004506-00 701457 004506-00 I21 Screw;Hex Socket;Round;3/16x5/8L;;Zn-BL No Model Compatibility List $1.38 / Each

2
004523-00 701476 004523-00 U29 Screw;Hex Socket;Round;M8x1.25Px40L;Adhe No Model Compatibility List $1.54 / Each

2
004539-AC 701504 004539-AC Z34 Screw;Round;Hex Socket;M8X1.25PX25L No Model Compatibility List $2.80 / Each

2
004608-00 701574 004608-00 I17 Screw;Phillip;BH;Tapped;3x10L No Model Compatibility List $1.54 / Each

2
004647-00 701626 004647-00 G22 Screw;Phillip;Round;3x12L No Model Compatibility List $1.38 / Each

2
004653-00 701631 004653-00 P57 Screw;Round;PH;Tapped;4X12L No Model Compatibility List $1.54 / Each

2
004687-C 701649 004687-C D90 Bolt;Eye Hook;1/4"-20UNCx35L No Model Compatibility List $1.54 / Each

2
004730-00 701713 004730-00 Z41 Screw;Oval Hex Socket;M8X1.25PX50L Yes Model Compatibility List $1.54 / Each

2
004750-00 701727 004750-00 R26 Screw;Oval;Hex Socket;M8x1.25Px20L No Model Compatibility List $1.54 / Each

2
004767-00 701743 004767-00 L02 Screw;Hex Socket;BH;M8x1.25Px70L(Tooth12) No Model Compatibility List $1.38 / Each

2
004844-00 701823 004844-00 B70 Set Screw;M6X1.0PX16.0L No Model Compatibility List $1.28 / Each

2
004859-00 701841 004859-00 B66 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $1.54 / Each

2
004860-00 701843 004860-00 T17 Screw;Phillip;Large Oval Head;M4X0.7PX8L No Model Compatibility List $1.38 / Each

2
004892-00 701870 004892-00 S08 Nut;Hex;3/8-26UNCX4H No Model Compatibility List $1.54 / Each

2
004902-00 701875 004902-00 D91 Nut;Hex;1/4"-20UNC;;Zn-BL No Model Compatibility List $1.38 / Each

2
004916-C 701886 004916-C R27 Nut;Hex;M50X1.0P;Zinc Plated No Model Compatibility List $1.38 / Each

2,3
004924-00 701891 004924-00 P60 Nut;Nylon;M5x0.8P;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
004926-00 701897 004926-00 L03 Nut;Nylon;M8x1.25P No Model Compatibility List $1.54 / Each

2
004933-00 701907 004933-00 S06 Nut;Nylon;1/4"'-20UNC;BED No Model Compatibility List $1.38 / Each

2
701920 004951-A P53 Nut;M5;Chromed No Model Compatibility List $1.28 / Each

7,2,12,13,14
004964-00 701927 004964-00 T108 Nut;Hex;Flange;M10x1.25P;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
004968-00 701931 004968-00 S04 Nut;Hex;Flange;3/8-26UNF;Black Zinc No Model Compatibility List $1.38 / Each

2,4,5,6
004978-00 701943 004978-00 B65 Insert Nut;Hex;NHS-1015-4.0(M10x1.5P) No Model Compatibility List $1.28 / Each

2
004979-00 701944 004979-00 C21 Insert Nut;Hex;NHS-8125-3.0(M8x1.25P) No Model Compatibility List $1.38 / Each

2
004980-A 701945 004980-A B62 Insert Nut;Hex;NHS-580-3.0(M5X0.8P) No Model Compatibility List $1.38 / Each

2
004984-A 701948 004984-A B68 Insert Nut;Hex;NKHS-580-2.5(M5x0.8P) No Model Compatibility List $1.28 / Each

2
004987-00 701951 004987-00 R22 Key;Round;Dual End;6X6X12L No Model Compatibility List $1.28 / Each

9
004991-00 701955 004991-00 I12 Key;Round;Dual-End;6X6X20L No Model Compatibility List $1.82 / Each

9
005005-00 701964 005005-00 B67 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.22 / Each

2
005015-00 701978 005015-00 Z53 Washer;Spring;SW8 8.2X13.5X2.0T No Model Compatibility List $1.54 / Each

2
005032-00 701993 005032-00 R30 Washer;Flat;20.2x35.0x1.0T;Black Zinc No Model Compatibility List $1.38 / Each

2,4,5,6
005035-00 701997 005035-00 L04 Washer;Flat;8.2x18x1.4T No Model Compatibility List $1.54 / Each

2
005067-00 702037 005067-00 S03 Washer;Flat;10.2X15.0X1.5T;Black Zinc No Model Compatibility List $1.22 / Each

2,4,5,6
005077-00 702049 005077-00 I22 Washer;Flat;6.2X12X1.0T;Black Zinc No Model Compatibility List $1.42 / Each

2,4,5,6
005078-00 702050 005078-00 S11 Washer;Flat;5.3x10x1.0T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
005080-00 702052 005080-00 I20 Washer;Flat;5.2x13.0x1.5T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
005102-00 702070 005102-00 S07 Washer;Flat;1/4"x15.0x1.0T;Black Zinc No Model Compatibility List $1.38 / Each

2,4,5,6
005109-00 702076 005109-00 U32 Washer;Flat;8.5x25x1.5T;Black Zinc No Model Compatibility List $1.22 / Each

2,4,5,6
005120-00 702088 005120-00 U28 Washer;Flat;20.2x30.0x1.0T;Black Zinc No Model Compatibility List $1.38 / Each

2,4,5,6
005134-00 702105 005134-00 Z52 Washer;Flat;8.2x14.0x1.5T;BAN; No Model Compatibility List $1.54 / Each

2
005165-00 702136 005165-00 Z42 Washer;Arc;8.2x18x1.5T No Model Compatibility List $1.54 / Each

2
005188-00 702152 005188-00 D83 Washer;Teflon;8.0X15.0X1.0T No Model Compatibility List $1.54 / Each

2
005217-A 702175 005217-A D85 Washer;Teflon;5.2x10.0x1.0T No Model Compatibility List $1.38 / Each

2
005239-00 702193 005239-00 T107 Washer;Lock;10.0x20.0x1.0T No Model Compatibility List $1.54 / Each

2
005261-A 702203 005261-A D56 Sleeve;Flat;Teflon;PSM2530-20(SIMPLICItY No Model Compatibility List $61.00 / Each

3
005347-00 702223 005347-00 I07 BEARING HOUSING;FIX;SS41;AR01; No Model Compatibility List $6.82 / Each

8
005348-00 702224 005348-00 I08 BEARING HOUSING;SLIDE;SS41;AR01 No Model Compatibility List $5.18 / Each

8
005352-00 702227 005352-00 I13 C-Clip;Internal;R-35 No Model Compatibility List $1.54 / Each

2
005363-00 702238 005363-00 I15 C-Clip;External;S-17 No Model Compatibility List $1.38 / Each

2
005365-00 702240 005365-00 I14 C-Clip;External;S-20 No Model Compatibility List $1.38 / Each

2
005366-00 702241 005366-00 T106 C-Clip;External;S-25 No Model Compatibility List $1.22 / Each

2
005444-00 702277 005444-00 U25 Spring;Idler;2.0x16.0x103.0Lx26N No Model Compatibility List $2.58 / Each

2,8
005484-C 702288 005484-C D48 Spring;Stretch;Adjust;SWP;BED No Model Compatibility List $7.66 / Each

2
005499-00 702296 005499-00 V19 Insert Nail;1/8'X7.5L(4-1); No Model Compatibility List $1.28 / Each

1
005841-C 702303 005841-C I05 Nylon Cord; 6 No Model Compatibility List $9.44 / Each

4,5,6
005844-B 702304 005844-B D97 Fix Buckle Base;PVC;GM01 No Model Compatibility List $1.38 / Each

3
005845-B 702306 005845-B D98 Fix Buckle Base;Nylon;GM01 No Model Compatibility List $1.38 / Each

3
006078-00 702325 006078-00 P61 Decal;Grounding;TM08 No Model Compatibility List $1.46 / Each

7,3
006678-C 702417 006678-C V12 Decal;Back Pad Cover No Model Compatibility List $10.20 / Each

7,9,3,4,5,6,12,13,14
006714-C 702418 006714-C JM55 DECAL;GENERATOR;GRAY;JOHNSON;JM55 No Model Compatibility List $1.28 / Each

7,8,3
007768-D 702470 007768-D S05 Fix Plate;Eye Bolt No Model Compatibility List $1.38 / Each

2,3
007854-C 702473 007854-C F03 Fix Plate;Guide Rail;;SPHC;5.0t;;;CB61 No Model Compatibility List $7.00 / Each

9,3
007855-D 702474 007855-D F04 Fix Plate;Guide Rail;Right;SPHC;5.0T;;;CB61 No Model Compatibility List $6.48 / Each

9,3
007861-C 702475 007861-C D41 Adjustment Plate;Seat Slide;SPCC;6.0t;CB61; No Model Compatibility List $45.32 / Each

3,12,13,14
007970-B 702484 007970-B Q20 Connecting Plate;Side Cover;2 Hole No Model Compatibility List $1.38 / Each

9,3
008311-00 702507 008311-00 I10 Cover;Spring;;SPC;1.5t;Zinc Plate;AR01; No Model Compatibility List $2.58 / Each

2,9,3
008322-00 702509 008322-00 I06 Fix Plate, Steel Rope SPC 1.6T No Model Compatibility List $1.36 / Each

3
008706-C 702575 008706-C T14 Nut;Crank ;Right;SS41;%32;;;;CB32 No Model Compatibility List $2.80 / Each

2,8
008708-D 702576 008708-D T18 Nut;Rim;;SS41;%32;;;;CB32 No Model Compatibility List $7.66 / Each

2
008721-J 702577 008721-J T15 Ring;Pedal Assembly;Front;SS41;31.8;;;;CB32 SS41(ZINC PLATING) No Model Compatibility List $6.48 / Each

8,9,3
008722-G 702578 008722-G T16 Ring;Pedal Assembly;Rear;SS41;31.8 No Model Compatibility List $6.48 / Each

8,9,3
008723-C 702579 008723-C R06 Ring;26x10L;CB61 No Model Compatibility List $2.58 / Each

1
702580 008740-E R01 Mandrel;Flywheel;SCM440;25x97L;CB61; No Model Compatibility List $28.24 / Each

8
008761-B 702582 008761-B D46 Screw;Special;M6X1.0PX20L-10L;;HS;CRMO;BAN;;S No Model Compatibility List $1.38 / Each

2
008762-B 702583 008762-B D50 Screw;Special;M6X1.0PX20L-10L;;HS;CRMO;BAN;;S No Model Compatibility List $1.38 / Each

2
008763-C 702584 008763-C F01 Tube;Seat Guide Rail;;Stainless Tube;25.0x3. 55X7.6L SS41 No Model Compatibility List $56.62 / Each

9,3,12,13,14
702585 008765-C I01 Aluminum Ring; 3068X302X2T } No Model Compatibility List $14.98 / Each

1
009475-B 702743 009475-B U26 Bushing;Cu MS;34;EP49 No Model Compatibility List $7.00 / Each

8
009586-B 702766 009586-B D49 Adjustment Block;Position;;S45C;Zn Plate;;;;CB No Model Compatibility List $18.20 / Each

3
009665-C 702779 009665-C D44 Fixing Base;Seat Axle Sleeve;Front;Anodizing No Model Compatibility List $48.68 / Each

8,3,12,13,14
009666-C 702780 009666-C D45 Fixing Base;Axle Sleeve;After;Anodizing No Model Compatibility List $48.68 / Each

8,3
012818-00 702856 012818-00 S01 Generator;ECB;190 CE CB/RB MX/600;400W;JM07 Yes Model Compatibility List $463.30 / Each

8
014275-A 703406 014275-A AT1 Pedal Axle Pulley Set; 235;CB32 CB32-AT1A No Model Compatibility List $41.96 / Each

8,9
014724-A 703449 014724-A T110 Pedal Set;With Strap Yes Model Compatibility List $56.14 / Each

8,9
703541 015189-AA AB1 Main Frame Set;BL;Plain;;;CB61 No Model Compatibility List $737.34 / Each

3
015264-AA 703549 015264-AA Q06 Stabilizer Cover;SL/GY;;;;CB61 No Model Compatibility List $84.70 / Each

9
015300-AA 703552 015300-AA AD4 Stationary Handlebar Set;SL/GY;;;;CB61 (MATRIX SILVER GRAY+CLEAR LACQUER) No Model Compatibility List $92.50 / Each

4,5,6,11
015307-AA 703553 015307-AA AJ1 Front Stabilizer Set;SL/GY;;F;;CB61 (MATRIX SILVER GRAY+CLEAR LACQUER) No Model Compatibility List $311.46 / Each

4,5,6
015905-BB 703724 015905-BB AD5 Arm Rest;Left;Foam;;;CB6 No Model Compatibility List $96.08 / Each

3
015906-BB 703726 015906-BB AD6 Arm Rest;Right;Foam;R;;CB6 No Model Compatibility List $96.08 / Each

3
018617-A 703841 018617-A R09 Drive Belt;POLY-V;370-J8 Yes Model Compatibility List $42.10 / Each

15,10
018627-A 703848 018627-A D86 Washer;Flat;5.2X10.0X1.0T;;BZN; No Model Compatibility List $1.54 / Each

2
018650-E 703851 018650-E R05 Fix Pass axle Cover A;66x48.5L SS41(Pai No Model Compatibility List $26.28 / Each

8,9
018652-B 703852 018652-B B69 Screw;SH;M6X1.0PX16.5L-8L;;HS;CRMO;BAN;; No Model Compatibility List $2.80 / Each

2
018653-A 703853 018653-A D81 Screw;SH;M8X1.25PX22.5L-8L;CRMO;BAN; No Model Compatibility List $1.38 / Each

2
020370-00 704163 020370-00 F11 Nut;Hex;M10X1.5P;SS41;BAN;; No Model Compatibility List $1.38 / Each

2
027982-B 704977 027982-B V01 Decal;Side Cover;EP68-US;EP68 No Model Compatibility List $19.46 / Each

7,9,3
028538-A 704989 028538-A F12 Washer;Anti-Strike;Mx-H3; No Model Compatibility List $1.28 / Each

2
029034-AA 705008 029034-AA D43 Back Pad;CB61/CB63 No Model Compatibility List $164.98 / Each

4,5,6,12,13,14
029035-AA 705009 029035-AA D42 Seat Pad;CB61/CB63 Yes Model Compatibility List $192.66 / Each

12,13,14
037906-A 705125 037906-A R07 Sleeve;Center Tube;B;SS41;55x2.1L;CB61; No Model Compatibility List $7.00 / Each

3
037907-AA 705126 037907-AA J21 Leveler;Foot Pad Yes Model Compatibility List $7.00 / Each

9,3,12,13,14
037908-AA 705127 037908-AA J22 Leveler;Foot Pad;Adjustic No Model Compatibility List $7.00 / Each

9,3,12,13,14
037909-AA 705128 037909-AA Z71 Leveler;Foot Pad;Adjustic;Center No Model Compatibility List $7.00 / Each

9,3,12,13,14
039153-A 705213 039153-A R10 Ring;;;;26x10L ;;;;CB61 No Model Compatibility List $6.48 / Each

1
039158-A 705216 039158-A D80 Fix Plate;Guide Rail;;SPHC;5.0t;;;CB61 No Model Compatibility List $6.48 / Each

9,3
049286-A 705484 049286-A U31 Nut;Hex;Flange;M8x1.25P; No Model Compatibility List $1.42 / Each

2
056005-A 705749 056005-A P11 Ground Wire;Pulse;1100L No Model Compatibility List $6.48 / Each

4,5,6,12,13,14
056060-AA 705763 056060-AA D53 Seat Tube End Cap;1-1/4";Material:PP; Yes Model Compatibility List $1.28 / Each

9,3,12,13,14
056225-A 705777 056225-A P19 Ferrite;PART OF #79 CABLE;NOT ORDERABLE; No Model Compatibility List $6.48 / Each

4,5,6
065247-A 706753 065247-A P10 TV Exchange Connector;;F HDR Into F HSG 9 No Model Compatibility List $7.24 / Each

4,5,6
067774-A 706978 067774-A P18 Power Cord;FH33.3x8.25x16.4(FH0900B);TM95 No Model Compatibility List $6.48 / Each

4,5,6
1000216383 711082 1000216383 31 Side Cover Set;Left;Front;H-3x/5x/7x-03-F; No Model Compatibility List $68.88 / Each

9
1000216386 711083 1000216386 12 Side Cover Set;Right;Front;H-3x/5x/7x-03-F; No Model Compatibility List $68.88 / Each

9
1000220022 711329 1000220022 P58 Screw;BH;M5X0.8PX40;PH;;BZN; No Model Compatibility List $1.28 / Each

2
1000230339 712714 1000230339 I02 Rope Pulley;H-3x/5x/7x-04-F; No Model Compatibility List $20.78 / Each

8
1000232960 713082 1000232960 S02 Control Board;Generator;;H001;ErP-S100;; Yes Model Compatibility List $421.18 / Each

7,8
1000364363 719731 1000364363 T111/T112 crank set;;;RB85-SBOM;Clear coat;RB85;; Yes Model Compatibility List $129.98 / Each

8
720004 1000367748 AD9 Overlay Set;Quickly Key;right;;CS11C;; No Model Compatibility List $0.00 / Each
Out Of Stock
9
720005 1000367751 AD8 Overlay Set;Quickly Key;left;;CS11C;; No Model Compatibility List $0.00 / Each
Out Of Stock
9
720373 1000372129 Q23 Screw;Button Head;M5x0.8Px15L;;Phillip;S No Model Compatibility List $0.00 / Each
Out Of Stock
2
069859 725319 069859 AP1 Filter Board Yes Model Compatibility List $43.04 / Each

1
071807 725477 071807 V13 Decal; Left Upper Rail No Model Compatibility List $1.38 / Each

7,9,3
071808 725478 071808 V14 Decal; Right Upper Rail No Model Compatibility List $1.38 / Each

7,9,3
071809 725479 071809 V15 Decal; Left Lower Rail No Model Compatibility List $2.80 / Each

7,9,3
071810 725480 071810 V16 Decal; Right Lower Rail No Model Compatibility List $2.80 / Each

7,9,3
072171 725504 072171 S12 Screw;Eye Bolt;1/4"-20UNCX65L(25L)Eye10;ZN-BL No Model Compatibility List $1.28 / Each

2
080124 726121 080124 P05 Connect Wire;Console;2.0AR;RB123 No Model Compatibility List $24.50 / Each

7,4,5,6
080125 726122 080125 P11 Pulse Wire;AL Rail;2.0AR;RB123 No Model Compatibility List $22.38 / Each

9,4,5,6,12,13,14
726224 0000080784 C25 Cover;Screw;PVC;BL;CB62; No Model Compatibility List $1.28 / Each

2,9
726549 082734 P59 Washer;Senated;M5.3X10X0.6;Zinc Plate No Model Compatibility List $1.38 / Each

2,3
726595 083279 P03 Console Board Wire;550(KST,FDFNYD2-250-1 No Model Compatibility List $6.48 / Each

7,4,5,6
727262 088178 V04 Series no. Decal;AL;H5x-F; No Model Compatibility List $0.00 / Each
Out Of Stock
7,3
088184 727264 088184 Not Shown Assembly Manual;English;MX-H5X-F No Model Compatibility List $15.60 / Each

3
727266 088188 P20 Battery wire;2300L(JST VHR-2Nx2);MX-H5X- No Model Compatibility List $47.04 / Each

7,4,5,6,12,13,14
727288 088382 P04 Pulse Sensor Wire;800L(TKP H66030R1-06); No Model Compatibility List $35.54 / Each

4,5,6,12,13,14
0000088923 727375 0000088923 C11 Bottle Holder Set;Console Mast;ABS/PA746;BL Yes Model Compatibility List $11.94 / Each

7
727378 088927 P14 Filiter Power Wire;800L(KST FLDNY2-250X2 No Model Compatibility List $32.92 / Each

4,5,6
727430 089160 P12 AC Power Switch Set;400L(KST FLDNY2-250x No Model Compatibility List $28.06 / Each

4,5,6
727523 089758 P13 Pushbutton Switch;R13-513B2B;H5x-F; No Model Compatibility List $15.66 / Each

4,5,6
727538 089843 P02 Console Cable;2300L(Molex,50-57-9408 No Model Compatibility List $70.18 / Each

7,4,5,6
727539 089845 P51 Cable Fix Button;KSS UC-5 No Model Compatibility List $8.66 / Each

4,5,6
727546 089860 P27 Cap;C-SAFE;NYION 6/6;BL;T1x; No Model Compatibility List $6.48 / Each

9
0000090518 727707 0000090518 66 Pedal Set Yes Model Compatibility List $56.14 / Each

8,9
0000090779 727748 0000090779 N24 Control Board;Quick Key No Model Compatibility List $7.00 / Each

7,9
727751 090799 AD3 Handle;Seat Adjustment;Panto No Model Compatibility List $49.58 / Each

12,13,14,11
727752 090800 8 Seat Handlebar Set;MX-H5x-F; No Model Compatibility List $300.84 / Each

12,13,14,11
727753 090802 AD22 Back pad;with cover;MX-H5x-F; No Model Compatibility List $193.68 / Each

9,4,5,6,12,13,14
727754 090804 48 Cover;Back Pad Set;MX-H5x-F;CB72 No Model Compatibility List $52.58 / Each

9,4,5,6,12,13,14
727755 090806 AI2 Spring;Spiral;MX-H5x-F; No Model Compatibility List $87.82 / Each

2
727757 090809 17 Stabilizer Set;Rear;H5x-F; No Model Compatibility List $502.56 / Each

1
727758 090810 16 Stabilizer Set;Front;H5x-F; No Model Compatibility List $316.30 / Each

1
727759 090817 13 Side Cover Set;Left;Rear;H-3x/5x/7x-03-F; No Model Compatibility List $435.20 / Each

9
727760 090818 14 Side Cover Set;Right;Rear;H-3x/5x/7x-03-F; No Model Compatibility List $133.66 / Each

9
727761 090820 4 Pulley Axle Set;H5x-F; No Model Compatibility List $439.64 / Each

8
727871 091711 V09 Special Decal;ETL;H5x-F; No Model Compatibility List $0.00 / Each
Out Of Stock
7,3
727902 091996 D89 Screw;Hex Socket;BH;M8x1.25Px16L;Black Z No Model Compatibility List $1.28 / Each

2,4,5,6
728033 092777 V08 Sticker;Switch;PVC;E5xc; No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6
728079 093056 1 Console Mast Set;CB72;SBOM; No Model Compatibility List $303.42 / Each

7
728087 093118 26 Handlebar Set;H5x-F; No Model Compatibility List $411.84 / Each

11
728088 093119 7 Pulse Sensor Set No Model Compatibility List $98.26 / Each

12,13,14
728089 093120 9 Seat Slide Set;CB72;H5x-F; No Model Compatibility List $1.00 / Each

12,13,14
728095 093128 20 AC Power Socket Set;CB72;SBOM; No Model Compatibility List $86.34 / Each

4,5,6
728098 093131 22 Entertainment Port Fix Plate Set;CB72;SBOM; No Model Compatibility List $42.90 / Each

3
728132 093219 AB1 RIGHT MAIN FRAME SET No Model Compatibility List $453.16 / Each

3
728169 093378 38 Nut;Nylon;M6x1.0P;;Zn-BL No Model Compatibility List $1.28 / Each

2
728172 093382 Z21 Screw;Hex Socket;Round;M8x1.25Px20.0L;Ad No Model Compatibility List $1.28 / Each

2
093912 728270 093912 V10 Decal;Swirl Spring;H5x-F; No Model Compatibility List $1.28 / Each

7,2,3
728574 095374 2 Tension Wheel Set;Idler No Model Compatibility List $98.14 / Each

8
728576 095378 U30 SCREW;TH;M8X1.25PX40L;;HS;;;;BP;Zn Plate No Model Compatibility List $0.00 / Each
Out Of Stock
2,3
728588 095430 U27 Washer;FLT;9.3X23.0X2.0T;;BZN; No Model Compatibility List $1.28 / Each

2
729011 Order Kit U23 Pedal Axle No Model Compatibility List $0.00 / Each
Out Of Stock
8,9
ZMFMEP0041 1009013 ZMFMEP0041 Display Console - Used Only No Model Compatibility List $999.00 / Each

7
View Drawing
