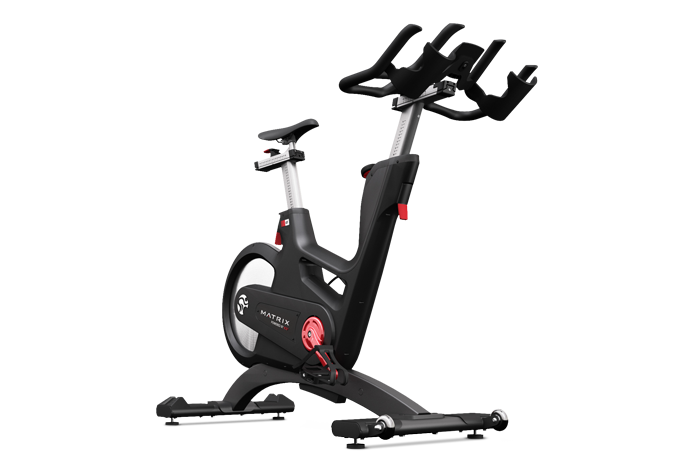

Matrix Commercial - Matrix IC5 - 2014

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
1000352006 718583 1000352006 320-00-00008-01 ANT+ TRANSMITTER MOUNTING KIT FOR IC5 No Model Compatibility List $90.98 / Each

2
1000352780 718661 1000352780 Not Shown Service Tool Set;;IC5/IC7;;;Star type sc No Model Compatibility List $64.98 / Each

1
728975 Discontinued. 110-01-00013-03 HANDLEBAR WITH SOFT PVC COATING,38MM MOUNTING PITCH AND MOUNTING BOLTS FOR IC5 & IC7 No Model Compatibility List $0.00 / Each
Out Of Stock
2,11
729265 ZMD4001580 320-00-00001-01 Wireless Computer-ICG Bikes No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6
ZMS3000263 729410 ZMS3000263 900-00-90008-20 Tomahawk-Crank Mounting Bolts No Model Compatibility List $10.40 / Each

2,8
ZMS3000316 729437 ZMS3000316 140-01-00003-01 Tomahawk-Transport Wheel E/S Series No Model Compatibility List $21.04 / Each

8
ZMS3000328 729445 ZMS3000328 150-03-00048-01 Tomahawk-Toe Strap No Model Compatibility List $14.02 / Each

1
ZMS3000410 729454 ZMS3000410 120-01-00003-01 Tomahawk-Saddle mounting Bracket for E-S No Model Compatibility List $32.28 / Each

2,3,4,5,6
ZMS4002230 729579 ZMS4002230 140-01-00004-01 FRONT STABILIZER PROTECTION PLATE KIT, L No Model Compatibility List $27.28 / Each

3
ZMS4002231 729580 ZMS4002231 140-01-00005-01 FRONT STABILIZER PROTECTION PLATE KIT, R No Model Compatibility List $27.28 / Each

3
ZMS4002232 729581 ZMS4002232 140-01-00006-01 REAR STABILIZER STRETCH PLATE KIT;IC3 No Model Compatibility List $33.78 / Each

3
ZMS4002233 729582 ZMS4002233 140-02-00002-01 REAR STABILIZER WELDMENT;IC3 No Model Compatibility List $109.18 / Each

3
ZMS4002235 729584 ZMS4002235 140-03-00001-01 STABILIZER END CAP;IC3 No Model Compatibility List $10.38 / Each

9
ZMS4002240 729589 ZMS4002240 190-01-00004-01 STABILIZER MOUNTING KIT;IC3 No Model Compatibility List $16.84 / Each

2
ZMS4003454 729668 ZMS4003454 150-03-00053-01 RIGHT CRANK; RED No Model Compatibility List $155.82 / Each

8
ZMS4003455 729669 ZMS4003455 150-03-00054-01 LEFT CRANK; RED No Model Compatibility List $144.28 / Each

8
ZMS4003456 729670 ZMS4003456 100-01-00006-01 INLAY SLEEVE SEATPOST TUBE ASSEMBLY No Model Compatibility List $45.48 / Each

3,12,13,14
ZMS4003457 729671 ZMS4003457 100-01-00009-01 LEFT FLYWHEEL SUPPORT ARM KIT No Model Compatibility List $55.88 / Each

8,3
ZMS4003458 729672 ZMS4003458 100-01-00004-01 INLAY SLEEVE HANDLEBAR TUBE ASSEMBLY No Model Compatibility List $50.68 / Each

3,11
ZMS4003460 729673 ZMS4003460 100-01-00008-01 VERTICAL ADJUSTMENT SEATPOST No Model Compatibility List $101.08 / Each

12,13,14
ZMS4003467 729676 ZMS4003467 110-01-00003-01 LOWER HANDLEBAR STEM ASSEMBLY No Model Compatibility List $298.98 / Each

3,11
ZMS4003470 729677 ZMS4003470 170-01-00013-01 SMARTPHONE TRAY ASSEMBLY No Model Compatibility List $40.28 / Each

3
ZMS4003473 729678 ZMS4003473 120-01-00005-01 LOWER VERTICAL SEATPOST ASSEMBLY No Model Compatibility List $222.28 / Each

3,12,13,14
ZMS4003476 729679 ZMS4003476 130-01-00015-01 BRAKE MOUNTING SADDLE KIT No Model Compatibility List $53.28 / Each

2,8
ZMS4003477 729680 ZMS4003477 130-01-00012-01 UPPER BRAKE HOUSING No Model Compatibility List $119.58 / Each

8
ZMS4003481 729681 ZMS4003481 150-01-00024-01 FLYWHEEL SHAFT KIT No Model Compatibility List $59.78 / Each

8,3
ZMS4003482 729682 ZMS4003482 190-01-00014-01 IC7 FLYWHEEL SPARE PART ASSEMBLY No Model Compatibility List $889.18 / Each

8,3
ZMS4003484 729683 ZMS4003484 150-03-00044-01 POLY V BELT, 4PK 895 No Model Compatibility List $26.66 / Each

15
ZMS4003491 729685 ZMS4003491 160-01-00004-01 RIGHT MAIN COVER KIT No Model Compatibility List $231.38 / Each

9
ZMS4003492 729686 ZMS4003492 160-01-00006-01 LEFT MAIN COVER KIT No Model Compatibility List $313.28 / Each

9
ZMS4003493 729687 ZMS4003493 160-01-00007-01 MAIN TOP COVER KIT No Model Compatibility List $79.28 / Each

9
ZMS4003494 729688 ZMS4003494 160-01-00008-01 HANDLEBAR TOP COVER KIT No Model Compatibility List $28.06 / Each

9,11
ZMS4003495 729689 ZMS4003495 160-01-00009-01 SEATPOST TOP COVER KIT No Model Compatibility List $18.18 / Each

9,12,13,14
ZMS4003496 729690 ZMS4003496 160-01-00014-01 GAS DAMPER BRACKET COVER KIT No Model Compatibility List $18.18 / Each

2,9,3,4,5,6
ZMS4003497 729691 ZMS4003497 160-01-00013-01 MX LOGO INSERT KIT RIGHT No Model Compatibility List $38.98 / Each

1
ZMS4003498 729692 ZMS4003498 160-01-00012-01 MX LOGO INSERT KIT LEFT No Model Compatibility List $38.98 / Each

1
ZMS4003499 729693 ZMS4003499 160-09-00004-01 Decal IC5 - Left alumnimum badge for main cover No Model Compatibility List $7.78 / Each

7,9,3
ZMS4003500 729694 ZMS4003500 160-09-00005-01 Decal IC5 - Right alumnimum badge for main cover No Model Compatibility List $7.78 / Each

7,9,3
ZMS4003511 729704 ZMS4003511 190-01-00005-01 ENDCAP SET HORIZONTAL HANDLEBAR SLIDER FOR IC5 No Model Compatibility List $29.88 / Each

9,4,5,6,11
ZMS4003513 729706 ZMS4003513 190-01-00007-01 END CAP SET HORIZONTAL SEATPOST SLIDER No Model Compatibility List $29.88 / Each

9,12,13,14
ZMS4003515 729707 ZMS4003515 190-01-00009-01 LOWER BRAKE SPARE PART ASSEMBLY No Model Compatibility List $123.48 / Each

8,3
ZMS4003518 729709 ZMS4003518 190-01-00010-01 BOWDEN CABLE SPARE KIT - VERTICAL HANDLEBAR ADJ No Model Compatibility List $59.78 / Each

4,5,6,11
ZMS4003519 729710 ZMS4003519 190-01-00011-01 BOWDEN CABLE SPARE KIT - VERTICAL SEATPOST ADJ No Model Compatibility List $54.58 / Each

4,5,6,12,13,14
ZMS4003520 729711 ZMS4003520 190-01-00012-01 BOWDEN CABLE SPARE PART KIT FOR E-BRAKE No Model Compatibility List $61.08 / Each

8,4,5,6
ZMS4003521 729712 ZMS4003521 190-01-00013-01 BOWDEN CABLE SPARE PART KIT FOR LOWER BR No Model Compatibility List $66.28 / Each

4,5,6
ZMS4003524 729715 ZMS4003524 900-06-00001-01 BALL BEARING, 6004 2z, 42mm x 20mm x 12m No Model Compatibility List $32.28 / Each

8
ZMS4003525 729716 ZMS4003525 900-06-00002-01 BALL BEARING, 6001 2z, 28mm x 12mm x 8mm No Model Compatibility List $26.66 / Each

8
ZMS4003913 729724 ZMS4003913 200-04-00002-01 LOWER CABLE ROUTING ADJUSTMENT TOOL IC5/ No Model Compatibility List $120.72 / Each

4,5,6
ZMS4003914 729725 ZMS4003914 200-04-00003-01 UPPER CABLE ROUTING ADJUSTMENT TOOL IC5/ No Model Compatibility List $140.38 / Each

4,5,6
ZMS4003915 729726 ZMS4003915 200-04-00004-01 E-BRAKE/FLYWHEEL ADJUSTMENT TOOL IC5/IC7 No Model Compatibility List $53.28 / Each

8
ZMS4003916 729727 ZMS4003916 200-04-00005-01 GAS DAMPER ADJUSMENT TOOL IC5/IC7 No Model Compatibility List $23.38 / Each

4,5,6
ZMS4003917 729728 ZMS4003917 200-04-00006-01 SHROUD ALIGNMENT TOOL IC5/IC7 No Model Compatibility List $233.98 / Each

7,9,12,13,14
ZMS4003918 729729 ZMS4003918 200-04-00007-01 MAGNETIC RESISTANCE ADJUSTMENT TOOL IC5/ No Model Compatibility List $25.26 / Each

8,10
ZMS4004075 729731 ZMS4004075 190-01-00029-01 GASDAMPER ALUM ADAPTER DRUM W/ SLOT, SP No Model Compatibility List $23.38 / Each

4,5,6
ZMS4004076 729732 ZMS4004076 120-01-00009-01 R SP SLIDER, SHORT MOUNT TUBE, 70MM, IC5 No Model Compatibility List $187.18 / Each

2,3
ZMS4004078 729733 ZMS4004078 190-01-00030-01 Main shroud bolts & grommets IC5/7 No Model Compatibility List $64.98 / Each

7,2,9,12,13,14
ZMS4004079 729734 ZMS4004079 190-01-00018-01 Cover Set (5 pcs) for Stabilizer Mounting Kit No Model Compatibility List $37.68 / Each

2,9
ZMS4004080 729735 ZMS4004080 190-01-00019-01 Flip Lever Cap for IC5/7 No Model Compatibility List $64.98 / Each

9,3
ZMS4004081 729736 ZMS4004081 190-01-00033-01 Horizontal flip lever adjustment for IC5 No Model Compatibility List $110.48 / Each

3
ZMS4004116 729737 ZMS4004116 110-01-00009-02 30MM Handlebar No Model Compatibility List $687.94 / Each

11
ZMS4004117 729738 ZMS4004117 110-01-00013-02 Handlebar Sider with 30mm Mounting No Model Compatibility List $192.34 / Each

2,11
ZMS4004415 729740 ZMS4004415 390-01-00001-01 ANT+ Console Membrane Set for IC2,3,5 No Model Compatibility List $42.10 / Each

7
ZMS4004486 729741 ZMS4004486 170-02-00008-01 Reed switch for IC5 & IC7 No Model Compatibility List $42.88 / Each

4,5,6
ZMS4004489 729743 ZMS4004489 130-02-00009-01 Emergency brake engagement lever IC5/7 No Model Compatibility List $25.98 / Each

8,3
ZMS4004490 729744 ZMS4004490 180-01-00028-01 Reinforced flip lever assy, vert seatpost adjustment No Model Compatibility List $112.30 / Each

3,12,13,14
ZMS4004627 729746 ZMS4004627 140-02-00006-01 Front Stab Tube IC5/IC7 Wide Mount Brkt No Model Compatibility List $143.20 / Each

2,3
ZMS4004654 729748 ZMS4004654 150-01-00021-01 BOTTOM BRACKET REPLACEMENT KIT F?R IC5 & No Model Compatibility List $133.36 / Each

2,3,4,5,6
ZMS4004655 729749 ZMS4004655 150-01-00022-02 CAM PULLEY 72TEETH, INCL MOUNTING BOLTS No Model Compatibility List $152.08 / Each

2,8
ZMS4004656 729750 ZMS4004656 150-01-00025-01 FLYWHEEL HUB ASSEMBLY FOR IC5 & IC7 No Model Compatibility List $137.78 / Each

8,3
ZMS4004666 729752 ZMS4004666 900-11-00003-01 BRICK MAGNET 15 x 10 x 5MM IC5/7 CAM PUL No Model Compatibility List $12.62 / Each

8
ZMS4004667 729753 ZMS4004667 130-01-00011-02 COMPLETE UPPER BRAKE ASSEMBY FOR IC5 & I No Model Compatibility List $228.84 / Each

8
ZMS4004668 729754 ZMS4004668 130-01-00014-02 BRAKE DIAL KIT/ D 55MM FOR IC5 & IC7 No Model Compatibility List $41.58 / Each

8
ZMS4004669 729755 ZMS4004669 190-01-00008-02 LOWER EMERGENCY BRAKE ASSEMBLY FOR IC5 & No Model Compatibility List $113.70 / Each

8,3
ZMS4004676 729756 ZMS4004676 100-01-00007-02 VERTICAL HANDLEBAR ADJUSTMENT ASSEMBLY - No Model Compatibility List $75.80 / Each

3,11
ZMS4004686 729759 ZMS4004686 180-01-00014-01 CLAMP BLOCK ASSEMBLY- VERTICAL HANDLEBAR ADJUSTMENT FOR IC5 & IC7 No Model Compatibility List $46.78 / Each

3,4,5,6,11
ZMS4004687 729760 ZMS4004687 180-01-00029-02 Reinforced flip lever for vertical handlebar adjustment No Model Compatibility List $112.30 / Each

3,11
ZMS4004688 729761 ZMS4004688 190-01-00027-01 LEVELING FEET, RUBBER 75Deg.SHORE (2 PCS No Model Compatibility List $25.26 / Each

9,3
ZMS4004694 729765 ZMS4004694 120-01-00016-01 NARROW SEATPOST ASSEMBLY FOR IC5 & IC7 R No Model Compatibility List $436.78 / Each

3,12,13,14
ZMS4004696 729766 ZMS4004696 180-01-00024-01 GASDAMPER KIT No Model Compatibility List $77.98 / Each

4,5,6
ZMS4004703 729770 ZMS4004703 190-01-00037-01 FLIP LEVER CAP (5 PCS.) FOR IC5 & IC7 R No Model Compatibility List $45.48 / Each

9,3
ZMS4004723 729775 ZMS4004723 Not Shown IC7 Console Mount Brkt for Handlebar No Model Compatibility List $10.38 / Each

7,2,11
ZMS4004828 729783 ZMS4004828 180-01-00021-02 FLIP LEVER ASSEMBLY - REINFORCED LEVER- No Model Compatibility List $90.98 / Each

3
729793 ZMS4005406 120-01-00015-01 SPORT SADDLE BLACK & RED INCL. SADDLE CL No Model Compatibility List $98.26 / Each

4,5,6
ZMS4005410 729797 ZMS4005410 110-01-00013-03 UPPER HANDLEBAR SLIDER ASSEMBLY W & O CO No Model Compatibility List $219.68 / Each

3,11
ZMS4005417 729800 ZMS4005417 180-02-00005-02 LOCK HANDLE ASSEMBLY FOR SEATPOST No Model Compatibility List $70.18 / Each

3,12,13,14,11
ZMS4005418 729801 ZMS4005418 180-01-00030-01 LOCK HANDLE ASSEMBLY FOR HANDLEBAR No Model Compatibility List $70.18 / Each

3,11
ZMS4005526 729802 ZMS4005526 Not Shown M5-0.8 x 16mm DIN 7985 Pan Head Phillips No Model Compatibility List $1.68 / Each

1
ZMS4005733 729806 ZMS4005733 150-01-00005-02 COMBI PEDAL SET, SPD COMPATIBLE No Model Compatibility List $224.62 / Each

8,9
ZMS4006021 729807 ZMS4006021 150-01-00016-02 PRIMARY DRIVE PLASTIC IDLER PULLEY ASSEM No Model Compatibility List $66.28 / Each

8,9,10
ZMS4006022 729808 ZMS4006022 150-01-00018-01 SECONDARY DRIVE PLASTIC IDLER PULLEY ASS No Model Compatibility List $63.68 / Each

8,9,10
ZMS4006044 729811 ZMS4006044 Not Shown M5-0.8 X 20MM ISO 7380 BSHC No Model Compatibility List $4.54 / Each

1
ZMS4006121 729820 ZMS4006121 150-03-00059-01 Updated Timing Belt 784 8MHL for Primary No Model Compatibility List $56.14 / Each

15
ZMS4006395 729860 ZMS4006395 180-01-00017-01 ICG Gasdamper "Susba" No Model Compatibility List $157.28 / Each

4,5,6
