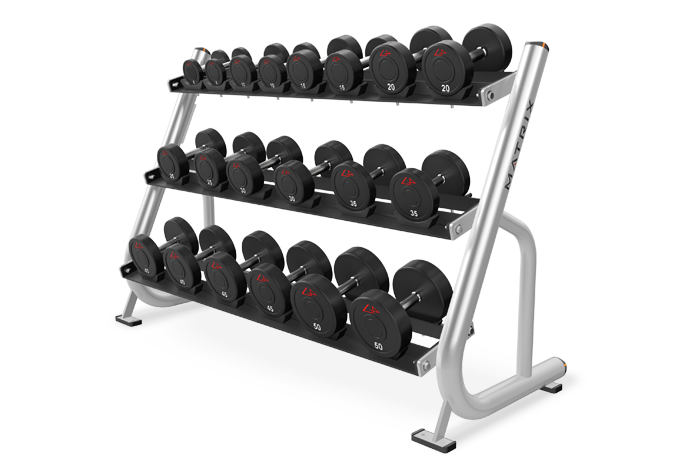

Matrix Commercial - MG-A41-03 - 2013

Repair Parts for Matrix Commercial MG-A41-03 FW231

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Name: MG-A41-03

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Plastic Parts
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
G 700249 000776-A G02 Elastomer;E5-09B;FW91 No Model Compatibility List $9.52 / Each

1
B 700447 001401-A B05 End Cap;76.2 No Model Compatibility List $3.64 / Each

9
G 701545 004573-AE G03 Screw;Hex Socket;Sink;M10x1.5Px25L No Model Compatibility List $3.64 / Each

2
B 701657 004694-AC B09 Screw;Hex Socket;Flat;M8x1.25Px10L No Model Compatibility List $1.66 / Each

2
Z 702102 005132-00 Z03 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
Z 704035 020124-A Z02 Screw;Hex Socket;Socket Head;M12X1.75PX4 No Model Compatibility List $3.35 / Each

2
B 706373 061531-AA B06 Leveler;Foot Pad;FW151 No Model Compatibility List $14.56 / Each

9,3,12,13,14
Z 708743 1000105261 Z01 Nut;Nylon;M12x1.75P;G12.9;CHM No Model Compatibility List $1.38 / Each

2
B 713585 1000305258 B08 End Cap;;;ABS 746;Diam.76.2;FW202-KM No Model Compatibility List $3.64 / Each

9
V 713704 1000306716 V07 Warning Label;;;;;;;Working Bench; No Model Compatibility List $8.42 / Each

1
5 713833 1000308451 B11 5" RUBBER FOOT No Model Compatibility List $14.59 / Each

9,3
2 713986 1000310083 B4 2" ROUND END CAP No Model Compatibility List $5.04 / Each

9
SCREW;HH;.500-13 x 1.50;ZN; 714104 1000312089 Z39 SCREW;HH;.500-13 x 1.50;ZN; No Model Compatibility List $3.02 / Each

2
NUT;NLK;.500-13;ZN;TALL; 714127 1000312161 Z33 NUT;NLK;.500-13;ZN;TALL; No Model Compatibility List $1.43 / Each

2
7/16 714235 1000312700 Z22 7/16" FLAT WASHER No Model Compatibility List $2.44 / Each

2
714420 1000314651 Not Shown Hardware Set;;;;;FW228-KM;; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
714538 1000315894 V47 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

7,3,4,5,6
A 715571 1000326221 AG1 Disassembly ConnectingTube Set;;;paintin No Model Compatibility List $2.18 / Each

3
715572 1000326233 V01 EN LABEL;;FW231-KM;;;;English; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
715573 1000326238 Not Shown Manual;;;English;;FW231-KM No Model Compatibility List $0.00 / Each
Out Of Stock 		1
A 715725 1000327849 AB2 Support Set;;L;painting;;Iced Sliver;FW2 No Model Compatibility List $250.09 / Each

3
715726 1000327850 AB2 Support Set;;L;painting;;MAT BLACK;FW228 No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
715727 1000327851 AB2 Support Set;;L;painting;;Ti;FW228-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
715728 1000327852 AB2 Support Set;;L;painting;;Lace White;FW22 No Model Compatibility List $250.09 / Each

3,4,5,6
715729 1000327853 AB2 Support Set;;L;painting;;Black Glossy;FW No Model Compatibility List $250.09 / Each

3,4,5,6
715730 1000327854 AB2 Support Set;;L;painting;;Milk White;FW22 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
715731 1000327855 AB1 Support Set;;R;painting;;Iced Sliver;FW2 No Model Compatibility List $256.85 / Each

3
715732 1000327856 AB1 Support Set;;R;painting;;MAT BLACK;FW228 No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
715733 1000327857 AB1 Support Set;;R;painting;;Ti;FW228-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
715734 1000327858 AB1 Support Set;;R;painting;;Lace White;FW22 No Model Compatibility List $256.85 / Each

3,4,5,6
715735 1000327859 AB1 Support Set;;R;painting;;Black Glossy;FW No Model Compatibility List $256.85 / Each

3,4,5,6
715736 1000327860 AB1 Support Set;;R;painting;;Milk White;FW22 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
716519 1000337057 AG2 Disassembly connect set;;D;painting;;Bla No Model Compatibility List $542.46 / Each

3
717377 1000344562 V47 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $15.18 / Each

7,3,4,5,6
719680 1000363753 V15 Warning Label;Plate Loaded; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719681 1000363756 V15 Warning Label;Plate Loaded;French No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721377 1000382841 AB2 Weldment, A42 Side Frame R;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721378 1000382842 AB2 Weldment, A42 Side Frame R;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721379 1000382843 AB2 Weldment, A42 Side Frame R;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721380 1000382856 AB1 WELDMENT A44 FRAME LEFT;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721381 1000382857 AB1 WELDMENT A44 FRAME LEFT;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721382 1000382858 AB1 WELDMENT A44 FRAME LEFT;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721383 1000382870 B3 3' Rack Tier No Model Compatibility List $0.00 / Each
Out Of Stock 		2,4,5,6
721552 1000384006 V13 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
View Drawing
