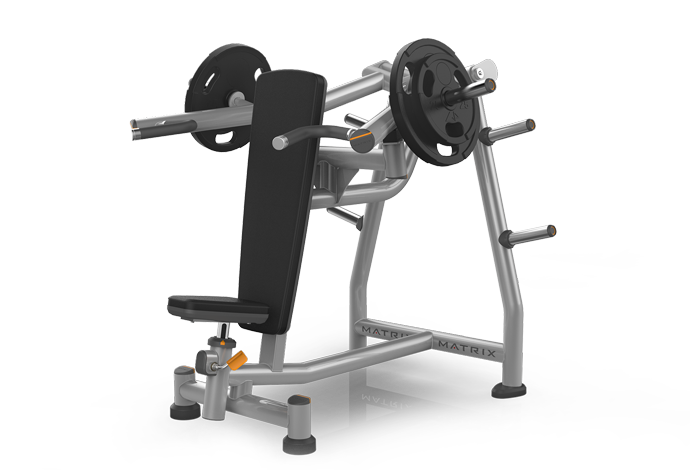

Matrix Commercial - MG-A414-02 - 2013

Repair Parts for Matrix Commercial MG-A414-02 MGPL70

Brand: Matrix Commercial

Category: Plate Loaded

Type: Strength Systems

Model Name: MG-A414-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
S 713644 1000306099 Seat Adj Hnd B9 grip-Extrawork;Adjustable;;Cr Plate;FW20 No Model Compatibility List $35.46 / Each

3,11
713802 1000308395 B30 FLANGE BEARING - 1" No Model Compatibility List $21.89 / Each

8
B 713810 1000308421 B48 HALF-ROUND RUBBER BUMPER No Model Compatibility List $16.41 / Each

1
713815 1000308429 B8 2" x 3" Rubber Block No Model Compatibility List $23.63 / Each

1
713816 1000308434 Z29 1 1/64"ID MACHINE BUSHING No Model Compatibility List $1.43 / Each

8,4,5,6
Z 713818 1000308436 Z47 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.43 / Each

2
Z 713828 1000308446 Z37 WASHER;FLT;USS;Diam.0.281XDiam.0.734X.06 No Model Compatibility List $1.43 / Each

2
713835 1000308453 Z31 1 9/16"OD x 7/16"ID WASHER No Model Compatibility List $3.28 / Each

2
713838 1000308466 B17 Flat Bumper - Weight Horn No Model Compatibility List $3.02 / Each

3
713839 1000308467 B24 End cap - weight horn No Model Compatibility List $5.90 / Each

9,3
V 713842 1000308473 V53 Lable, hand pinch No Model Compatibility List $3.02 / Each

12,13,14
Z 713935 1000309773 Z1 Screw Set;M6x1.0Px5L;BP;POT No Model Compatibility List $3.28 / Each

2
B 713937 1000309841 B33 2" X 3" END CAP No Model Compatibility List $7.28 / Each

9
Z 713949 1000309857 Z34 BHSCS 3/8 x 3/4" No Model Compatibility List $3.02 / Each

1
Z 713950 1000309858 Z32 3/4" FLAT WASHER No Model Compatibility List $1.33 / Each

2
Z 713967 1000309953 Z35 SCREW;HH;.313-18 x 1.25;ZN; No Model Compatibility List $2.37 / Each

2
B 713974 1000310007 B11 Round Leveler No Model Compatibility List $20.05 / Each

3
B 713975 1000310008 B12 ROUND LEVELER BOOT No Model Compatibility List $5.04 / Each

3
713976 1000310009 K2 CAP, END TUBE, 31.8MM No Model Compatibility List $7.28 / Each

9,3
713977 1000310010 K1 COLLAR, TUBE, 31.8MM No Model Compatibility List $15.18 / Each

3
713978 1000310011 K10 Teardrop Boot No Model Compatibility List $6.73 / Each

1
713979 1000310012 K9 Plastic Footpad No Model Compatibility List $6.73 / Each

9,3,12,13,14
B 713980 1000310013 B26 Coped Bumper - Weight Horn No Model Compatibility List $10.11 / Each

3
B 713981 1000310014 B25 End Cap No Model Compatibility List $5.90 / Each

9
K 714008 1000310115 KZ2 FHSCS 1/4"-20 X 1/2" No Model Compatibility List $1.33 / Each

1
714063 1000310667 B7 1" CRR - 8" No Model Compatibility List $87.85 / Each

1
714093 1000312062 Z46 5/16" x 3/4" BOLT No Model Compatibility List $1.33 / Each

2
S 714125 1000312157 Seat Sleeve Z2 3/8" NUT No Model Compatibility List $1.33 / Each

2
714130 1000312169 Seat Adj Hnd Z5 WASHER,SNAP .364 ID (9.25MM) No Model Compatibility List $1.33 / Each

2
J 714143 1000312207 J16 BACK PAD PLASTICS No Model Compatibility List $35.46 / Each

9,4,5,6,12,13,14
714144 1000312209 J15 Bottom Pad No Model Compatibility List $11.80 / Each

12,13,14
714160 1000312247 K4 End cap - weight horn 2.5lbs No Model Compatibility List $5.04 / Each

9,3
714161 1000312249 K5 End cap - weight horn 5lbs No Model Compatibility List $5.04 / Each

9,3
714162 1000312250 K8 End cap - weight horn 10lbs No Model Compatibility List $5.04 / Each

9,3
714163 1000312253 K7 End cap - weight horn 25lbs No Model Compatibility List $5.04 / Each

9,3
714164 1000312254 K6 End cap - weight horn 45lbs No Model Compatibility List $5.04 / Each

9,3
714168 1000312276 Seat Adj Hnd B1 CAP;ABS;SEAT No Model Compatibility List $3.02 / Each

9,12,13,14
714187 1000312322 Seat Adj Hnd B6 TORSION SPRING No Model Compatibility List $3.02 / Each

2
714195 1000312360 Seat Adj Hnd B7 PAWL; SEAT ADJ; 45# No Model Compatibility List $20.25 / Each

12,13,14
714196 1000312362 B27 CAP; TOP SEAT; RUBBER No Model Compatibility List $5.04 / Each

9,12,13,14
714197 1000312364 Seat Sleeve B1 PLASTIC COVER INTERNAL SEAT No Model Compatibility List $6.73 / Each

9,12,13,14
714198 1000312366 Seat Sleeve B5 SLEEVE SEAT INTERNAL No Model Compatibility List $57.43 / Each

3,12,13,14
714206 1000312388 Seat Adj Hnd B3 Clip, Tinnerman No Model Compatibility List $2.18 / Each

2
714231 1000312665 Seat Adj Hn B11 1 1/4"OD x 3/4"ID MACHINE BUSHING No Model Compatibility List $2.96 / Each

8,4,5,6
714294 1000313425 V49 SEAT ROM DECAL No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3,12,13,14
714303 1000313473 V51 DECAL;Arm Weight_Starting Res;English No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
714538 1000315894 V55 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

7,3,4,5,6
714690 1000317192 Seat Sleeve Kit ADJ SEAT SLEEVE ASSEMBLY No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
714691 1000317193 Seat Adj Hd Set ADJ HANDLE - PAWL ASSEMBLY No Model Compatibility List $0.00 / Each
Out Of Stock 		3,11
714692 1000317194 Seat Adj Hd Z10 SCREW; SH M5-0.8 x 25 No Model Compatibility List $2.18 / Each

2
714771 1000318165 1 WEIGHT HORN SET No Model Compatibility List $18.56 / Each

3
714772 1000318166 2 KIT TEARDROP FOOT No Model Compatibility List $33.77 / Each

9,3
714830 1000318510 3 HAND GRIP 1.25 DIA 12"+LONG No Model Compatibility List $48.98 / Each

11
714831 1000318521 V51 DECAL;Arm Weight_Starting Res;French No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
716396 1000336432 Seat Sleeve Z3 BUTTON HEAD BOLT No Model Compatibility List $3.02 / Each

2
717317 1000343916 B23 Cap, 40 mm sq ABS No Model Compatibility List $0.00 / Each
Out Of Stock 		9
717377 1000344562 V55 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $15.18 / Each

7,3,4,5,6
717446 1000345215 Seat Sleeve Z4 SHCS;3/8-16 x 1/2" No Model Compatibility List $0.00 / Each
Out Of Stock 		1
718749 1000353136 K3 1.25" Grip;Order by 1" increments; No Model Compatibility List $0.00 / Each
Out Of Stock 		11
719411 1000361105 Seat Adj Hnd Z2 Screw;Tapped;Pan;PH;#6 x 0.75 No Model Compatibility List $0.00 / Each
Out Of Stock 		2
719680 1000363753 V50 Warning Label;Plate Loaded; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719681 1000363756 V50 Warning Label;Plate Loaded;French No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720157 1000369012 AB1 WELDMENT, MAIN FRAME, A414;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720158 1000369013 AB1 WELDMENT, MAIN FRAME, A414;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720159 1000369014 AB1 WELDMENT, MAIN FRAME, A414;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720160 1000369027 AB2 WELDMENT, RIGHT ARM;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720161 1000369028 AB2 WELDMENT, RIGHT ARM;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720162 1000369029 AB2 WELDMENT, RIGHT ARM;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720163 1000369042 AB3 Left Arm;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720164 1000369043 AB3 Left Arm;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720165 1000369044 AB3 Left Arm;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721552 1000384006 V54 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721940 1000386723 AB4 WELDMENT, SEAT ASSY, A417;Chrome No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3,12,13,14
722577 1000394201 B45 Oilube Flange Bushing;3/4 ID x Reamed .7 No Model Compatibility List $37.15 / Each

8,15
729261 See Pad Matrix J6 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
View Drawing
