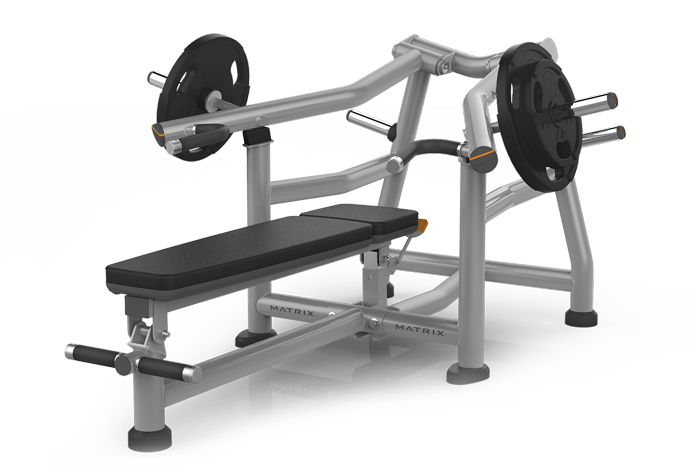

Matrix Commercial - MG-A416-02 - 2013

Repair Parts for Matrix Commercial MG-A416-02 MGPL71

Brand: Matrix Commercial

Category: Plate Loaded

Type: Strength Systems

Model Name: MG-A416-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
713802 1000308395 B10 FLANGE BEARING - 1" No Model Compatibility List $21.89 / Each

8
B 713806 1000308417 B23 2" x 2" END CAP No Model Compatibility List $5.46 / Each

9
B 713810 1000308421 B63 HALF-ROUND RUBBER BUMPER No Model Compatibility List $16.41 / Each

1
713815 1000308429 B16 2" x 3" Rubber Block No Model Compatibility List $23.63 / Each

1
713816 1000308434 Z11 1 1/64"ID MACHINE BUSHING No Model Compatibility List $1.43 / Each

8,4,5,6
Z 713818 1000308436 Z19 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.43 / Each

2
713821 1000308439 Z31 NUT;NLK;.375-16;ZN; No Model Compatibility List $1.43 / Each

2
Z 713828 1000308446 Z17 WASHER;FLT;USS;Diam.0.281XDiam.0.734X.06 No Model Compatibility List $1.43 / Each

2
713830 1000308448 Z20 5/16" X 1 1/2" BOLT No Model Compatibility List $1.43 / Each

2
713835 1000308453 Z12 1 9/16"OD x 7/16"ID WASHER No Model Compatibility List $3.28 / Each

2
713838 1000308466 B15 Flat Bumper - Weight Horn No Model Compatibility List $3.02 / Each

3
713839 1000308467 B42 End cap - weight horn No Model Compatibility List $5.90 / Each

9,3
V 713842 1000308473 V63 Lable, hand pinch No Model Compatibility List $3.02 / Each

12,13,14
Z 713935 1000309773 Z1 Screw Set;M6x1.0Px5L;BP;POT No Model Compatibility List $3.28 / Each

2
B 713937 1000309841 B22 2" X 3" END CAP No Model Compatibility List $7.28 / Each

9
Z 713940 1000309847 Z37 WASHER, .50 OD X .38 ID X .05 No Model Compatibility List $1.43 / Each

2
713943 1000309851 Z27 SCREW;HH;.375-16 x 2.25;ZN; No Model Compatibility List $2.18 / Each

2
Z 713949 1000309857 Z14 BHSCS 3/8 x 3/4" No Model Compatibility List $3.02 / Each

1
Z 713950 1000309858 Z13 3/4" FLAT WASHER No Model Compatibility List $1.33 / Each

2
B 713974 1000310007 B48 Round Leveler No Model Compatibility List $20.05 / Each

3
B 713975 1000310008 B49 ROUND LEVELER BOOT No Model Compatibility List $5.04 / Each

3
713976 1000310009 K2 CAP, END TUBE, 31.8MM No Model Compatibility List $7.28 / Each

9,3
713977 1000310010 K1 COLLAR, TUBE, 31.8MM No Model Compatibility List $15.18 / Each

3
713978 1000310011 K10 Teardrop Boot No Model Compatibility List $6.73 / Each

1
713979 1000310012 K9 Plastic Footpad No Model Compatibility List $6.73 / Each

9,3,12,13,14
B 713980 1000310013 B41 Coped Bumper - Weight Horn No Model Compatibility List $10.11 / Each

3
B 713981 1000310014 B21 End Cap No Model Compatibility List $5.90 / Each

9
B 713986 1000310083 B24 2" ROUND END CAP No Model Compatibility List $5.04 / Each

9
Z 713991 1000310088 Z25 Washer, Curved, 1/2" No Model Compatibility List $3.02 / Each

2
Z 713992 1000310089 Z26 SCREW;HH;.500-13 x 4.00;ZN; No Model Compatibility List $5.04 / Each

2
K 714008 1000310115 KZ2 FHSCS 1/4"-20 X 1/2" No Model Compatibility List $1.33 / Each

1
714025 1000310301 Z28 SCREW;HH;.500-13 x 4.50;ZN; No Model Compatibility List $5.04 / Each

2

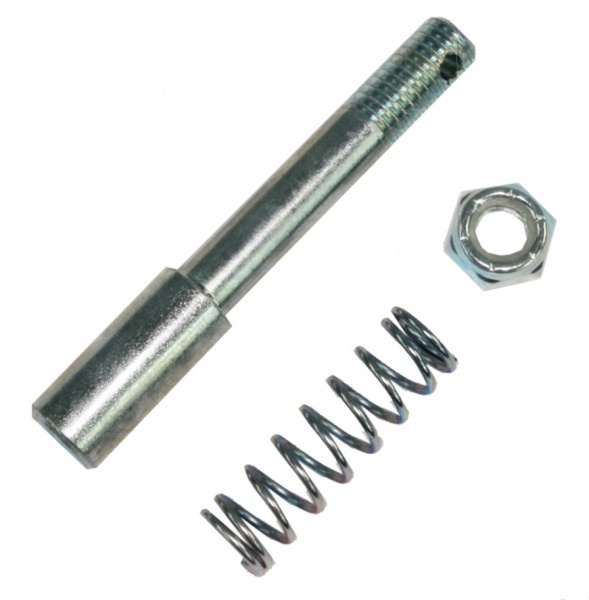

714052 1000310559 B33 Lever Lock Pin Assembly No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
714063 1000310667 B9 1" CRR - 8" No Model Compatibility List $87.85 / Each

1
B 714089 1000312044 B34 MASTER LINK No Model Compatibility List $10.11 / Each

3
714093 1000312062 Z63 5/16" x 3/4" BOLT No Model Compatibility List $1.33 / Each

2
714108 1000312097 Z29 SCREW;HH;.500-13 x 3.75;ZN; No Model Compatibility List $5.04 / Each

2
Z 714127 1000312161 Z30 NUT;NLK;.500-13;ZN;TALL; No Model Compatibility List $1.43 / Each

2
J 714142 1000312205 J52 Head Pad Plastic Cover No Model Compatibility List $13.49 / Each

9,12,13,14
J 714143 1000312207 J50 BACK PAD PLASTICS No Model Compatibility List $35.46 / Each

9,4,5,6,12,13,14
B 714154 1000312235 B35 PLASTISOL ENVELOPE No Model Compatibility List $5.46 / Each

1
B 714175 1000312296 B36 Flange Bushing - 3/4"OD x 1/2"ID No Model Compatibility List $10.92 / Each

8
B 714178 1000312302 B32 3/8" FLANGE BUSHING - 3/8" No Model Compatibility List $3.28 / Each

8
714214 1000312420 J53 HEAD PAD No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
714215 1000312422 J51 36" Back Pad No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
Z 714235 1000312700 Z18 7/16" FLAT WASHER No Model Compatibility List $2.44 / Each

2
714302 1000313470 V57 Decal, ROM No Model Compatibility List $5.04 / Each

7,3
714538 1000315894 V61 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

7,3,4,5,6
714589 1000316282 V62 DECAL,MATRIX LOGO 6.5 X .56(166MM) No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
714615 1000316504 V59 DECAL;Supine Bench_Staring Res No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3,12,13,14
K 714766 1000318109 Kit 1 HAND GRIP 1.25 DIA 0-12"LONG No Model Compatibility List $48.98 / Each

11
714772 1000318166 3 KIT TEARDROP FOOT No Model Compatibility List $33.77 / Each

9,3
714830 1000318510 Kit 2 HAND GRIP 1.25 DIA 12"+LONG No Model Compatibility List $48.98 / Each

11
717377 1000344562 V61 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $15.18 / Each

7,3,4,5,6
718749 1000353136 K3 - Kit 2 1.25" Grip;Order by 1" increments; No Model Compatibility List $0.00 / Each
Out Of Stock 		11
719680 1000363753 V60 Warning Label;Plate Loaded; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719681 1000363756 V60 Warning Label;Plate Loaded;French No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720241 1000370104 AB5 Back Pad Weldment;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
720242 1000370105 AB5 Back Pad Weldment;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
720243 1000370106 AB5 Back Pad Weldment;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
720248 1000370563 AB2 Back Pad Frame;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
720249 1000370564 AB2 Back Pad Frame;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
720250 1000370565 AB2 Back Pad Frame;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
720251 1000370577 AB8 Chrome Slide Assy;A416 No Model Compatibility List $0.00 / Each
Out Of Stock 		7,12,13,14
720252 1000370579 AB6 Slide Housing Assy;A416;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
720253 1000370581 AB6 Slide Housing Assy;A416;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
720254 1000370594 AB7 ROM Handle Weldment;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,11
720255 1000370595 AB7 ROM Handle Weldment;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,11
720256 1000370596 AB7 ROM Handle Weldment;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,11
720257 1000370609 AB1 Main Frame;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720258 1000370610 AB1 Main Frame;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720259 1000370611 AB1 Main Frame;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720260 1000370624 AB3 Left Arm weldment;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720261 1000370625 AB3 Left Arm weldment;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720262 1000370626 AB3 Left Arm weldment;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720263 1000370639 AB4 Right Arm;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720264 1000370640 AB4 Right Arm;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720265 1000370641 AB4 Right Arm;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721552 1000384006 V64 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
723718 1000412313 B64 Cable;A416;Safety No Model Compatibility List $0.00 / Each
Out Of Stock 		9,4,5,6
724971 100370580 AB6 Slide Housing Assy;A416;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
