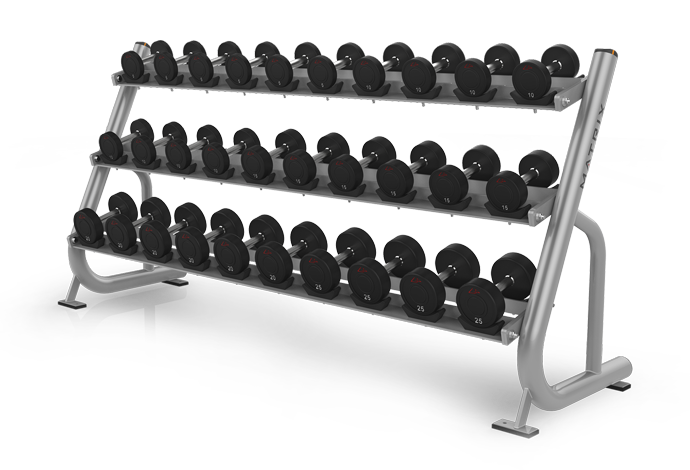

Replacement Parts for Matrix Commercial MG-A42-02 Freeweight

Matrix Commercial - MG-A42-02 - 2013

Repair Parts for Matrix Commercial MG-A42-02 MGFW281

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

MGFW281

Model Name: MG-A42-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

16459.0-base.pdf

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Fastener Related
Frame Components
Wires
Cables
Power
Circuit Boards
Plastic Parts
Other

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
713821	1000308439	Z9	NUT;NLK;.375-16;ZN;	No	Model Compatibility List	$1.43 / Each	2
713826	1000308444	Z7	WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06	No	Model Compatibility List	$1.43 / Each	2
713833	1000308451	B11	5" RUBBER FOOT	No	Model Compatibility List	$14.59 / Each	9,3
713981	1000310014	B13	End Cap	No	Model Compatibility List	$5.90 / Each	9
714079	1000311963	Z5	Screw;HH;.375-16x1.25;Zinc	No	Model Compatibility List	$0.00 / Each Out Of Stock	2
714105	1000312091	Z6	SCREW;HH;.500-13 x 1.75;ZN;	No	Model Compatibility List	$3.28 / Each	2
714127	1000312161	Z10	NUT;NLK;.500-13;ZN;TALL;	No	Model Compatibility List	$1.43 / Each	2
714205	1000312386	B4	DUMBBELL CRADLE	No	Model Compatibility List	$14.59 / Each	1
714235	1000312700	Z8	7/16" FLAT WASHER	No	Model Compatibility List	$2.44 / Each	2
714538	1000315894	V15	DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame	No	Model Compatibility List	$6.73 / Each	7,3,4,5,6
717324	1000344066	AB1	Frame;Right;3 Tier Dumbell Rack;Iced Silver	No	Model Compatibility List	$0.00 / Each Out Of Stock	2,3,4,5,6
717325	1000344067	AB1	Frame;Right;3 Tier Dumbell Rack;Black Glossy	No	Model Compatibility List	$0.00 / Each Out Of Stock	2,3,4,5,6
717326	1000344068	AB1	Frame;Right;3 Tier Dumbell Rack;Lace White	No	Model Compatibility List	$0.00 / Each Out Of Stock	2,3,4,5,6
717377	1000344562	V15	Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame	No	Model Compatibility List	$15.18 / Each	7,3,4,5,6
719141	1000356370	AB2	WELDMENT, FRAME, LEFT SIDE;Iced Silver	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
719142	1000356371	AB2	WELDMENT, FRAME, LEFT SIDE;Black Glossy	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
719143	1000356372	AB2	WELDMENT, FRAME, LEFT SIDE;Lace White	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
719680	1000363753	V16	Warning Label;Plate Loaded;	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
719681	1000363756	V16	Warning Label;Plate Loaded;French	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
721376	1000382839	AB3	Dumbbell Shelf;Weldment;Black Ridge	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
721552	1000384006	V14	Serial Number Label;4" x 1.5";3M;	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
