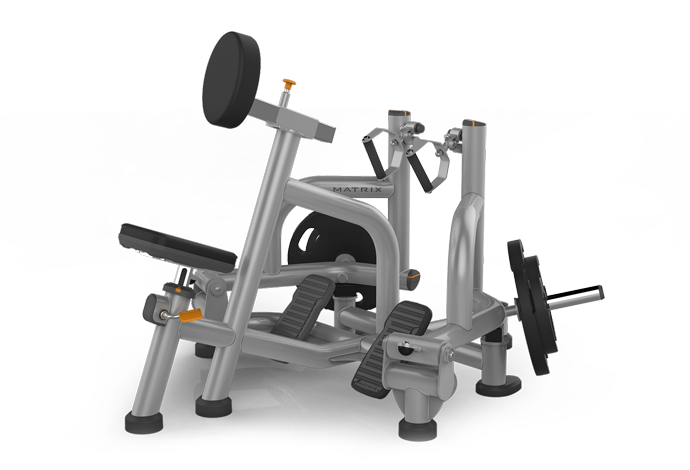

Matrix Commercial - MG-A420-02 - 2013

Repair Parts for Matrix Commercial MG-A420-02 MGPL73

Brand: Matrix Commercial

Category: Plate Loaded

Type: Strength Systems

Model Name: MG-A420-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
S 713644 1000306099 Seat Adj Hnd B9 grip-Extrawork;Adjustable;;Cr Plate;FW20 No Model Compatibility List $35.46 / Each

3,11
713802 1000308395 Z5 FLANGE BEARING - 1" No Model Compatibility List $21.89 / Each

8
Z 713805 1000308416 Z13 1" Ext. SNAP RING No Model Compatibility List $2.37 / Each

2
B 713806 1000308417 B12 2" x 2" END CAP No Model Compatibility List $5.46 / Each

9
713808 1000308419 B19 1" Vinyl Cap No Model Compatibility List $2.18 / Each

9
B 713810 1000308421 B9 HALF-ROUND RUBBER BUMPER No Model Compatibility List $16.41 / Each

1
B 713811 1000308424 B11 SPRING PIN ASSEMBLY No Model Compatibility List $45.60 / Each

2,3,12,13,14
Z 713814 1000308428 Z61 3/8" NUT No Model Compatibility List $1.43 / Each

2
713815 1000308429 B10 2" x 3" Rubber Block No Model Compatibility List $23.63 / Each

1
713816 1000308434 Z6 1 1/64"ID MACHINE BUSHING No Model Compatibility List $1.43 / Each

8,4,5,6
713817 1000308435 Z14 1 21/64" O.D. x 1 1/64" I.D. 14GA No Model Compatibility List $2.37 / Each

1
Z 713818 1000308436 Z16 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.43 / Each

2
Z 713826 1000308444 Z60 WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06 No Model Compatibility List $1.43 / Each

2
Z 713828 1000308446 Z17 WASHER;FLT;USS;Diam.0.281XDiam.0.734X.06 No Model Compatibility List $1.43 / Each

2
713835 1000308453 Z7 1 9/16"OD x 7/16"ID WASHER No Model Compatibility List $3.28 / Each

2
713838 1000308466 B30 Flat Bumper - Weight Horn No Model Compatibility List $3.02 / Each

3
713839 1000308467 B31 End cap - weight horn No Model Compatibility List $5.90 / Each

9,3
V 713842 1000308473 V56 Lable, hand pinch No Model Compatibility List $3.02 / Each

12,13,14
713947 1000309855 Z20 SCREW;HH;.313-18 x 1.75;ZN; No Model Compatibility List $1.33 / Each

2
Z 713949 1000309857 Z18 BHSCS 3/8 x 3/4" No Model Compatibility List $3.02 / Each

1
Z 713950 1000309858 Z24 3/4" FLAT WASHER No Model Compatibility List $1.33 / Each

2
Z 713967 1000309953 Z22 SCREW;HH;.313-18 x 1.25;ZN; No Model Compatibility List $2.37 / Each

2
B 713974 1000310007 B29 Round Leveler No Model Compatibility List $20.05 / Each

3
B 713975 1000310008 B28 ROUND LEVELER BOOT No Model Compatibility List $5.04 / Each

3
713978 1000310011 K10 Teardrop Boot No Model Compatibility List $6.73 / Each

1
713979 1000310012 K9 Plastic Footpad No Model Compatibility List $6.73 / Each

9,3,12,13,14
B 713981 1000310014 B32 End Cap No Model Compatibility List $5.90 / Each

9
K 714008 1000310115 KZ2 FHSCS 1/4"-20 X 1/2" No Model Compatibility List $1.33 / Each

1
714063 1000310667 B4 1" CRR - 8" No Model Compatibility List $87.85 / Each

1
714080 1000311964 B50 1/4" plasma No Model Compatibility List $0.00 / Each
Out Of Stock 		1
714086 1000312036 B21 1 1/4"OD x 1"ID PLASTIC TUBE - 2" No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
714093 1000312062 Z23 5/16" x 3/4" BOLT No Model Compatibility List $1.33 / Each

2
S 714125 1000312157 Seat Sleeve Z2 3/8" NUT No Model Compatibility List $1.33 / Each

2
714130 1000312169 Seat Adj Hnd Z5 WASHER,SNAP .364 ID (9.25MM) No Model Compatibility List $1.33 / Each

2
714135 1000312191 B46 A420 PL Low Row Plate;Rubber No Model Compatibility List $48.98 / Each

3
714144 1000312209 J38 Bottom Pad No Model Compatibility List $11.80 / Each

12,13,14
714168 1000312276 Seat Adj Hnd B1 CAP;ABS;SEAT No Model Compatibility List $3.02 / Each

9,12,13,14
714187 1000312322 Seat Adj Hnd B6 TORSION SPRING No Model Compatibility List $3.02 / Each

2
714195 1000312360 Seat Adj Hnd B7 PAWL; SEAT ADJ; 45# No Model Compatibility List $20.25 / Each

12,13,14
714196 1000312362 B35 CAP; TOP SEAT; RUBBER No Model Compatibility List $5.04 / Each

9,12,13,14
714197 1000312364 Seat Sleeve B1 PLASTIC COVER INTERNAL SEAT No Model Compatibility List $6.73 / Each

9,12,13,14
714198 1000312366 Seat Sleeve B5 SLEEVE SEAT INTERNAL No Model Compatibility List $57.43 / Each

3,12,13,14
714206 1000312388 Seat Adj Hnd B3 Clip, Tinnerman No Model Compatibility List $2.18 / Each

2
714211 1000312414 J39 13" PAD ASSEMBLY No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
714218 1000312432 J40 CHEST PAD, 420 No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
714231 1000312665 Seat Adj Hn B11 1 1/4"OD x 3/4"ID MACHINE BUSHING No Model Compatibility List $2.96 / Each

8,4,5,6
714294 1000313425 V51 SEAT ROM DECAL No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3,12,13,14
714302 1000313470 V58 Decal, ROM No Model Compatibility List $5.04 / Each

7,3
714589 1000316282 V53 DECAL,MATRIX LOGO 6.5 X .56(166MM) No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
714684 1000317172 AB37 WELDMENT SEAT POST;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
714685 1000317173 AB37 WELDMENT SEAT POST;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
714686 1000317174 AB37 WELDMENT SEAT POST;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
714690 1000317192 Seat Sleeve Set ADJ SEAT SLEEVE ASSEMBLY No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
714691 1000317193 Seat Adj Hd Set ADJ HANDLE - PAWL ASSEMBLY No Model Compatibility List $0.00 / Each
Out Of Stock 		3,11
714692 1000317194 Seat Adj Hd Z10 SCREW; SH M5-0.8 x 25 No Model Compatibility List $2.18 / Each

2
714772 1000318166 1 KIT TEARDROP FOOT No Model Compatibility List $33.77 / Each

9,3
715771 1000328053 V57 DECAL; M49 Smith Starting Res No Model Compatibility List $5.04 / Each

7,3
716396 1000336432 Seat Sleeve Z3 BUTTON HEAD BOLT No Model Compatibility List $3.02 / Each

2
717234 1000343293 B15 Swivel Handle Set;Ridge Black No Model Compatibility List $395.43 / Each

4,5,6,11
717446 1000345215 Seat Sleeve Z4 SHCS;3/8-16 x 1/2" No Model Compatibility List $0.00 / Each
Out Of Stock 		1
719411 1000361105 Seat Adj Hnd Z2 Screw;Tapped;Pan;PH;#6 x 0.75 No Model Compatibility List $0.00 / Each
Out Of Stock 		2
719680 1000363753 V52 Warning Label;Plate Loaded; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719681 1000363756 V52 Warning Label;Plate Loaded;French No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720186 1000369169 AB3 Right Arm;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720187 1000369170 AB3 Right Arm;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720188 1000369171 AB3 Right Arm;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720207 1000369264 AB1 Main Frame;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720208 1000369265 AB1 Main Frame;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720209 1000369266 AB1 Main Frame;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720210 1000369279 AB2 Left Arm;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720211 1000369280 AB2 Left Arm;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720212 1000369281 AB2 Left Arm;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720213 1000369294 AB8 Chest Chrome Tube Assy; No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3,12,13,14
720214 1000369300 Z59 SCREW;FH;.375-16 x 1.50;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
721552 1000384006 V54 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
722577 1000394201 B36 Oilube Flange Bushing;3/4 ID x Reamed .7 No Model Compatibility List $37.15 / Each

8,15
