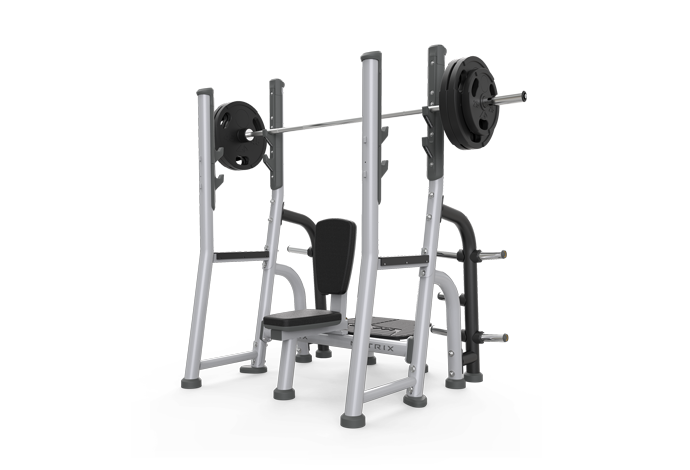

Matrix Commercial - MG-A45-03 - 2014

Repair Parts for Matrix Commercial MG-A45-03 FW208

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Name: MG-A45-03

Version: 2014

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 701376 004426-00 B21 Screw;FH;M6X1.0PX12L;;PH;;BZN;; No Model Compatibility List $1.66 / Each

2
Z 701465 004518-00 Z04 Screw;SH;M10X1.5PX75L;;HS;;CHM;; No Model Compatibility List $3.64 / Each

2
Z 701522 004555-AB Z10 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A No Model Compatibility List $4.00 / Each

2
B 701660 004696-AB B20 Screw;Hex Socket;8X1.25X20L;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 704193 020465-AB Z02 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
C 705389 049043-AA C26 Cap;S50.0x75.0;2.0t.3.0t tube No Model Compatibility List $3.35 / Each

9,3
Z 708730 1000105174 Z03 Nut;Nylon;M10x1.5P;G12.9;CHM No Model Compatibility List $1.79 / Each

2
Z 712934 1000231572 Z01 SCREW;SH;M10X1.5PX20L;;;HS;BP;CHM; No Model Compatibility List $2.00 / Each

2
B 713539 1000304912 B18 Food Pad;ADJ Base;;PP;BL/Black C;FW201; No Model Compatibility List $42.22 / Each

3,4,5,6,12,13,14
B 713541 1000304951 B17 Rubber Sleeve;Foot Pad;;PVC Anti-fire;Gr No Model Compatibility List $8.42 / Each

9,3,12,13,14
B 713548 1000305030 B38 Plastic Cover;Foot Pad;down;Soft PVC;FW2 No Model Compatibility List $8.42 / Each

9,3,12,13,14
B 713549 1000305031 B39 Boot;Hang Rod;1;PU;Gray/60461;FW201-KM; No Model Compatibility List $25.32 / Each

3
B 713552 1000305041 B40 Boot;Hang Rod;2;PU; No Model Compatibility List $30.39 / Each

3
B 713553 1000305044 B41 Boot;Hang Rod;3;PU; No Model Compatibility List $32.08 / Each

3
B 713556 1000305050 B43 Boot;Hang Rod;;TPU;FW201-KM; No Model Compatibility List $18.56 / Each

3
B 713557 1000305058 B44 Food Pad;ADJ Axle;down;PP;BL/Black C;FW2 No Model Compatibility List $8.42 / Each
Out Of Stock 		8,4,5,6,12,13,14
713561 1000305124 B15 End Cap;Hang Rod;;HDPE;Gray/80435;FW201- No Model Compatibility List $3.35 / Each

9,3
B 713562 1000305125 B16 Boot;Hang Rod;;SBR+NBR;Gray/80435;FW201- No Model Compatibility List $8.42 / Each

3
B 713595 1000305389 B04 Plastic Cover;Frame;;PE No Model Compatibility List $57.43 / Each

9,3
713597 1000305394 AC1 Seat Set;;;painting;FW208-KM No Model Compatibility List $152.07 / Each

12,13,14
713600 1000305427 T08 Food Pad;;;SBR;;FW203-KM No Model Compatibility List $233.19 / Each

12,13,14
C 713629 1000305926 C25 Cover Board;Back Cover;;PA746;FW207-KM No Model Compatibility List $16.41 / Each

9,4,5,6
B 713635 1000305968 B25 Plastic Cover;Hang Rod;;HDPE;Gray/80435; No Model Compatibility List $3.35 / Each

9,3
713636 1000305970 B26 End Cap;Hang Rod;;HDPE;Gray/80435;;FW201 No Model Compatibility List $3.35 / Each

9,3
B 713637 1000305972 B27 End Cap;Hang Rod;;HDPE;Gray/80435;;FW201 No Model Compatibility List $3.35 / Each

9,3
B 713638 1000305974 B28 End Cap;Hang Rod;;HDPE;Gray/80435;;FW201 No Model Compatibility List $3.35 / Each

9,3
V 713703 1000306714 V01 Warning Label;;;;;;;Olympic Bench; No Model Compatibility List $8.42 / Each

1
3 713738 1000307163 3 Storage Horn Set;Semi-Assy;left;;;FW208- No Model Compatibility List $388.67 / Each

1
713739 1000307166 4 Storage Horn Set;Semi-Assy;right;;;FW208 No Model Compatibility List $388.67 / Each

1
B 713740 1000307173 B48 Plastic Cover;Nut;;;;;; No Model Compatibility List $1.66 / Each

2,9
713770 1000307876 V02 LOGO Label;LOGO;;;;;;FW201-KM No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Z 713794 1000308342 Z11 Screw;Hex;Hex Head;M10x1.5Px35L;Machine No Model Compatibility List $1.66 / Each

2,4,5,6
T 714760 1000317876 T20 End Cap;;;PP;;Diam.X50.8;; No Model Compatibility List $2.18 / Each

9
V 715271 1000322602 V01 Warning Label;;Olympic Bench;;;;French;F No Model Compatibility List $5.04 / Each

1
715614 1000326899 2 Pedal Set 1;Black Ridge;FW208 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,4,5,6
715891 1000329055 AG1 CON Tube Set;;;painting;;Iced Sliver;FW2 No Model Compatibility List $233.19 / Each

3
715892 1000329060 AG1 Connect Base Set;;;painting;;Lace White; No Model Compatibility List $233.19 / Each

3,4,5,6
715894 1000329062 AG1 Connect Base Set;;;painting;;Black Gloss No Model Compatibility List $233.19 / Each

3,4,5,6
715897 1000329084 AC1 base set;;;painting;;LaceWhite;FW208; No Model Compatibility List $150.38 / Each

3,4,5,6
715898 1000329085 AC1 base set;;;painting;;BlackGlossy;FW208; No Model Compatibility List $150.38 / Each

3,4,5,6
715899 1000329086 AB3 Frame Tube Set;;F;painting;;IcedSliver;F No Model Compatibility List $270.37 / Each

3
715900 1000329090 AB3 Frame Tube Set;;F;painting;;LaceWhite;FW No Model Compatibility List $270.37 / Each

3,4,5,6
715901 1000329091 AB3 Frame Tube Set;;F;painting;;BlackGlossy; No Model Compatibility List $270.37 / Each

3,4,5,6
715902 1000329093 AB1 Frame Set;;L;painting;;IcedSliver;FW208; No Model Compatibility List $310.93 / Each

3
715903 1000329095 AB1 Frame Set;;L;painting;;LaceWhite;FW208; No Model Compatibility List $310.93 / Each

3,4,5,6
715904 1000329097 AB1 Frame Set;;L;painting;;BlackGlossy;FW208 No Model Compatibility List $310.93 / Each

3,4,5,6
715905 1000329099 AB2 Frame Set;;R;painting;;IcedSliver;FW208; No Model Compatibility List $256.85 / Each

3
715906 1000329101 AB2 Frame Set;;R;painting;;LaceWhite;FW208; No Model Compatibility List $256.85 / Each

3,4,5,6
715907 1000329103 AB2 Frame Set;;R;painting;;BlackGlossy;FW208 No Model Compatibility List $256.85 / Each

3,4,5,6
728977 N/A V03 Console Mast,Old version (4 holes on front) No Model Compatibility List $0.00 / Each
Out Of Stock 		7
729138 Part of Kit 2 AT1 Console Mast;Painting;MM330;6027-45- No Model Compatibility List $0.00 / Each
Out Of Stock 		7
729152 Part of Kit 3 AB4 Pedal Arm;Right;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
729165 Part of Kit 4 AB6 Pedal Arm;Left;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
729261 See Pad Matrix J02 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
