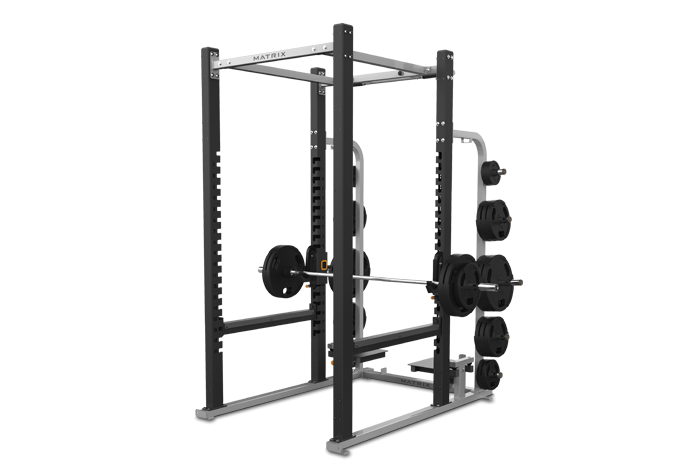

Matrix Commercial - MG-A47-04 - 2014

Repair Parts for Matrix Commercial MG-A47-04 MGPPR44,MGPR45

Brand: Matrix Commercial

Category: Racks & Platforms

Type: Strength Systems

Model Name: MG-A47-04

Version: 2014

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
S 713811 1000308424 Spotter Stand 2 SPRING PIN ASSEMBLY No Model Compatibility List $45.60 / Each

2,3,12,13,14
Z 713814 1000308428 Z31 3/8" NUT No Model Compatibility List $1.43 / Each

2
Z 713826 1000308444 Z24 WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06 No Model Compatibility List $1.43 / Each

2
713838 1000308466 B37 Flat Bumper - Weight Horn No Model Compatibility List $3.02 / Each

3
Z 713935 1000309773 Z1 Screw Set;M6x1.0Px5L;BP;POT No Model Compatibility List $3.28 / Each

2
S 713938 1000309842 Spotter Stand 6 1 1/2" X 2" END CAP No Model Compatibility List $5.04 / Each

9
S 713939 1000309846 Spotter Stand 5 1/2" JAM NUT No Model Compatibility List $1.43 / Each

2
S 713940 1000309847 Spotter Stand 3 WASHER, .50 OD X .38 ID X .05 No Model Compatibility List $1.43 / Each

2
713976 1000310009 K2 CAP, END TUBE, 31.8MM No Model Compatibility List $7.28 / Each

9,3
713977 1000310010 K1 COLLAR, TUBE, 31.8MM No Model Compatibility List $15.18 / Each

3
Z 714008 1000310115 Z43 FHSCS 1/4"-20 X 1/2" No Model Compatibility List $1.33 / Each

1
Z 714031 1000310307 Z29 SCREW;HH;.375-16 x 1.00;ZN;SAE 5 No Model Compatibility List $2.37 / Each

2
Z 714101 1000312084 Z41 3/8" x 4" BOLT No Model Compatibility List $3.02 / Each

2
P 714152 1000312231 Pull Up Bar B3 1 1/2" Round End Cap No Model Compatibility List $2.18 / Each

9
714160 1000312247 K4 End cap - weight horn 2.5lbs No Model Compatibility List $5.04 / Each

9,3
714161 1000312249 K5 End cap - weight horn 5lbs No Model Compatibility List $5.04 / Each

9,3
714162 1000312250 K8 End cap - weight horn 10lbs No Model Compatibility List $5.04 / Each

9,3
714163 1000312253 K7 End cap - weight horn 25lbs No Model Compatibility List $5.04 / Each

9,3
714164 1000312254 K6 End cap - weight horn 45lbs No Model Compatibility List $5.04 / Each

9,3
Z 714236 1000312711 Z21 1/4" x 1/2" BUTTON HEAD No Model Compatibility List $1.46 / Each

1
714280 1000313143 B34 1/4" ABS No Model Compatibility List $13.49 / Each

1
714538 1000315894 V55 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

7,3,4,5,6
714550 1000315993 B44 2" TUBING EXTRUSION No Model Compatibility List $103.06 / Each

1
714552 1000316004 AB1 WELDMENT, LOWER BASE LH;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
714553 1000316005 AB1 WELDMENT, LOWER BASE LH:Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
714554 1000316006 AB1 WELDMENT, LOWER BASE LH;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
714555 1000316014 AB2 WELDMENT, LOWER BASE RH;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
714556 1000316015 AB2 WELDMENT, LOWER BASE RH:Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
714557 1000316016 AB2 WELDMENT, LOWER BASE RH;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
714589 1000316282 V54 DECAL,MATRIX LOGO 6.5 X .56(166MM) No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
P 714766 1000318109 Pull Up Bar Kit 1 HAND GRIP 1.25 DIA 0-12"LONG No Model Compatibility List $48.98 / Each

11
714771 1000318165 Kit 1 WEIGHT HORN SET No Model Compatibility List $18.56 / Each

3
717337 1000344140 Pull Up AB1A WELDMENT; PULL-UP BAR No Model Compatibility List $0.00 / Each
Out Of Stock 		3
717377 1000344562 V55 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $15.18 / Each

7,3,4,5,6
717443 1000345209 Z26 Screw;HH;.375-16x5.00;Zinc No Model Compatibility List $0.00 / Each
Out Of Stock 		2
717444 1000345210 B42 7/16" HOLE PLUG; NYLON No Model Compatibility List $1.33 / Each

1
717726 1000347140 AB5 Bottom Brace Assy;A Series;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
717727 1000347141 AB5 Bottom Brace Assy;A Series;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
717728 1000347142 AB5 Bottom Brace Assy;A Series;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
717729 1000347153 B46 ABS Wear Guard No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
717763 1000347398 Pull Up Bar Set WELDMENT, STRAIGHT CHIN UP BAR;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
717764 1000347399 Pull Up Bar Set WELDMENT, STRAIGHT CHIN UP BAR;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
717765 1000347400 Pull Up Bar Set WELDMENT, STRAIGHT CHIN UP BAR;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
718749 1000353136 K3 1.25" Grip;Order by 1" increments; No Model Compatibility List $0.00 / Each
Out Of Stock 		11
718961 1000354777 Spotter Stand 4 Screw;HH;.500-13 x 7.5;ZN No Model Compatibility List $0.00 / Each
Out Of Stock 		2
719408 1000361089 AB9 WELDMENT, SUPPORT;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719409 1000361090 AB9 WELDMENT, SUPPORT;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
719410 1000361091 AB9 WELDMENT, SUPPORT;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
719680 1000363753 V4 Warning Label;Plate Loaded; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719681 1000363756 V4 Warning Label;Plate Loaded;French No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719756 1000365191 AB6 WELDMENT, WEIGHT STORAGE LH;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719757 1000365192 AB6 WELDMENT, WEIGHT STORAGE LH;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
719758 1000365193 AB6 WELDMENT, WEIGHT STORAGE LH;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
719759 1000365206 AB7 WELDMENT, WEIGHT STORAGE RH;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719760 1000365207 AB7 WELDMENT, WEIGHT STORAGE RH;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
719761 1000365208 AB7 WELDMENT, WEIGHT STORAGE RH;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720806 1000376349 AB10 WELDMENT, SUPPORT;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720807 1000376350 AB10 WELDMENT, SUPPORT;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720808 1000376351 AB10 WELDMENT, SUPPORT;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720813 1000376728 AB4 Weldment; Upright No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720814 1000376730 AB3 Weldment; Upright No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721552 1000384006 V53 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721931 1000386662 Spot Stand L Se Spotter Stand Set;Left;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
721932 1000386663 Spot Stand R Se Spotter Stand Set;Right;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
722170 1000388459 B39 End Cap;TPU;101.6x76.2x4.75T;(850-092) No Model Compatibility List $0.00 / Each
Out Of Stock 		9
724743 1000426421 J Hook Set J Hook Set;Pair;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
724745 1000426423 Safety Bar Set Safety Bar Pair Set; No Model Compatibility List $0.00 / Each
Out Of Stock 		9
729066 Order Spotter Stand Set Spotter Stand 1 Weldment;Spotter Stand No Model Compatibility List $0.00 / Each
Out Of Stock 		3
