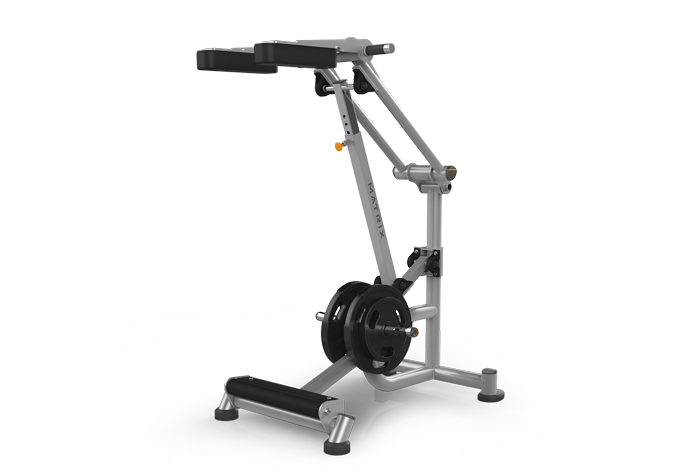

Matrix Commercial - MG-A486-02 - N/A

Repair Parts for Matrix Commercial MG-A486-02 MGPL77

Brand: Matrix Commercial

Category: Plate Loaded

Type: Strength Systems

Model Name: MG-A486-02

Version: N/A

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
713801 1000308375 B3 1" PILLOW BLOCK No Model Compatibility List $62.04 / Each

1
713802 1000308395 B11 FLANGE BEARING - 1" No Model Compatibility List $21.89 / Each

8
B 713805 1000308416 B23 1" Ext. SNAP RING No Model Compatibility List $2.37 / Each

2
B 713806 1000308417 B24 2" x 2" END CAP No Model Compatibility List $5.46 / Each

9
713808 1000308419 B37 1" Vinyl Cap No Model Compatibility List $2.18 / Each

9
B 713810 1000308421 B6 HALF-ROUND RUBBER BUMPER No Model Compatibility List $16.41 / Each

1
B 713811 1000308424 B9 SPRING PIN ASSEMBLY No Model Compatibility List $45.60 / Each

2,3,12,13,14
Z 713814 1000308428 Z20 3/8" NUT No Model Compatibility List $1.43 / Each

2
713816 1000308434 B12 1 1/64"ID MACHINE BUSHING No Model Compatibility List $1.43 / Each

8,4,5,6
Z 713818 1000308436 Z13 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.43 / Each

2
713824 1000308442 Z22 SCREW;SET; .3125-18 X 1.00;SS No Model Compatibility List $1.43 / Each

2
Z 713826 1000308444 Z15 WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06 No Model Compatibility List $1.43 / Each

2
713838 1000308466 B33 Flat Bumper - Weight Horn No Model Compatibility List $3.02 / Each

3
713839 1000308467 Z32 End cap - weight horn No Model Compatibility List $5.90 / Each

9,3
V 713842 1000308473 V44 Lable, hand pinch No Model Compatibility List $3.02 / Each

12,13,14
Z 713935 1000309773 Z1 Screw Set;M6x1.0Px5L;BP;POT No Model Compatibility List $3.28 / Each

2
Z 713967 1000309953 Z18 SCREW;HH;.313-18 x 1.25;ZN; No Model Compatibility List $2.37 / Each

2
B 713974 1000310007 B30 Round Leveler No Model Compatibility List $20.05 / Each

3
B 713975 1000310008 B31 ROUND LEVELER BOOT No Model Compatibility List $5.04 / Each

3
713976 1000310009 K2 CAP, END TUBE, 31.8MM No Model Compatibility List $7.28 / Each

9,3
713977 1000310010 K1 COLLAR, TUBE, 31.8MM No Model Compatibility List $15.18 / Each

3
713978 1000310011 K10 Teardrop Boot No Model Compatibility List $6.73 / Each

1
713979 1000310012 K9 Plastic Footpad No Model Compatibility List $6.73 / Each

9,3,12,13,14
B 713981 1000310014 B21 End Cap No Model Compatibility List $5.90 / Each

9
K 714008 1000310115 KZ2 FHSCS 1/4"-20 X 1/2" No Model Compatibility List $1.33 / Each

1
714029 1000310305 Z16 SCREW;HH;.375-16 x 1.75;ZN; No Model Compatibility List $2.18 / Each

2
714050 1000310503 AB2 Weldment, Foot plate No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
714062 1000310666 B10 1" CRR - 7 1/2" No Model Compatibility List $0.00 / Each
Out Of Stock 		1
714079 1000311963 Z17 Screw;HH;.375-16x1.25;Zinc No Model Compatibility List $0.00 / Each
Out Of Stock 		2
Z 714121 1000312147 Z19 SET SCREW, CUP POINT 5/16-18 UNC X 5/16 No Model Compatibility List $1.33 / Each

2
Z 714128 1000312165 Z47 3/8" SPLIT LOCK WASHER No Model Compatibility List $1.43 / Each

2
714222 1000312440 J26 Shoulder Pad No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
714223 1000312442 J25 Shoulder Pad No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
Z 714235 1000312700 Z14 7/16" FLAT WASHER No Model Compatibility List $2.44 / Each

2
714302 1000313470 V42 Decal, ROM No Model Compatibility List $5.04 / Each

7,3
714473 1000315175 V43 Label, Arm weight Config;English No Model Compatibility List $0.00 / Each
Out Of Stock 		3
714506 1000315505 Z38 SCREW; BH; .50-13 X 1.00 No Model Compatibility List $2.18 / Each

2
714538 1000315894 V41 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

7,3,4,5,6
2 714766 1000318109 2 HAND GRIP 1.25 DIA 0-12"LONG No Model Compatibility List $48.98 / Each

11
714770 1000318160 V43 Label, Arm weight Config;French No Model Compatibility List $0.00 / Each
Out Of Stock 		3
714772 1000318166 1 KIT TEARDROP FOOT No Model Compatibility List $33.77 / Each

9,3
717377 1000344562 V41 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $15.18 / Each

7,3,4,5,6
718749 1000353136 K3 1.25" Grip;Order by 1" increments; No Model Compatibility List $0.00 / Each
Out Of Stock 		11
719511 1000362211 AB7 ADJUSTMENT TUBE - CHROMED; No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3,12,13,14
719680 1000363753 V45 Warning Label;Plate Loaded; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719681 1000363756 V45 Warning Label;Plate Loaded;French No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720214 1000369300 Z39 SCREW;FH;.375-16 x 1.50;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
720452 1000372899 AB1 Weldment, Main Frame;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720453 1000372900 AB1 Weldment, Main Frame;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720454 1000372901 AB1 Weldment, Main Frame;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720455 1000372914 AB4 WEIGHT ARM;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720456 1000372915 AB4 WEIGHT ARM;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720457 1000372916 AB4 WEIGHT ARM;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720458 1000372929 AB5 ADJUSTMENT TUBE;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720459 1000372930 AB5 ADJUSTMENT TUBE;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720460 1000372931 AB5 ADJUSTMENT TUBE;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720461 1000372944 AB8 2286 MAIN ARM;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720462 1000372945 AB8 2286 MAIN ARM;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720463 1000372946 AB8 2286 MAIN ARM;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721552 1000384006 V40 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
