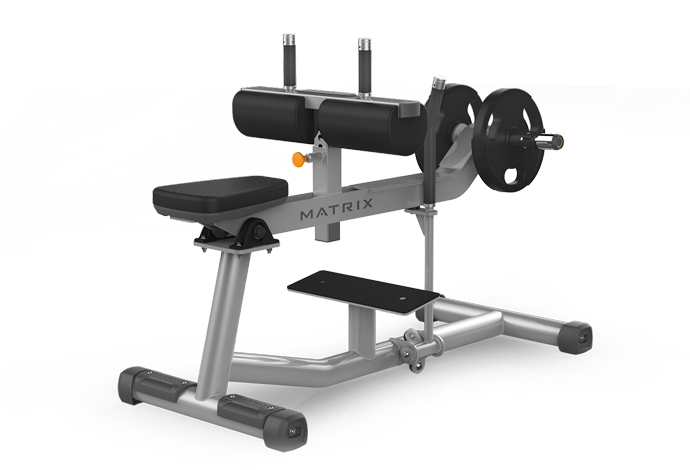

Matrix Commercial - MG-A53-02 - 2013

Repair Parts for Matrix Commercial MG-A53-02 MGPL80

Brand: Matrix Commercial

Category: Plate Loaded

Type: Strength Systems

Model Name: MG-A53-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
713801 1000308375 B4 1" PILLOW BLOCK No Model Compatibility List $62.04 / Each

1
Z 713805 1000308416 Z10 1" Ext. SNAP RING No Model Compatibility List $2.37 / Each

2
B 713806 1000308417 B12 2" x 2" END CAP No Model Compatibility List $5.46 / Each

9
B 713807 1000308418 B38 1 1/2" x 3" END CAP No Model Compatibility List $5.46 / Each

9
713808 1000308419 B14 1" Vinyl Cap No Model Compatibility List $2.18 / Each

9
B 713810 1000308421 B6 HALF-ROUND RUBBER BUMPER No Model Compatibility List $16.41 / Each

1
B 713811 1000308424 B11 SPRING PIN ASSEMBLY No Model Compatibility List $45.60 / Each

2,3,12,13,14
713815 1000308429 B52 2" x 3" Rubber Block No Model Compatibility List $23.63 / Each

1
Z 713818 1000308436 Z22 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.43 / Each

2
Z 713819 1000308437 Z29 SCREW;HH;.375-16 x 1.50;ZN; No Model Compatibility List $2.37 / Each

2
713821 1000308439 Z27 NUT;NLK;.375-16;ZN; No Model Compatibility List $1.43 / Each

2
713824 1000308442 Z30 SCREW;SET; .3125-18 X 1.00;SS No Model Compatibility List $1.43 / Each

2
713825 1000308443 Z26 SCREW;FH;.375-16 x 1.25;ZN; No Model Compatibility List $2.18 / Each

2
Z 713826 1000308444 Z23 WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06 No Model Compatibility List $1.43 / Each

2
Z 713828 1000308446 Z24 WASHER;FLT;USS;Diam.0.281XDiam.0.734X.06 No Model Compatibility List $1.43 / Each

2
713830 1000308448 Z28 5/16" X 1 1/2" BOLT No Model Compatibility List $1.43 / Each

2
713835 1000308453 Z8 1 9/16"OD x 7/16"ID WASHER No Model Compatibility List $3.28 / Each

2
713838 1000308466 B32 Flat Bumper - Weight Horn No Model Compatibility List $3.02 / Each

3
713839 1000308467 B31 End cap - weight horn No Model Compatibility List $5.90 / Each

9,3
713840 1000308469 K2 CAP, END TUBE, 25.4MM ID No Model Compatibility List $11.80 / Each

9,3
V 713842 1000308473 V48 Lable, hand pinch No Model Compatibility List $3.02 / Each

12,13,14
Z 713935 1000309773 Z1 Screw Set;M6x1.0Px5L;BP;POT No Model Compatibility List $3.28 / Each

2
Z 713949 1000309857 Z21 BHSCS 3/8 x 3/4" No Model Compatibility List $3.02 / Each

1
Z 713950 1000309858 Z20 3/4" FLAT WASHER No Model Compatibility List $1.33 / Each

2
B 713974 1000310007 B42 Round Leveler No Model Compatibility List $20.05 / Each

3
B 713975 1000310008 B41 ROUND LEVELER BOOT No Model Compatibility List $5.04 / Each

3
B 713981 1000310014 B43 End Cap No Model Compatibility List $5.90 / Each

9
B 713988 1000310085 B19 1"ID x 1 1/4"OD" FLANGED BUSHING No Model Compatibility List $10.92 / Each

8
714060 1000310661 B7 1" CRR - 5 1/2" No Model Compatibility List $62.50 / Each

1
Z 714094 1000312064 Z25 5/16" x 1" BOLT No Model Compatibility List $1.33 / Each

2
Z 714118 1000312127 Z36 BHS 5/16" - 1" No Model Compatibility List $5.46 / Each

1
Z 714120 1000312143 Z37 1/4" x 1/2" BOLT No Model Compatibility List $1.43 / Each

2
714144 1000312209 J15 Bottom Pad No Model Compatibility List $11.80 / Each

12,13,14
B 714159 1000312245 B18 End Cap No Model Compatibility List $10.92 / Each

9
714165 1000312256 B39 BADGE No Model Compatibility List $5.04 / Each

1
714166 1000312260 B17 GUARD - FRAME No Model Compatibility List $8.42 / Each

9,3
714302 1000313470 V51 Decal, ROM No Model Compatibility List $5.04 / Each

7,3
714472 1000315174 V49 DECAL, Seated Calf_Starting Res No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3,12,13,14
714538 1000315894 V45 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

7,3,4,5,6
714672 1000316932 K3 1" Grip;Order by 1" increments No Model Compatibility List $0.00 / Each
Out Of Stock 		11
714764 1000318101 1 HAND GRIP 1.0" 0-12"LONG No Model Compatibility List $45.60 / Each

11
714805 1000318356 2 HAND GRIP 1.0" 12-36"LONG No Model Compatibility List $45.60 / Each

11
717377 1000344562 V45 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $15.18 / Each

7,3,4,5,6
719680 1000363753 V44 Warning Label;Plate Loaded; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719681 1000363756 V44 Warning Label;Plate Loaded;French No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720130 1000368902 AB1 Main Frame;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720131 1000368903 AB1 Main Frame;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720132 1000368904 AB1 Main Frame;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720133 1000368916 B9 3/16" PLASMA 18" x 6" No Model Compatibility List $0.00 / Each
Out Of Stock 		1
720134 1000368918 AB2 MAIN FRAME (TOP);Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720135 1000368919 AB2 MAIN FRAME (TOP);Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720136 1000368920 AB2 MAIN FRAME (TOP);Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720137 1000368933 AB3 WELDMENT,KNEE BRACE;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720138 1000368934 AB3 WELDMENT,KNEE BRACE;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720139 1000368935 AB3 WELDMENT,KNEE BRACE;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720237 1000369933 K1 Tube Collar;25.4MM; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721296 1000381617 AB5 Weldment;Handle;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,11
721297 1000381618 AB5 Weldment;Handle;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,11
721298 1000381619 AB5 Weldment;Handle;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,11
721552 1000384006 V46 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
729261 See Pad Matrix J40 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
View Drawing
