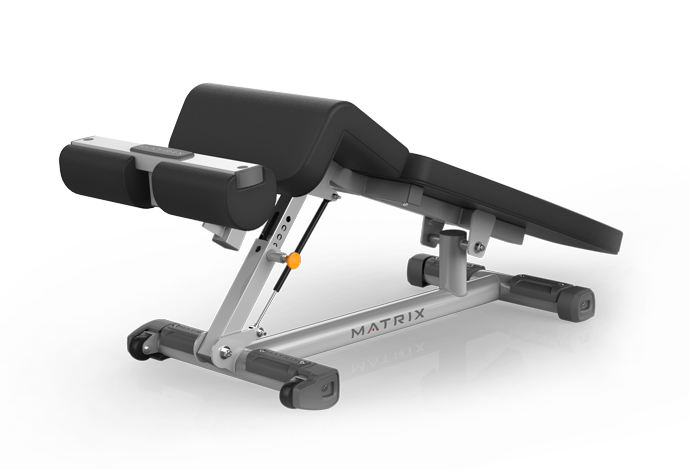

Matrix Commercial - MG-A61-02 - 2013

Repair Parts for Matrix Commercial MG-A61-02 MGFW267

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Name: MG-A61-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 713806 1000308417 B10 2" x 2" END CAP No Model Compatibility List $5.46 / Each

9
B 713807 1000308418 B4 1 1/2" x 3" END CAP No Model Compatibility List $5.46 / Each

9
B 713811 1000308424 B30 SPRING PIN ASSEMBLY No Model Compatibility List $45.60 / Each

2,3,12,13,14
Z 713818 1000308436 Z32 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.43 / Each

2
713827 1000308445 Z14 5/16" - 3" BOLT No Model Compatibility List $2.18 / Each

2
Z 713828 1000308446 Z31 WASHER;FLT;USS;Diam.0.281XDiam.0.734X.06 No Model Compatibility List $1.43 / Each

2
713831 1000308449 Z22 NUT;NLK;.313-18;ZN; No Model Compatibility List $1.33 / Each

2
V 713842 1000308473 V35 Lable, hand pinch No Model Compatibility List $3.02 / Each

12,13,14
713941 1000309848 Z12 SCREW;HH;.500-13 x 3.50;ZN; No Model Compatibility List $5.04 / Each

2
Z 713946 1000309854 Z23 NUT;NLK;.250-20;ZN; No Model Compatibility List $1.43 / Each

2
Z 714094 1000312064 Z16 5/16" x 1" BOLT No Model Compatibility List $1.33 / Each

2
714096 1000312068 Z17 SCREW;HH;.313-18 x 2.25;ZN; No Model Compatibility List $2.18 / Each

2
714114 1000312109 Z13 SCREW;HH;.500-13 x 8.00;ZN; No Model Compatibility List $8.42 / Each

2
Z 714127 1000312161 Z18 NUT;NLK;.500-13;ZN;TALL; No Model Compatibility List $1.43 / Each

2
B 714153 1000312233 B5 3" ROUND END CAP No Model Compatibility List $6.73 / Each

9
714157 1000312241 B28 RIGHT - END CAP No Model Compatibility List $8.42 / Each

9
714158 1000312243 B29 END CAP - LEFT No Model Compatibility List $8.42 / Each

9
B 714159 1000312245 B8 End Cap No Model Compatibility List $10.92 / Each

9
714165 1000312256 B6 BADGE No Model Compatibility List $5.04 / Each

1
714166 1000312260 B9 GUARD - FRAME No Model Compatibility List $8.42 / Each

9,3
B 714170 1000312280 B27 2.5" WHEEL No Model Compatibility List $7.28 / Each

8
B 714176 1000312298 B39 1/2" BRASS BUSHING No Model Compatibility List $5.04 / Each

8
714183 1000312312 B21 Ball Joint No Model Compatibility List $6.73 / Each

1
Z 714235 1000312700 Z33 7/16" FLAT WASHER No Model Compatibility List $2.44 / Each

2
714301 1000313469 V38 Decal, ROM 9 hole No Model Compatibility List $8.42 / Each

7,3
714538 1000315894 V34 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

7,3,4,5,6
714583 1000316235 AB2 WELDMENT, SEAT FRAME, A61;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
714584 1000316236 AB2 WELDMENT, SEAT FRAME, A61;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
714585 1000316237 AB2 WELDMENT, SEAT FRAME, A61;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
B 716175 1000334025 B19 60# Long SHOCK No Model Compatibility List $63.88 / Each

1
717377 1000344562 V34 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $15.18 / Each

7,3,4,5,6
717666 1000346686 Z15 SCREW;BHC;.313-18 x 1.00 No Model Compatibility List $0.00 / Each
Out Of Stock 		2
719680 1000363753 V39 Warning Label;Plate Loaded; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719681 1000363756 V39 Warning Label;Plate Loaded;French No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719903 1000366883 Z11 3/8" x 3/4" BHCS, Black No Model Compatibility List $3.02 / Each

4,5,6
721460 1000383336 AB1 WELDMENT, MAIN FRAME, A61;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721461 1000383337 AB1 WELDMENT, MAIN FRAME, A61;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721462 1000383338 AB1 WELDMENT, MAIN FRAME, A61;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721463 1000383352 AB3 WELDMENT, ADJUSTMENT POST, A61;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
721464 1000383353 AB3 WELDMENT, ADJUSTMENT POST, A61;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
721465 1000383365 AB3 WELDMENT, ADJUSTMENT POST, A61;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
721466 1000383366 B7 Chrome Adjustment Tube Assy;A61; No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3,12,13,14
721552 1000384006 V37 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
729261 See Pad Matrix J26 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
View Drawing
