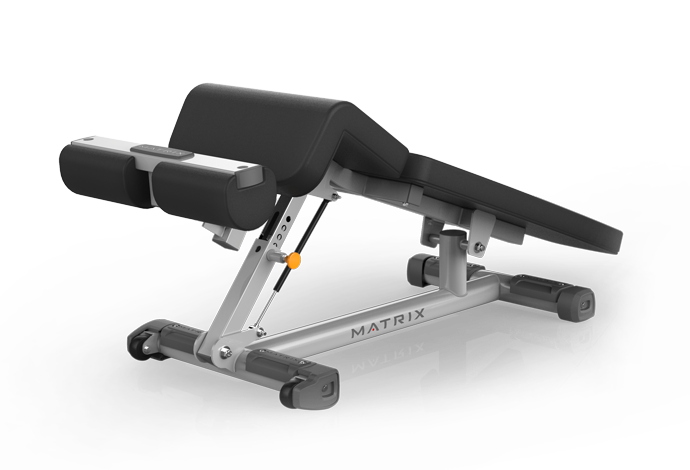

Matrix Commercial - MG-A61-03 - 2014

Repair Parts for Matrix Commercial MG-A61-03 FW212

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Name: MG-A61-03

Version: 2014

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Z 701465 004518-00 Z02 Screw;SH;M10X1.5PX75L;;HS;;CHM;; No Model Compatibility List $3.64 / Each

2
Z 701668 004702-00 Z11 Screw;Flat Hex Socket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
Z 701901 004929-00 Z03 Nut;Nylon;M8x1.25P;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 702098 005130-00 Z04 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 703845 018621-AB Z05 Screw;Hex Socket;Round;M10x1.5Px100L(Too No Model Compatibility List $3.64 / Each

2
Z 704002 020092-AB Z14 Screw;Hex Socket;Round;M8x1.25Px35L;Adhe No Model Compatibility List $3.35 / Each

2
Z 704012 020101-AB Z15 SCREW;SH;M8X1.25PX55L;;HS;;CHM;; No Model Compatibility List $3.35 / Each

2
Z 704014 020104-AC Z07 Screw;Hex Socket;Round;M10x1.5Px30L;Cr; No Model Compatibility List $3.64 / Each

2
Z 704193 020465-AB Z06 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
C 705422 049128-AA C15 End Cap;Back No Model Compatibility List $1.79 / Each

9,4,5,6

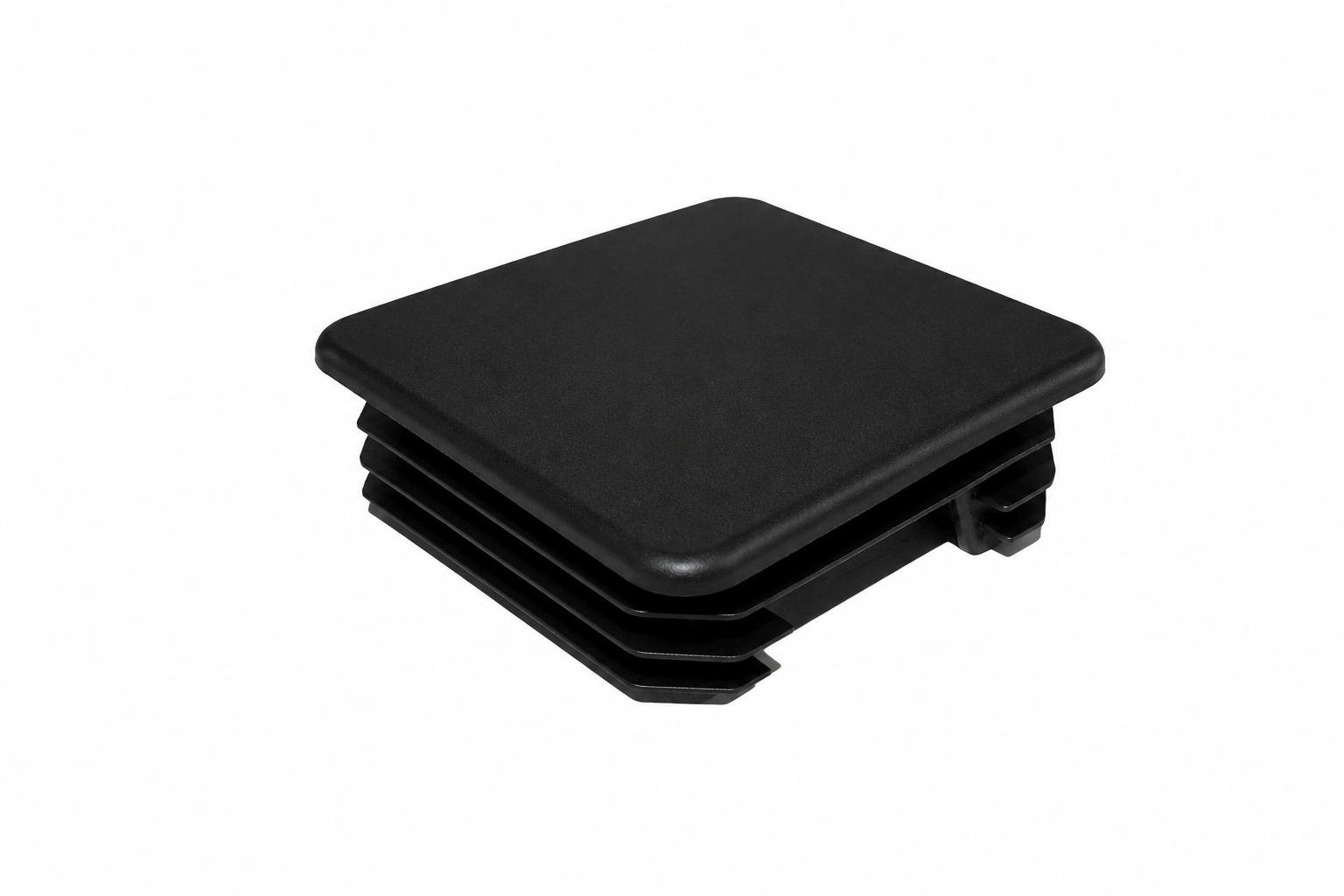

T 705423 049130-AA T16 Cover;Square Tube;50X50 ;GM153 No Model Compatibility List $1.66 / Each

9,3
D 707822 1000096014 D24 Bushing;15x19x20T;GM40 No Model Compatibility List $4.65 / Each

8
Z 708730 1000105174 Z10 Nut;Nylon;M10x1.5P;G12.9;CHM No Model Compatibility List $1.79 / Each

2
V 709081 1000109127 V06 Decal;Pinch Point ;MS21KM-G3 No Model Compatibility List $1.77 / Each

7,3,12,13,14
D 709543 1000201207 D20 Plastic Cover;;ABS;DG;;;GM61; No Model Compatibility List $1.77 / Each

9
B 713543 1000304988 B12 End Cap;Supt Tube;;;FW225-KM No Model Compatibility List $10.92 / Each

9,3
C 713567 1000305186 C18 Foot Pad;;;NYLON66+G15%;FW210-KM No Model Compatibility List $8.42 / Each

9,3,12,13,14
C 713568 1000305187 C09 Foot Pad;;;NYLON66+G15%;FW210-KM No Model Compatibility List $8.42 / Each

9,3,12,13,14
713569 1000305188 C20 Cover;;;NYLON66+G15%;FW210-KM;MATRIX No Model Compatibility List $9.10 / Each

9
G 713605 1000305549 G04 Connet Sleeve;Transmission;;20#;FW212-G0 No Model Compatibility List $13.49 / Each

3
G 713618 1000305791 G06 SLEEVE;Support Tube;;20#;FW212 No Model Compatibility List $8.42 / Each

3

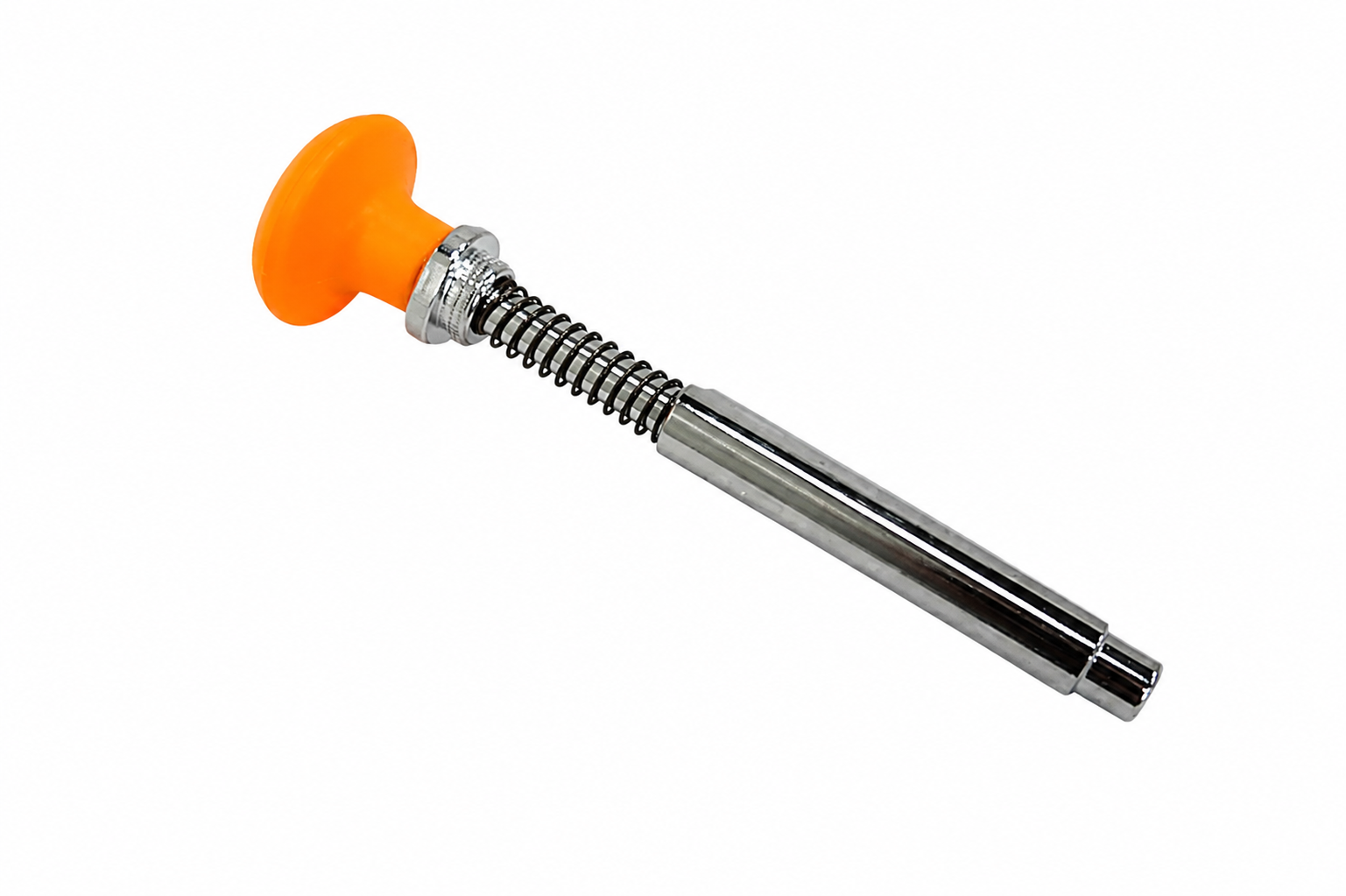

4 713619 1000305793 4 Pin set;Semi-Assy;;FW212-KM No Model Compatibility List $50.67 / Each

12,13,14

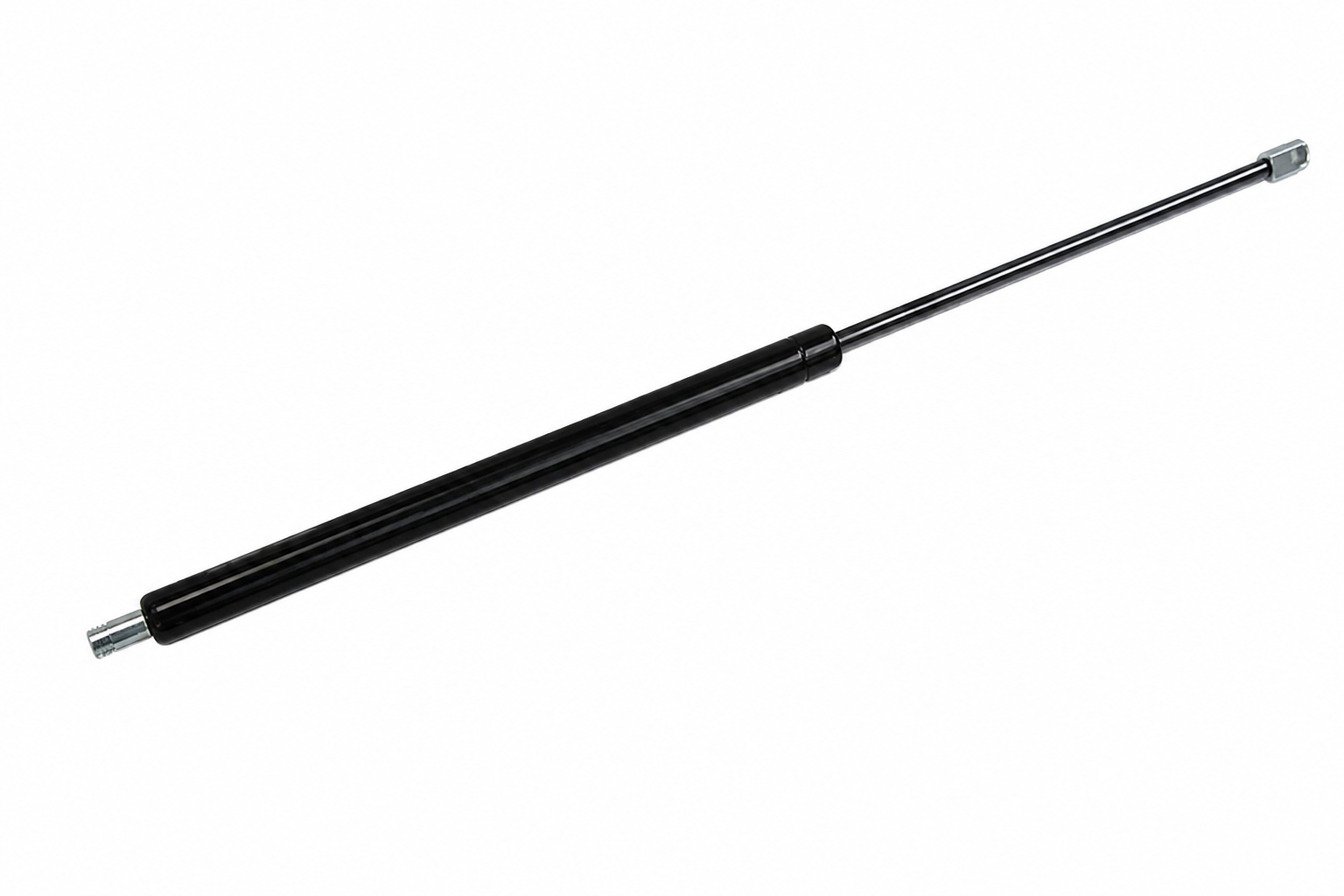

J 713620 1000305812 J03 Air Stick;;;;;;FW212-KM No Model Compatibility List $19.50 / Each

1
713623 1000305848 C28 Logo Cover;LOGO;;NYLON 6;Gray/75140;FW20 No Model Compatibility List $8.42 / Each

9
V 713704 1000306716 V02 Warning Label;;;;;;;Working Bench; No Model Compatibility List $8.42 / Each

1
V 713706 1000306727 V03 Warning Label;;;;;;;Adjustable Stops 2; No Model Compatibility List $3.35 / Each

1
V 713766 1000307862 V05 Adjustable Indication Decal;;;;;;;FW212- No Model Compatibility List $8.42 / Each

7,3
713770 1000307876 V04 LOGO Label;LOGO;;;;;;FW201-KM No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Q 714867 1000318892 Q03 Plastic Pad;;;SBR;;;FW212-KM; No Model Compatibility List $1.66 / Each

9,12,13,14

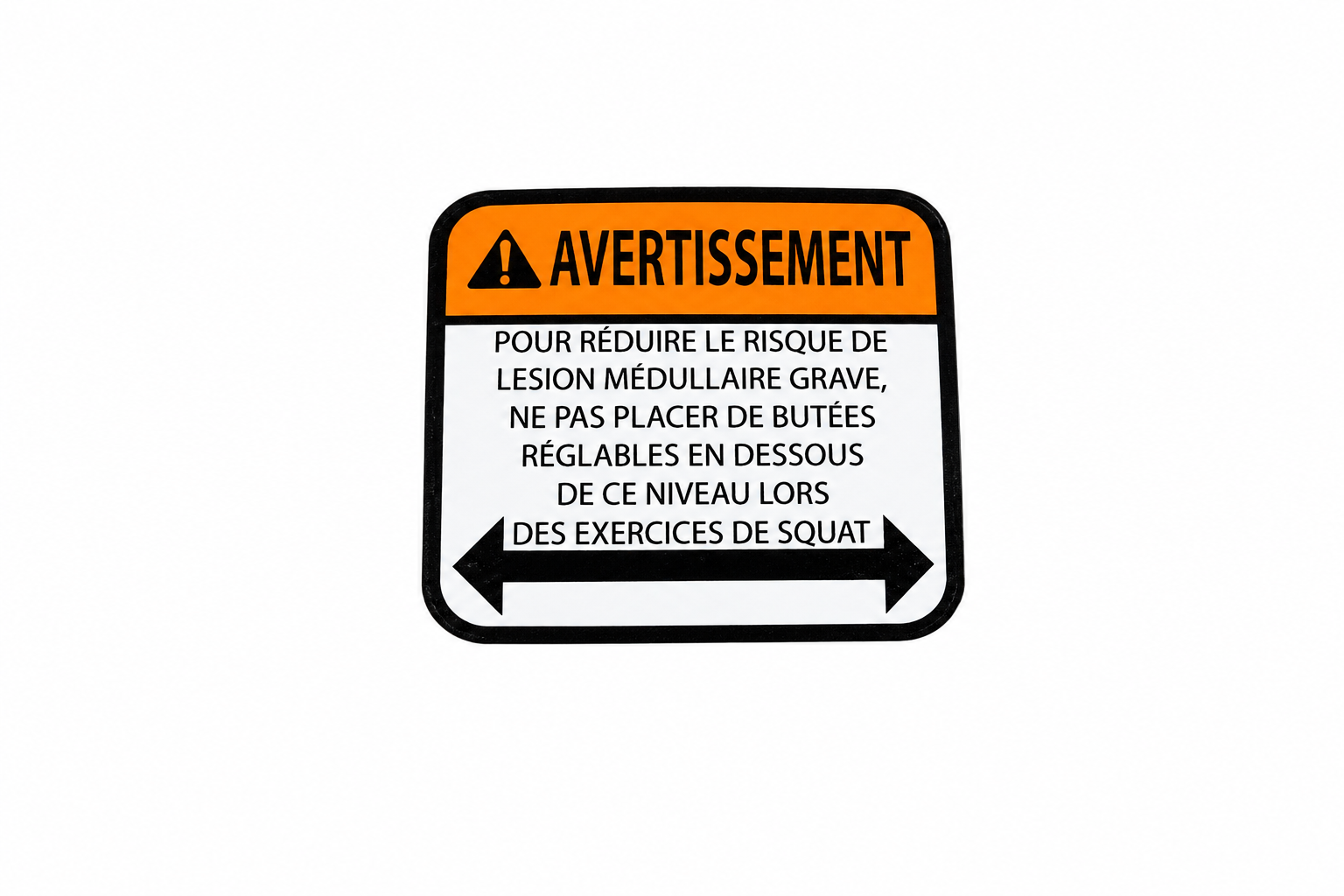

V 715268 1000322582 V03 Warning Label;;Adjustable Stop 1;;;;Fren No Model Compatibility List $3.02 / Each

1
V 715272 1000322607 V02 Warning Label;;Working Bench;;;;French;F No Model Compatibility List $8.42 / Each

1

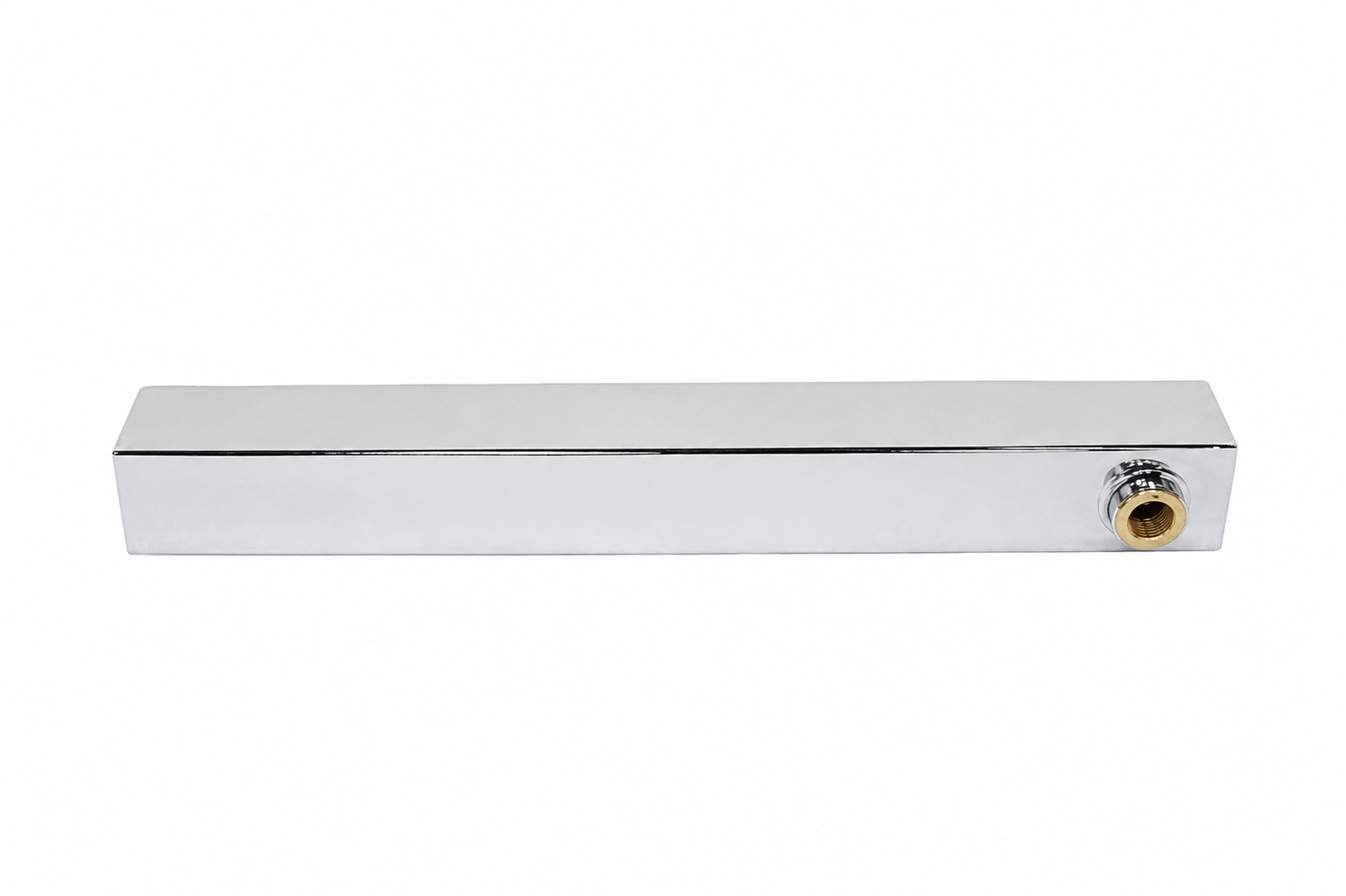

3 715324 1000323852 3 ADJ Tube Set;Semi-Assy;;;;FW212-KM;; No Model Compatibility List $119.96 / Each

3
715661 1000327669 1 Frame set;;;;FW212-KM;;Iced Silver No Model Compatibility List $299.10 / Each

3
715662 1000327674 1 Frame set;;;;FW212-KM;;Black Glossy No Model Compatibility List $567.81 / Each

3,4,5,6
715663 1000327676 1 Frame set;;;;FW212-KM;;Lace White No Model Compatibility List $299.10 / Each

3,4,5,6

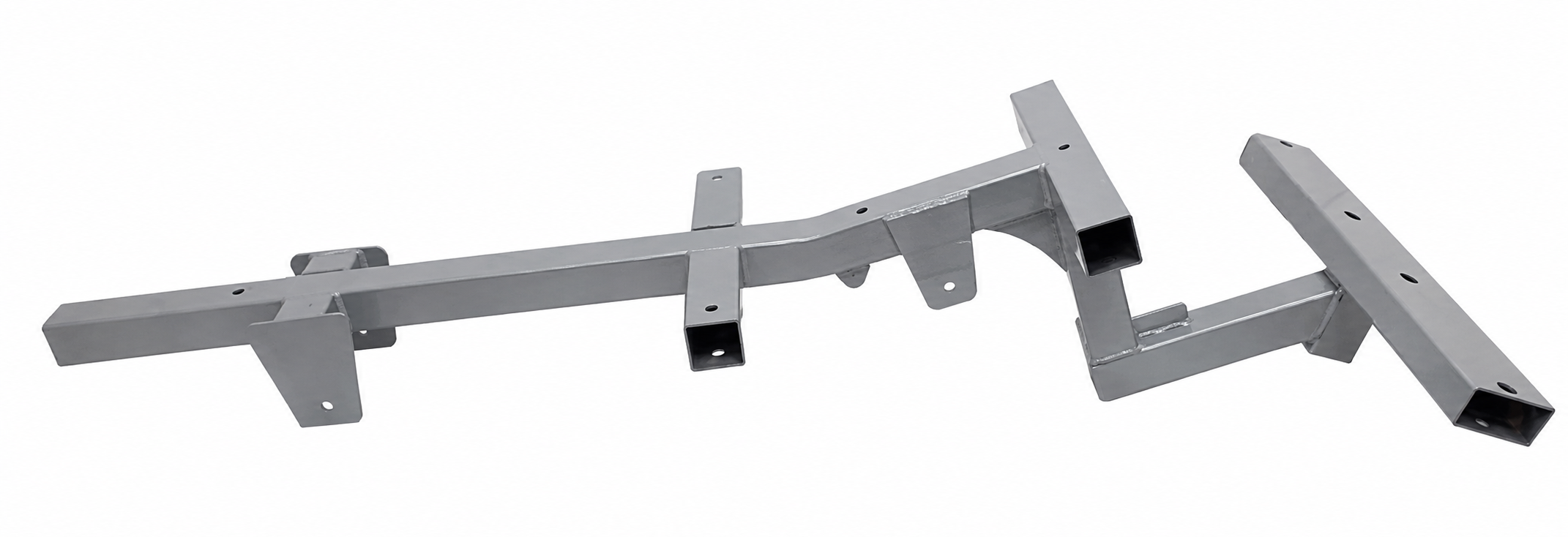

715664 1000327680 AC1 Base Set;;;;FW212-KM;;Iced Silver No Model Compatibility List $251.78 / Each

3
715665 1000327685 AC1 Base Set;;;;FW212-KM;;Black Glossy No Model Compatibility List $564.43 / Each

3,4,5,6
715666 1000327686 AC1 Base Set;;;;FW212-KM;;Lace White No Model Compatibility List $251.78 / Each

3,4,5,6

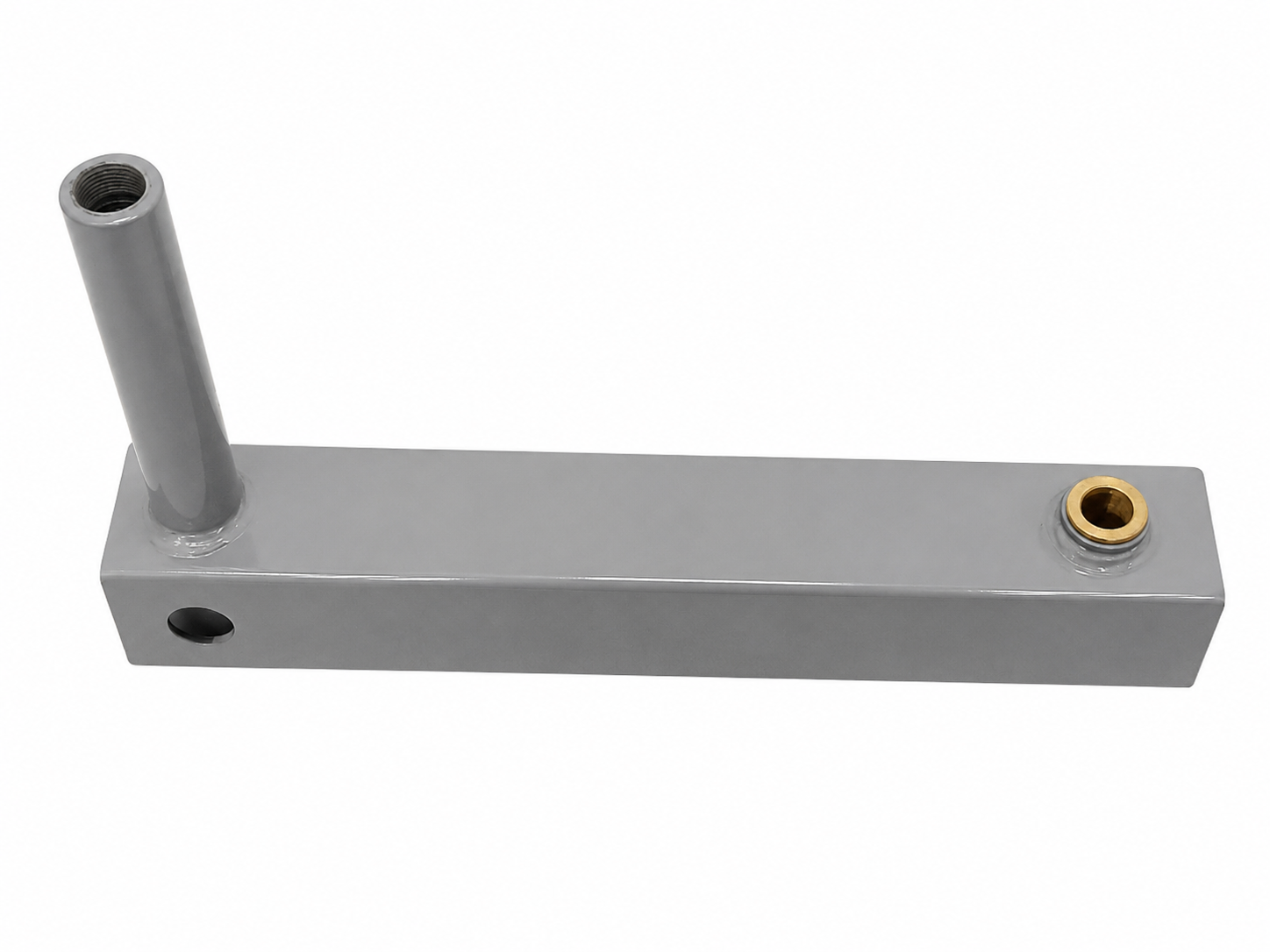

715667 1000327688 2 Adjustment set;;;;FW212-KM;;Iced Silver No Model Compatibility List $45.60 / Each

1
715668 1000327694 2 Adjustment set;;;;FW212-KM;;Black Glossy No Model Compatibility List $45.60 / Each

4,5,6
715669 1000327696 2 Adjustment set;;;;FW212-KM;;Lace White No Model Compatibility List $45.60 / Each

4,5,6
L 725263 103403 L05 Rear Carriage Roller; Nylon+30%G;TM369 Yes Model Compatibility List $15.29 / Each

2,8
Screw;SH;M10X1.5PX175L;;HS;;CHM;; 726766 084667 Z08 Screw;SH;M10X1.5PX175L;;HS;;CHM;; No Model Compatibility List $9.10 / Each

2
728977 N/A V01 Console Mast,Old version (4 holes on front) No Model Compatibility List $0.00 / Each
Out Of Stock 		7
729118 Part of Kit 1 AB1 Stabilizer Frame;Rear;B;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729138 Part of Kit 2 AG1 Console Mast;Painting;MM330;6027-45- No Model Compatibility List $0.00 / Each
Out Of Stock 		7
729152 Part of Kit 3 AG2 Pedal Arm;Right;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
729261 See Pad Matrix J04 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
