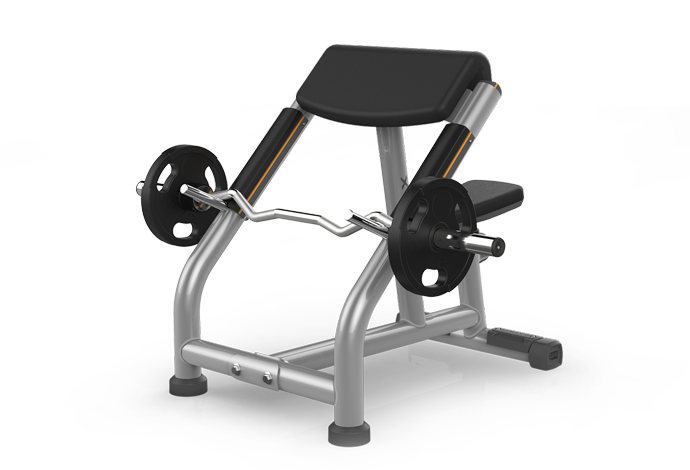

Matrix Commercial - MG-A62-02 - 2013

Repair Parts for Matrix Commercial MG-A62-02 MGFW277

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Name: MG-A62-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
S 713644 1000306099 Seat Adj Hnd B9 grip-Extrawork;Adjustable;;Cr Plate;FW20 No Model Compatibility List $35.46 / Each

3,11
Z 713818 1000308436 Z10 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.43 / Each

2
Z 713828 1000308446 Z11 WASHER;FLT;USS;Diam.0.281XDiam.0.734X.06 No Model Compatibility List $1.43 / Each

2
B 713974 1000310007 B4 Round Leveler No Model Compatibility List $20.05 / Each

3
B 713975 1000310008 B5 ROUND LEVELER BOOT No Model Compatibility List $5.04 / Each

3
Z 714016 1000310219 Z13 SCREW;HH;.250-20 x 0.75;ZN; No Model Compatibility List $1.33 / Each

2
714056 1000310572 AC1 WELDMENT SEAT POST No Model Compatibility List $309.24 / Each

3,12,13,14
Z 714094 1000312064 Z12 5/16" x 1" BOLT No Model Compatibility List $1.33 / Each

2
Z 714120 1000312143 Z23 1/4" x 1/2" BOLT No Model Compatibility List $1.43 / Each

2
S 714125 1000312157 Seat Sleeve Z2 3/8" NUT No Model Compatibility List $1.33 / Each

2
714130 1000312169 Seat Adj Hnd Z5 WASHER,SNAP .364 ID (9.25MM) No Model Compatibility List $1.33 / Each

2
714144 1000312209 J7 Bottom Pad No Model Compatibility List $11.80 / Each

12,13,14
B 714159 1000312245 B3 End Cap No Model Compatibility List $10.92 / Each

9
714166 1000312260 B6 GUARD - FRAME No Model Compatibility List $8.42 / Each

9,3
714167 1000312262 B9 GUARD EXTRUSION No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
714168 1000312276 Seat Adj Hnd B1 CAP;ABS;SEAT No Model Compatibility List $3.02 / Each

9,12,13,14
714187 1000312322 Seat Adj Hnd B6 TORSION SPRING No Model Compatibility List $3.02 / Each

2
714195 1000312360 Seat Adj Hnd B7 PAWL; SEAT ADJ; 45# No Model Compatibility List $20.25 / Each

12,13,14
714196 1000312362 B16 CAP; TOP SEAT; RUBBER No Model Compatibility List $5.04 / Each

9,12,13,14
714197 1000312364 Seat Sleeve B1 PLASTIC COVER INTERNAL SEAT No Model Compatibility List $6.73 / Each

9,12,13,14
714198 1000312366 Seat Sleeve B5 SLEEVE SEAT INTERNAL No Model Compatibility List $57.43 / Each

3,12,13,14
714206 1000312388 Seat Adj Hnd B3 Clip, Tinnerman No Model Compatibility List $2.18 / Each

2
714231 1000312665 Seat Adj Hn B11 1 1/4"OD x 3/4"ID MACHINE BUSHING No Model Compatibility List $2.96 / Each

8,4,5,6
714301 1000313469 V36 Decal, ROM 9 hole No Model Compatibility List $8.42 / Each

7,3
714538 1000315894 V35 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

7,3,4,5,6
714687 1000317182 AB1 WELDMENT MAIN A62;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
714688 1000317183 AB1 WELDMENT MAIN A62;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
714689 1000317184 AB1 WELDMENT MAIN A62;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
714690 1000317192 Seat Sleeve Kit ADJ SEAT SLEEVE ASSEMBLY No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
714691 1000317193 Seat Adj Hd Set ADJ HANDLE - PAWL ASSEMBLY No Model Compatibility List $0.00 / Each
Out Of Stock 		3,11
714692 1000317194 Seat Adj Hd Z10 SCREW; SH M5-0.8 x 25 No Model Compatibility List $2.18 / Each

2
716168 1000333906 B22 Rubber, Extrusion Guard No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
716396 1000336432 Seat Sleeve Z3 BUTTON HEAD BOLT No Model Compatibility List $3.02 / Each

2
717377 1000344562 V35 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $15.18 / Each

7,3,4,5,6
717446 1000345215 Seat Sleeve Z4 SHCS;3/8-16 x 1/2" No Model Compatibility List $0.00 / Each
Out Of Stock 		1
717455 1000345268 Z21 BHSCS 3/8-16 x 1"; No Model Compatibility List $3.02 / Each

1
719411 1000361105 Seat Adj Hnd Z2 Screw;Tapped;Pan;PH;#6 x 0.75 No Model Compatibility List $0.00 / Each
Out Of Stock 		2
719680 1000363753 V33 Warning Label;Plate Loaded; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719681 1000363756 V33 Warning Label;Plate Loaded;French No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721552 1000384006 V34 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
729261 See Pad Matrix J32 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
View Drawing
