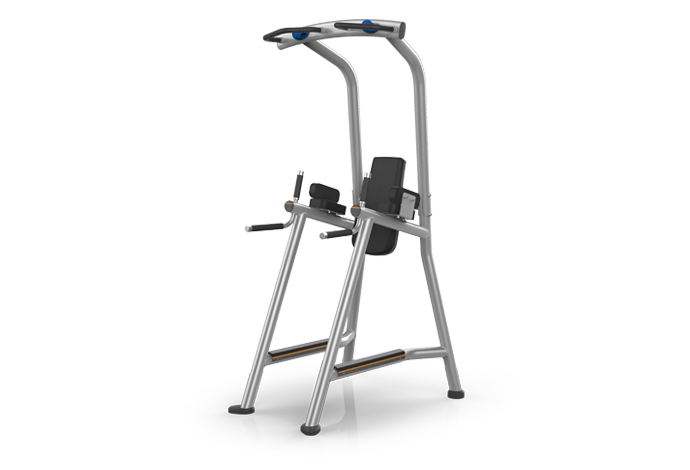

Matrix Commercial - MG-A63C-02 - 2013

Repair Parts for Matrix Commercial MG-A63C-02 MGFW276

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Name: MG-A63C-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Z 713818 1000308436 Z4 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.43 / Each

2
713827 1000308445 Z7 5/16" - 3" BOLT No Model Compatibility List $2.18 / Each

2
Z 713828 1000308446 Z2 WASHER;FLT;USS;Diam.0.281XDiam.0.734X.06 No Model Compatibility List $1.43 / Each

2
713840 1000308469 K2 CAP, END TUBE, 25.4MM ID No Model Compatibility List $11.80 / Each

9,3
Z 713935 1000309773 Z1 Screw Set;M6x1.0Px5L;BP;POT No Model Compatibility List $3.28 / Each

2
713941 1000309848 Z6 SCREW;HH;.500-13 x 3.50;ZN; No Model Compatibility List $5.04 / Each

2
Z 713967 1000309953 Z5 SCREW;HH;.313-18 x 1.25;ZN; No Model Compatibility List $2.37 / Each

2
B 713974 1000310007 B32 Round Leveler No Model Compatibility List $20.05 / Each

3
B 713975 1000310008 B27 ROUND LEVELER BOOT No Model Compatibility List $5.04 / Each

3
713976 1000310009 K2 CAP, END TUBE, 31.8MM No Model Compatibility List $7.28 / Each

9,3
713977 1000310010 K1 COLLAR, TUBE, 31.8MM No Model Compatibility List $15.18 / Each

3
713978 1000310011 K10 Teardrop Boot No Model Compatibility List $6.73 / Each

1
713979 1000310012 K9 Plastic Footpad No Model Compatibility List $6.73 / Each

9,3,12,13,14
B 713981 1000310014 B25 End Cap No Model Compatibility List $5.90 / Each

9
B 713986 1000310083 B35 2" ROUND END CAP No Model Compatibility List $5.04 / Each

9
K 714008 1000310115 KZ2 FHSCS 1/4"-20 X 1/2" No Model Compatibility List $1.33 / Each

1
714098 1000312072 Z8 HHB 5/16-16 x 2 3/4" No Model Compatibility List $2.18 / Each

1
Z 714127 1000312161 Z9 NUT;NLK;.500-13;ZN;TALL; No Model Compatibility List $1.43 / Each

2
714193 1000312342 V18 DECAL,WARNING: BOLT DOWN;English No Model Compatibility List $0.00 / Each
Out Of Stock 		7,2,3
Z 714235 1000312700 Z3 7/16" FLAT WASHER No Model Compatibility List $2.44 / Each

2
714278 1000313141 Z37 NUT;HX;.313-18;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
714489 1000315371 Z11 SCREW;FH;.313-18 x 0.75;ZN; No Model Compatibility List $1.33 / Each

2
714538 1000315894 V19 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

7,3,4,5,6
714672 1000316932 K3 - Kit 1 1" Grip;Order by 1" increments No Model Compatibility List $0.00 / Each
Out Of Stock 		11
714764 1000318101 1 HAND GRIP 1.0" 0-12"LONG No Model Compatibility List $45.60 / Each

11
2 714766 1000318109 2 HAND GRIP 1.25 DIA 0-12"LONG No Model Compatibility List $48.98 / Each

11
714772 1000318166 3 KIT TEARDROP FOOT No Model Compatibility List $33.77 / Each

9,3
714915 1000319630 V18 DECAL,WARNING: BOLT DOWN;French No Model Compatibility List $0.00 / Each
Out Of Stock 		7,2,3
717377 1000344562 V19 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $15.18 / Each

7,3,4,5,6
718749 1000353136 K3 - Kit 2 1.25" Grip;Order by 1" increments; No Model Compatibility List $0.00 / Each
Out Of Stock 		11
719680 1000363753 V17 Warning Label;Plate Loaded; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719681 1000363756 V17 Warning Label;Plate Loaded;French No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720237 1000369933 K1 Tube Collar;25.4MM; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720521 1000373376 B36 DIAMOND PLATE;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721467 1000383368 AB1 Main Frame;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721468 1000383369 AB1 Main Frame;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721469 1000383370 AB1 Main Frame;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721470 1000383383 AB2 MAIN FRAME (UPPER);Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721471 1000383384 AB2 MAIN FRAME (UPPER);Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721472 1000383385 AB2 MAIN FRAME (UPPER);Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721552 1000384006 V20 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
729261 See Pad Matrix J38 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
