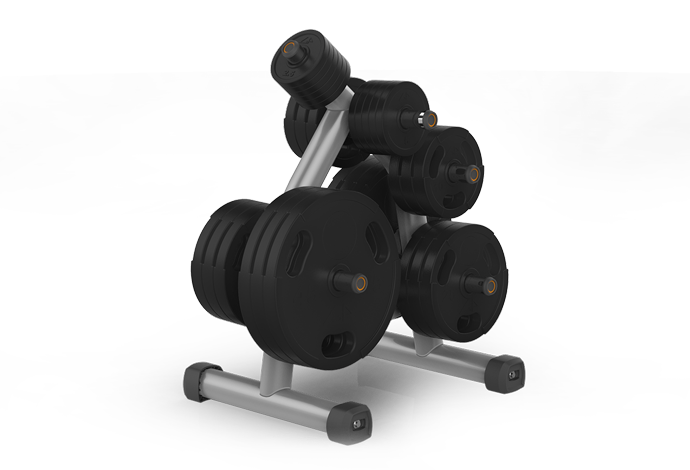

Replacement Parts for Matrix Commercial MG-A67-03 Freeweight

Matrix Commercial - MG-A67-03 - 2014

Repair Parts for Matrix Commercial MG-A67-03 FW225

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

FW225

Model Name: MG-A67-03

Version: 2014

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

16473.0-base.pdf

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Fastener Related
Frame Components
Wires
Cables
Power
Circuit Boards
Plastic Parts
Other

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
701668	004702-00	Z01	Screw;Flat Hex Socket;M8x1.25Px20L	No	Model Compatibility List	$2.00 / Each	2
713543	1000304988	B12	End Cap;Supt Tube;;;FW225-KM	No	Model Compatibility List	$10.92 / Each	9,3
713546	1000304995	B05	Rubber Sleeve;Hang Rod;;NBR;BL/Black C;F	No	Model Compatibility List	$1.66 / Each	3,4,5,6
713562	1000305125	B16	Boot;Hang Rod;;SBR+NBR;Gray/80435;FW201-	No	Model Compatibility List	$8.42 / Each	3
713634	1000305966	B21	End Cap;Hang Rod;;HDPE;Gray/80435;;FW201	No	Model Compatibility List	$3.35 / Each	9,3
713635	1000305968	B22	Plastic Cover;Hang Rod;;HDPE;Gray/80435;	No	Model Compatibility List	$3.35 / Each	9,3
713636	1000305970	B23	End Cap;Hang Rod;;HDPE;Gray/80435;;FW201	No	Model Compatibility List	$3.35 / Each	9,3
713637	1000305972	B24	End Cap;Hang Rod;;HDPE;Gray/80435;;FW201	No	Model Compatibility List	$3.35 / Each	9,3
713638	1000305974	B25	End Cap;Hang Rod;;HDPE;Gray/80435;;FW201	No	Model Compatibility List	$3.35 / Each	9,3
713704	1000306716	V07	Warning Label;;;;;;;Working Bench;	No	Model Compatibility List	$8.42 / Each	1
713848	1000308754	V15	Logo Label;FW201-KM	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
715272	1000322607	V07	Warning Label;;Working Bench;;;;French;F	No	Model Compatibility List	$8.42 / Each	1
715646	1000327637	AB1	Frame Set;;;painting;;Iced Sliver;FW225;	No	Model Compatibility List	$598.23 / Each	3
715647	1000327640	AB1	Frame Set;;;painting;;Black Glossy;FW225	No	Model Compatibility List	$260.23 / Each	3,4,5,6
715648	1000327642	AB1	Frame Set;;;painting;;Lace White;FW225;	No	Model Compatibility List	$598.23 / Each	3,4,5,6
728977	N/A	V30	Console Mast,Old version (4 holes on front)	No	Model Compatibility List	$0.00 / Each Out Of Stock	7
