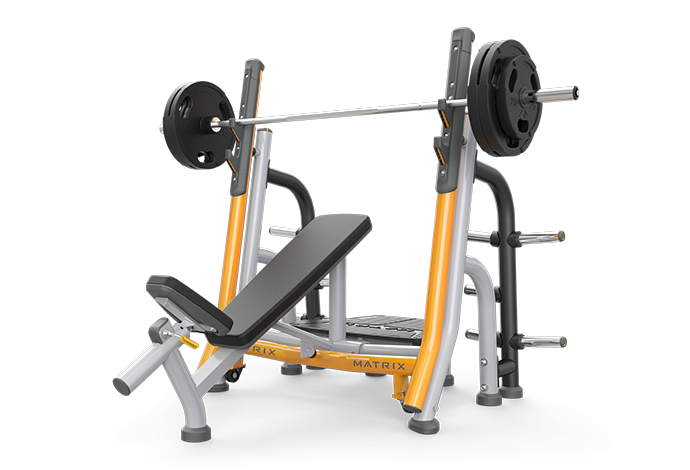

Matrix Commercial - MG-A679-03 - 2014

Repair Parts for Matrix Commercial MG-A679-03 FW204

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Name: MG-A679-03

Version: 2014

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 700447 001401-A B60 End Cap;76.2 No Model Compatibility List $3.64 / Each

9
B 701376 004426-00 B21 Screw;FH;M6X1.0PX12L;;PH;;BZN;; No Model Compatibility List $1.66 / Each

2
Z 701522 004555-AB Z10 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A No Model Compatibility List $4.00 / Each

2
B 701660 004696-AB B20 Screw;Hex Socket;8X1.25X20L;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
C 701992 005031-AC C30 WASHER;FLT;Diam.20.2XDiam.30.0X2.0T;;CHM No Model Compatibility List $1.66 / Each

2
C 702056 005084-00 C28 Washer;Flat;5.3X10.0X1.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
C 702098 005130-00 C25 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
C 702505 008234-C C65 Bushing;Fixed Plate No Model Compatibility List $9.10 / Each

8,3
C 704074 020186-00 C38 Screw;Phillip;BH;Tapped;4x30L; No Model Compatibility List $1.79 / Each

2
Z 704193 020465-AB Z02 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
C 705163 038449-A C22 Clip;Tapped Hole;FE;M5;YZN No Model Compatibility List $9.10 / Each

2
C 705389 049043-AA C14 Cap;S50.0x75.0;2.0t.3.0t tube No Model Compatibility List $3.35 / Each

9,3
C 708091 1000099499 C23 Screw;SH;M8X1.25PX14L;;HS;;CHM;;SP No Model Compatibility List $1.66 / Each

2
C 708093 1000099581 C35 End Cap;Plastic;GM49 No Model Compatibility List $2.13 / Each

9
C 708654 1000104681 C27 Circlip;External C Type;S-20;BAN No Model Compatibility List $1.77 / Each

2
Z 708730 1000105174 Z06 Nut;Nylon;M10x1.5P;G12.9;CHM No Model Compatibility List $1.79 / Each

2
C 709019 1000108308 C34 Cu Bushing;20x26x16t;GM46 No Model Compatibility List $9.80 / Each

8
V 709081 1000109127 V04 Decal;Pinch Point ;MS21KM-G3 No Model Compatibility List $1.77 / Each

7,3,12,13,14
C 709730 1000202479 C31 Plastic Cover;-;POM;-;;;GM02C; No Model Compatibility List $10.32 / Each

9
C 709731 1000202480 C32 Sleeve;65.0X124; No Model Compatibility List $88.79 / Each

3
C 709732 1000202481 C33 Plastic Cover;Rubber No Model Compatibility List $7.80 / Each

9
C 709860 1000204043 C26 Screw;SET;M8X1.25PX35L;MT;HS;G8.8;CHM; No Model Compatibility List $0.70 / Each

2
C 711692 1000222320 C29 Screw;SH;M5x25L;-;HS;-;CHM;BP;-; No Model Compatibility List $1.66 / Each

2
711984 1000224684 Z12 Screw;RND;M10x1.5Px125L;-;HS;-;CHM;BP;G1 No Model Compatibility List $0.00 / Each
Out Of Stock 		2
B 711994 1000224767 B68 Plastic Cover;-;-;PP;-;-;-;- No Model Compatibility List $1.66 / Each

9
Z 712494 1000229173 Z05 Screw;SH;M10x x35L;-;HS;-;CHM;-;G12.9; No Model Compatibility List $3.02 / Each

2
Z 712934 1000231572 Z01 SCREW;SH;M10X1.5PX20L;;;HS;BP;CHM; No Model Compatibility List $2.00 / Each

2
B 713539 1000304912 B18 Food Pad;ADJ Base;;PP;BL/Black C;FW201; No Model Compatibility List $42.22 / Each

3,4,5,6,12,13,14
B 713541 1000304951 B17 Rubber Sleeve;Foot Pad;;PVC Anti-fire;Gr No Model Compatibility List $8.42 / Each

9,3,12,13,14
713545 1000304993 C12 Cover;Back Cover;;ABS No Model Compatibility List $38.99 / Each

9,4,5,6
B 713548 1000305030 B38 Plastic Cover;Foot Pad;down;Soft PVC;FW2 No Model Compatibility List $8.42 / Each

9,3,12,13,14
B 713549 1000305031 B39 Boot;Hang Rod;1;PU;Gray/60461;FW201-KM; No Model Compatibility List $25.32 / Each

3
B 713552 1000305041 B40 Boot;Hang Rod;2;PU; No Model Compatibility List $30.39 / Each

3
B 713553 1000305044 B41 Boot;Hang Rod;3;PU; No Model Compatibility List $32.08 / Each

3
B 713556 1000305050 B43 Boot;Hang Rod;;TPU;FW201-KM; No Model Compatibility List $18.56 / Each

3
B 713557 1000305058 B44 Food Pad;ADJ Axle;down;PP;BL/Black C;FW2 No Model Compatibility List $8.42 / Each
Out Of Stock 		8,4,5,6,12,13,14
1 713559 1000305097 1 Storage Horn Set;Semi-Assy;;FW201-KM No Model Compatibility List $780.75 / Each

1
3 713560 1000305099 3 Storage Horn Set;Semi-Assy;left;FW201-K No Model Compatibility List $390.36 / Each

1
B 713562 1000305125 B16 Boot;Hang Rod;;SBR+NBR;Gray/80435;FW201- No Model Compatibility List $8.42 / Each

3
4 713563 1000305131 4 Storage Horn Set;Semi-Assy;right;FW201-KM No Model Compatibility List $390.36 / Each

1
B 713585 1000305258 B06 End Cap;;;ABS 746;Diam.76.2;FW202-KM No Model Compatibility List $3.64 / Each

9
C 713592 1000305375 C39 Seat Pad;Down;PU;Black;230MMx345MM;FW203 No Model Compatibility List $43.91 / Each

4,5,6,12,13,14
C 713593 1000305377 C07 Cover;Back Cover;;PA746;FW203-KM No Model Compatibility List $11.80 / Each

9,4,5,6
713594 1000305380 AC2 seat chair-Extrawork;Adjustable;;Cr Plat No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
C 713596 1000305393 C42 Stopper Pin;;;45#;Chrome;FW203-KM No Model Compatibility List $18.56 / Each

7,12,13,14
C 713598 1000305397 C13 Spring;Recoil (constant force);Diam.2.0X No Model Compatibility List $1.66 / Each

2
713599 1000305398 C15 Spring;Recoil (constant force);Diam.2.0X No Model Compatibility List $1.66 / Each

2
713600 1000305427 T08 Food Pad;;;SBR;;FW203-KM No Model Compatibility List $233.19 / Each

12,13,14
713603 1000305488 AB6 Frame Set;;F;painting;PT137C;Orange;FW20 No Model Compatibility List $515.42 / Each

3
B 713634 1000305966 B15 End Cap;Hang Rod;;HDPE;Gray/80435;;FW201 No Model Compatibility List $3.35 / Each

9,3
B 713635 1000305968 B25 Plastic Cover;Hang Rod;;HDPE;Gray/80435; No Model Compatibility List $3.35 / Each

9,3
713636 1000305970 B26 End Cap;Hang Rod;;HDPE;Gray/80435;;FW201 No Model Compatibility List $3.35 / Each

9,3
B 713637 1000305972 B27 End Cap;Hang Rod;;HDPE;Gray/80435;;FW201 No Model Compatibility List $3.35 / Each

9,3
B 713638 1000305974 B28 End Cap;Hang Rod;;HDPE;Gray/80435;;FW201 No Model Compatibility List $3.35 / Each

9,3
C 713643 1000306098 C66 Plastic Cover;Adjust Machine;;ABS/PA757; No Model Compatibility List $3.35 / Each

9,4,5,6
A 713644 1000306099 AJ1 grip-Extrawork;Adjustable;;Cr Plate;FW20 No Model Compatibility List $35.46 / Each

3,11
B 713709 1000306755 B11 Bearing;;UCP 205B1;Diam.25; No Model Compatibility List $21.94 / Each

8
B 713740 1000307173 B48 Plastic Cover;Nut;;;;;; No Model Compatibility List $1.66 / Each

2,9
Z 713794 1000308342 Z11 Screw;Hex;Hex Head;M10x1.5Px35L;Machine No Model Compatibility List $1.66 / Each

2,4,5,6
V 714331 1000313739 V05 Adjustable Indication Decal;;;;;;;FW224- No Model Compatibility List $3.35 / Each

7,3
T 714760 1000317876 T20 End Cap;;;PP;;Diam.X50.8;; No Model Compatibility List $2.18 / Each

9
A 715561 1000326143 AB6 Supporting Frame Set;Semi-Assy;front;;;F No Model Compatibility List $865.25 / Each

3
715847 1000328632 AB1 Frame Set;;;painting;;IcedSliver;FW202; No Model Compatibility List $528.94 / Each

3
715848 1000328636 AB1 Frame Set;;;painting;;LaceWhite;FW202; No Model Compatibility List $528.94 / Each

3,4,5,6
715849 1000328637 AB1 Frame Set;;;painting;;BlackGlossy;FW202; No Model Compatibility List $528.94 / Each

3,4,5,6
715853 1000328644 AB2 Frame Set;;L;painting;;IcedSliver;FW202; No Model Compatibility List $542.46 / Each

3
715854 1000328648 AB2 Frame Set;;L;painting;;LaceWhite;FW202; No Model Compatibility List $542.46 / Each

3,4,5,6
715855 1000328649 AB2 Frame Set;;L;painting;;BlackGlossy;FW202 No Model Compatibility List $542.46 / Each

3,4,5,6
715865 1000328680 AC1 base set;;;painting;;IcedSliver;FW204; No Model Compatibility List $300.79 / Each

3
715866 1000328684 AC1 base set;;;painting;;LaceWhite;FW204; No Model Compatibility List $300.79 / Each

3,4,5,6
715867 1000328685 AC1 base set;;;painting;;BlackGlossy;FW204; No Model Compatibility List $300.79 / Each

3,4,5,6
715868 1000328686 AG1 CON Tube Set;;;painting;;IcedSliver;FW20 No Model Compatibility List $283.89 / Each

3
715869 1000328690 AG1 CON Tube Set;;;painting;;LaceWhite;FW204 No Model Compatibility List $283.89 / Each

3,4,5,6
715870 1000328691 AG1 CON Tube Set;;;painting;;BlackGlossy;FW2 No Model Compatibility List $283.89 / Each

3,4,5,6
715871 1000328702 2 Pedal Set1;;;PolarizedTitanium;FW203-KM; No Model Compatibility List $792.12 / Each

8,9
N 719693 1000363935 Not Shown Back Pad Support Set;Semi-Assy;;REWORK S No Model Compatibility List $1022.42 / Each

3,4,5,6,12,13,14
Washer;SPL;SW8 8.2X13.5X2.0T;;CHM; 726404 081649 C24 Washer;SPL;SW8 8.2X13.5X2.0T;;CHM; No Model Compatibility List $2.00 / Each

2
Stopper BlockRubber;GM30 727687 090440 H08 Stopper BlockRubber;GM30 No Model Compatibility List $2.73 / Each

1
729011 Order Kit AB8 Pedal Axle No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9
729024 Order Kit 2 AT1 Motor set;Semi-Assy;;;;TM701-1US;;Servic No Model Compatibility List $0.00 / Each
Out Of Stock 		10
729261 See Pad Matrix C21 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
