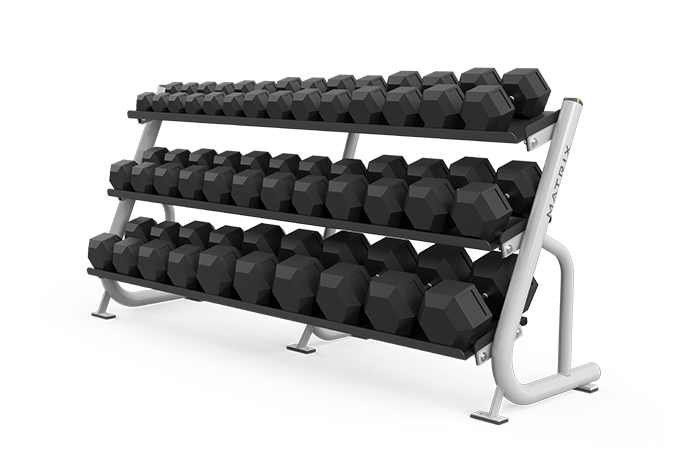

Replacement Parts for Matrix Commercial MG-A688-02 Freeweight

Matrix Commercial - MG-A688-02 - N/A

Repair Parts for Matrix Commercial MG-A688-02 MGFW271

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

MGFW271

Model Name: MG-A688-02

Version: N/A

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

16486.0-base.pdf

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Fastener Related
Frame Components
Wires
Cables
Power
Circuit Boards
Plastic Parts
Other

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
713833	1000308451	B6	5" RUBBER FOOT	No	Model Compatibility List	$14.59 / Each	9,3
713981	1000310014	B10	End Cap	No	Model Compatibility List	$5.90 / Each	9
713984	1000310019	Z14	SCREW;HH;.500-13 x 2.00;ZN;	No	Model Compatibility List	$3.02 / Each	2
713986	1000310083	B11	2" ROUND END CAP	No	Model Compatibility List	$5.04 / Each	9
714090	1000312050	B9	1/4" Plastic (836-198 - Purchase Raw Material PN)	No	Model Compatibility List	$0.00 / Each Out Of Stock	9
714104	1000312089	Z13	SCREW;HH;.500-13 x 1.50;ZN;	No	Model Compatibility List	$3.02 / Each	2
714127	1000312161	Z15	NUT;NLK;.500-13;ZN;TALL;	No	Model Compatibility List	$1.43 / Each	2
714235	1000312700	Z12	7/16" FLAT WASHER	No	Model Compatibility List	$2.44 / Each	2
714538	1000315894	V8	DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame	No	Model Compatibility List	$6.73 / Each	7,3,4,5,6
714603	1000316331	V7	DECAL SERIAL NUMBER EN 3 X 1.5	No	Model Compatibility List	$2.18 / Each	7,3
717324	1000344066	AB2	Frame;Right;3 Tier Dumbell Rack;Iced Silver	No	Model Compatibility List	$0.00 / Each Out Of Stock	2,3,4,5,6
717325	1000344067	AB2	Frame;Right;3 Tier Dumbell Rack;Black Glossy	No	Model Compatibility List	$0.00 / Each Out Of Stock	2,3,4,5,6
717326	1000344068	AB2	Frame;Right;3 Tier Dumbell Rack;Lace White	No	Model Compatibility List	$0.00 / Each Out Of Stock	2,3,4,5,6
717377	1000344562	V8	Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame	No	Model Compatibility List	$15.18 / Each	7,3,4,5,6
719141	1000356370	AB1	WELDMENT, FRAME, LEFT SIDE;Iced Silver	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
719142	1000356371	AB1	WELDMENT, FRAME, LEFT SIDE;Black Glossy	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
719143	1000356372	AB1	WELDMENT, FRAME, LEFT SIDE;Lace White	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
719680	1000363753	V16	Warning Label;Plate Loaded;	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
719681	1000363756	V16	Warning Label;Plate Loaded;French	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
720829	1000377039	B5	7ga. PLASMA	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
721477	1000383443	AB3	WELDMENT, CENTER SUPPORT, A688;Iced Silver	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
721478	1000383444	AB3	WELDMENT, CENTER SUPPORT, A688;Black Glossy	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
721479	1000383445	AB3	WELDMENT, CENTER SUPPORT, A688;Lace White	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
721481	1000383458	AB4	BRACE, SHELF, A688;Black Ridge	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
721552	1000384006	Not Shown	Serial Number Label;4" x 1.5";3M;	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
