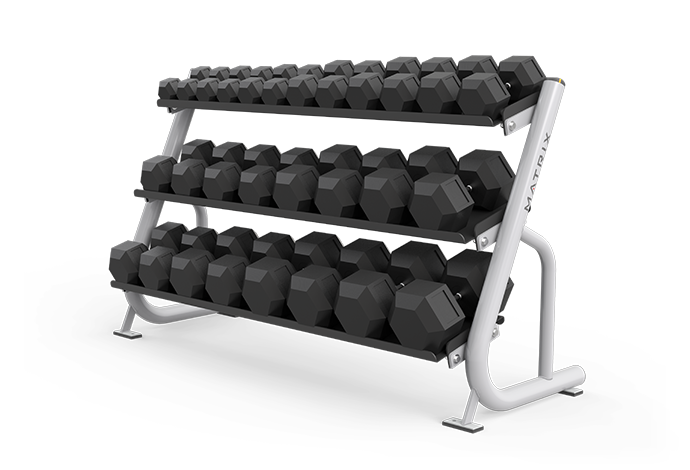

Matrix Commercial - MG-A689-02 - N/A

Repair Parts for Matrix Commercial MG-A689-02 MGFW272

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Name: MG-A689-02

Version: N/A

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 713810 1000308421 B28 HALF-ROUND RUBBER BUMPER No Model Compatibility List $16.41 / Each

1
S 713811 1000308424 Spotter Stand Right SPRING PIN ASSEMBLY No Model Compatibility List $45.60 / Each

2,3,12,13,14
Z 713826 1000308444 Z32 WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06 No Model Compatibility List $1.43 / Each

2
713838 1000308466 B18 Flat Bumper - Weight Horn No Model Compatibility List $3.02 / Each

3
Z 713935 1000309773 Z1 Screw Set;M6x1.0Px5L;BP;POT No Model Compatibility List $3.28 / Each

2
S 713938 1000309842 Spotter Stand Right 1 1/2" X 2" END CAP No Model Compatibility List $5.04 / Each

9
713976 1000310009 K2 CAP, END TUBE, 31.8MM No Model Compatibility List $7.28 / Each

9,3
713977 1000310010 K1 COLLAR, TUBE, 31.8MM No Model Compatibility List $15.18 / Each

3
S 714008 1000310115 Safety Bar Right 4 FHSCS 1/4"-20 X 1/2" No Model Compatibility List $1.33 / Each

1
Z 714031 1000310307 Z34 SCREW;HH;.375-16 x 1.00;ZN;SAE 5 No Model Compatibility List $2.37 / Each

2
J 714033 1000310313 J-Hook Right 3 1/4" BLACK FLAT WASHER No Model Compatibility List $1.43 / Each

2,4,5,6
714046 1000310435 AB11 Support No Model Compatibility List $48.98 / Each

3
714096 1000312068 Z35 SCREW;HH;.313-18 x 2.25;ZN; No Model Compatibility List $2.18 / Each

2
714098 1000312072 Z36 HHB 5/16-16 x 2 3/4" No Model Compatibility List $2.18 / Each

1
714114 1000312109 Spotter Stand Right SCREW;HH;.500-13 x 8.00;ZN; No Model Compatibility List $8.42 / Each

2
S 714127 1000312161 Spotter Stand Right NUT;NLK;.500-13;ZN;TALL; No Model Compatibility List $1.43 / Each

2
B 714152 1000312231 B24 1 1/2" Round End Cap No Model Compatibility List $2.18 / Each

9
714160 1000312247 K4 End cap - weight horn 2.5lbs No Model Compatibility List $5.04 / Each

9,3
714161 1000312249 K5 End cap - weight horn 5lbs No Model Compatibility List $5.04 / Each

9,3
714162 1000312250 K6 End cap - weight horn 10lbs No Model Compatibility List $5.04 / Each

9,3
714163 1000312253 K7 End cap - weight horn 25lbs No Model Compatibility List $5.04 / Each

9,3
714164 1000312254 K8 End cap - weight horn 45lbs No Model Compatibility List $5.04 / Each

9,3
S 714176 1000312298 Spotter Stand Right 1/2" BRASS BUSHING No Model Compatibility List $5.04 / Each

8
714194 1000312344 V46 Decal, Warning Working Bench,English No Model Compatibility List $6.73 / Each

7,3
714234 1000312690 Z38 WASHER;FLT;SAE;0.344X0.688X.063;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
S 714235 1000312700 Spotter Stand Right 7/16" FLAT WASHER No Model Compatibility List $2.44 / Each

2
S 714236 1000312711 Safety Bar Right 6 1/4" x 1/2" BUTTON HEAD No Model Compatibility List $1.46 / Each

1
714271 1000313078 AB5 WELDMENT, TALL UPRIGHT LH No Model Compatibility List $610.06 / Each

3
714272 1000313081 AB4 WELDMENT, TALL UPRIGHT RH No Model Compatibility List $610.06 / Each

3
714273 1000313107 Spotter Stand Left 1 WELDMENT, LH PLATFORM No Model Compatibility List $0.00 / Each
Out Of Stock 		3
714274 1000313114 Spotter Stand Right WELDMENT, RH PLATFORM No Model Compatibility List $0.00 / Each
Out Of Stock 		3
714276 1000313125 J-Hook Left 1 WELDMENT, JHOOK LH No Model Compatibility List $59.12 / Each

3
714277 1000313132 J-Hook Right 1 WELDMENT, JHOOK RH No Model Compatibility List $92.92 / Each

3
S 714279 1000313142 Safety Bar Right 7 1/4" ABS No Model Compatibility List $16.87 / Each

1

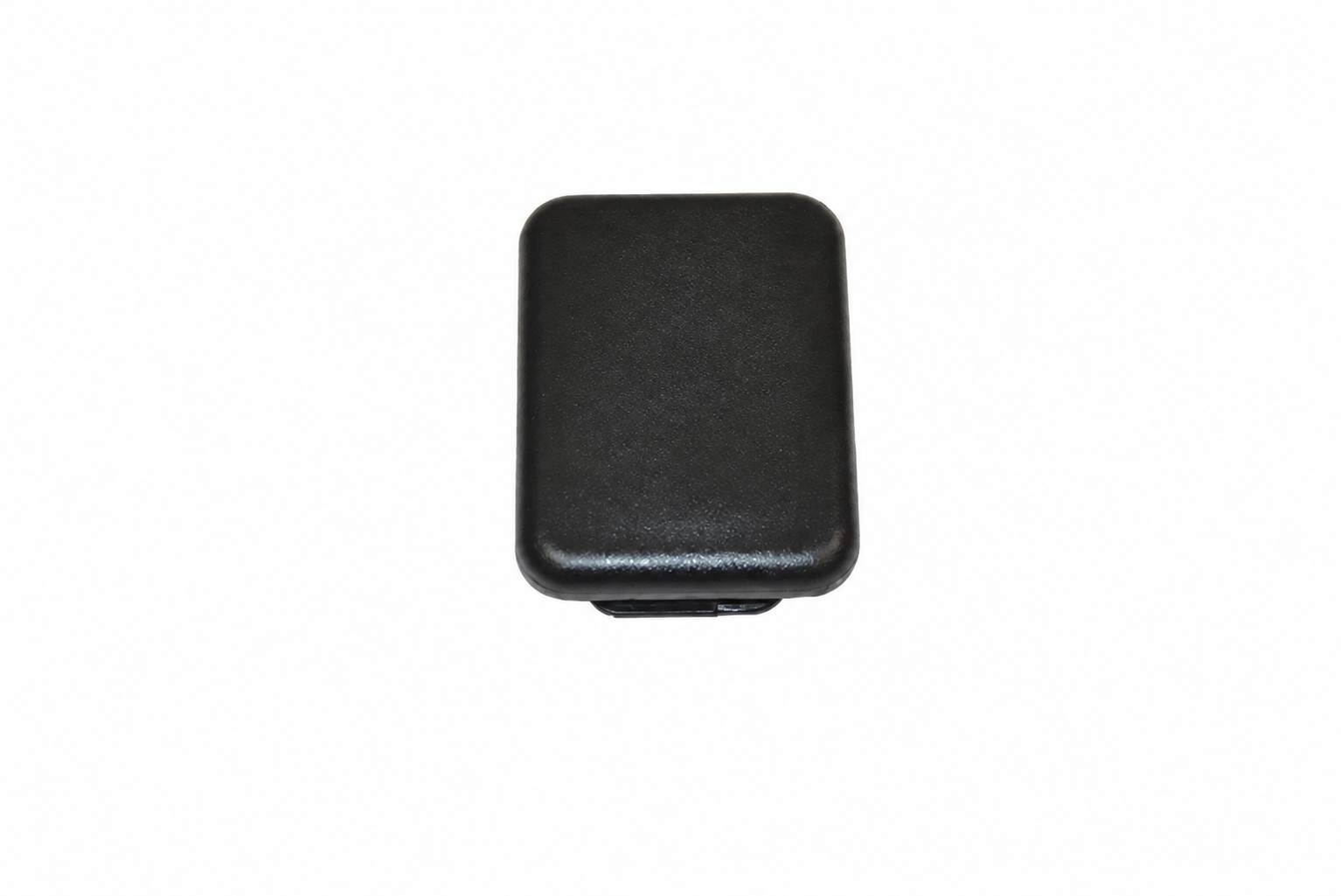

B 714282 1000313145 B25 3" x 4" Endcap No Model Compatibility List $28.70 / Each

9,4,5,6
714283 1000313151 Safety Bar Right 2 1/4" ABS No Model Compatibility List $21.94 / Each

1
714284 1000313155 J-Hook Right 4 1/4"-20 UNC X 20 No Model Compatibility List $2.18 / Each

1
714285 1000313156 J-Hook Right 5 NUT;NLK;.250-20;BLACK;TALL; No Model Compatibility List $2.18 / Each

2,4,5,6
714286 1000313161 Safety Bar Right 8 LABEL, J-HOOK SELECTOR No Model Compatibility List $3.25 / Each

1
714307 1000313539 AB8 WELDMENT, CHIN UP BAR;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
714308 1000313542 Safety Bar Left 1 WELDMENT, SAFETY BAR LH No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
714309 1000313549 Safety Bar Right 1 WELDMENT, SAFETY BAR RH No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
714310 1000313551 Safety Bar Right 5 2" TUBING EXTRUSION No Model Compatibility List $0.00 / Each
Out Of Stock 		1
714311 1000313552 J-Hook Kit Left SUB-ASSEMBLY; LEFT J-HOOK No Model Compatibility List $1073.12 / Each

3
714313 1000313554 J-Hook Kit Right SUB-ASSEMBLY; RIGHT J-HOOK No Model Compatibility List $1073.12 / Each

3
714314 1000313558 AB2 WELDMENT, N BASE LH;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
714315 1000313559 AB3 WELDMENT, BASE RH;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
714317 1000313567 Safety Bar Right 3 Foam Grip 1.00" ID 6.00" No Model Compatibility List $5.04 / Each

11
714536 1000315808 V46 DECAL,WARNING: W BENCH;French No Model Compatibility List $8.42 / Each

7,3
714538 1000315894 V44 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

7,3,4,5,6
714539 1000315911 AB6 WELDMENT, WEIGHT STORAGE LH;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
714540 1000315912 AB6 WELDMENT, WEIGHT STORAGE LH;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
714541 1000315913 AB7 WELDMENT, WEIGHT STORAGE LH;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
714543 1000315922 AB7 WELDMENT, WEIGHT STORAGE RH;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
714544 1000315923 AB7 WELDMENT, WEIGHT STORAGE RH;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
714545 1000315951 AB1 WELDMENT, BASE;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
714546 1000315952 AB1 WELDMENT, BASE;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
714547 1000315953 AB1 WELDMENT, BASE;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
714548 1000315991 Spotter Stand Kit Le SUB-ASSEMBLY; SPOT STAND LEFT No Model Compatibility List $679.35 / Each

3
714549 1000315992 Spotter Stand Kit Ri SUB-ASSEMBLY; SPOT STAND RIGHT No Model Compatibility List $679.35 / Each

3
714607 1000316344 AB11 Support;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
714608 1000316345 AB11 Support;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
714624 1000316562 AB8 WELDMENT, CHIN UP BAR;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
714625 1000316563 AB8 WELDMENT, CHIN UP BAR;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
714627 1000316592 Safety Bar Kit Left SUB-ASSEMBLY SAFETY BAR LH No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
714628 1000316593 Safety Bar Kit Right SUB-ASSEMBLY SAFETY BAR RH No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
714629 1000316616 AB2 WELDMENT, N BASE LH;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
714630 1000316617 AB2 WELDMENT, N BASE LH;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
714632 1000316626 AB3 WELDMENT, BASE RH;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
714633 1000316627 AB3 WELDMENT, BASE RH;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
K 714766 1000318109 K3 HAND GRIP 1.25 DIA 0-12"LONG No Model Compatibility List $48.98 / Each

11
714771 1000318165 1 WEIGHT HORN SET No Model Compatibility List $18.56 / Each

3
717377 1000344562 V44 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $15.18 / Each

7,3,4,5,6
721142 1000380959 J-Hook Right 2 1" PC Hook No Model Compatibility List $54.05 / Each

1
