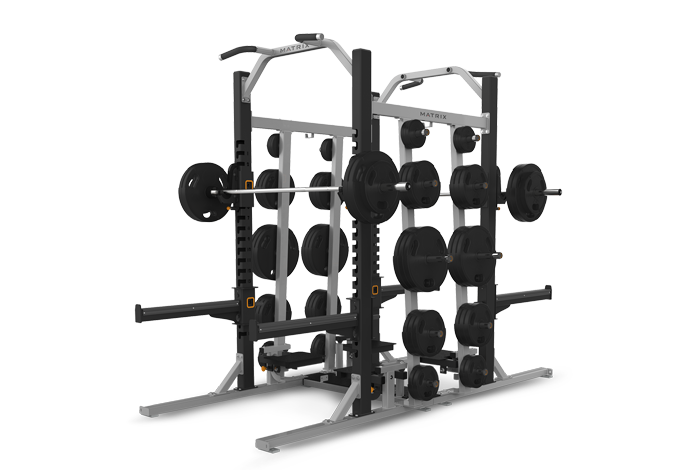

Matrix Commercial - MG-A691-02 - 2013

Repair Parts for Matrix Commercial MG-A691-02 MGPR13,MGPR14,MGPR15,MGPR16,MGPR17,MGPR18,MGAS1003

Brand: Matrix Commercial

Category: Racks & Platforms

Type: Strength Systems

Model Name: MG-A691-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 713810 1000308421 B37 HALF-ROUND RUBBER BUMPER No Model Compatibility List $16.41 / Each

1
S 713811 1000308424 Spotter Stand 2 SPRING PIN ASSEMBLY No Model Compatibility List $45.60 / Each

2,3,12,13,14
Z 713814 1000308428 Z28 3/8" NUT No Model Compatibility List $1.43 / Each

2
Z 713826 1000308444 Z26 WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06 No Model Compatibility List $1.43 / Each

2
713838 1000308466 B30 Flat Bumper - Weight Horn No Model Compatibility List $3.02 / Each

3
Z 713935 1000309773 Z1 Screw Set;M6x1.0Px5L;BP;POT No Model Compatibility List $3.28 / Each

2
S 713938 1000309842 Spotter Stand 6 1 1/2" X 2" END CAP No Model Compatibility List $5.04 / Each

9
S 713939 1000309846 Spotter Stand 5 1/2" JAM NUT No Model Compatibility List $1.43 / Each

2
S 713940 1000309847 Spotter Stand 3 WASHER, .50 OD X .38 ID X .05 No Model Compatibility List $1.43 / Each

2
713976 1000310009 K2 CAP, END TUBE, 31.8MM No Model Compatibility List $7.28 / Each

9,3
713977 1000310010 K1 COLLAR, TUBE, 31.8MM No Model Compatibility List $15.18 / Each

3
Z 714031 1000310307 Z24 SCREW;HH;.375-16 x 1.00;ZN;SAE 5 No Model Compatibility List $2.37 / Each

2
714096 1000312068 Z20 SCREW;HH;.313-18 x 2.25;ZN; No Model Compatibility List $2.18 / Each

2
714098 1000312072 Z21 HHB 5/16-16 x 2 3/4" No Model Compatibility List $2.18 / Each

1
Z 714101 1000312084 Z23 3/8" x 4" BOLT No Model Compatibility List $3.02 / Each

2
P 714152 1000312231 Pull Up Bar B3 1 1/2" Round End Cap No Model Compatibility List $2.18 / Each

9
714160 1000312247 K4 End cap - weight horn 2.5lbs No Model Compatibility List $5.04 / Each

9,3
714161 1000312249 K5 End cap - weight horn 5lbs No Model Compatibility List $5.04 / Each

9,3
714162 1000312250 K6 End cap - weight horn 10lbs No Model Compatibility List $5.04 / Each

9,3
714163 1000312253 K7 End cap - weight horn 25lbs No Model Compatibility List $5.04 / Each

9,3
714164 1000312254 K8 End cap - weight horn 45lbs No Model Compatibility List $5.04 / Each

9,3
714271 1000313078 AB6 WELDMENT, TALL UPRIGHT LH No Model Compatibility List $610.06 / Each

3
714272 1000313081 AB7 WELDMENT, TALL UPRIGHT RH No Model Compatibility List $610.06 / Each

3
714538 1000315894 V50 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

7,3,4,5,6
714609 1000316350 AB10 Support;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
714624 1000316562 Pull Up AB1A WELDMENT, CHIN UP BAR;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
714625 1000316563 Pull Up AB1A WELDMENT, CHIN UP BAR;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
714626 1000316564 Pull Up AB1A WELDMENT, CHIN UP BAR;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
714629 1000316616 AB3 WELDMENT, N BASE LH;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
714630 1000316617 AB3 WELDMENT, N BASE LH;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
714631 1000316618 AB3 WELDMENT, BASE LH;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
714632 1000316626 AB2 WELDMENT, BASE RH;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
714633 1000316627 AB2 WELDMENT, BASE RH;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
714634 1000316628 AB2 WELDMENT, BASE RH;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
P 714766 1000318109 Pull Up Kit 1 HAND GRIP 1.25 DIA 0-12"LONG No Model Compatibility List $48.98 / Each

11
714771 1000318165 Kit 1 WEIGHT HORN SET No Model Compatibility List $18.56 / Each

3
717349 1000344251 Pull Up Bar Set Chin Up Bar;Assy;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
717350 1000344252 Pull Up Bar Set Chin Up Bar;Assy;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
717351 1000344253 Pull Up Bar Set Chin Up Bar;Assy;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
717377 1000344562 Pull Up Bar V2 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $15.18 / Each

7,3,4,5,6
717726 1000347140 AB1 Bottom Brace Assy;A Series;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
717727 1000347141 AB1 Bottom Brace Assy;A Series;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
717728 1000347142 AB1 Bottom Brace Assy;A Series;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
718749 1000353136 K3 1.25" Grip;Order by 1" increments; No Model Compatibility List $0.00 / Each
Out Of Stock 		11
718961 1000354777 Spotter Stand 4 Screw;HH;.500-13 x 7.5;ZN No Model Compatibility List $0.00 / Each
Out Of Stock 		2
719680 1000363753 V51 Warning Label;Plate Loaded; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719681 1000363756 V51 Warning Label;Plate Loaded;French No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720804 1000376344 Spot Stand L Se Spotter Stand Set;Left;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
720805 1000376345 Spot Stand R Se Spotter Stand Set;Right;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
720815 1000376752 AB4 WELDMENT, WEIGHT STORAGE LH;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720816 1000376753 AB4 WELDMENT, WEIGHT STORAGE LH;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720817 1000376754 AB4 WELDMENT, WEIGHT STORAGE LH;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720822 1000376870 AB5 WELDMENT, WEIGHT STORAGE RH;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720823 1000376871 AB5 WELDMENT, WEIGHT STORAGE RH;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720824 1000376872 AB5 WELDMENT, WEIGHT STORAGE RH;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720826 1000376886 AB8 WELDMENT, CENTER BRACE;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720827 1000376887 AB8 WELDMENT, CENTER BRACE;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720828 1000376888 AB8 WELDMENT, CENTER BRACE;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721552 1000384006 V52 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
722170 1000388459 B35 End Cap;TPU;101.6x76.2x4.75T;(850-092) No Model Compatibility List $0.00 / Each
Out Of Stock 		9
723064 1000403056 B16 DIAMOND PLATE;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
724743 1000426421 Safety Bar Set J Hook Set;Pair;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
729066 Order Spotter Stand Set Spotter Stand 1 Weldment;Spotter Stand No Model Compatibility List $0.00 / Each
Out Of Stock 		3
