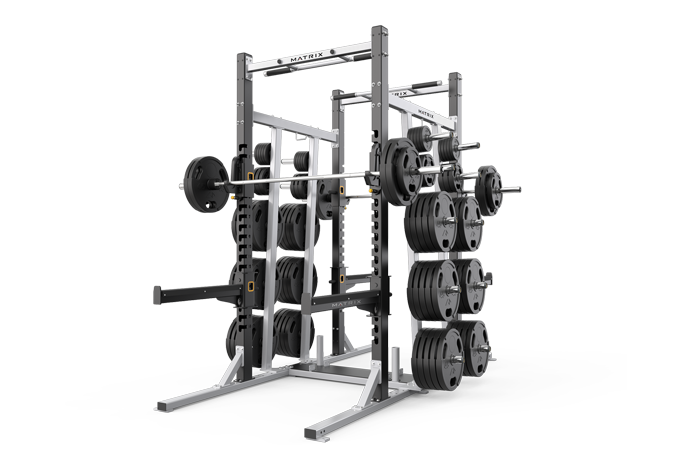

Matrix Commercial - MG-A691-05 - 2015

Repair Parts for Matrix Commercial MG-A691-05 MGPR82

Brand: Matrix Commercial

Category: Racks & Platforms

Type: Strength Systems

Model Name: MG-A691-05

Version: 2015

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Plastic Parts
  • Grips & Handles
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Z 713814 1000308428 Z17 3/8" NUT No Model Compatibility List $1.43 / Each

2
Z 713826 1000308444 Z16 WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06 No Model Compatibility List $1.43 / Each

2
713838 1000308466 Weight Horn B2 Flat Bumper - Weight Horn No Model Compatibility List $3.02 / Each

3
713839 1000308467 Weight Horn B3 End cap - weight horn No Model Compatibility List $5.90 / Each

9,3
Z 713935 1000309773 Z1 Screw Set;M6x1.0Px5L;BP;POT No Model Compatibility List $3.28 / Each

2
Z 713950 1000309858 Z31 3/4" FLAT WASHER No Model Compatibility List $1.33 / Each

2
713976 1000310009 K2 CAP, END TUBE, 31.8MM No Model Compatibility List $7.28 / Each

9,3
713977 1000310010 K1 COLLAR, TUBE, 31.8MM No Model Compatibility List $15.18 / Each

3
Z 714031 1000310307 Z14 SCREW;HH;.375-16 x 1.00;ZN;SAE 5 No Model Compatibility List $2.37 / Each

2
Z 714101 1000312084 Z13 3/8" x 4" BOLT No Model Compatibility List $3.02 / Each

2
714124 1000312155 Z32 NUT;HX;.375-16;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
P 714152 1000312231 Pull Up B3 1 1/2" Round End Cap No Model Compatibility List $2.18 / Each

9
714538 1000315894 V19 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

7,3,4,5,6
714545 1000315951 AB1 WELDMENT, BASE;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
714546 1000315952 AB1 WELDMENT, BASE;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
714547 1000315953 AB1 WELDMENT, BASE;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
714609 1000316350 AB9 Support;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
P 714766 1000318109 Pull Up Kit 1 HAND GRIP 1.25 DIA 0-12"LONG No Model Compatibility List $48.98 / Each

11
717337 1000344140 Pull Up AB1A WELDMENT; PULL-UP BAR No Model Compatibility List $0.00 / Each
Out Of Stock 		3
717376 1000344561 B26 Cap, Plastic 3"x2" 6-8 ga No Model Compatibility List $0.00 / Each
Out Of Stock 		9
717377 1000344562 V19 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $15.18 / Each

7,3,4,5,6
717443 1000345209 Z15 Screw;HH;.375-16x5.00;Zinc No Model Compatibility List $0.00 / Each
Out Of Stock 		2
717444 1000345210 B22 7/16" HOLE PLUG; NYLON No Model Compatibility List $1.33 / Each

1
717763 1000347398 Pull Up Bar Set WELDMENT, STRAIGHT CHIN UP BAR;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
717764 1000347399 Pull Up Bar Set WELDMENT, STRAIGHT CHIN UP BAR;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
717765 1000347400 Pull Up Bar Set WELDMENT, STRAIGHT CHIN UP BAR;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
718749 1000353136 K3 1.25" Grip;Order by 1" increments; No Model Compatibility List $0.00 / Each
Out Of Stock 		11
719680 1000363753 V20 Warning Label;Plate Loaded; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719681 1000363756 V20 Warning Label;Plate Loaded;French No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719695 1000363944 V30 Decal;Warning;Sled Press;English No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
719702 1000363997 V30 Decal;Warning;Sled;French No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
719764 1000365235 Weight Horn AB1 WELDMENT, WEIGHT STORAGE LH No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719770 1000365316 B27 JM Series Band Hook No Model Compatibility List $0.00 / Each
Out Of Stock 		1
719949 1000367334 Weight Set Left Storage Assy;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
719950 1000367335 Weight Set Left Storage Assy;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
719951 1000367336 Weight Set Left Storage Assy;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
719952 1000367348 Weigh Set Right Storage Assy;Reverse;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
719953 1000367349 Weigh Set Right Storage Assy;Reverse;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
719954 1000367350 Weigh Set Right Storage Assy;Reverse;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
721111 1000380694 AB3 Weldment;Base;LH;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721112 1000380695 AB3 Weldment;Base;LH;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721113 1000380696 AB3 Weldment;Base;LH;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721114 1000380709 AB2 Weldment;Base;RH;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721115 1000380710 AB2 Weldment;Base;RH;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721116 1000380711 AB2 Weldment;Base;RH;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721117 1000380723 B10 DIAMOND PLATE;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721118 1000380725 AB7 Weldment;Center Brace;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721119 1000380726 AB7 Weldment;Center Brace;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721120 1000380727 AB7 Weldment;Center Brace;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721552 1000384006 V21 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721823 1000385731 Not Shown Hardware Kit;Complete;A691-05; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
722170 1000388459 B18 End Cap;TPU;101.6x76.2x4.75T;(850-092) No Model Compatibility List $0.00 / Each
Out Of Stock 		9
722511 1000393235 AB5 Weldment; Upright;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722512 1000393237 AB6 Weldment; Upright;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
724743 1000426421 J Hook Set J Hook Set;Pair;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
724744 1000426422 Safe Bar Set Safety Bar Pair Set; No Model Compatibility List $0.00 / Each
Out Of Stock 		9
