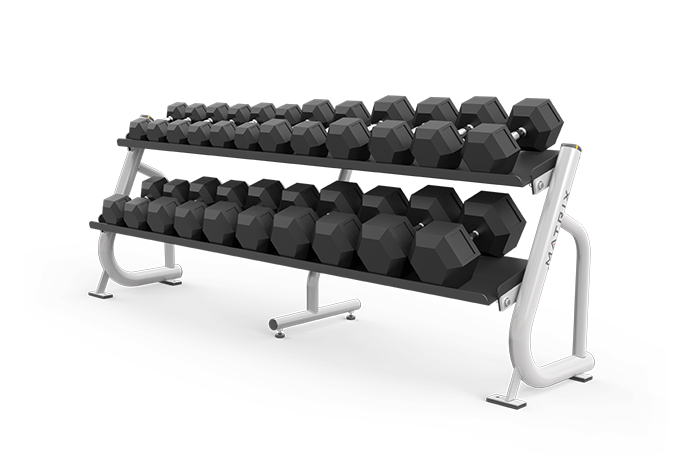

Replacement Parts for Matrix Commercial MG-A696-02 Freeweight

Matrix Commercial - MG-A696-02 - N/A

Repair Parts for Matrix Commercial MG-A696-02 MGFW273

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

MGFW273

Model Name: MG-A696-02

Version: N/A

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

16491.0-base.pdf

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Fastener Related
Frame Components
Wires
Cables
Power
Circuit Boards
Plastic Parts
Other

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
713833	1000308451	B6	5" RUBBER FOOT	No	Model Compatibility List	$14.59 / Each	9,3
713981	1000310014	B13	End Cap	No	Model Compatibility List	$5.90 / Each	9
713984	1000310019	Z15	SCREW;HH;.500-13 x 2.00;ZN;	No	Model Compatibility List	$3.02 / Each	2
713986	1000310083	B10	2" ROUND END CAP	No	Model Compatibility List	$5.04 / Each	9
714090	1000312050	B12	1/4" Plastic (836-198 - Purchase Raw Material PN)	No	Model Compatibility List	$0.00 / Each Out Of Stock	9
714104	1000312089	Z14	SCREW;HH;.500-13 x 1.50;ZN;	No	Model Compatibility List	$3.02 / Each	2
714127	1000312161	Z17	NUT;NLK;.500-13;ZN;TALL;	No	Model Compatibility List	$1.43 / Each	2
714134	1000312185	B11	BLACK OXIDE COVER SHELL	No	Model Compatibility List	$6.73 / Each	9,4,5,6
714235	1000312700	Z16	7/16" FLAT WASHER	No	Model Compatibility List	$2.44 / Each	2
714538	1000315894	V7	DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame	No	Model Compatibility List	$6.73 / Each	7,3,4,5,6
717377	1000344562	V7	Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame	No	Model Compatibility List	$15.18 / Each	7,3,4,5,6
719680	1000363753	V9	Warning Label;Plate Loaded;	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
719681	1000363756	V9	Warning Label;Plate Loaded;French	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
721480	1000383457	B5	7ga. PLASMA;Black Ridge	No	Model Compatibility List	$0.00 / Each Out Of Stock	4,5,6
721481	1000383458	B3	BRACE, SHELF, A688;Black Ridge	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
721507	1000383540	AB1	WELDMENT, SIDE FRAME, LEFT;Iced Silver	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
721508	1000383541	AB1	WELDMENT, SIDE FRAME, LEFT;Black Glossy	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
721509	1000383542	AB1	WELDMENT, SIDE FRAME, LEFT;Lace White	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
721510	1000383555	AB2	WELDMENT, SIDE FRAME, RIGHT;Iced Silver	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
721511	1000383556	AB2	WELDMENT, SIDE FRAME, RIGHT;Black Glossy	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
721512	1000383557	AB2	WELDMENT, SIDE FRAME, RIGHT;Lace White	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
721513	1000383570	AB4	WELDMENT A696 CENTER SUPPORT;Iced Silver	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
721514	1000383571	AB4	WELDMENT A696 CENTER SUPPORT;Black Glossy	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
721515	1000383572	AB4	WELDMENT A696 CENTER SUPPORT;Lace White	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
721552	1000384006	V8	Serial Number Label;4" x 1.5";3M;	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
