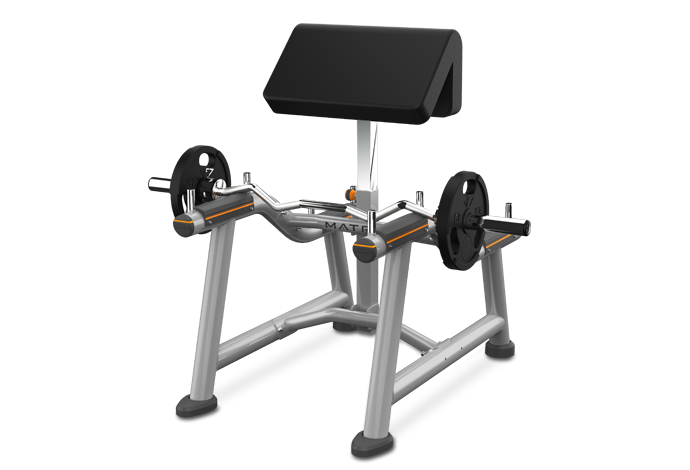

Matrix Commercial - MG-A71-02 - 2013

Repair Parts for Matrix Commercial MG-A71-02 MGFW268

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Name: MG-A71-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 713811 1000308424 B3 SPRING PIN ASSEMBLY No Model Compatibility List $45.60 / Each

2,3,12,13,14
Z 713818 1000308436 Z18 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.43 / Each

2
Z 713828 1000308446 Z17 WASHER;FLT;USS;Diam.0.281XDiam.0.734X.06 No Model Compatibility List $1.43 / Each

2
713841 1000308472 V32 Lable, Olympic Bench No Model Compatibility List $6.73 / Each

1
Z 713946 1000309854 Z19 NUT;NLK;.250-20;ZN; No Model Compatibility List $1.43 / Each

2
B 713974 1000310007 B12 Round Leveler No Model Compatibility List $20.05 / Each

3
713978 1000310011 K10 Teardrop Boot No Model Compatibility List $6.73 / Each

1
713979 1000310012 K9 Plastic Footpad No Model Compatibility List $6.73 / Each

9,3,12,13,14
B 713981 1000310014 B10 End Cap No Model Compatibility List $5.90 / Each

9
713983 1000310018 Z20 SCREW;FH;.250-20 x 1.00;ZN; No Model Compatibility List $2.18 / Each

2
B 714004 1000310106 B6 STAR HANDLE No Model Compatibility List $60.22 / Each

11
K 714008 1000310115 KZ2 FHSCS 1/4"-20 X 1/2" No Model Compatibility List $1.33 / Each

1
714014 1000310211 Z16 1/4" HEX HEAD NUT No Model Compatibility List $1.33 / Each

2
Z 714094 1000312064 Z21 5/16" x 1" BOLT No Model Compatibility List $1.33 / Each

2
714150 1000312225 B15 1 1/2" Round End Cap No Model Compatibility List $3.02 / Each

9
714151 1000312229 B5 2 1/4" x 2 1/4" END CAP No Model Compatibility List $5.04 / Each

9
714183 1000312312 Z8 Ball Joint No Model Compatibility List $6.73 / Each

1
714295 1000313434 B32 GUARD EXTRUSION ASSEMBLY No Model Compatibility List $25.32 / Each

9,3
714302 1000313470 V31 Decal, ROM No Model Compatibility List $5.04 / Each

7,3
714538 1000315894 V29 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

7,3,4,5,6
714592 1000316304 V32 DECAL OLY BENCH;French No Model Compatibility List $8.42 / Each

7,3
714710 1000317551 Z26 SCREW;SET M8 X 30 No Model Compatibility List $0.00 / Each
Out Of Stock 		2
B 714711 1000317552 B23 20# Long SHOCK No Model Compatibility List $45.60 / Each

1
714713 1000317559 1 TEARDROP FOOT No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
717377 1000344562 V29 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $15.18 / Each

7,3,4,5,6
717455 1000345268 Z28 BHSCS 3/8-16 x 1"; No Model Compatibility List $3.02 / Each

1
719680 1000363753 V27 Warning Label;Plate Loaded; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719681 1000363756 V27 Warning Label;Plate Loaded;French No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721516 1000383585 AB1 WELDMENT A71 MAIN FRAME;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721517 1000383586 AB1 WELDMENT A71 MAIN FRAME;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721518 1000383587 AB1 WELDMENT A71 MAIN FRAME;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721519 1000383599 B33 1" CRR;3/4"; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721520 1000383600 B25 .50" CRR - 13" No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721521 1000383602 AB2 WELDMENT A71 PREACHER PAD;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
721522 1000383603 AB2 WELDMENT A71 PREACHER PAD;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
721523 1000383604 AB2 WELDMENT A71 PREACHER PAD;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
721552 1000384006 V30 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
729261 See Pad Matrix J4 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
View Drawing
