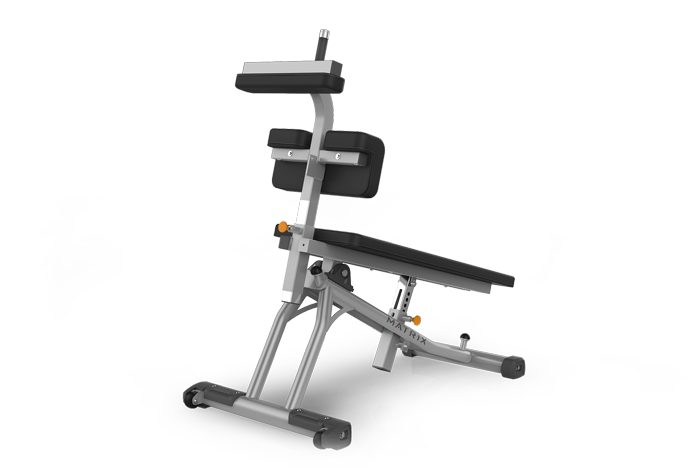

Matrix Commercial - MG-A77-02 - 2013

Repair Parts for Matrix Commercial MG-A77-02 MGFW269

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Name: MG-A77-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
713801 1000308375 B17 1" PILLOW BLOCK No Model Compatibility List $62.04 / Each

1
B 713806 1000308417 B10 2" x 2" END CAP No Model Compatibility List $5.46 / Each

9
B 713810 1000308421 B16 HALF-ROUND RUBBER BUMPER No Model Compatibility List $16.41 / Each

1
B 713811 1000308424 B15 SPRING PIN ASSEMBLY No Model Compatibility List $45.60 / Each

2,3,12,13,14
Z 713818 1000308436 Z27 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.43 / Each

2
713824 1000308442 Z45 SCREW;SET; .3125-18 X 1.00;SS No Model Compatibility List $1.43 / Each

2
Z 713828 1000308446 Z28 WASHER;FLT;USS;Diam.0.281XDiam.0.734X.06 No Model Compatibility List $1.43 / Each

2
713831 1000308449 Z47 NUT;NLK;.313-18;ZN; No Model Compatibility List $1.33 / Each

2
713840 1000308469 K2 CAP, END TUBE, 25.4MM ID No Model Compatibility List $11.80 / Each

9,3
V 713842 1000308473 V39 Lable, hand pinch No Model Compatibility List $3.02 / Each

12,13,14
Z 713935 1000309773 Z1 Screw Set;M6x1.0Px5L;BP;POT No Model Compatibility List $3.28 / Each

2
713941 1000309848 Z24 SCREW;HH;.500-13 x 3.50;ZN; No Model Compatibility List $5.04 / Each

2
Z 713946 1000309854 Z22 NUT;NLK;.250-20;ZN; No Model Compatibility List $1.43 / Each

2
Z 713949 1000309857 Z26 BHSCS 3/8 x 3/4" No Model Compatibility List $3.02 / Each

1
713989 1000310086 Z51 Machine Bushing 1 5/8" OD x 1.135 ID 14ga Zinc No Model Compatibility List $3.02 / Each

8,4,5,6
Z 714031 1000310307 Z19 SCREW;HH;.375-16 x 1.00;ZN;SAE 5 No Model Compatibility List $2.37 / Each

2
714096 1000312068 Z21 SCREW;HH;.313-18 x 2.25;ZN; No Model Compatibility List $2.18 / Each

2
714098 1000312072 Z38 HHB 5/16-16 x 2 3/4" No Model Compatibility List $2.18 / Each

1
714111 1000312103 Z25 SCREW;HH;.500-13 x 5.50;ZN; No Model Compatibility List $6.73 / Each

2
Z 714127 1000312161 Z48 NUT;NLK;.500-13;ZN;TALL; No Model Compatibility List $1.43 / Each

2
Z 714128 1000312165 Z49 3/8" SPLIT LOCK WASHER No Model Compatibility List $1.43 / Each

2
714148 1000312219 B13 1 3/4" x 1 3/4" END CAP No Model Compatibility List $3.02 / Each

9
714157 1000312241 B6 RIGHT - END CAP No Model Compatibility List $8.42 / Each

9
714158 1000312243 B5 END CAP - LEFT No Model Compatibility List $8.42 / Each

9
B 714159 1000312245 B8 End Cap No Model Compatibility List $10.92 / Each

9
714166 1000312260 B7 GUARD - FRAME No Model Compatibility List $8.42 / Each

9,3
B 714170 1000312280 B14 2.5" WHEEL No Model Compatibility List $7.28 / Each

8
714183 1000312312 Z42 Ball Joint No Model Compatibility List $6.73 / Each

1
714209 1000312406 J12 Bent Pad No Model Compatibility List $457.96 / Each

12,13,14
Z 714235 1000312700 Z29 7/16" FLAT WASHER No Model Compatibility List $2.44 / Each

2
714302 1000313470 V43 Decal, ROM No Model Compatibility List $5.04 / Each

7,3
714306 1000313525 V44 Decal ROM No Model Compatibility List $11.80 / Each

7,3
714429 1000314709 J37 Pad, A77 Assembly Back No Model Compatibility List $574.57 / Each

3,4,5,6,12,13,14
714430 1000314711 J36 Pad, A77 Assembly Ankle No Model Compatibility List $226.43 / Each

3,12,13,14
714538 1000315894 V30 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

7,3,4,5,6
714610 1000316392 K3 1" Grip;Order by 1" increments No Model Compatibility List $0.00 / Each
Out Of Stock 		11
B 714711 1000317552 B41 20# Long SHOCK No Model Compatibility List $45.60 / Each

1
714764 1000318101 1 HAND GRIP 1.0" 0-12"LONG No Model Compatibility List $45.60 / Each

11
717377 1000344562 V30 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $15.18 / Each

7,3,4,5,6
717666 1000346686 Z20 SCREW;BHC;.313-18 x 1.00 No Model Compatibility List $0.00 / Each
Out Of Stock 		2
719680 1000363753 V33 Warning Label;Plate Loaded; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719681 1000363756 V33 Warning Label;Plate Loaded;French No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720237 1000369933 K1 Tube Collar;25.4MM; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721552 1000384006 V34 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721576 1000384445 AB3 Main Frame;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721577 1000384446 AB3 Main Frame;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721578 1000384447 AB3 Main Frame;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721579 1000384460 AB4 Slide;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721580 1000384461 AB4 Slide;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
721581 1000384462 AB4 Slide;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
721582 1000384475 AB1 Back Pad Frame;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
721583 1000384476 AB1 Back Pad Frame;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
721584 1000384477 AB1 Back Pad Frame;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
721585 1000384489 B18 Chrome Slide Assy;A77; No Model Compatibility List $0.00 / Each
Out Of Stock 		7,12,13,14
721586 1000384491 AB2 Bent Pad Frame;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
721587 1000384492 AB2 Bent Pad Frame;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
721588 1000384493 AB2 Bent Pad Frame;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
729261 See Pad Matrix J46 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
View Drawing
