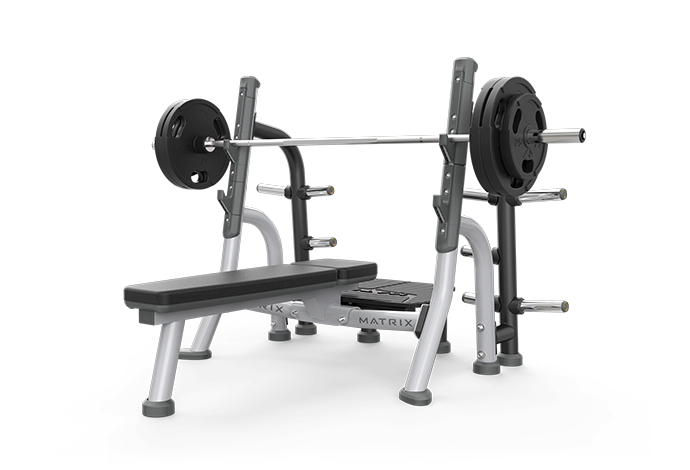

Matrix Commercial - MG-A78-02 - N/A

Repair Parts for Matrix Commercial MG-A78-02 MGFW256,MGFW284

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Name: MG-A78-02

Version: N/A

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Plastic Parts
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Z 713818 1000308436 Z23 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.43 / Each

2
B 713937 1000309841 B22 2" X 3" END CAP No Model Compatibility List $7.28 / Each

9
Z 713967 1000309953 Z27 SCREW;HH;.313-18 x 1.25;ZN; No Model Compatibility List $2.37 / Each

2
B 713974 1000310007 B10 Round Leveler No Model Compatibility List $20.05 / Each

3
B 713975 1000310008 B13 ROUND LEVELER BOOT No Model Compatibility List $5.04 / Each

3
713978 1000310011 K10 Teardrop Boot No Model Compatibility List $6.73 / Each

1
713979 1000310012 K9 Plastic Footpad No Model Compatibility List $6.73 / Each

9,3,12,13,14
B 713980 1000310013 B21 Coped Bumper - Weight Horn No Model Compatibility List $10.11 / Each

3
K 714008 1000310115 KZ2 FHSCS 1/4"-20 X 1/2" No Model Compatibility List $1.33 / Each

1
714051 1000310537 AB2 M78 SEAT FRAME;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
Z 714104 1000312089 Z26 SCREW;HH;.500-13 x 1.50;ZN; No Model Compatibility List $3.02 / Each

2
714136 1000312193 B6 Take-Off Top Cap No Model Compatibility List $38.84 / Each

9
714137 1000312195 B5 7.7 IN TAKE-OFF HOOK SPACER No Model Compatibility List $35.46 / Each

2,3,4,5,6
B 714138 1000312197 B8 TAKE-OFF HOOK No Model Compatibility List $59.12 / Each

1
714140 1000312201 B9 3.2 IN TAKE-OFF HOOK SPACER No Model Compatibility List $18.56 / Each

2,3,4,5,6
714141 1000312203 B7 TAKE-OFF HOOK BOTTOM COVER No Model Compatibility List $25.32 / Each

9
J 714142 1000312205 J19 Head Pad Plastic Cover No Model Compatibility List $13.49 / Each

9,12,13,14
J 714143 1000312207 J20 BACK PAD PLASTICS No Model Compatibility List $35.46 / Each

9,4,5,6,12,13,14
714160 1000312247 K4 End cap - weight horn 2.5lbs No Model Compatibility List $5.04 / Each

9,3
714161 1000312249 K5 End cap - weight horn 5lbs No Model Compatibility List $5.04 / Each

9,3
714162 1000312250 K6 End cap - weight horn 10lbs No Model Compatibility List $5.04 / Each

9,3
714163 1000312253 K7 End cap - weight horn 25lbs No Model Compatibility List $5.04 / Each

9,3
714164 1000312254 K8 End cap - weight horn 45lbs No Model Compatibility List $5.04 / Each

9,3
714214 1000312420 J4 HEAD PAD No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
714215 1000312422 J3 36" Back Pad No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
Z 714235 1000312700 Z24 7/16" FLAT WASHER No Model Compatibility List $2.44 / Each

2
714538 1000315894 V29 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

7,3,4,5,6
714590 1000316284 AB2 M78 SEAT FRAME;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
714591 1000316285 AB2 M78 SEAT FRAME;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
714597 1000316311 AB1 Main Frame;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
714598 1000316312 AB1 Main Frame;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
714599 1000316313 AB1 Main Frame;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
714771 1000318165 1 WEIGHT HORN SET No Model Compatibility List $18.56 / Each

3
714772 1000318166 2 KIT TEARDROP FOOT No Model Compatibility List $33.77 / Each

9,3
717377 1000344562 V29 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $15.18 / Each

7,3,4,5,6
717455 1000345268 Z25 BHSCS 3/8-16 x 1"; No Model Compatibility List $3.02 / Each

1
719680 1000363753 V31 Warning Label;Plate Loaded; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719681 1000363756 V31 Warning Label;Plate Loaded;French No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719755 1000365189 Not Shown Spotter Stand No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721552 1000384006 V30 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
View Drawing
