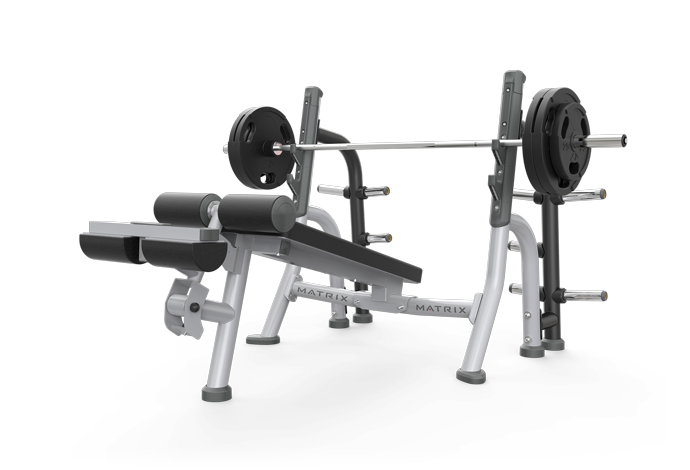

Matrix Commercial - MG-A80-03 - 2014

Repair Parts for Matrix Commercial MG-A80-03 FW205

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Name: MG-A80-03

Version: 2014

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 701376 004426-00 B21 Screw;FH;M6X1.0PX12L;;PH;;BZN;; No Model Compatibility List $1.66 / Each

2
Z 701522 004555-AB Z04 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A No Model Compatibility List $4.00 / Each

2
B 701660 004696-AB B19 Screw;Hex Socket;8X1.25X20L;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
C 701836 004855-AC C25 Set Screw;M6X1.0PX4L No Model Compatibility List $1.79 / Each

2
Z 701992 005031-AC Z11 WASHER;FLT;Diam.20.2XDiam.30.0X2.0T;;CHM No Model Compatibility List $1.66 / Each

2
702012 005047-Z B50 Washer;Flat;X8.2xX20.0x1.8T;;Chrome;;R No Model Compatibility List $0.00 / Each
Out Of Stock 		7,2,12,13,14
Z 704193 020465-AB Z02 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
D 704316 022395-B D50 Sleeve;Axle;20X40MM No Model Compatibility List $3.64 / Each

8,3
C 704319 022400-A C40 Spring Pin;5x30L No Model Compatibility List $3.64 / Each

2,12,13,14
C 705389 049043-AA C30 Cap;S50.0x75.0;2.0t.3.0t tube No Model Compatibility List $3.35 / Each

9,3
C 705402 049062-BA C31 END CAP No Model Compatibility List $3.64 / Each

9
C 705422 049128-AA C15 End Cap;Back No Model Compatibility List $1.79 / Each

9,4,5,6
C 707798 1000095593 C20 Cap;Leg Pad;ABS;GM42 No Model Compatibility List $2.13 / Each

9,12,13,14
C 707799 1000095594 C22 Cap;Leg Pad;ABS;GM42 No Model Compatibility List $1.87 / Each

9,12,13,14
Z 708449 1000102865 Z03 Screw;Hex Socket;Round;M10x1.5Px70L;Cr P No Model Compatibility List $8.42 / Each

2
Z 708730 1000105174 Z13 Nut;Nylon;M10x1.5P;G12.9;CHM No Model Compatibility List $1.79 / Each

2
H 709067 1000108799 H14 Screw;RND;M8x1.25Px25L;HS;CHM;BP;G8.8 No Model Compatibility List $3.56 / Each

2
C 709107 1000109771 C39 Screw;RND;M8x1.25Px12L;HS;CHM;BP;G8.8 No Model Compatibility List $1.17 / Each

2
C 709543 1000201207 C55 Plastic Cover;;ABS;DG;;;GM61; No Model Compatibility List $1.77 / Each

9
PIN SET;SA;ADJUSTABLE#VALUE LINE#;GM59;- 710348 1000305793 8 PIN SET;SA;ADJUSTABLE#VALUE LINE#;GM59;- No Model Compatibility List $43.77 / Each

12,13,14
711198 1000217438 J23 Handle Pull Pin;;;TPP;Black Orange;;GM59 No Model Compatibility List $13.49 / Each

4,5,6,12,13,14,11
711984 1000224684 Z12 Screw;RND;M10x1.5Px125L;-;HS;-;CHM;BP;G1 No Model Compatibility List $0.00 / Each
Out Of Stock 		2
G 711994 1000224767 G30 Plastic Cover;-;-;PP;-;-;-;- No Model Compatibility List $1.66 / Each

9
Z 712934 1000231572 Z01 SCREW;SH;M10X1.5PX20L;;;HS;BP;CHM; No Model Compatibility List $2.00 / Each

2
H 713500 1000304394 H25 Bousing;Round Pad;-;PVC;60x52x30.1L;GM No Model Compatibility List $1.66 / Each

12,13,14
B 713539 1000304912 B18 Food Pad;ADJ Base;;PP;BL/Black C;FW201; No Model Compatibility List $42.22 / Each

3,4,5,6,12,13,14
B 713541 1000304951 B17 Rubber Sleeve;Foot Pad;;PVC Anti-fire;Gr No Model Compatibility List $8.42 / Each

9,3,12,13,14
B 713548 1000305030 B38 Plastic Cover;Foot Pad;down;Soft PVC;FW2 No Model Compatibility List $8.42 / Each

9,3,12,13,14
B 713549 1000305031 B39 Boot;Hang Rod;1;PU;Gray/60461;FW201-KM; No Model Compatibility List $25.32 / Each

3
B 713552 1000305041 B40 Boot;Hang Rod;2;PU; No Model Compatibility List $30.39 / Each

3
B 713553 1000305044 B41 Boot;Hang Rod;3;PU; No Model Compatibility List $32.08 / Each

3
B 713556 1000305050 B43 Boot;Hang Rod;;TPU;FW201-KM; No Model Compatibility List $18.56 / Each

3
B 713557 1000305058 B44 Food Pad;ADJ Axle;down;PP;BL/Black C;FW2 No Model Compatibility List $8.42 / Each
Out Of Stock 		8,4,5,6,12,13,14
1 713559 1000305097 1 Storage Horn Set;Semi-Assy;;FW201-KM No Model Compatibility List $780.75 / Each

1
3 713560 1000305099 3 Storage Horn Set;Semi-Assy;left;FW201-K No Model Compatibility List $390.36 / Each

1
B 713562 1000305125 B16 Boot;Hang Rod;;SBR+NBR;Gray/80435;FW201- No Model Compatibility List $8.42 / Each

3
4 713563 1000305131 4 Storage Horn Set;Semi-Assy;right;FW201-KM No Model Compatibility List $390.36 / Each

1
713623 1000305848 C18 Logo Cover;LOGO;;NYLON 6;Gray/75140;FW20 No Model Compatibility List $8.42 / Each

9
713624 1000305865 Not Shown Hardware Set;Semi-Assy;;FW205-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
B 713634 1000305966 B15 End Cap;Hang Rod;;HDPE;Gray/80435;;FW201 No Model Compatibility List $3.35 / Each

9,3
B 713635 1000305968 B25 Plastic Cover;Hang Rod;;HDPE;Gray/80435; No Model Compatibility List $3.35 / Each

9,3
713636 1000305970 B26 End Cap;Hang Rod;;HDPE;Gray/80435;;FW201 No Model Compatibility List $3.35 / Each

9,3
C 713667 1000306289 C29 Axle, Swivel;Foot Pad,;;40CRMO;FW205-KM; No Model Compatibility List $20.25 / Each

8,9,3,12,13,14
B 713740 1000307173 B48 Plastic Cover;Nut;;;;;; No Model Compatibility List $1.66 / Each

2,9
713896 1000309394 V03 EN LABEL;;;;PETP;;;FW205 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
C 713934 1000309740 C38 ADJ plate;Pull Pin;;;3t;CHM;FW205-KM; No Model Compatibility List $18.56 / Each

3,12,13,14
715326 1000324026 Not Shown Hardware Set;Semi-Assy;2;;;FW201-KM;; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
C 715534 1000325798 C46 Bearing;Ball;6004ZZ;#20X#42X12T;CSC; No Model Compatibility List $7.64 / Each

8
A 715844 1000328626 AG1 CON Tube Set;;;painting;;IcedSliver;FW20 No Model Compatibility List $214.60 / Each

3
715845 1000328630 AG1 CON Tube Set;;;painting;;LaceWhite;FW201 No Model Compatibility List $214.60 / Each

3,4,5,6
715846 1000328631 AG1 CON Tube Set;;;painting;;BlackGlossy;FW2 No Model Compatibility List $214.60 / Each

3,4,5,6
A 716112 1000332753 AC2 Adjustable Set;Leg Pad;;painting;;Iced S No Model Compatibility List $16.87 / Each

12,13,14
716113 1000332755 AC2 Adjustable Set;Leg Pad;;painting;;Lace W No Model Compatibility List $16.87 / Each

4,5,6,12,13,14
716114 1000332756 AC2 Adjustable Set;Leg Pad;;painting;;Black No Model Compatibility List $189.25 / Each

4,5,6,12,13,14
716116 1000332870 AB2 Frame Set;;L;Painting;;Iced Sliver;FW205 No Model Compatibility List $288.96 / Each

3
716117 1000332872 AB2 Frame Set;;L;Painting;;Lace White;FW205; No Model Compatibility List $288.96 / Each

3,4,5,6
716118 1000332874 AB2 Frame Set;;L;Painting;;Black Glossy;FW20 No Model Compatibility List $288.96 / Each

3,4,5,6
716119 1000332876 AB5 Frame Set;;R;Painting;;Iced Sliver;FW205 No Model Compatibility List $288.96 / Each

3
716120 1000332878 AB5 Frame Set;;R;Painting;;Lace White;FW205; No Model Compatibility List $288.96 / Each

3,4,5,6
716121 1000332880 AB5 Frame Set;;R;Painting;;Black Glossy;FW20 No Model Compatibility List $288.96 / Each

3,4,5,6
6 719073 1000355597 6 User frame set;Semi-Assy;;;;FW205;Iced S No Model Compatibility List $479.93 / Each

3
719074 1000355601 6 User frame set;Semi-Assy;;;;FW205;Lace W No Model Compatibility List $479.93 / Each

3,4,5,6
719075 1000355607 6 User frame set;Semi-Assy;;;;FW205;Black No Model Compatibility List $479.93 / Each

3,4,5,6
C 719252 1000358938 C40 Spring;Compression;1.2x12.9x65Lx12N;65 No Model Compatibility List $1.43 / Each

2
719680 1000363753 V01 Warning Label;Plate Loaded; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719694 1000363943 Not Shown Back Pad Support Set;Semi-Assy;;REWORK S No Model Compatibility List $877.89 / Each

3,4,5,6,12,13,14
C 725014 100995 C24 Stopper Ring;Leg Pad;ABS;GM42 No Model Compatibility List $2.83 / Each

12,13,14
726986 086513 B58 Screw;Hex Socket;Round;M10x1.5Px40L No Model Compatibility List $0.44 / Each

2
Stopper BlockRubber;GM30 727687 090440 H08 Stopper BlockRubber;GM30 No Model Compatibility List $2.73 / Each

1
CON Plate; Cap;SPHC3.0t;GM42 728704 096073 H12 CON Plate; Cap;SPHC3.0t;GM42 No Model Compatibility List $2.37 / Each

9,3
Stopper Ring;Cap;AL6061;GM42 728705 096074 H13 Stopper Ring;Cap;AL6061;GM42 No Model Compatibility List $19.81 / Each

9
729011 Order Kit AB8 Pedal Axle No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9
729261 See Pad Matrix J60 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
