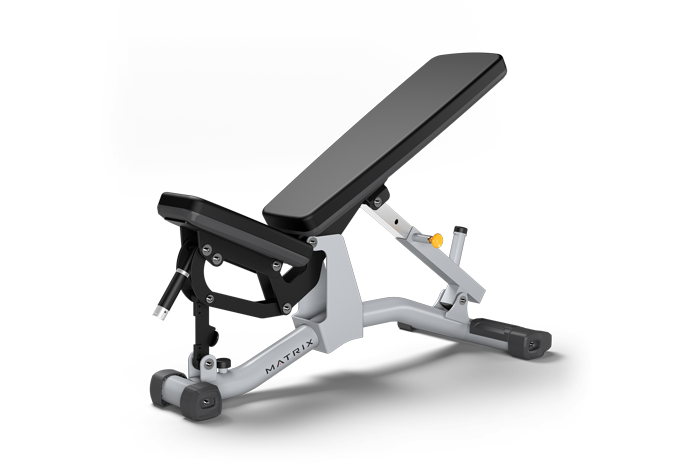

Matrix Commercial - MG-A85-02 - 2013

Repair Parts for Matrix Commercial MG-A85-02 MGFW265

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Name: MG-A85-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 713806 1000308417 B18 2" x 2" END CAP No Model Compatibility List $5.46 / Each

9
B 713810 1000308421 B15 HALF-ROUND RUBBER BUMPER No Model Compatibility List $16.41 / Each

1
B 713811 1000308424 B14 SPRING PIN ASSEMBLY No Model Compatibility List $45.60 / Each

2,3,12,13,14
Z 713818 1000308436 Z35 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.43 / Each

2
713824 1000308442 Z28 SCREW;SET; .3125-18 X 1.00;SS No Model Compatibility List $1.43 / Each

2
Z 713828 1000308446 Z34 WASHER;FLT;USS;Diam.0.281XDiam.0.734X.06 No Model Compatibility List $1.43 / Each

2
713830 1000308448 Z29 5/16" X 1 1/2" BOLT No Model Compatibility List $1.43 / Each

2
713831 1000308449 Z39 NUT;NLK;.313-18;ZN; No Model Compatibility List $1.33 / Each

2
713840 1000308469 K2 CAP, END TUBE, 25.4MM ID No Model Compatibility List $11.80 / Each

9,3
V 713842 1000308473 V51 Lable, hand pinch No Model Compatibility List $3.02 / Each

12,13,14
Z 713935 1000309773 Z1 Screw Set;M6x1.0Px5L;BP;POT No Model Compatibility List $3.28 / Each

2
B 713938 1000309842 B19 1 1/2" X 2" END CAP No Model Compatibility List $5.04 / Each

9
713941 1000309848 Z27 SCREW;HH;.500-13 x 3.50;ZN; No Model Compatibility List $5.04 / Each

2
Z 713992 1000310089 Z31 SCREW;HH;.500-13 x 4.00;ZN; No Model Compatibility List $5.04 / Each

2
713998 1000310097 Z33 SCREW;HH;.250-20 x 2.00;ZN; No Model Compatibility List $1.33 / Each

2
Z 714016 1000310219 Z30 SCREW;HH;.250-20 x 0.75;ZN; No Model Compatibility List $1.33 / Each

2
714068 1000310777 B41 3/4"OD x 1/2"ID PIPE - 4 25/32" No Model Compatibility List $0.00 / Each
Out Of Stock 		1
714112 1000312105 Z32 SCREW;HH;.500-13 x 6.50;ZN; No Model Compatibility List $6.73 / Each

2
Z 714120 1000312143 Z37 1/4" x 1/2" BOLT No Model Compatibility List $1.43 / Each

2
714126 1000312159 Z40 1/2 - 13 NUT No Model Compatibility List $1.33 / Each

2
Z 714127 1000312161 Z38 NUT;NLK;.500-13;ZN;TALL; No Model Compatibility List $1.43 / Each

2
J 714143 1000312207 J23 BACK PAD PLASTICS No Model Compatibility List $35.46 / Each

9,4,5,6,12,13,14
714146 1000312215 J24 Bottom Pad No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
714157 1000312241 B8 RIGHT - END CAP No Model Compatibility List $8.42 / Each

9
714158 1000312243 B9 END CAP - LEFT No Model Compatibility List $8.42 / Each

9
B 714159 1000312245 B11 End Cap No Model Compatibility List $10.92 / Each

9
714166 1000312260 B16 GUARD - FRAME No Model Compatibility List $8.42 / Each

9,3
B 714170 1000312280 B17 2.5" WHEEL No Model Compatibility List $7.28 / Each

8
B 714176 1000312298 B12 1/2" BRASS BUSHING No Model Compatibility List $5.04 / Each

8
714212 1000312416 J25 16" N PAD ASSEMBLY No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
714215 1000312422 J26 36" Back Pad No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
714232 1000312684 Z43 Washer;Thrust;.50 x 1";BRZ; No Model Compatibility List $0.00 / Each
Out Of Stock 		7,2,12,13,14
Z 714235 1000312700 Z36 7/16" FLAT WASHER No Model Compatibility List $2.44 / Each

2
714298 1000313457 V50 DECAL A61 No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
714535 1000315793 AB5 Seat Pad Frame;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
714538 1000315894 V47 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

7,3,4,5,6
714589 1000316282 V49 DECAL,MATRIX LOGO 6.5 X .56(166MM) No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
714672 1000316932 K3 1" Grip;Order by 1" increments No Model Compatibility List $0.00 / Each
Out Of Stock 		11
714764 1000318101 1 HAND GRIP 1.0" 0-12"LONG No Model Compatibility List $45.60 / Each

11
717545 1000346039 AB7 Tele Slide Assy;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
717546 1000346040 AB7 Tele Slide Assy;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
717547 1000346041 AB7 Tele Slide Assy;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
719680 1000363753 V43 Warning Label;Plate Loaded; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719681 1000363756 V43 Warning Label;Plate Loaded;French No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720237 1000369933 K1 Tube Collar;25.4MM; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720630 1000374362 B10 1 3/4" x 1 3/4" TUBE - 20 7/8" No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720631 1000374364 AB3 Back Pad Frame;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
720632 1000374365 AB3 Back Pad Frame;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
720633 1000374366 AB3 Back Pad Frame;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
720636 1000374380 B42 1/4" PLASMA;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		1
720637 1000374382 AB2 Connection;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
721552 1000384006 V48 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721621 1000384770 AB1 Weldment, Lower Frame, A85;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721622 1000384771 AB1 Weldment, Lower Frame, A85;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721623 1000384772 AB1 Weldment, Lower Frame, A85;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721624 1000384785 AB4 Stop;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
721625 1000384787 AB6 Weldment Grip;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,11
722577 1000394201 B13 Oilube Flange Bushing;3/4 ID x Reamed .7 No Model Compatibility List $37.15 / Each

8,15
