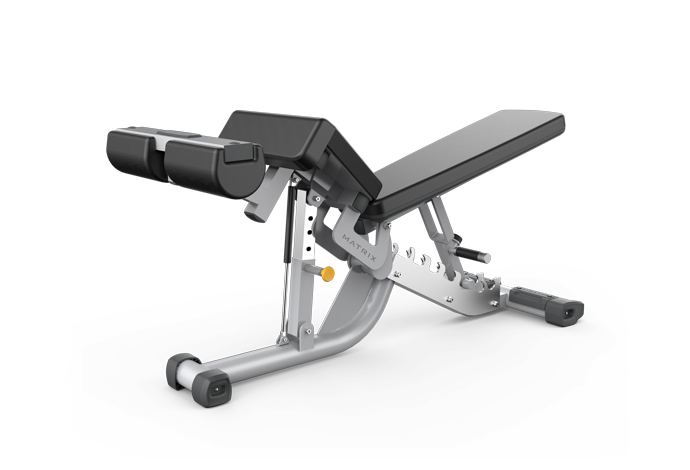

Matrix Commercial - MG-A86-02 - 2013

Repair Parts for Matrix Commercial MG-A86-02 MGFW266

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Name: MG-A86-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 713806 1000308417 B24 2" x 2" END CAP No Model Compatibility List $5.46 / Each

9
B 713807 1000308418 B23 1 1/2" x 3" END CAP No Model Compatibility List $5.46 / Each

9
B 713810 1000308421 B12 HALF-ROUND RUBBER BUMPER No Model Compatibility List $16.41 / Each

1
B 713811 1000308424 B9 SPRING PIN ASSEMBLY No Model Compatibility List $45.60 / Each

2,3,12,13,14
Z 713818 1000308436 Z38 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.43 / Each

2
Z 713819 1000308437 Z34 SCREW;HH;.375-16 x 1.50;ZN; No Model Compatibility List $2.37 / Each

2
713824 1000308442 Z37 SCREW;SET; .3125-18 X 1.00;SS No Model Compatibility List $1.43 / Each

2
Z 713828 1000308446 Z40 WASHER;FLT;USS;Diam.0.281XDiam.0.734X.06 No Model Compatibility List $1.43 / Each

2
713831 1000308449 Z42 NUT;NLK;.313-18;ZN; No Model Compatibility List $1.33 / Each

2
V 713842 1000308473 V52 Lable, hand pinch No Model Compatibility List $3.02 / Each

12,13,14
B 713937 1000309841 B21 2" X 3" END CAP No Model Compatibility List $7.28 / Each

9
B 713938 1000309842 B55 1 1/2" X 2" END CAP No Model Compatibility List $5.04 / Each

9
Z 713946 1000309854 Z43 NUT;NLK;.250-20;ZN; No Model Compatibility List $1.43 / Each

2
Z 713949 1000309857 Z45 BHSCS 3/8 x 3/4" No Model Compatibility List $3.02 / Each

1
Z 713992 1000310089 Z30 SCREW;HH;.500-13 x 4.00;ZN; No Model Compatibility List $5.04 / Each

2
714025 1000310301 Z28 SCREW;HH;.500-13 x 4.50;ZN; No Model Compatibility List $5.04 / Each

2
Z 714031 1000310307 Z55 SCREW;HH;.375-16 x 1.00;ZN;SAE 5 No Model Compatibility List $2.37 / Each

2
Z 714094 1000312064 Z31 5/16" x 1" BOLT No Model Compatibility List $1.33 / Each

2
714096 1000312068 Z32 SCREW;HH;.313-18 x 2.25;ZN; No Model Compatibility List $2.18 / Each

2
714097 1000312070 Z26 SCREW;HH;.313-18 x 2.50;ZN; No Model Compatibility List $2.18 / Each

2
714108 1000312097 Z27 SCREW;HH;.500-13 x 3.75;ZN; No Model Compatibility List $5.04 / Each

2
714113 1000312107 Z29 SCREW;HH;.500-13 x 6.00;ZN; No Model Compatibility List $6.73 / Each

2
Z 714127 1000312161 Z44 NUT;NLK;.500-13;ZN;TALL; No Model Compatibility List $1.43 / Each

2
J 714143 1000312207 J47 BACK PAD PLASTICS No Model Compatibility List $35.46 / Each

9,4,5,6,12,13,14
714157 1000312241 B13 RIGHT - END CAP No Model Compatibility List $8.42 / Each

9
714158 1000312243 B14 END CAP - LEFT No Model Compatibility List $8.42 / Each

9
B 714159 1000312245 B16 End Cap No Model Compatibility List $10.92 / Each

9
714165 1000312256 B22 BADGE No Model Compatibility List $5.04 / Each

1
714166 1000312260 B15 GUARD - FRAME No Model Compatibility List $8.42 / Each

9,3
B 714170 1000312280 B20 2.5" WHEEL No Model Compatibility List $7.28 / Each

8
B 714176 1000312298 B19 1/2" BRASS BUSHING No Model Compatibility List $5.04 / Each

8
714177 1000312300 B54 BUSHING 3/4" ID 1.0" OD No Model Compatibility List $6.73 / Each

8
714183 1000312312 B35 Ball Joint No Model Compatibility List $6.73 / Each

1
B 714186 1000312318 B3 60LBS. SHORT SHOCK No Model Compatibility List $43.78 / Each

1
714216 1000312424 J8 ASSY, SHIN PAD, A80 No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
Z 714235 1000312700 Z39 7/16" FLAT WASHER No Model Compatibility List $2.44 / Each

2
714299 1000313459 J6 ASSY, SEAT, A86 No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
714300 1000313464 V53 SEAT ROM DECAL No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3,12,13,14
714589 1000316282 V51 DECAL,MATRIX LOGO 6.5 X .56(166MM) No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
717666 1000346686 Z33 SCREW;BHC;.313-18 x 1.00 No Model Compatibility List $0.00 / Each
Out Of Stock 		2
717667 1000346693 B51 1 1/4"OD x 1"ID PLASTIC TUBE - 1.25" No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
717931 1000348681 B53 1" Grip;3.25" Long;Closed End No Model Compatibility List $0.00 / Each
Out Of Stock 		9,11
719332 1000359829 AB7 Seat Frame Assy;A86;Iced Silver No Model Compatibility List $997.07 / Each

3,12,13,14
719333 1000359830 AB7 Roller Frame;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3,4,5,6
719334 1000359831 AB7 Roller Frame;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3,4,5,6
719407 1000361087 B52 3/4"OD x 1/2"ID PIPE - 4 25/32" No Model Compatibility List $0.00 / Each
Out Of Stock 		1
719680 1000363753 V48 Warning Label;Plate Loaded; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719681 1000363756 V48 Warning Label;Plate Loaded;French No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720067 1000368425 AB2 Telescopic Slide;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
720068 1000368426 AB2 Telescopic Slide;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
720069 1000368427 AB2 Telescopic Slide;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
720831 1000377212 B10 Chrome Slide Assy;A86 No Model Compatibility List $0.00 / Each
Out Of Stock 		7,12,13,14
721552 1000384006 V50 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721672 1000385055 AB1 WELDMENT, MAIN FRAME, A86;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721673 1000385056 AB1 WELDMENT, MAIN FRAME, A86;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721674 1000385057 AB1 WELDMENT, MAIN FRAME, A86;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721675 1000385069 B11 1/4" PLASMA;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
721676 1000385071 AB4 Adjustment Frame;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721677 1000385072 AB4 Adjustment Frame;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721678 1000385073 AB4 Adjustment Frame;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721679 1000385086 AB5 Seat Frame;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
721680 1000385087 AB5 Seat Frame;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
721681 1000385088 AB5 Seat Frame;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
729261 See Pad Matrix J46 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
