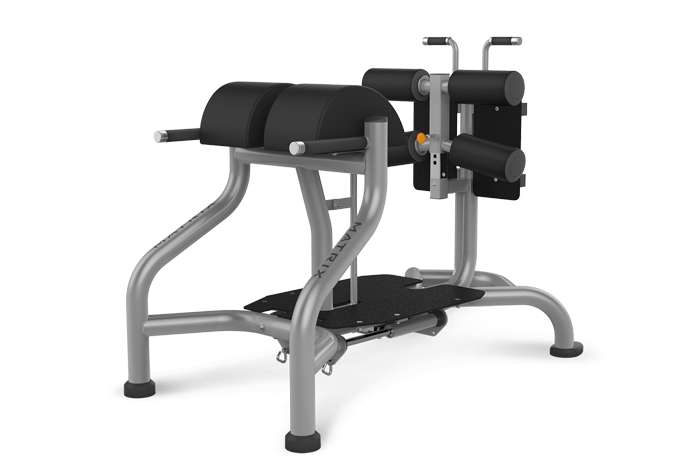

Matrix Commercial - MG-A96-02 - 2013

Repair Parts for Matrix Commercial MG-A96-02 MGFW282

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Name: MG-A96-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
N 707799 1000095594 Not Shown Cap;Leg Pad;ABS;GM42 No Model Compatibility List $1.87 / Each

9,12,13,14
R 713500 1000304394 Roller Pad 5 Bousing;Round Pad;-;PVC;60x52x30.1L;GM No Model Compatibility List $1.66 / Each

12,13,14
B 713806 1000308417 B34 2" x 2" END CAP No Model Compatibility List $5.46 / Each

9
B 713811 1000308424 B33 SPRING PIN ASSEMBLY No Model Compatibility List $45.60 / Each

2,3,12,13,14
Z 713814 1000308428 Z25 3/8" NUT No Model Compatibility List $1.43 / Each

2
Z 713818 1000308436 Z17 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.43 / Each

2
Z 713819 1000308437 Z19 SCREW;HH;.375-16 x 1.50;ZN; No Model Compatibility List $2.37 / Each

2
713821 1000308439 Z66 NUT;NLK;.375-16;ZN; No Model Compatibility List $1.43 / Each

2
713825 1000308443 Z29 SCREW;FH;.375-16 x 1.25;ZN; No Model Compatibility List $2.18 / Each

2
Z 713826 1000308444 Z15 WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06 No Model Compatibility List $1.43 / Each

2
Z 713828 1000308446 Z16 WASHER;FLT;USS;Diam.0.281XDiam.0.734X.06 No Model Compatibility List $1.43 / Each

2
713840 1000308469 K2 CAP, END TUBE, 25.4MM ID No Model Compatibility List $11.80 / Each

9,3
V 713842 1000308473 V63 Lable, hand pinch No Model Compatibility List $3.02 / Each

12,13,14
Z 713935 1000309773 Z1 Screw Set;M6x1.0Px5L;BP;POT No Model Compatibility List $3.28 / Each

2
Z 713946 1000309854 Z64 NUT;NLK;.250-20;ZN; No Model Compatibility List $1.43 / Each

2
Z 713967 1000309953 Z40 SCREW;HH;.313-18 x 1.25;ZN; No Model Compatibility List $2.37 / Each

2
B 713970 1000309992 B39 Orange PULL KNOB No Model Compatibility List $10.92 / Each

1
B 713974 1000310007 B51 Round Leveler No Model Compatibility List $20.05 / Each

3
B 713975 1000310008 B53 ROUND LEVELER BOOT No Model Compatibility List $5.04 / Each

3
713976 1000310009 K2 CAP, END TUBE, 31.8MM No Model Compatibility List $7.28 / Each

9,3
713977 1000310010 K1 COLLAR, TUBE, 31.8MM No Model Compatibility List $15.18 / Each

3
713978 1000310011 K10 Teardrop Boot No Model Compatibility List $6.73 / Each

1
713979 1000310012 K9 Plastic Footpad No Model Compatibility List $6.73 / Each

9,3,12,13,14
B 713981 1000310014 B46 End Cap No Model Compatibility List $5.90 / Each

9
Z 713991 1000310088 Z28 Washer, Curved, 1/2" No Model Compatibility List $3.02 / Each

2
K 714008 1000310115 KZ2 FHSCS 1/4"-20 X 1/2" No Model Compatibility List $1.33 / Each

1
714024 1000310289 B2 3" Connector Joint No Model Compatibility List $10.11 / Each

1
714025 1000310301 Z20 SCREW;HH;.500-13 x 4.50;ZN; No Model Compatibility List $5.04 / Each

2
714072 1000310868 B8 24 5/8" ADJUSTMENT ROD No Model Compatibility List $131.79 / Each

3
Z 714104 1000312089 Z18 SCREW;HH;.500-13 x 1.50;ZN; No Model Compatibility List $3.02 / Each

2
Z 714121 1000312147 Z44 SET SCREW, CUP POINT 5/16-18 UNC X 5/16 No Model Compatibility List $1.33 / Each

2
Z 714128 1000312165 Z23 3/8" SPLIT LOCK WASHER No Model Compatibility List $1.43 / Each

2
714131 1000312171 Z22 1 9/16" Internal Snap Ring No Model Compatibility List $3.02 / Each

2
714133 1000312175 B24 Hook No Model Compatibility List $8.42 / Each

1
714151 1000312229 B38 2 1/4" x 2 1/4" END CAP No Model Compatibility List $5.04 / Each

9
714171 1000312282 B12 14 1/2" LINEAR SHAFT No Model Compatibility List $0.00 / Each
Out Of Stock 		3
B 714174 1000312294 B13 1" LINEAR SHAFT BEARING No Model Compatibility List $62.04 / Each

8,3
714181 1000312308 B21 1" SPLIT COLLAR No Model Compatibility List $16.87 / Each

1
714182 1000312310 B41 11/16"OD x 5" LONG SPRING No Model Compatibility List $8.42 / Each

2
714183 1000312312 B35 Ball Joint No Model Compatibility List $6.73 / Each

1
714190 1000312328 V61 Decal, Matrix 6.5x6 Gray No Model Compatibility List $5.04 / Each

7,3
714202 1000312376 B27 2 1/2"OD x 1"ID RUBBER DOUGHNUT - 1/2" No Model Compatibility List $6.73 / Each

2
Z 714235 1000312700 Z14 7/16" FLAT WASHER No Model Compatibility List $2.44 / Each

2
714302 1000313470 V65 Decal, ROM No Model Compatibility List $5.04 / Each

7,3
714342 1000313852 Z32 Screw;Flat;5/16-18 x 1/2" No Model Compatibility List $0.00 / Each
Out Of Stock 		2
714538 1000315894 V61 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

7,3,4,5,6
714672 1000316932 K3 - Kit 1 1" Grip;Order by 1" increments No Model Compatibility List $0.00 / Each
Out Of Stock 		11
B 714711 1000317552 B36 20# Long SHOCK No Model Compatibility List $45.60 / Each

1
2 714766 1000318109 2 HAND GRIP 1.25 DIA 0-12"LONG No Model Compatibility List $48.98 / Each

11
714772 1000318166 3 KIT TEARDROP FOOT No Model Compatibility List $33.77 / Each

9,3
714805 1000318356 Kit 1 HAND GRIP 1.0" 12-36"LONG No Model Compatibility List $45.60 / Each

11
714827 1000318494 6-May CAP;LEG PAD No Model Compatibility List $3.02 / Each

9,12,13,14
714828 1000318495 Roller Pad 4 STOPPER RING;CAP No Model Compatibility List $16.87 / Each

9
714829 1000318497 Roller Pad 8 WASHER FENDER M8 No Model Compatibility List $3.02 / Each

2,9
717455 1000345268 Roller Pad 7 BHSCS 3/8-16 x 1"; No Model Compatibility List $3.02 / Each

1
717705 1000346949 AB7 Roller Weldment Assy;A96;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3
717706 1000346950 AB7 Roller Weldment Assy;A96;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3,4,5,6
717707 1000346951 AB7 Roller Weldment Assy;A96;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3,4,5,6
717893 1000348442 AB4 WELDMENT A96 Handles Frame;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,11
717894 1000348443 AB4 WELDMENT A96 Handles Frame;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,11
717895 1000348444 AB4 WELDMENT A96 Handles Frame;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,11
717896 1000348454 AB6 WELDMENT A96 Spring Pin Tube;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3,12,13,14
717897 1000348455 AB6 WELDMENT A96 Spring Pin Tube;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3,4,5,6,12,13,14
717898 1000348456 AB6 WELDMENT A96 Spring Pin Tube;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3,4,5,6,12,13,14
718655 1000352731 B9 DIAMOND PLATE;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
718749 1000353136 K3 - Kit 2 1.25" Grip;Order by 1" increments; No Model Compatibility List $0.00 / Each
Out Of Stock 		11
719680 1000363753 V59 Warning Label;Plate Loaded; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719681 1000363756 V59 Warning Label;Plate Loaded;French No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720237 1000369933 K1 Tube Collar;25.4MM; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720298 1000371230 Z30 Screw;HH;.375-16 x 3;ZN No Model Compatibility List $0.00 / Each
Out Of Stock 		2
721552 1000384006 V60 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721682 1000385102 AB8 WELDMENT A96 Main Frame - User Half;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721683 1000385103 AB8 WELDMENT A96 Main Frame - User Half;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721684 1000385104 AB8 WELDMENT A96 Main Frame - User Half;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721685 1000385117 AB3 WELDMENT A96 Main Frame Half;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721686 1000385118 AB3 WELDMENT A96 Main Frame Half;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721687 1000385119 AB3 WELDMENT A96 Main Frame Half;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721688 1000385133 AB5 WELDMENT Linear Bearing Mount;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		2,8,3
721689 1000385134 AB5 WELDMENT Linear Bearing Mount;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		2,8,3,4,5,6
721690 1000385135 AB5 WELDMENT Linear Bearing Mount;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		2,8,3,4,5,6
721691 1000385149 B10 DIAMOND PLATE;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721692 1000385150 B11 DIAMOND PLATE;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
729261 See Pad Matrix Roller Pad Set Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
