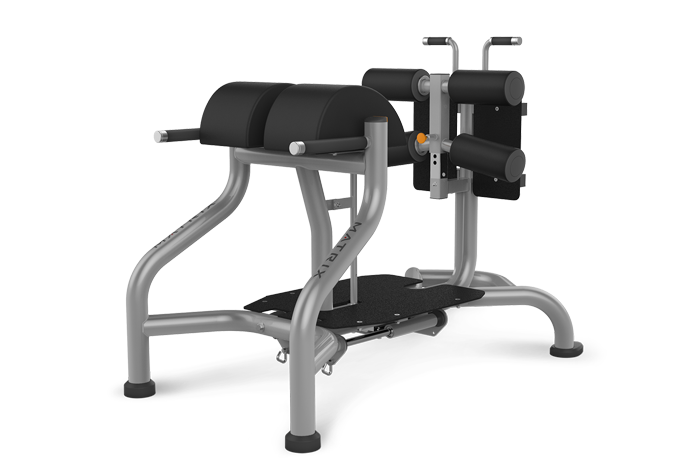

Matrix Commercial - MG-A96-03 - 2014

Repair Parts for Matrix Commercial MG-A96-03 FW229

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Name: MG-A96-03

Version: 2014

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Z 701376 004426-00 Z19 Screw;FH;M6X1.0PX12L;;PH;;BZN;; No Model Compatibility List $1.66 / Each

2
Z 701436 004482-AB Z18 Screw;Hex Socket;Round;M8x1.25Px20L;Cr No Model Compatibility List $2.00 / Each

2
Z 701520 004553-AB Z04 Screw;Round;Hex Socket;M12x1.75Px25L No Model Compatibility List $9.10 / Each

2
Z 701522 004555-AB Z15 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A No Model Compatibility List $4.00 / Each

2
Z 701836 004855-AC Z11 Set Screw;M6X1.0PX4L No Model Compatibility List $1.79 / Each

2
Z 701901 004929-00 Z13 Nut;Nylon;M8x1.25P;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 701911 004938-00 Z23 Nut;Nylon;M6X1.0P;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 702098 005130-00 Z10 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 702102 005132-00 Z14 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
Z 702228 005353-00 Z16 C-Clip;Internal;R-40 No Model Compatibility List $1.66 / Each

2
D 702710 009355-B D21 Stopper Mast;Foam;AL6061;GM02 No Model Compatibility List $3.64 / Each

1
C 702711 009356-B C46 Stopper Mast;Foam;AL6061;GM03 No Model Compatibility List $3.64 / Each

1
C 702721 009371-E C26 Cap;Grip;GM03 No Model Compatibility List $15.34 / Each

9,11
D 702722 009372-E D14 Cap;Grip;GM02 No Model Compatibility List $13.36 / Each

9,11
Z 703845 018621-AB Z05 Screw;Hex Socket;Round;M10x1.5Px100L(Too No Model Compatibility List $3.64 / Each

2
Z 704014 020104-AC Z20 Screw;Hex Socket;Round;M10x1.5Px30L;Cr; No Model Compatibility List $3.64 / Each

2
Z 704052 020139-AD Z03 Screw;Sink Hex Socket ;M10x1.5Px20L No Model Compatibility List $3.35 / Each

2
Z 704053 020144-A Z08 SCREW;FH;M8X1.25PX20;;HS;;;;BP No Model Compatibility List $1.66 / Each

2
Z 704193 020465-AB Z12 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
E 705014 029160-AA E40 End Cap;Handlebar No Model Compatibility List $1.79 / Each

9,11
T 705402 049062-BA T16 END CAP No Model Compatibility List $3.64 / Each

9
Q 707326 1000092071 Q01 Elastomer Pad;Rubber;GM57 No Model Compatibility List $1.98 / Each

12,13,14
H 707798 1000095593 H08 Cap;Leg Pad;ABS;GM42 No Model Compatibility List $2.13 / Each

9,12,13,14
C 707799 1000095594 C22 Cap;Leg Pad;ABS;GM42 No Model Compatibility List $1.87 / Each

9,12,13,14
H 708402 1000102675 H03 Stopper Block;Pull Pin;GM43 No Model Compatibility List $7.02 / Each

12,13,14
Z 708730 1000105174 Z06 Nut;Nylon;M10x1.5P;G12.9;CHM No Model Compatibility List $1.79 / Each

2
V 709081 1000109127 V03 Decal;Pinch Point ;MS21KM-G3 No Model Compatibility List $1.77 / Each

7,3,12,13,14
L 710353 1000209696 L02 FOAM;HANDLEBAR;Diam.34X5.0TX120L;GM61-KM No Model Compatibility List $6.73 / Each

11
711198 1000217438 J23 Handle Pull Pin;;;TPP;Black Orange;;GM59 No Model Compatibility List $13.49 / Each

4,5,6,12,13,14,11
Z 712494 1000229173 Z01 Screw;SH;M10x x35L;-;HS;-;CHM;-;G12.9; No Model Compatibility List $3.02 / Each

2
B 713539 1000304912 B18 Food Pad;ADJ Base;;PP;BL/Black C;FW201; No Model Compatibility List $42.22 / Each

3,4,5,6,12,13,14
B 713541 1000304951 B57 Rubber Sleeve;Foot Pad;;PVC Anti-fire;Gr No Model Compatibility List $8.42 / Each

9,3,12,13,14
B 713548 1000305030 B38 Plastic Cover;Foot Pad;down;Soft PVC;FW2 No Model Compatibility List $8.42 / Each

9,3,12,13,14
B 713557 1000305058 B44 Food Pad;ADJ Axle;down;PP;BL/Black C;FW2 No Model Compatibility List $8.42 / Each
Out Of Stock 		8,4,5,6,12,13,14
B 713585 1000305258 B26 End Cap;;;ABS 746;Diam.76.2;FW202-KM No Model Compatibility List $3.64 / Each

9
Q 713589 1000305327 Q11 End Cap;;; No Model Compatibility List $11.80 / Each

9
L 713609 1000305689 L03 Bearing;Linear;TJUM-01-25;Diam.40XDiam.2 No Model Compatibility List $45.60 / Each

8
L 713610 1000305691 L04 Guide Rod;;;45#;FW229 No Model Compatibility List $69.26 / Each

3
D 713611 1000305750 D04 Axle;Pull pin;;45#;FW229; No Model Compatibility List $57.43 / Each

8,12,13,14
B 713612 1000305751 B19 Pedal;;Long;SPHC;FW229 No Model Compatibility List $196.01 / Each

8,9
B 713613 1000305752 B20 Covering Board;;;SPHC;FW229 No Model Compatibility List $77.71 / Each

9
C 713614 1000305755 C13 Pedal;;Rear-Down;SPHC;FW229 No Model Compatibility List $60.81 / Each

8,9
V 713706 1000306727 V02 Warning Label;;;;;;;Adjustable Stops 2; No Model Compatibility List $3.35 / Each

1
713707 1000306748 L01 Foam;;Diam.30.4X5.0TX280L;Grip;FW229 No Model Compatibility List $13.49 / Each

11
J 713708 1000306753 J02 Air Stick;;;;;; No Model Compatibility List $20.25 / Each

1
C 713710 1000306764 C31 Rubber Sleeve;Buffer;;SBR No Model Compatibility List $1.66 / Each

3
V 713766 1000307862 V06 Adjustable Indication Decal;;;;;;;FW212- No Model Compatibility List $8.42 / Each

7,3
C 714671 1000316904 C16 Decorate Plate;Anti-Collision;;SPHC;;CHM No Model Compatibility List $42.22 / Each

3
B 714804 1000318320 B28 Hook Set;;;painting;;;FW229; No Model Compatibility List $16.87 / Each

1
V 715269 1000322587 V02 Warning Label;;Adjustable Stop 2;;;;Fren No Model Compatibility List $3.02 / Each

1
V 715331 1000324063 V05 Adjustable Indication Decal;Pedal Distan No Model Compatibility List $8.42 / Each

7,8,9,3
C 715658 1000327662 C23 Connect Plate;;;painting;;Iced Sliver;FW No Model Compatibility List $11.80 / Each

3
715659 1000327665 C23 Connect Plate;;;painting;;Black Glossy;F No Model Compatibility List $11.80 / Each

3,4,5,6
715660 1000327666 C23 Connect Plate;;;painting;;Lace White;FW2 No Model Compatibility List $11.80 / Each

3,4,5,6
1 715810 1000328473 1 Support Set;;;;FW229-KM;;Iced Sliver No Model Compatibility List $518.80 / Each

3
715811 1000328479 1 Support Set;;;;FW229-KM;;Black Glossy No Model Compatibility List $518.80 / Each

3,4,5,6
715812 1000328481 1 Support Set;;;;FW229-KM;;Lace White No Model Compatibility List $518.80 / Each

3,4,5,6
715813 1000328485 AB1 Frame Set;;;painting;;Iced Sliver;FW229; No Model Compatibility List $672.59 / Each

3
715814 1000328491 AB1 Frame Set;;;painting;;Black Glossy;FW229 No Model Compatibility List $672.59 / Each

3,4,5,6
715815 1000328492 AB1 Frame Set;;;painting;;Lace White;FW229; No Model Compatibility List $672.59 / Each

3,4,5,6
2 715816 1000328494 2 Base Set;;;;FW229-KM;;Iced Silver No Model Compatibility List $554.29 / Each

3
715817 1000328500 2 Base Set;;;;FW229-KM;;Black Glossy No Model Compatibility List $554.29 / Each

3,4,5,6
715818 1000328502 2 Base Set;;;;FW229-KM;;Lace White No Model Compatibility List $554.29 / Each

3,4,5,6
3 715819 1000328508 3 transmission set;;;;FW229-KM;;Iced Silve No Model Compatibility List $143.62 / Each

1
715820 1000328514 3 transmission set;;;;FW229-KM;;Black Glos No Model Compatibility List $143.62 / Each

4,5,6
715821 1000328516 3 transmission set;;;;FW229-KM;;Lace White No Model Compatibility List $143.62 / Each

4,5,6
715822 1000328520 AH1 Pull Pin Fixing Set;;;painting;;Iced Sli No Model Compatibility List $82.78 / Each

12,13,14
715823 1000328523 AH1 Pull Pin Fixing Set;;;painting;;Black Gl No Model Compatibility List $82.78 / Each

4,5,6,12,13,14
715824 1000328524 AH1 Pull Pin Fixing Set;;;painting;;Lace Whi No Model Compatibility List $82.78 / Each

4,5,6,12,13,14
A 715827 1000328545 AD1 Adjustable Set;;;painting;;Iced Sliver;F No Model Compatibility List $81.09 / Each

1
715828 1000328551 AD1 Adjustable Set;;;painting;;Black Glossy; No Model Compatibility List $81.09 / Each

4,5,6
715829 1000328553 AD1 Adjustable Set;;;painting;;Lace White;FW No Model Compatibility List $81.09 / Each

4,5,6
B 722509 1000393222 B39 Spring;Compression;1.3x12.7x38Lx7;SWP; No Model Compatibility List $1.66 / Each

2
J 722649 1000396868 J05 Pin set;Semi-Assy;;;F No Model Compatibility List $32.08 / Each

12,13,14
H 725014 100995 H10 Stopper Ring;Leg Pad;ABS;GM42 No Model Compatibility List $2.83 / Each

12,13,14
SCREW;SH;M10X1.5PX105L;;HS;;CHM;; 725389 070791 Z10 SCREW;SH;M10X1.5PX105L;;HS;;CHM;; No Model Compatibility List $6.73 / Each

2
CON Plate; Cap;SPHC3.0t;GM42 728704 096073 H12 CON Plate; Cap;SPHC3.0t;GM42 No Model Compatibility List $2.37 / Each

9,3
Stopper Ring;Cap;AL6061;GM42 728705 096074 H13 Stopper Ring;Cap;AL6061;GM42 No Model Compatibility List $19.81 / Each

9
728977 N/A V01 Console Mast,Old version (4 holes on front) No Model Compatibility List $0.00 / Each
Out Of Stock 		7
729052 Order Parts Separately 4 Frame Assembly No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729118 Part of Kit 1 AB2 Stabilizer Frame;Rear;B;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729138 Part of Kit 2 AC1 Console Mast;Painting;MM330;6027-45- No Model Compatibility List $0.00 / Each
Out Of Stock 		7
729152 Part of Kit 3 AG1 Pedal Arm;Right;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
729261 See Pad Matrix J01 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
