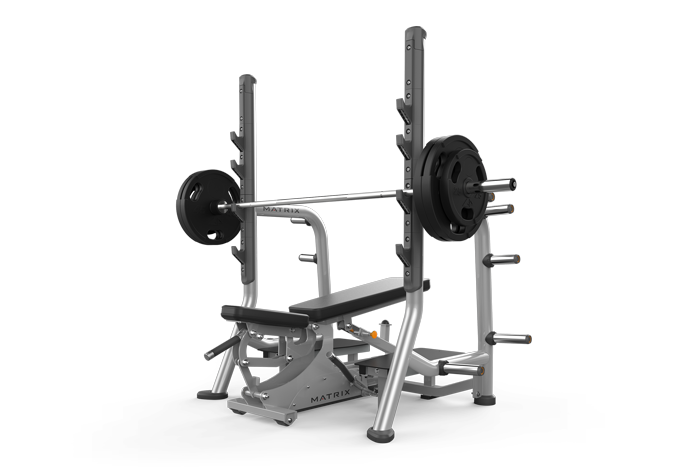

Matrix Commercial - MG-C895-02 - 2013

Repair Parts for Matrix Commercial MG-C895-02 MGFW234

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Name: MG-C895-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 713806 1000308417 B51 2" x 2" END CAP No Model Compatibility List $5.46 / Each

9
B 713810 1000308421 B65 HALF-ROUND RUBBER BUMPER No Model Compatibility List $16.41 / Each

1
B 713811 1000308424 B40 SPRING PIN ASSEMBLY No Model Compatibility List $45.60 / Each

2,3,12,13,14
B 713813 1000308427 B99 SPRING No Model Compatibility List $9.98 / Each

2
Z 713814 1000308428 Z26 3/8" NUT No Model Compatibility List $1.43 / Each

2
Z 713818 1000308436 Z99 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.43 / Each

2
Z 713819 1000308437 Z27 SCREW;HH;.375-16 x 1.50;ZN; No Model Compatibility List $2.37 / Each

2
713821 1000308439 Z47 NUT;NLK;.375-16;ZN; No Model Compatibility List $1.43 / Each

2
713824 1000308442 Z66 SCREW;SET; .3125-18 X 1.00;SS No Model Compatibility List $1.43 / Each

2
Z 713826 1000308444 Z22 WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06 No Model Compatibility List $1.43 / Each

2
Z 713828 1000308446 Z32 WASHER;FLT;USS;Diam.0.281XDiam.0.734X.06 No Model Compatibility List $1.43 / Each

2
B 713833 1000308451 B7 5" RUBBER FOOT No Model Compatibility List $14.59 / Each

9,3
713840 1000308469 K2 CAP, END TUBE, 25.4MM ID No Model Compatibility List $11.80 / Each

9,3
V 713842 1000308473 V89 Lable, hand pinch No Model Compatibility List $3.02 / Each

12,13,14
Z 713935 1000309773 Z1 Screw Set;M6x1.0Px5L;BP;POT No Model Compatibility List $3.28 / Each

2
B 713937 1000309841 B54 2" X 3" END CAP No Model Compatibility List $7.28 / Each

9
S 713938 1000309842 Spot Stand B1 1 1/2" X 2" END CAP No Model Compatibility List $5.04 / Each

9
713941 1000309848 Z52 SCREW;HH;.500-13 x 3.50;ZN; No Model Compatibility List $5.04 / Each

2
Z 713949 1000309857 Z24 BHSCS 3/8 x 3/4" No Model Compatibility List $3.02 / Each

1
Z 713950 1000309858 Z46 3/4" FLAT WASHER No Model Compatibility List $1.33 / Each

2
Z 713967 1000309953 Z41 SCREW;HH;.313-18 x 1.25;ZN; No Model Compatibility List $2.37 / Each

2
B 713974 1000310007 B11 Round Leveler No Model Compatibility List $20.05 / Each

3
B 713975 1000310008 B18 ROUND LEVELER BOOT No Model Compatibility List $5.04 / Each

3
713978 1000310011 K10 Teardrop Boot No Model Compatibility List $6.73 / Each

1
713979 1000310012 K9 Plastic Footpad No Model Compatibility List $6.73 / Each

9,3,12,13,14
B 713980 1000310013 B15 Coped Bumper - Weight Horn No Model Compatibility List $10.11 / Each

3
Z 713992 1000310089 Z34 SCREW;HH;.500-13 x 4.00;ZN; No Model Compatibility List $5.04 / Each

2
713998 1000310097 Z18 SCREW;HH;.250-20 x 2.00;ZN; No Model Compatibility List $1.33 / Each

2
K 714008 1000310115 KZ2 FHSCS 1/4"-20 X 1/2" No Model Compatibility List $1.33 / Each

1
714012 1000310207 Spot Stand Z1 SCREW;HH;.375-16 x 2.50;ZN; No Model Compatibility List $3.02 / Each

2
714014 1000310211 Z33 1/4" HEX HEAD NUT No Model Compatibility List $1.33 / Each

2
Z 714016 1000310219 Z31 SCREW;HH;.250-20 x 0.75;ZN; No Model Compatibility List $1.33 / Each

2
714025 1000310301 Z53 SCREW;HH;.500-13 x 4.50;ZN; No Model Compatibility List $5.04 / Each

2
714069 1000310778 B53 3/4"OD x 1/2"ID PIPE - 4 25/32" No Model Compatibility List $0.00 / Each
Out Of Stock 		1
714071 1000310863 B85 3/8" PLASMA - 2" x 26" (CHROMED) No Model Compatibility List $224.74 / Each

7,12,13,14
B 714089 1000312044 B48 MASTER LINK No Model Compatibility List $10.11 / Each

3
S 714101 1000312084 Spot Stand Z7 3/8" x 4" BOLT No Model Compatibility List $3.02 / Each

2
Z 714104 1000312089 Z35 SCREW;HH;.500-13 x 1.50;ZN; No Model Compatibility List $3.02 / Each

2
714107 1000312095 Z44 SCREW;HH;.500-13 x 3.25;ZN; No Model Compatibility List $5.04 / Each

2
714109 1000312099 Z101 HCS 1/2-13 x 4 1/4" No Model Compatibility List $5.04 / Each

1
714112 1000312105 Z43 SCREW;HH;.500-13 x 6.50;ZN; No Model Compatibility List $6.73 / Each

2
714117 1000312123 Z45 SCREW;FH;.500-13 x 4.00;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
714126 1000312159 Z36 1/2 - 13 NUT No Model Compatibility List $1.33 / Each

2
Z 714127 1000312161 Z25 NUT;NLK;.500-13;ZN;TALL; No Model Compatibility List $1.43 / Each

2
714131 1000312171 Z61 1 9/16" Internal Snap Ring No Model Compatibility List $3.02 / Each

2
714136 1000312193 B16 Take-Off Top Cap No Model Compatibility List $38.84 / Each

9
714137 1000312195 B12 7.7 IN TAKE-OFF HOOK SPACER No Model Compatibility List $35.46 / Each

2,3,4,5,6
B 714138 1000312197 B8 TAKE-OFF HOOK No Model Compatibility List $59.12 / Each

1
714140 1000312201 B9 3.2 IN TAKE-OFF HOOK SPACER No Model Compatibility List $18.56 / Each

2,3,4,5,6
714141 1000312203 B13 TAKE-OFF HOOK BOTTOM COVER No Model Compatibility List $25.32 / Each

9
J 714143 1000312207 J69 BACK PAD PLASTICS No Model Compatibility List $35.46 / Each

9,4,5,6,12,13,14
714146 1000312215 J68 Bottom Pad No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
714160 1000312247 K4 End cap - weight horn 2.5lbs No Model Compatibility List $5.04 / Each

9,3
714161 1000312249 K5 End cap - weight horn 5lbs No Model Compatibility List $5.04 / Each

9,3
714162 1000312250 K8 End cap - weight horn 10lbs No Model Compatibility List $5.04 / Each

9,3
714163 1000312253 K7 End cap - weight horn 25lbs No Model Compatibility List $5.04 / Each

9,3
714164 1000312254 K6 End cap - weight horn 45lbs No Model Compatibility List $5.04 / Each

9,3
Z 714174 1000312294 Z62 1" LINEAR SHAFT BEARING No Model Compatibility List $62.04 / Each

8,3
B 714176 1000312298 B38 1/2" BRASS BUSHING No Model Compatibility List $5.04 / Each

8
Z 714178 1000312302 Z60 3/8" FLANGE BUSHING - 3/8" No Model Compatibility List $3.28 / Each

8
Z 714199 1000312368 Z50 SPRING PIN w/ 5/32" No Model Compatibility List $10.92 / Each

2,12,13,14
714212 1000312416 J70 16" N PAD ASSEMBLY No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
714215 1000312422 J71 36" Back Pad No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
714232 1000312684 Z102 Washer;Thrust;.50 x 1";BRZ; No Model Compatibility List $0.00 / Each
Out Of Stock 		7,2,12,13,14
Z 714235 1000312700 Z23 7/16" FLAT WASHER No Model Compatibility List $2.44 / Each

2
714246 1000312876 Z42 SCREW;HH;.375-16 x 3.25;ZN; No Model Compatibility List $3.74 / Each

2
714298 1000313457 V94 DECAL A61 No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
714535 1000315793 AB76 Seat Pad Frame;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
714538 1000315894 V93 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

7,3,4,5,6
714672 1000316932 K3 1" Grip;Order by 1" increments No Model Compatibility List $0.00 / Each
Out Of Stock 		11
714764 1000318101 Kit 3 HAND GRIP 1.0" 0-12"LONG No Model Compatibility List $45.60 / Each

11
714771 1000318165 Kit 1 WEIGHT HORN SET No Model Compatibility List $18.56 / Each

3
714772 1000318166 Kit 2 KIT TEARDROP FOOT No Model Compatibility List $33.77 / Each

9,3
717377 1000344562 V93 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $15.18 / Each

7,3,4,5,6
717422 1000344984 B59 End Cap;1 3/4 x 1 3/4 No Model Compatibility List $0.00 / Each
Out Of Stock 		9
717545 1000346039 AB74 Tele Slide Assy;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
717546 1000346040 AB74 Tele Slide Assy;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
717547 1000346041 AB74 Tele Slide Assy;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
717587 1000346147 B80 2 1/2" X 1 1/4" PERFORMA WHEEL No Model Compatibility List $42.22 / Each

8
717670 1000346698 B83 Plaque/Guard Spacer;Black No Model Compatibility List $3.35 / Each

2,9,3,4,5,6
717688 1000346828 B67 INA Linear Shaft Class 1" X 29; Drill an No Model Compatibility List $187.56 / Each

3
717693 1000346866 B79 Bottom Guard Assy;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
717694 1000346867 B79 Bottom Guard Assy;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3,4,5,6
717695 1000346868 B79 Bottom Guard Assy;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3,4,5,6
717697 1000346881 B78 Bottom Guard Assy;Left;A695/C895;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
717698 1000346882 B78 Bottom Guard Assy;Left;A695/C895;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3,4,5,6
717699 1000346883 B78 Bottom Guard Assy;Left;A695/C895;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3,4,5,6
717826 1000347903 AB86 Main Frame Assy;A695;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
717827 1000347904 AB86 Main Frame Assy;A695;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
717828 1000347905 AB86 Main Frame Assy;A695;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
718776 1000353386 AB82 Seat Adj Handle;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14,11
718777 1000353387 AB82 Seat Adj Handle;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14,11
718778 1000353388 AB82 Seat Adj Handle;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14,11
719422 1000361196 Hook Kit Hook Replacement Kit;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
719423 1000361197 Hook Kit Hook Replacement Kit;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
719424 1000361198 Hook Kit Hook Replacement Kit;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
719509 1000362201 Spot Stand R Se Spotter Stand Right No Model Compatibility List $0.00 / Each
Out Of Stock 		1
719510 1000362202 Spot Stand L Se Spotter Stand Left No Model Compatibility List $0.00 / Each
Out Of Stock 		1
719680 1000363753 V92 Warning Label;Plate Loaded; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719681 1000363756 V92 Warning Label;Plate Loaded;French No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720121 1000368779 Not Shown Spot Stand Service Kit;C895;Black Ridge No Model Compatibility List $1.30 / Each

4,5,6
720237 1000369933 K1 Tube Collar;25.4MM; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720298 1000371230 Spot Stand Z8 Screw;HH;.375-16 x 3;ZN No Model Compatibility List $0.00 / Each
Out Of Stock 		2
720605 1000374076 AB1 Connecting Bar;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
720606 1000374077 AB1 Connecting Bar;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
720607 1000374078 AB1 Connecting Bar;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
720608 1000374091 AB5 Weldment, Main Frame - Right;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720609 1000374092 AB5 Weldment, Main Frame - Right;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720610 1000374093 AB5 Weldment, Main Frame - Right;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720611 1000374106 AB4 Weldment, Main Frame - Left;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720612 1000374107 AB4 Weldment, Main Frame - Left;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720613 1000374108 AB4 Weldment, Main Frame - Left;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720614 1000374120 Spot Stand R B2 C895 Diamond Plate;276.4";Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720615 1000374121 Spot Stand L B2 Diamond Plate;276.4";Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720616 1000374129 Spot Stand B3 Wall Tube;1 1/2" x 2";6.31";Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720617 1000374138 Spot Stand AB1 Spotter Stand Weldment;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720618 1000374140 AB87 Main Frame - Bottom (Mounts to C895 Rack);Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3,4,5,6
720619 1000374141 AB87 Main Frame - Bottom (Mounts to C895 Rack);Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3,4,5,6
720620 1000374142 AB87 Main Frame - Bottom (Mounts to C895 Rack);Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3,4,5,6
720621 1000374158 AB72 Linear Bearing Mount;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		2,8
720622 1000374159 AB72 Linear Bearing Mount;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		2,8,4,5,6
720623 1000374160 AB72 Linear Bearing Mount;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		2,8,4,5,6
720630 1000374362 B75 1 3/4" x 1 3/4" TUBE - 20 7/8" No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720631 1000374364 AB77 Back Pad Frame;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
720632 1000374365 AB77 Back Pad Frame;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
720633 1000374366 AB77 Back Pad Frame;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
720634 1000374378 AB83 Seat Pivot Assy;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		8,4,5,6,12,13,14
720636 1000374380 B73 1/4" PLASMA;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		1
720637 1000374382 AB81 Connection;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
721486 1000383476 B86 1"OD x 1/2"ID PIPE - 11/16" No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721552 1000384006 V91 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
722577 1000394201 Z93 Oilube Flange Bushing;3/4 ID x Reamed .7 No Model Compatibility List $37.15 / Each

8,15
723591 1000409545 AB84 1"OD x 3/4"ID PIPE;2";Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
