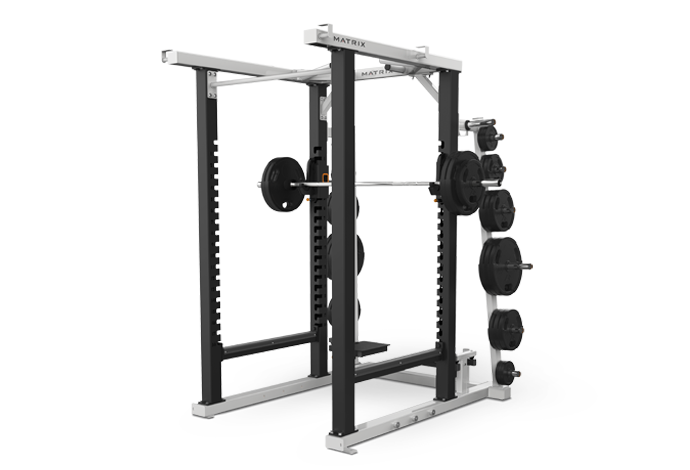

Matrix Commercial - MG-MR47-02 - 2013

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
1000308421 713810 1000308421 B25 HALF-ROUND RUBBER BUMPER No Model Compatibility List $12.62 / Each

1
1000308424 713811 1000308424 Spotter Stand 2 SPRING PIN ASSEMBLY No Model Compatibility List $35.08 / Each

2,3,12,13,14
1000308436 713818 1000308436 Z41 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.10 / Each

2
1000308444 713826 1000308444 Z29 WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06 No Model Compatibility List $1.10 / Each

2
713838 1000308466 B20 Flat Bumper - Weight Horn No Model Compatibility List $2.32 / Each

3
713839 1000308467 B48 End cap - weight horn No Model Compatibility List $4.54 / Each

9,3
1000309773 713935 1000309773 Z1 Screw Set;M6x1.0Px5L;BP;POT No Model Compatibility List $2.52 / Each

2
1000309841 713937 1000309841 B27 2" X 3" END CAP No Model Compatibility List $5.60 / Each

9
1000309842 713938 1000309842 Spotter Stand 6 1 1/2" X 2" END CAP No Model Compatibility List $3.88 / Each

9
1000309846 713939 1000309846 Spotter Stand 5 1/2" JAM NUT No Model Compatibility List $1.10 / Each

2
1000309847 713940 1000309847 Spotter Stand 3 WASHER, .50 OD X .38 ID X .05 No Model Compatibility List $1.10 / Each

2
713976 1000310009 K2 CAP, END TUBE, 31.8MM No Model Compatibility List $5.60 / Each

9,3
713977 1000310010 K1 COLLAR, TUBE, 31.8MM No Model Compatibility List $11.68 / Each

3
1000310083 713986 1000310083 Pull Up Bar B3 2" ROUND END CAP No Model Compatibility List $3.88 / Each

9
1000310115 714008 1000310115 Z46 FHSCS 1/4"-20 X 1/2" No Model Compatibility List $1.02 / Each

1
1000310307 714031 1000310307 Z31 SCREW;HH;.375-16 x 1.00;ZN;SAE 5 No Model Compatibility List $1.82 / Each

2
1000312066 714095 1000312066 Z33 SCREW;HH;.313-18 x 2.00;ZN; No Model Compatibility List $1.68 / Each

2
714098 1000312072 Z34 HHB 5/16-16 x 2 3/4" No Model Compatibility List $1.68 / Each

1
714109 1000312099 Z35 HCS 1/2-13 x 4 1/4" No Model Compatibility List $3.88 / Each

1
1000312147 714121 1000312147 Z40 SET SCREW, CUP POINT 5/16-18 UNC X 5/16 No Model Compatibility List $1.02 / Each

2
1000312161 714127 1000312161 Z37 NUT;NLK;.500-13;ZN;TALL; No Model Compatibility List $1.10 / Each

2
714160 1000312247 K4 End cap - weight horn 2.5lbs No Model Compatibility List $3.88 / Each

9,3
714161 1000312249 K5 End cap - weight horn 5lbs No Model Compatibility List $3.88 / Each

9,3
714162 1000312250 K6 End cap - weight horn 10lbs No Model Compatibility List $3.88 / Each

9,3
714163 1000312253 K7 End cap - weight horn 25lbs No Model Compatibility List $3.88 / Each

9,3
714164 1000312254 K8 End cap - weight horn 45lbs No Model Compatibility List $3.88 / Each

9,3
1000312700 714235 1000312700 Z30 7/16" FLAT WASHER No Model Compatibility List $1.88 / Each

2
1000312711 714236 1000312711 Z36 1/4" x 1/2" BUTTON HEAD No Model Compatibility List $1.12 / Each

1
714280 1000313143 B21 1/4" ABS No Model Compatibility List $10.38 / Each

1
714342 1000313852 Z39 Screw;Flat;5/16-18 x 1/2" No Model Compatibility List $0.00 / Each
Out Of Stock
2
714538 1000315894 Pull Up Bar V1 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $5.18 / Each

7,3,4,5,6
714550 1000315993 B49 2" TUBING EXTRUSION No Model Compatibility List $79.28 / Each

1
714659 1000316805 AB18 Weldment;Corner Brace;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
714660 1000316861 AB3 Left Frame Rail;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock
9,3
714661 1000316862 AB3 Left Frame Rail;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock
9,3,4,5,6
714662 1000316863 AB3 Left Frame Rail;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock
9,3,4,5,6
714663 1000316871 AB2 Right Base Frame;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock
3
714664 1000316872 AB2 Right Base Frame;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
714665 1000316873 AB2 Right Base Frame;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
1000318109 714766 1000318109 Pull Up Kit 1 HAND GRIP 1.25 DIA 0-12"LONG No Model Compatibility List $37.68 / Each

11
714771 1000318165 Kit 2 WEIGHT HORN SET No Model Compatibility List $14.28 / Each

3
715337 1000324301 AB14 WELDMENT;Band Peg;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
716826 1000339764 AB13 Weldment;Pull Up Bar;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock
3
716827 1000339765 AB13 Weldment;Pull Up Bar;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
716828 1000339766 AB13 Weldment;Pull Up Bar;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
717352 1000344272 AB7 WELDMENT, UPPER LH;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock
3
717353 1000344273 AB7 WELDMENT, UPPER LH;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
717354 1000344274 AB7 WELDMENT, UPPER LH;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
717361 1000344380 AB4 WELDMENT, UPPER RH;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock
3
717362 1000344381 AB4 WELDMENT, UPPER RH;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
717363 1000344382 AB4 WELDMENT, UPPER RH;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
717377 1000344562 Pull Up Bar V1 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $11.68 / Each

7,3,4,5,6
717930 1000348678 B45 1/4" ABS Guard No Model Compatibility List $0.00 / Each
Out Of Stock
9,3
717949 1000348824 Pull Up AB1A Weldment;Pull Up Bar No Model Compatibility List $0.00 / Each
Out Of Stock
3
718520 1000351185 Pull Up Bar Set Pull Up Bar Set;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock
1
718521 1000351186 Pull Up Bar Set Pull Up Bar Set;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6
718522 1000351187 Pull Up Bar Set Pull Up Bar Set;L No Model Compatibility List $0.00 / Each
Out Of Stock
1
718749 1000353136 K3 1.25" Grip;Order by 1" increments; No Model Compatibility List $0.00 / Each
Out Of Stock
11
718961 1000354777 Spotter Stand 4 Screw;HH;.500-13 x 7.5;ZN No Model Compatibility List $0.00 / Each
Out Of Stock
2
719680 1000363753 V54 Warning Label;Plate Loaded; No Model Compatibility List $0.00 / Each
Out Of Stock
3
719681 1000363756 V54 Warning Label;Plate Loaded;French No Model Compatibility List $0.00 / Each
Out Of Stock
3
720232 1000369527 AB12 WELDMENT, LH POST;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6,12,13,14
720233 1000369528 AB16 WELDMENT, LH FRONT POST;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6,12,13,14
720804 1000376344 Spot Stand L Se Spotter Stand Set;Left;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6
720805 1000376345 Spot Stand R Se Spotter Stand Set;Right;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6
720965 1000378897 AB1 WELDMENT, LOWER CROSS BRACE;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
720966 1000378898 AB1 WELDMENT, LOWER CROSS BRACE;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
720967 1000378899 AB1 WELDMENT, LOWER CROSS BRACE;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
720968 1000378912 AB5 Weight Horn Frame;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock
3
720969 1000378913 AB5 Weight Horn Frame;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
720970 1000378914 AB5 Weight Horn Frame;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
720971 1000378927 AB6 Weight Horn Frame;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock
3
720972 1000378928 AB6 Weight Horn Frame;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
720973 1000378929 AB6 Weight Horn Frame;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
720974 1000378941 AB11 WELDMENT, RH POST No Model Compatibility List $0.00 / Each
Out Of Stock
3,12,13,14
720975 1000378942 AB17 WELDMENT, RH FRONT POST No Model Compatibility List $0.00 / Each
Out Of Stock
3,12,13,14
721552 1000384006 V55 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock
1
724743 1000426421 J Hook Set J Hook Set;Pair;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6
724745 1000426423 AB15 Safety Bar Pair Set; No Model Compatibility List $0.00 / Each
Out Of Stock
9
729066 Order Spotter Stand Set Spotter Stand 1 Weldment;Spotter Stand No Model Compatibility List $0.00 / Each
Out Of Stock
3
View Drawing
