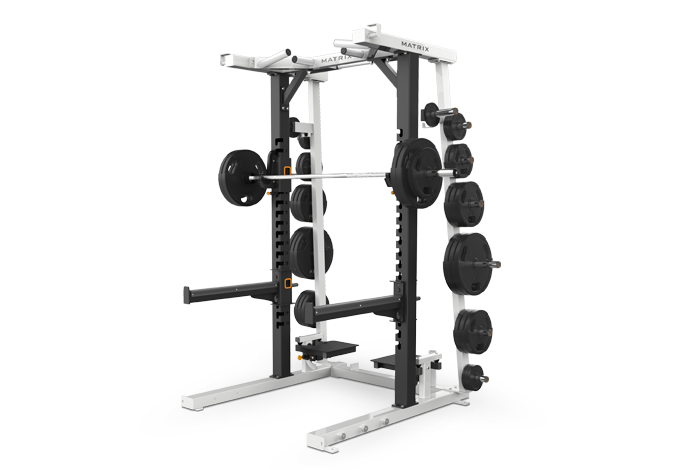

Matrix Commercial - MG-MR690-02 - 2013

Repair Parts for Matrix Commercial MG-MR690-02 MGPR35,MGPR36,MGAS1034

Brand: Matrix Commercial

Category: Racks & Platforms

Type: Strength Systems

Model Name: MG-MR690-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 713807 1000308418 B17 1 1/2" x 3" END CAP No Model Compatibility List $5.46 / Each

9
Z 713810 1000308421 Z20 HALF-ROUND RUBBER BUMPER No Model Compatibility List $16.41 / Each

1
S 713811 1000308424 Spotter Stand 2 SPRING PIN ASSEMBLY No Model Compatibility List $45.60 / Each

2,3,12,13,14
Z 713818 1000308436 Z30 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.43 / Each

2
Z 713826 1000308444 Z22 WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06 No Model Compatibility List $1.43 / Each

2
713838 1000308466 B16 Flat Bumper - Weight Horn No Model Compatibility List $3.02 / Each

3
713839 1000308467 B11 End cap - weight horn No Model Compatibility List $5.90 / Each

9,3
Z 713935 1000309773 Z1 Screw Set;M6x1.0Px5L;BP;POT No Model Compatibility List $3.28 / Each

2
Z 713938 1000309842 Z19 1 1/2" X 2" END CAP No Model Compatibility List $5.04 / Each

9
S 713939 1000309846 Spotter Stand 5 1/2" JAM NUT No Model Compatibility List $1.43 / Each

2
S 713940 1000309847 Spotter Stand 3 WASHER, .50 OD X .38 ID X .05 No Model Compatibility List $1.43 / Each

2
713976 1000310009 K2 CAP, END TUBE, 31.8MM No Model Compatibility List $7.28 / Each

9,3
713977 1000310010 K1 COLLAR, TUBE, 31.8MM No Model Compatibility List $15.18 / Each

3
P 713986 1000310083 Pull Up Bar B3 2" ROUND END CAP No Model Compatibility List $5.04 / Each

9
Z 714008 1000310115 Z44 FHSCS 1/4"-20 X 1/2" No Model Compatibility List $1.33 / Each

1
Z 714031 1000310307 Z24 SCREW;HH;.375-16 x 1.00;ZN;SAE 5 No Model Compatibility List $2.37 / Each

2
Z 714095 1000312066 Z25 SCREW;HH;.313-18 x 2.00;ZN; No Model Compatibility List $2.18 / Each

2
714098 1000312072 Z26 HHB 5/16-16 x 2 3/4" No Model Compatibility List $2.18 / Each

1
714109 1000312099 Z27 HCS 1/2-13 x 4 1/4" No Model Compatibility List $5.04 / Each

1
Z 714121 1000312147 Z29 SET SCREW, CUP POINT 5/16-18 UNC X 5/16 No Model Compatibility List $1.33 / Each

2
Z 714127 1000312161 Z31 NUT;NLK;.500-13;ZN;TALL; No Model Compatibility List $1.43 / Each

2
714160 1000312247 K4 End cap - weight horn 2.5lbs No Model Compatibility List $5.04 / Each

9,3
714161 1000312249 K5 End cap - weight horn 5lbs No Model Compatibility List $5.04 / Each

9,3
714162 1000312250 K8 End cap - weight horn 10lbs No Model Compatibility List $5.04 / Each

9,3
714163 1000312253 K7 End cap - weight horn 25lbs No Model Compatibility List $5.04 / Each

9,3
714164 1000312254 K6 End cap - weight horn 45lbs No Model Compatibility List $5.04 / Each

9,3
Z 714235 1000312700 Z23 7/16" FLAT WASHER No Model Compatibility List $2.44 / Each

2
714342 1000313852 Z28 Screw;Flat;5/16-18 x 1/2" No Model Compatibility List $0.00 / Each
Out Of Stock 		2
714538 1000315894 V40 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

7,3,4,5,6
714659 1000316805 AB10 Weldment;Corner Brace;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
P 714766 1000318109 Pull Up Kit 1 HAND GRIP 1.25 DIA 0-12"LONG No Model Compatibility List $48.98 / Each

11
714771 1000318165 Kit 1 WEIGHT HORN SET No Model Compatibility List $18.56 / Each

3
715337 1000324301 B9 WELDMENT;Band Peg;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
717377 1000344562 Pull Up Bar V1 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $15.18 / Each

7,3,4,5,6
717829 1000347917 AB5 Top w/ Decal;MR Series;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
717830 1000347918 AB5 Top w/ Decal;MR Series;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3,4,5,6
717831 1000347919 AB5 Top w/ Decal;MR Series;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3,4,5,6
717930 1000348678 B43 1/4" ABS Guard No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
717949 1000348824 Pull Up AB1A Weldment;Pull Up Bar No Model Compatibility List $0.00 / Each
Out Of Stock 		3
718520 1000351185 Pull Up Bar Set Pull Up Bar Set;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
718521 1000351186 Pull Up Bar Set Pull Up Bar Set;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
718522 1000351187 Pull Up Bar Set Pull Up Bar Set;L No Model Compatibility List $0.00 / Each
Out Of Stock 		1
718749 1000353136 K3 1.25" Grip;Order by 1" increments; No Model Compatibility List $0.00 / Each
Out Of Stock 		11
718961 1000354777 Spotter Stand 4 Screw;HH;.500-13 x 7.5;ZN No Model Compatibility List $0.00 / Each
Out Of Stock 		2
719471 1000361886 AB4 WELDMENT, RH UPPER BRACE;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
719472 1000361887 AB4 WELDMENT, RH UPPER BRACE;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
719473 1000361888 AB4 WELDMENT, RH UPPER BRACE;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
719474 1000361900 AB2 Rear Right Plate WLDMT;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719475 1000361901 AB2 Rear Right Plate WLDMT;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
719476 1000361902 AB2 Rear Right Plate WLDMT;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
719477 1000361914 AB3 Right Weight Tube Frame;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719478 1000361915 AB3 Right Weight Tube Frame;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
719479 1000361916 AB3 Right Weight Tube Frame;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
719480 1000361928 AB33 Weldment, Base, Left MR690;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719481 1000361929 AB33 Weldment, Base, Left MR690;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
719482 1000361930 AB33 Weldment, Base, Left MR690;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
719483 1000361942 AB34 Weldment, Base, Right MR690;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719484 1000361943 AB34 Weldment, Base, Right MR690;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
719485 1000361944 AB34 Weldment, Base, Right MR690;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
719680 1000363753 V42 Warning Label;Plate Loaded; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719681 1000363756 V42 Warning Label;Plate Loaded;French No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720804 1000376344 Spot Stand L Se Spotter Stand Set;Left;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
720805 1000376345 Spot Stand R Se Spotter Stand Set;Right;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
720965 1000378897 AB1 WELDMENT, LOWER CROSS BRACE;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720966 1000378898 AB1 WELDMENT, LOWER CROSS BRACE;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720967 1000378899 AB1 WELDMENT, LOWER CROSS BRACE;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721011 1000379511 AB7 WELDMENT, RH REAR POST No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
721012 1000379512 AB8 WELDMENT, LH REAR POST No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
721552 1000384006 V41 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
724743 1000426421 J Hook Set J Hook Set;Pair;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
724744 1000426422 Safety Bar Set Safety Bar Pair Set; No Model Compatibility List $0.00 / Each
Out Of Stock 		9
729066 Order Spotter Stand Set Spotter Stand 1 Weldment;Spotter Stand No Model Compatibility List $0.00 / Each
Out Of Stock 		3
